Jersilb

Added new exhaust/muffler

By Jersilb, in Engines

Recommended Posts

Jersilb    10

Jersilb
Posted (edited)

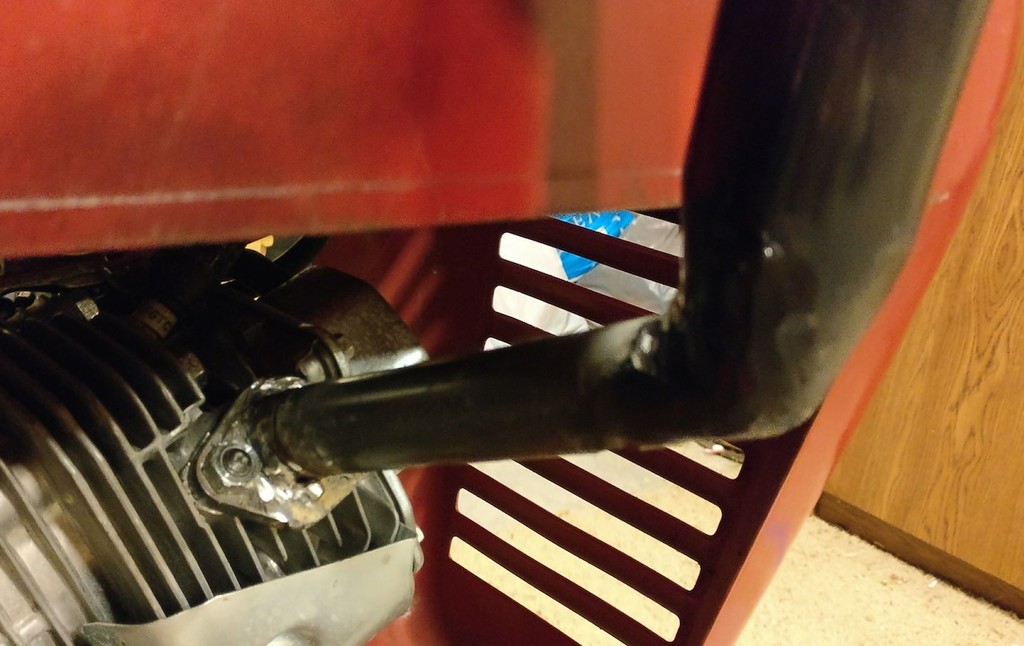

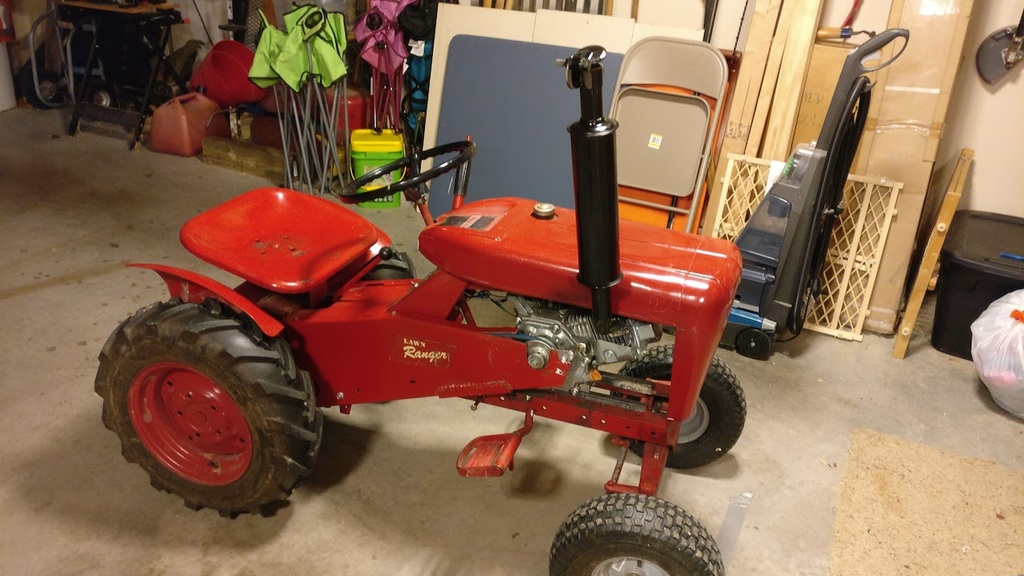

Decided to add a traditional tractor exhaust/muffler tonight. I think it turned out pretty good. Used a Ford Muffler and reduced it to a 1" pipe, welded the 1" pipe to a new exhaust port flange. Amazingly, it is a lot quieter now. Did not expect that.



Next, I might add some little headlights on each side of the hood. Probably need a little coil to run them. Well see what I can find on eBay.





Edited by Jersilb
  • Like 4

Share this post

Link to post
Share on other sites


tunahead72    2,429

tunahead72
Posted

Can't see your photo. :confusion-shrug:

Share this post

Link to post
Share on other sites


Jersilb    10

Jersilb
Posted

I think I got the photo thing sorted out. Hopefully working now.

  • Like 1

Share this post

Link to post
Share on other sites


tunahead72    2,429

tunahead72
Posted

That's better. :thumbs:

Share this post

Link to post
Share on other sites


pfrederi    17,864

pfrederi
Posted

Nice stack...watch out for tree branches you may pop of a piece of your engine block

  • Like 1

Share this post

Link to post
Share on other sites


953 nut    55,744

953 nut
Posted

:woohoo:               Looks good. I think you may want to consider adding a brace that would go down to the frame from just below the muffler, lot of vibrating weight on those two studs coming out of the aluminum casting.

  • Like 2

Share this post

Link to post
Share on other sites
