Pallet Ship a Tractor

[Zeek 2,286]

I read the threads related to shipping via Fastenal and it seems like it will work.



Question:

If you have sent or received a full tractor, can you tell me how it was secured to the pallet securely without screwing it up? Pics would be awesome.



I may ship a fully restored tractor and I don't want to scratch the axle housings with straps.



Thanks.

[Digger 66 3,478]

I've seen them banded around the tire with 5/8" plastic banding much like an auto recovery operation secures cars to rollbacks .

Bonnets I think they're called .









Edited April 30, 2017 by Digger 66

[stevebo-(Moderator) 8,330]

[Shynon 7,459]

Never shipped one, but I would strap all four tires to the pallet, thus only touching the rubber. That is how I strap them in my enclosed trailer.

[wh500special 2,160]

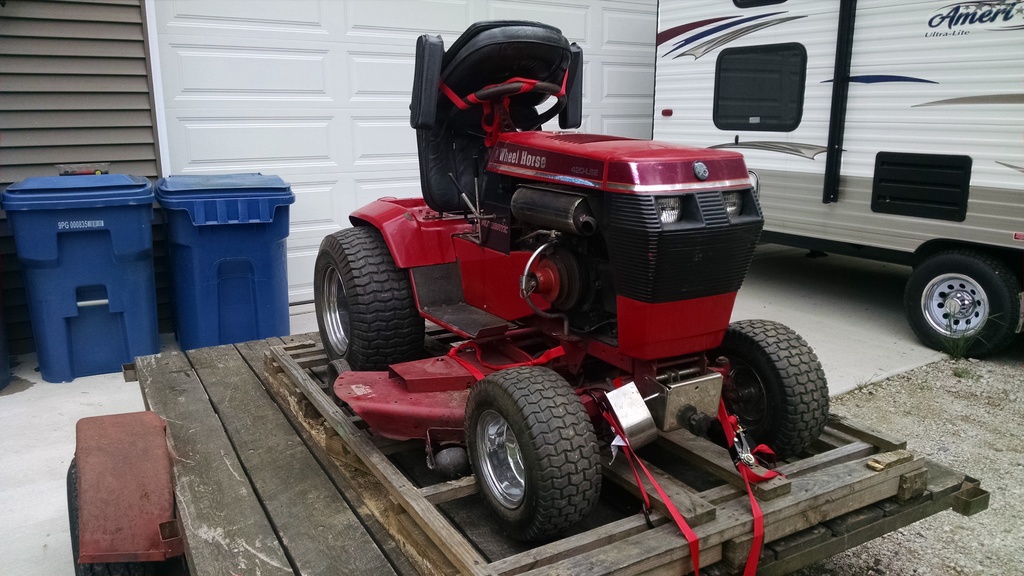

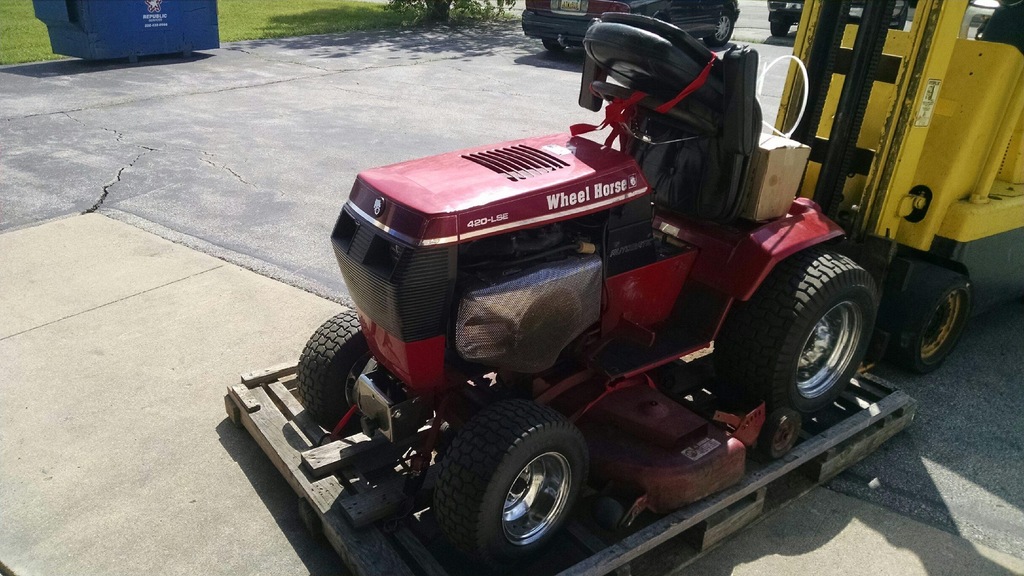

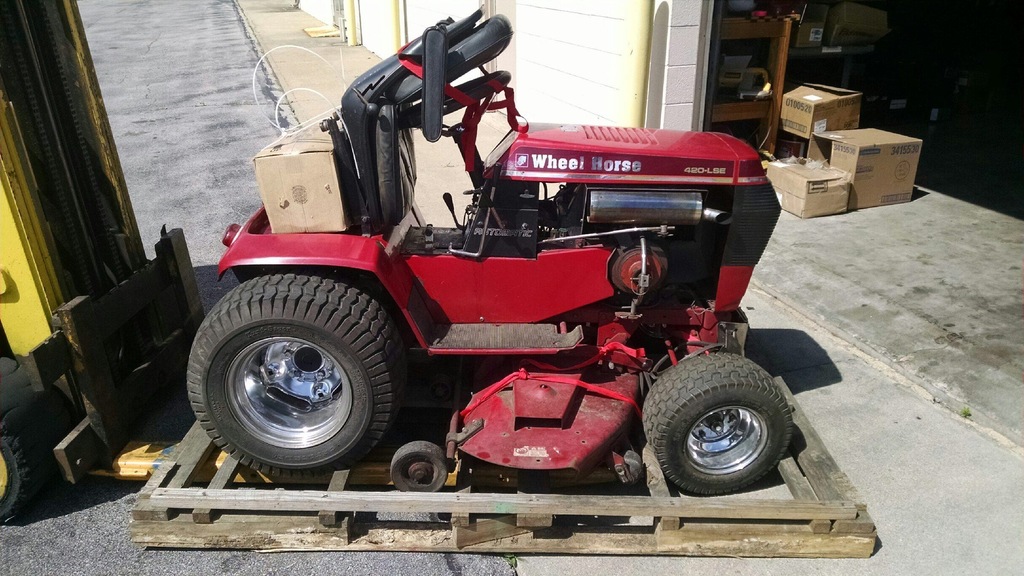

I've sent several via fastenal and haven't had any complaints.  I use ratchet straps and hook them into the holes on the front of the frame-to-transaxle mounting plate to hold the tractor for side-to-side stability.   The other strap goes on the hitch, under the pallet, and up around the front to the front axle.  I think if I had one o had to worry about not scratching on the front I'd lasso around the front tires.

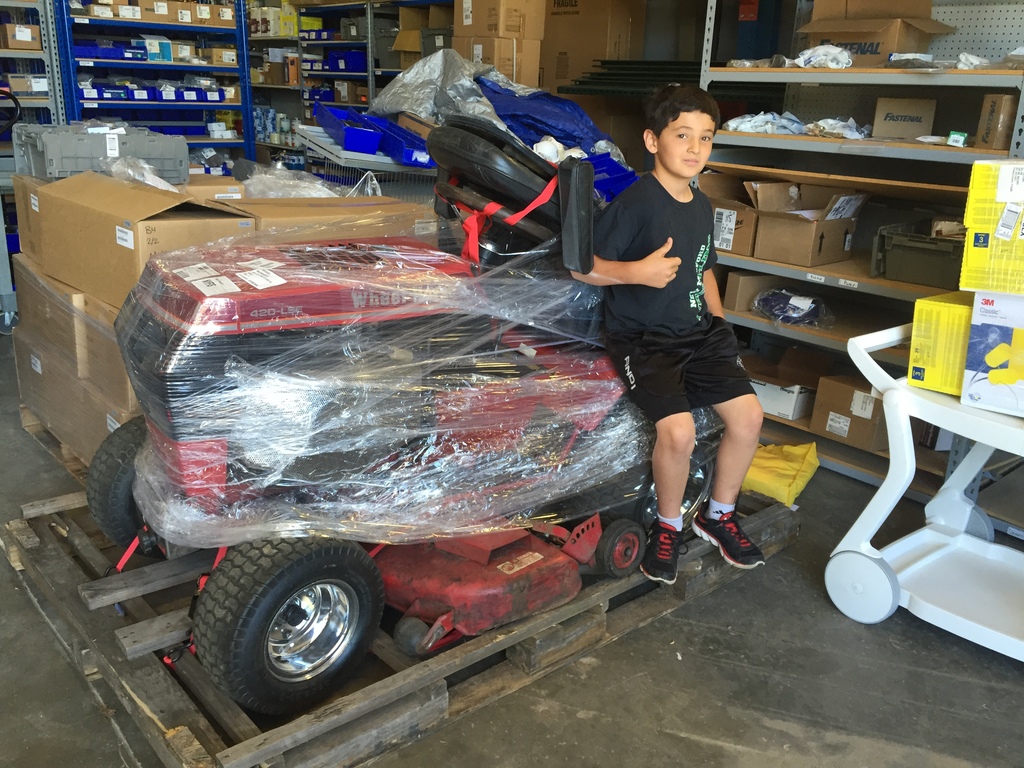

Then I stretch wrap the whole thing to keep prying eyes and fingers out.



Block the tires of course.



Steve



[Zeek 2,286]

All good suggestions! The tires never occurred to me for some reason . . .



Thanks for the pics Steve!

[953 nut 55,051]

12 minutes ago, Zeek said:

All good suggestions! The tires never occurred to me for some reason . . .



Thanks for the pics Steve!

  I think it would be a good idea to partly deflate the tires prior to strapping the tires so the strap can't slide off the side.

[stevebo-(Moderator) 8,330]

I am sure they told you but all the fluids are suppose to be drained. Not sure if they check the tranny?

[WHX?? 48,760]

Can you leave the battery in it?
