Lawn Ranger HH60 Throttle Linkage Hookup

[Dan693 510]

Hey All,

Is anyone aware of a diagram or detailed pic of the proper way to attach the governor control rod, throttle return spring, and throttle cable on my Lawn Ranger?

I found one online but it's still a little unclear. I fiddled with 2 or 3 different ways but it still doesn't seem quite right.



The good news is I have HOT spark.......a little scared of myself about how good it felt to see the good spark. My face turned WH red....or at least rattle can Regal Red.

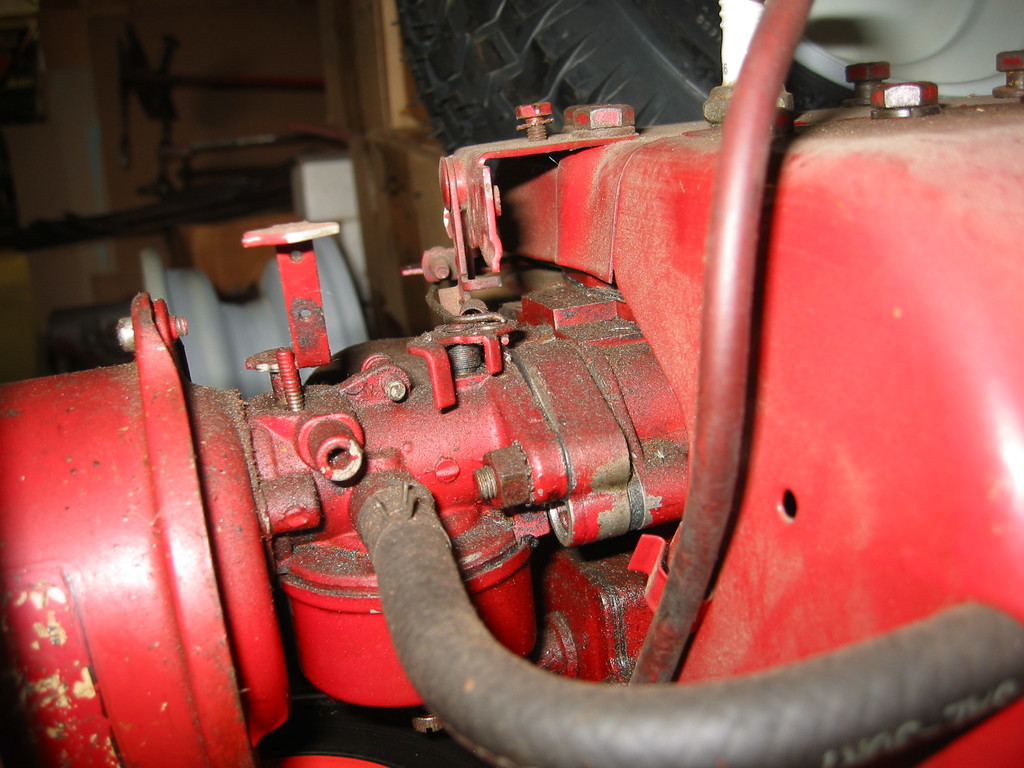

Pic is the unhooked version. Any info is appreciated.

The little tab that screws to the governor bracket is not in the pic.



Thanks!

[stratostar250 919]

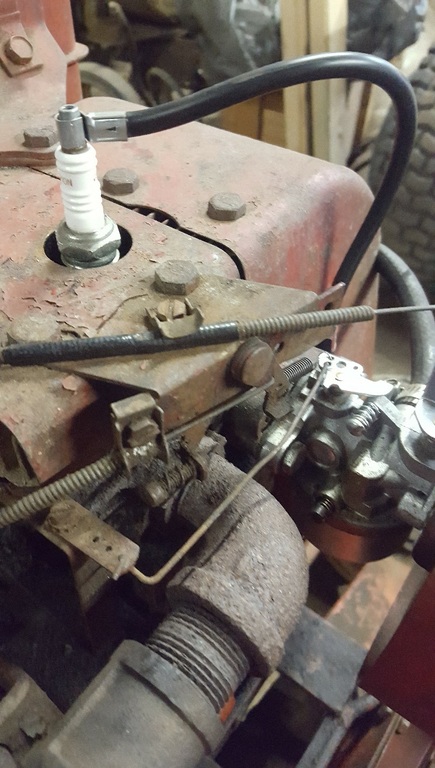

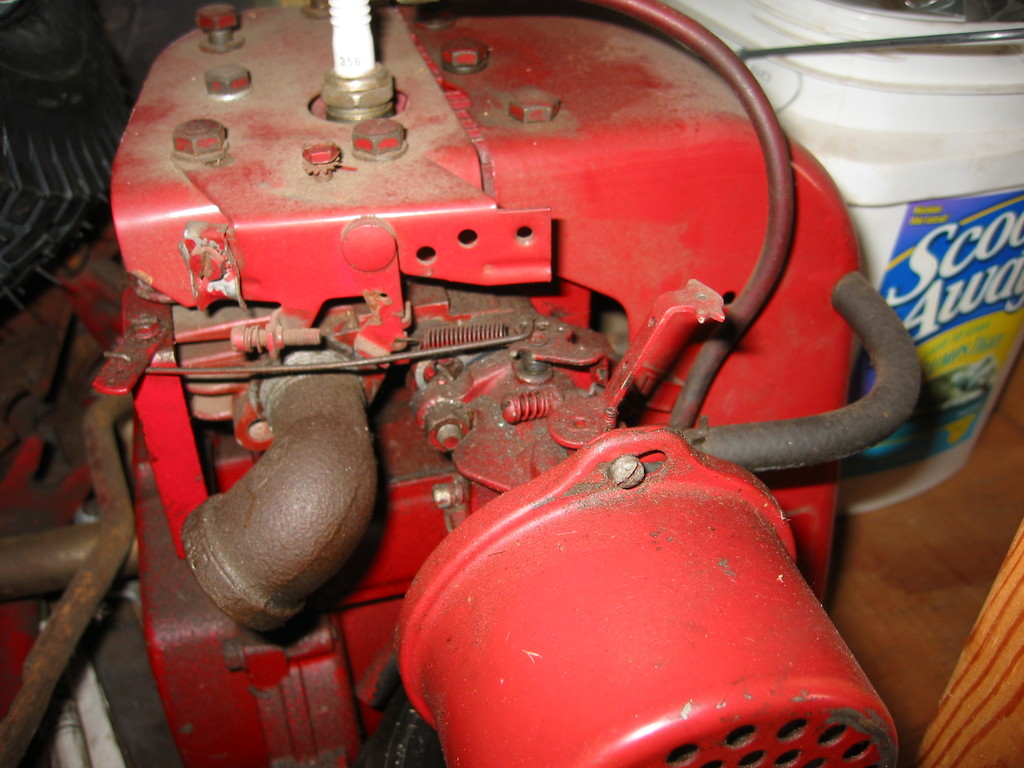

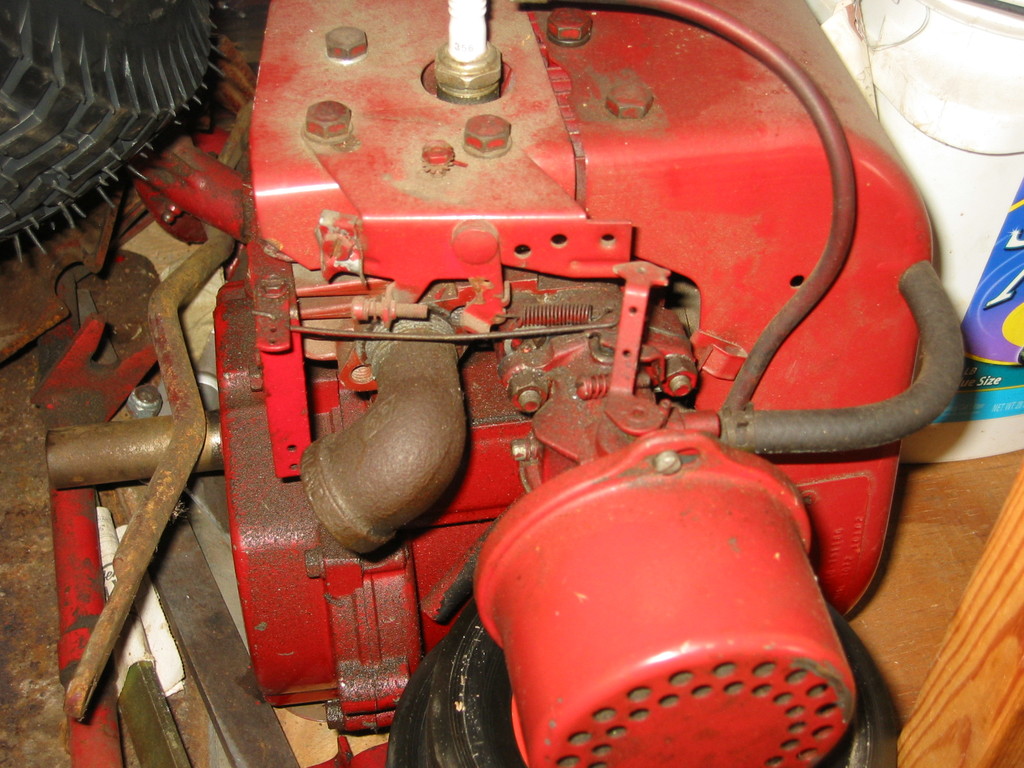

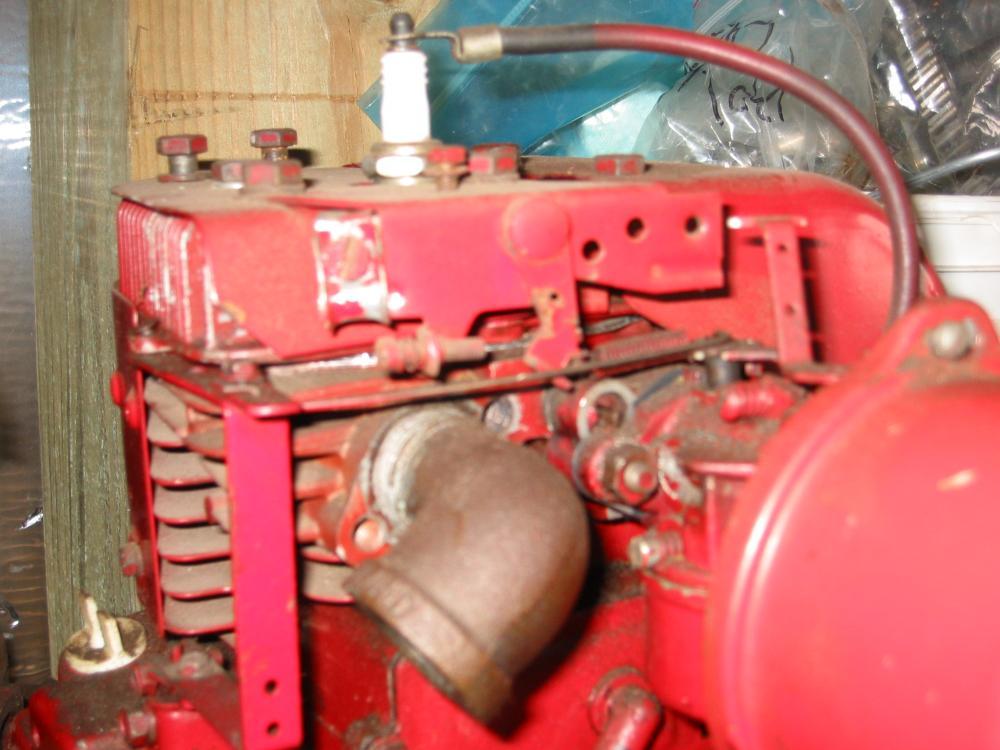

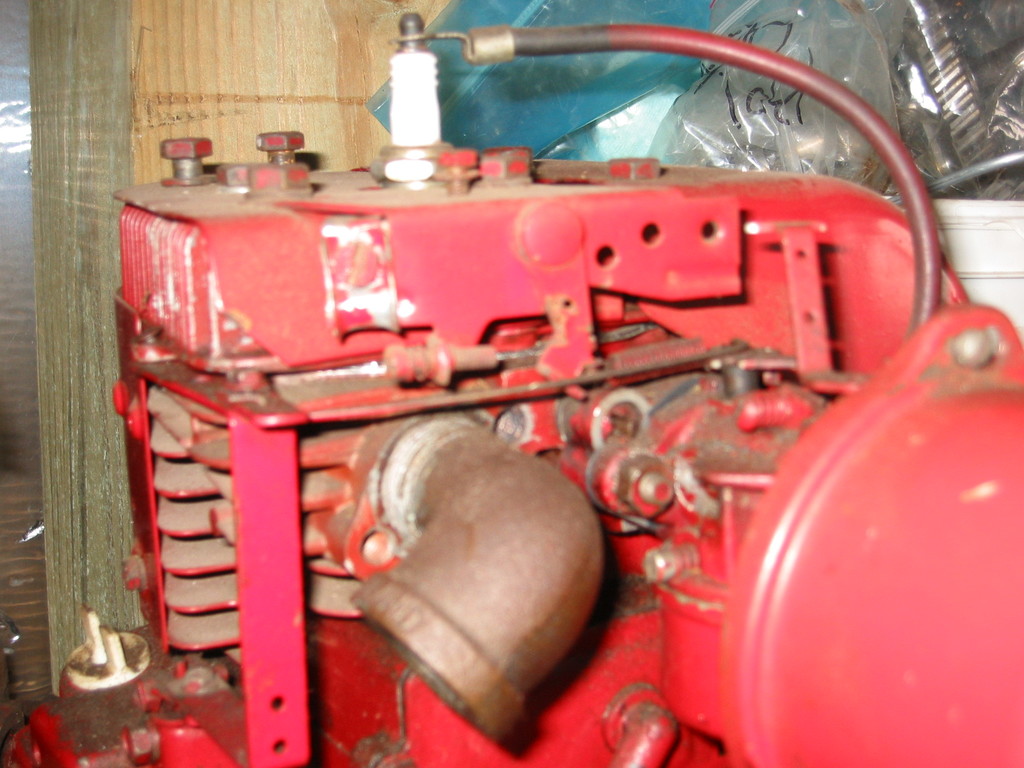

I'm sorry its a bit blurry, but it's the only one I had in my archive without going to look at it.



Edited February 4, 2017 by stratostar250

[Dan693 510]

Thanks for the pic!.....my governor link arm is totally wrong which makes sense why it wouldn't fit.



I'll start looking for one......anyone have any leads on where one might be available?.......part number?

[Dan693 510]

Thanks again for the pic of the linkage.



Is there any way you could measure the governor link from pivot to pivot points and send me the length?



I thought I would try to make one out of some old links I have.



Thanks!

[pfrederi 17,741]

the wire is 4" between holes.

This is the original H60 from my L-107  is yours really a HH60??  replacement???

Edited February 5, 2017 by pfrederi

[305 380]

i just measured an original one and i came up with 4-1/8"



they are easy to make from .060 tig filler rod
