Adding power steering on the 'Big D's' (and possibly others?)

[pacer 3,174]

I recently posted about adapting power steering to my D-180 using an electric power assist steering (EPAS) unit from a 02-07 Saturn Vue. I got one of the units in order to check if I would be able to 'stuff' it in under the dash of the D. You can get these things in different configurations, this one had the steering column attached (its not needed)



With this and Sarges recent post on improving the axle and its components on the D's, the dang thing will steer itself!!





After removing the wheel, I needed to try and get it to fit under the dash, with a bit of experimenting I found a near perfect spot!

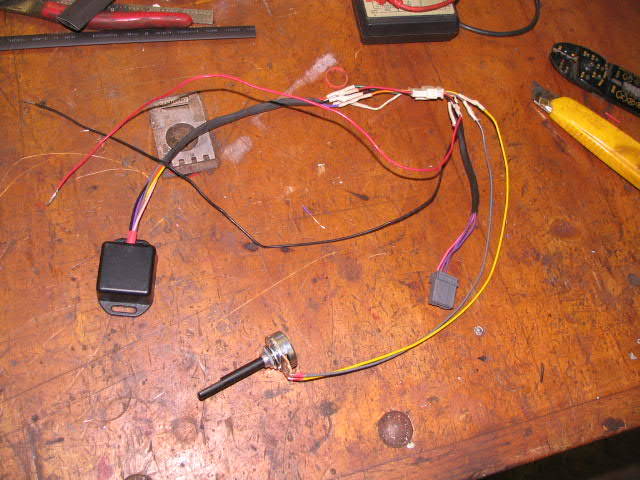

So next we have to get the EPAS to function - It will not work since it no longer has the cars computer to "talk" to it. To fix this a fella on ebay has a 'controller box' that when wired into our EPAS it can work. His link is:

http://www.ebay.com/itm/Saturn-Vue-Ion-Chevrolet-Equinox-Electric-power-steering-controller-box-EPAS-/182283275302?hash=item2a70ee0c26:g:uVAAAOSw4GVYJv77

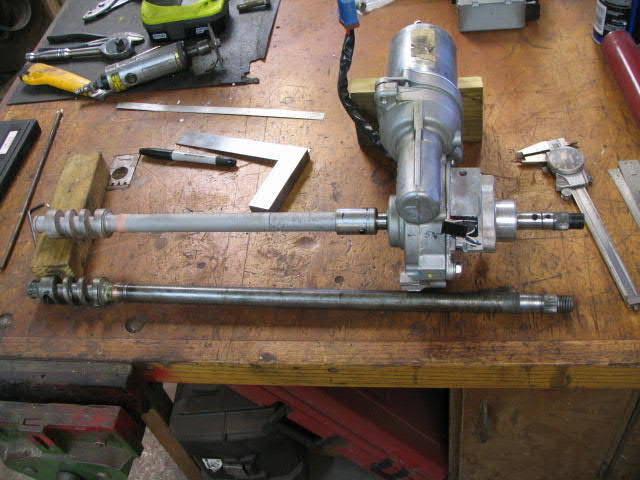

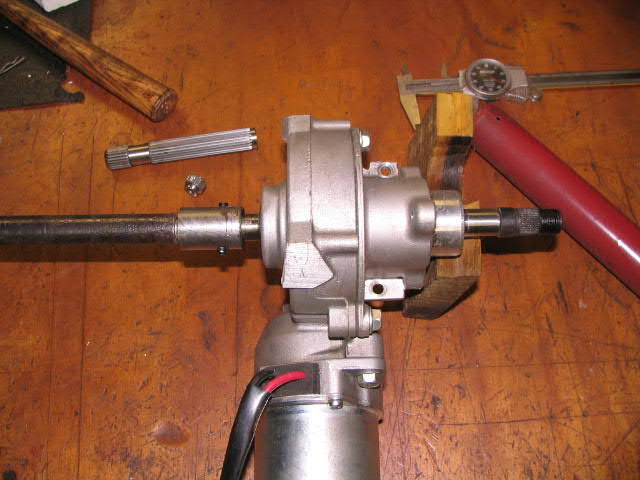

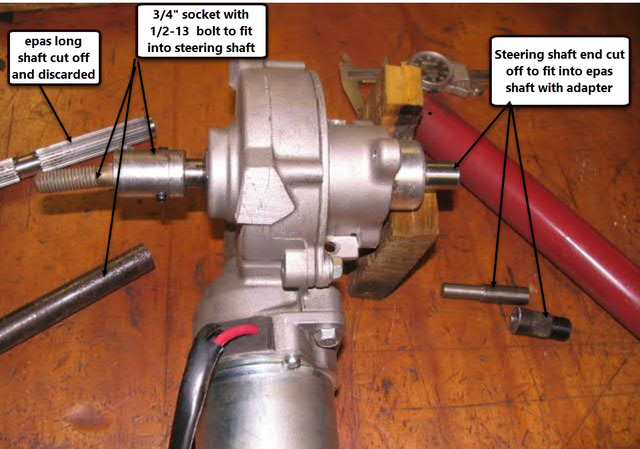

So then it was time to get the shafts cut to length and adapted to accept the shaft of the Ross system. The longer shaft is steering wheel side and is cut off pretty short to accommodate/adapt the D's wheel. I had a spare Ross steer shaft and cut the splines/threads plus about 1/2-3/4" excess and made an 'adapter' to mate it to the EPAS shaft using roll pins. The other sides shaft was already pretty short but I still lopped off about 3/4". I then bored out the square end of a 3/4" shallow 1/2" drive socket to fit over the other EPAS shaft, again using a roll pin to attach. This was in order to allow some leeway when I cut the Ross shaft to match up with the EPAS.

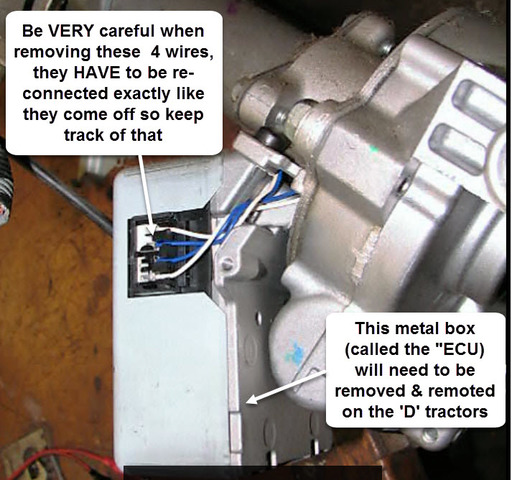

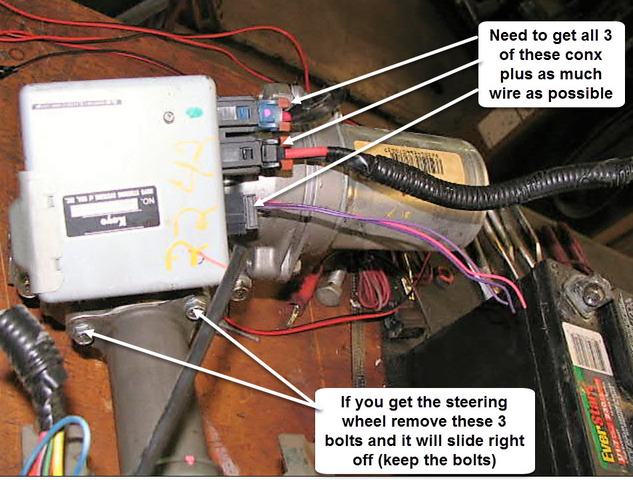

Next we have to wire the controller box into our unit --- and this part is critical for it to function! (I know because I messed one up) Mounted on the unit is a metal box (ECU) containing the 'brain' for it. This will have to be removed and "remoted" elsewhere and here is where caution is needed - there are 4 very small wires from the motor to the box (2 white & 2 blue) these are hard wired and will have to be cut or de-soldered. Re-connecting the sequence is critical!! With the wires being so small and short and not having any experience with small wires I had problems here (this is where I messed up)

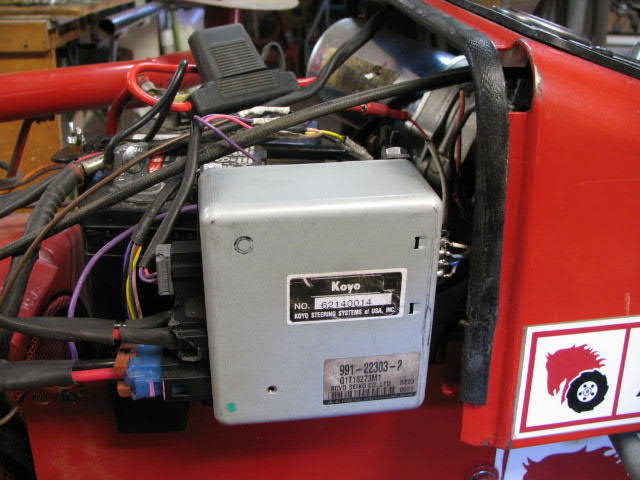

Not a lot of room in the area under the hood - I finally figured out how to get the ECU mounted.

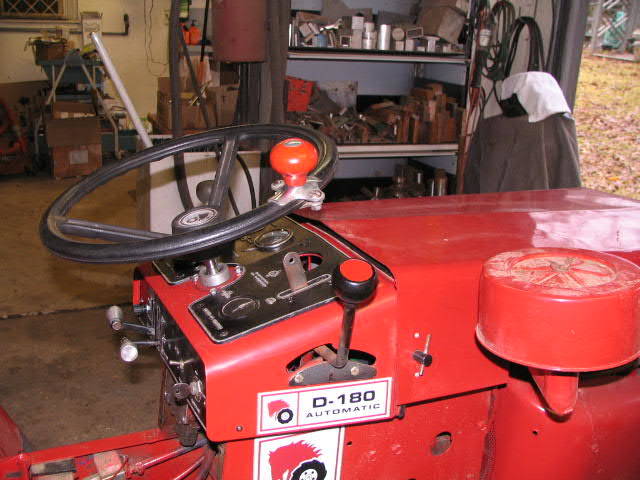

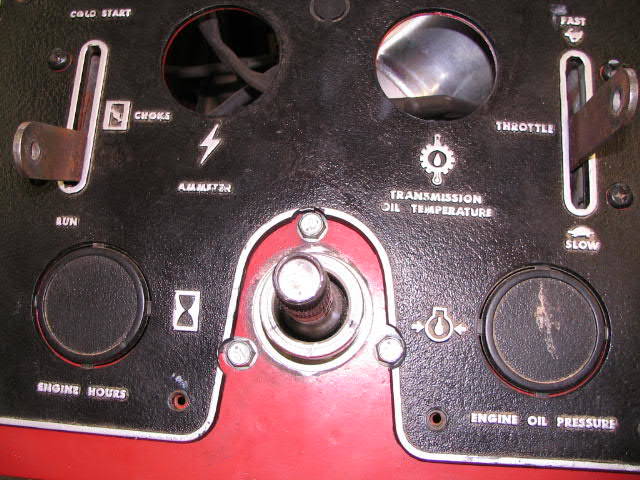

There is hardly any visible alterations to the external appearance of the tractor - just under the steering wheel is a short section of the EPAS visible, and the gauge for the transmission oil temp will have to be removed but thats it.





The ease of the steering on the D now is incredible, with the tractor sitting unmoving on concrete is one finger, and driving it is --- well, again, incredible! Course I dont have a FEL or plow, etc but I feel like this mod would also drastically improve the steering also.



Am not familiar with the other big tractors enough to comment on this mod being possible but you guys sure ought to do a little research on it.



I have a 4x4 Mitsubishi with FEL and thats my next venture with this, it doesnt look promising to fitting on it but it didnt look possible on the D til I got to tinkering with it!!



edit to add a late suggestion--

When you get your EPAS and the controller box from Portugal set it up on the bench hooked to a battery to not only make sure it works, but also to get familiar with how to get a feel of what/how it it does. I didnt do this and I believe it would have benefited me a lot...



Edited December 13, 2016 by pacer
