william kirk 11 #1 Posted December 4, 2016 Hey guys, im trying to figure out if i have an 8 hp or a 12 hp on my b-80, i seen pics of the 12 and it looks like mine, but i dont know for sure. A ny features or markings to tell the two apart..... thanks Share this post Link to post Share on other sites
KC9KAS 4,743 #2 Posted December 4, 2016 Check the data plate on the engine and see the attached web site. http://gardentractorpullingtips.com/engspecs.htm Share this post Link to post Share on other sites
N3PUY 1,031 #3 Posted December 4, 2016 the flywheel is much larger on a 12HP than on a 8HP. Share this post Link to post Share on other sites

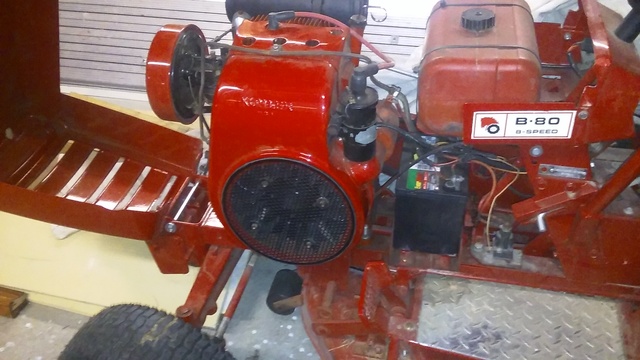

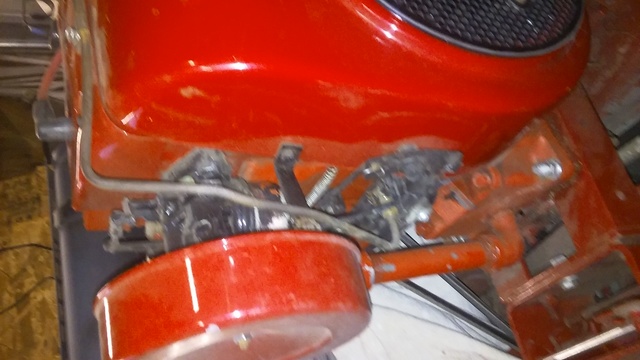

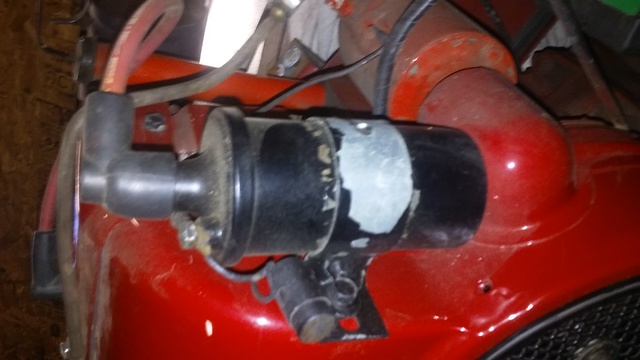

william kirk 11 #4 Posted December 4, 2016 this is it... Share this post Link to post Share on other sites
953 nut 57,841 #5 Posted December 4, 2016 The engine model number can be looked up on this list to be sure. wheelhorseallyears.pdf Share this post Link to post Share on other sites
william kirk 11 #6 Posted December 4, 2016 ok , thanks according to the plate is an 8 hp.....thanks guys Share this post Link to post Share on other sites
Terry M-(Moderator) 2,203 #7 Posted December 4, 2016 Are you sure??? Looks like a 10 or 12 hp.... 1 Share this post Link to post Share on other sites
Racinbob 11,718 #8 Posted December 4, 2016 That's definitely not an 8 horse. Look at the difference in the size. 10- 16 hp's are basically the same size externally and much bigger than an 8 hp. The 8's also mounted on a riser plate. 3 Share this post Link to post Share on other sites
953 nut 57,841 #9 Posted December 4, 2016 Count your head bolts; an 8 will have seven and a 10, 12 or 14 will have nine. 2 Share this post Link to post Share on other sites
william kirk 11 #10 Posted December 4, 2016 8 bolts that i can see dang things huge! plate calls it an 8 , the guy i bought it from says 8, but i think its to big to be an 8....lmao Share this post Link to post Share on other sites
william kirk 11 #11 Posted December 4, 2016 racin you are right i believe, if yours is an 8 mine is deff not that. yours has about a 2 in raised ring around the screening, mine has about 1/2 in raised area around the screen cover.its got to be a 10 or 12. 2 Share this post Link to post Share on other sites
clueless 3,110 #12 Posted December 4, 2016 Need a pic of how the throttle cable connects to the engine. Share this post Link to post Share on other sites
Racinbob 11,718 #13 Posted December 5, 2016 1 hour ago, william kirk said: racin you are right i believe, if yours is an 8 mine is deff not that. yours has about a 2 in raised ring around the screening, mine has about 1/2 in raised area around the screen cover.its got to be a 10 or 12. That's not mine but I just wanted to show you the obvious difference between a big block and the small block 8. The other guys are letting you know the more subtle differences between the 10, 12, 14 & 16 horse motors. All good stuff. 1 Share this post Link to post Share on other sites
william kirk 11 #14 Posted December 5, 2016 looked at some pics....pretty sure its a 10 hp 2 Share this post Link to post Share on other sites
