WHX?? 48,762 #51 Posted October 21, 2016 What do you mean by won't hook up to the hydro and what is missing ... maybe these two-stage pros can help you out?? We generally don't like it when any of our fellow junkies get ripped. 1 Share this post Link to post Share on other sites
Forest Road 594 #52 Posted October 21, 2016 Let's see some photos of what you have. Then determine how you're going to get it mounted. Several members have parts two stages lying around. I'm sure we can make something useable out of it. Share this post Link to post Share on other sites

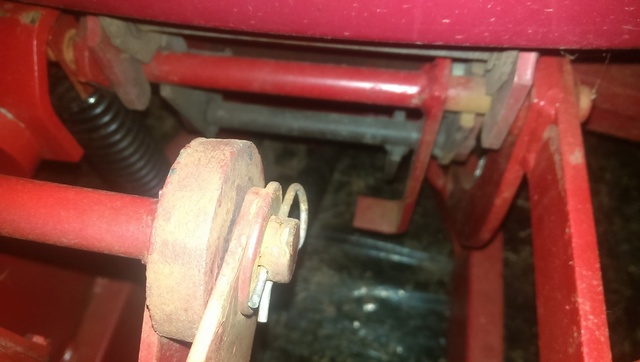

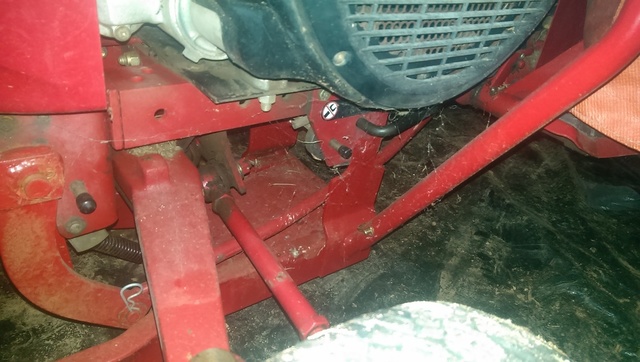

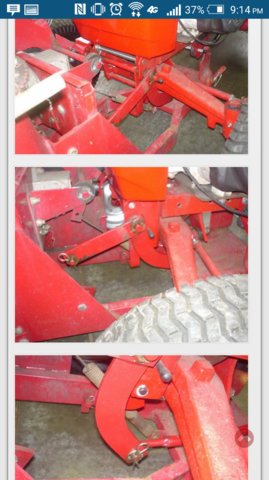

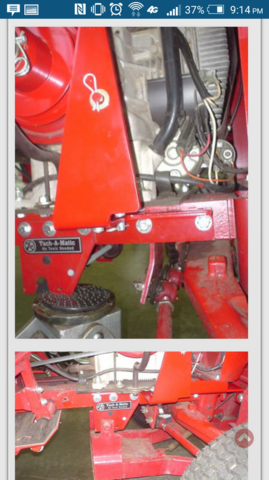

WVHillbilly520H 10,373 #53 Posted October 21, 2016 (edited) Here are some pics see what you're missing and maybe someone can help you out or get new parts ect..pic2) sway bar/belt guard bracket that bolts to the frame pic3) front attach/height control pic1) lift assist spring,mid attach point belt routing next) the lift rod attached to the lift point under the tractor "this rod goes to the front attach/height control which lifts the blower" , idler tension spring mounted to the blower frame/idler shaft the curved part going under the axle to the lift rod and the chute crank support off the frame near the mid attach point 6) sway bar/bumper installed "rolls" against the blower to keep it aligned with the tractor...hope this helps get what's needed/missing ,you will really like that 2 stage if you get it going but the tall chute single is very close except in packed snow plows banks,Jeff. Edited October 21, 2016 by WVHillbilly520H 1 Share this post Link to post Share on other sites

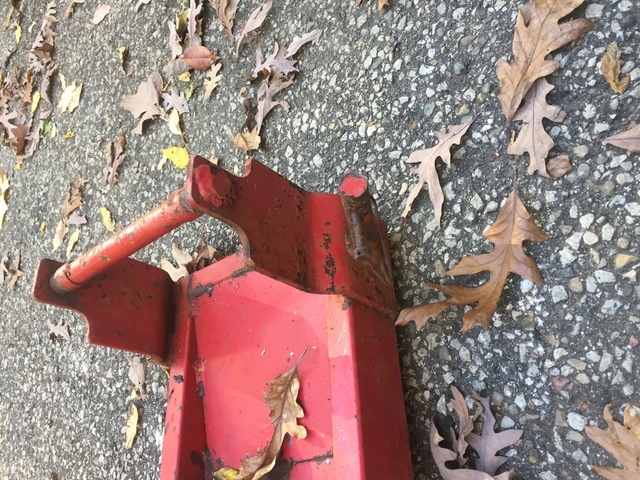

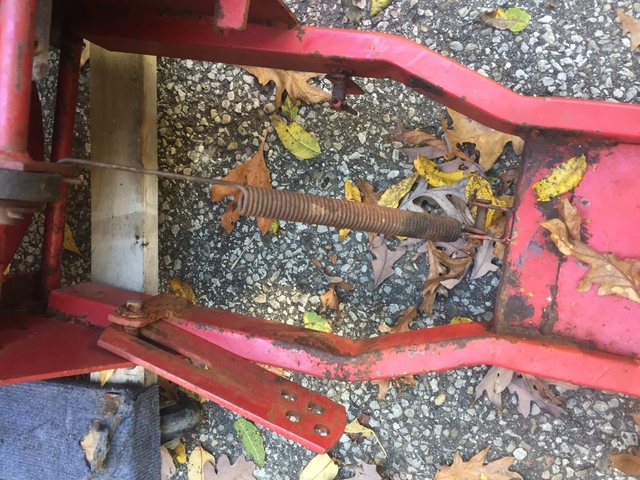

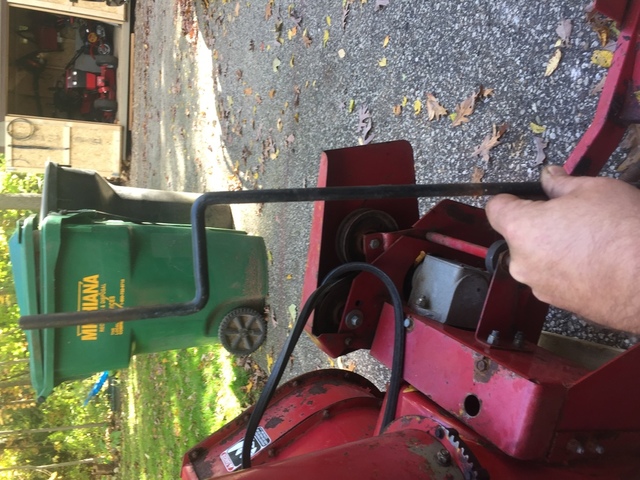

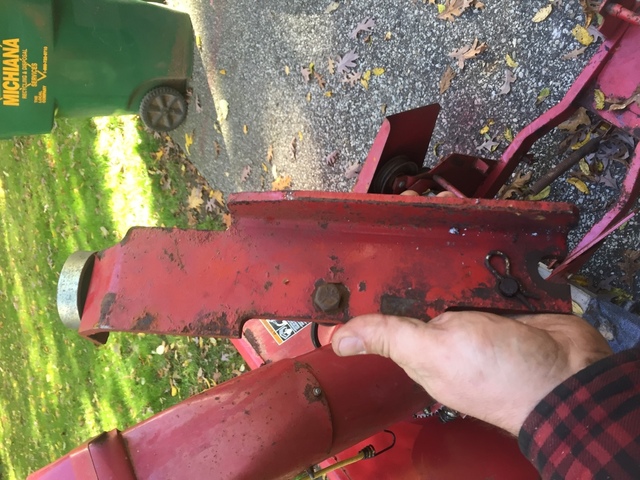

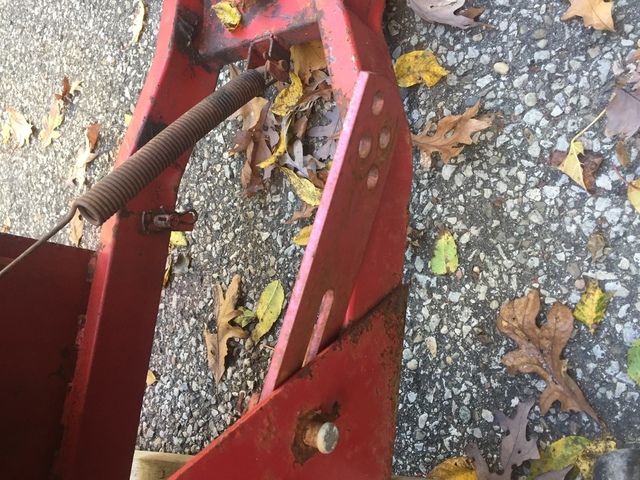

Firecop119 5 #54 Posted October 21, 2016 (edited) These are the photos I just took and by looking at hillbilly's photos I can probably just hang it up. I can't believe I got taken like that. Sorry if the pics are turned I'm new at this Edited October 21, 2016 by Firecop119 Share this post Link to post Share on other sites
cleat 5,809 #55 Posted October 21, 2016 Looks like you got a lot of the parts. Can you show exactly what you have and we can determine what you need and maybe we can locate the missing pieces somehow. 1 Share this post Link to post Share on other sites

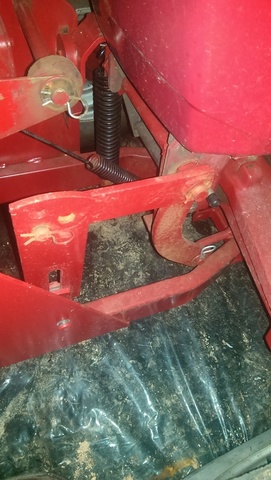

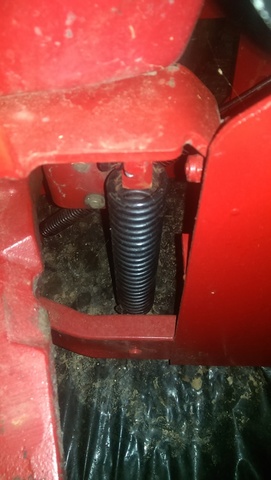

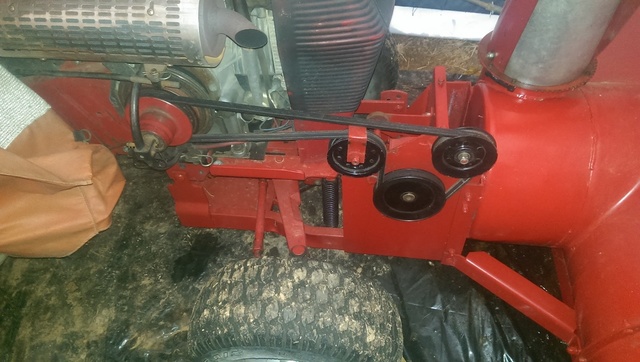

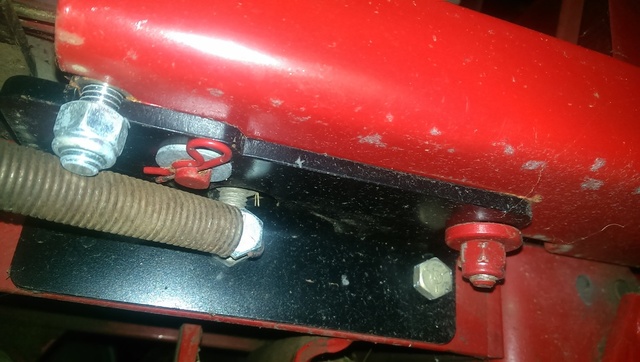

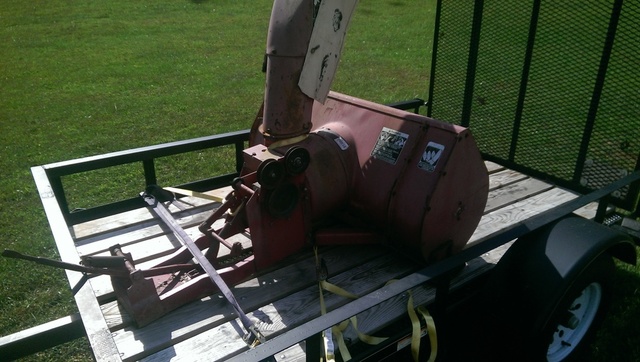

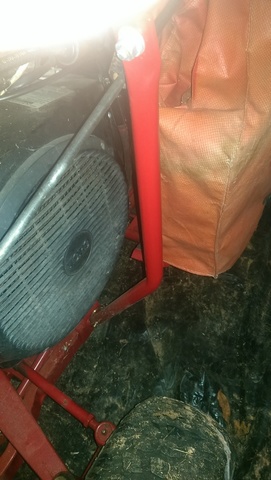

WVHillbilly520H 10,373 #56 Posted October 21, 2016 Ok in #1 is the sway bar/bumper just need the frame bracket/belt guard holder which I have a spare, what's really missing is the front attach bracketry and lift rod which some others may have, and you have the chute crank but missing the rod that goes to the frame to hold it, the belt guards were missing on mine they're just a "luxury" you have the front 1, and the sway bar/bumper is "optional" so my suggestion is posted a wanted ad in the classifieds for the front attach bracketry and lift rod, the chute crank handle holder could be fabbed up somewhat easy, and the lift assist spring is mainly for the manual lift vs our hydraulics,Jeff....#1 the sway bar frame bracket I made myself, 2) the chute crank holder rod, 3&4) the bracketry you need, 5) the lift rod (best I could photograph it) 6) the lift assist spring 7) how I run it without the belt guards. 2 minutes ago, cleat said: Looks like you got a lot of the parts. Can you show exactly what you have and we can determine what you need and maybe we can locate the missing pieces somehow. Yes what Cleat says take a pic of ALL you have in 1 or more shots together like this...when I brought mine home,Jeff. Share this post Link to post Share on other sites
Firecop119 5 #57 Posted October 21, 2016 Lol. I did send pics of what I have. Lol. Not much What I'm realizing is that I have a puzzle and not all the pieces to put it together holy crap. Lol Share this post Link to post Share on other sites
roadapples 6,983 #58 Posted October 21, 2016 Thanks for all the pics Hillbilly.. I have all the parts for mine but have never had it installed. This will be a big help. Firecop hang in there. The guys on here are always a big help... 2 Share this post Link to post Share on other sites
Firecop119 5 #59 Posted October 21, 2016 Hillbilly your right on for what I need 1 Share this post Link to post Share on other sites

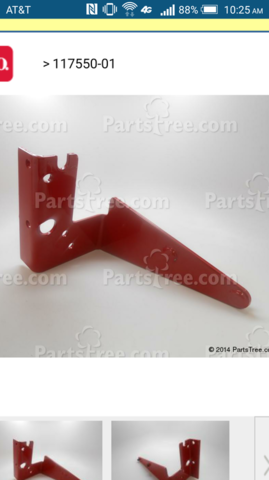

WVHillbilly520H 10,373 #60 Posted October 22, 2016 (edited) I wouldn't necessarily get rid of it yet unless you need the funds to buy an all together single stage, hang on to it till the pieces show up and ALL are welcome for the "virtual tour" as Cleat also posted pics on how to mount this behemoth a while back thanks to him I successfully hitched mine up the first time no issues,Jeff. Oh an pic of the factory sway bar/ belt guards bracket (from parts tree which may have some of the other parts you need just use your Model/Serial#...I got the original 1 from P.O. but had already made and installed mine painted black in my pics earlier... Edited October 22, 2016 by WVHillbilly520H 2 Share this post Link to post Share on other sites

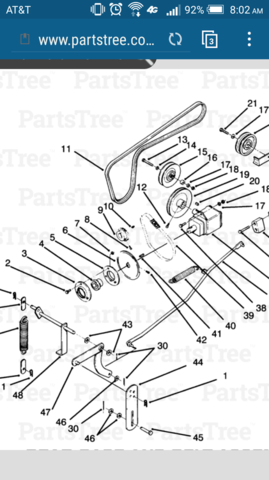

WVHillbilly520H 10,373 #61 Posted October 22, 2016 Firecop hope this parts break down from partstree helps even more showing the front attach brackets and lift rod and other small parts you may need,Jeff. 1 Share this post Link to post Share on other sites
