Tow valve?

By classicdmax, in Transmissions and transaxles

Recommended Posts

classicdmax    190

classicdmax
Posted

I know it is not best practice to push a hydro around. I've searched owners manual I printed from this site, as well as tranny manual....it seems it's on the left side but actual location is vague to me. I have a 73 16h hydro. The no name year I believe.



any help would be appreciated

thanks

Share this post

Link to post
Share on other sites


953 nut    54,887

953 nut
Posted

Take a look at item 6 on page 5 of this manual

Sunstrand Hydro (part 4).pdf

It is under the seat on the left side top of the trans and will require a 1/4 turn, may need a pair of pliers.



  • Like 2

Share this post

Link to post
Share on other sites


Aldon    4,826

Aldon
Posted

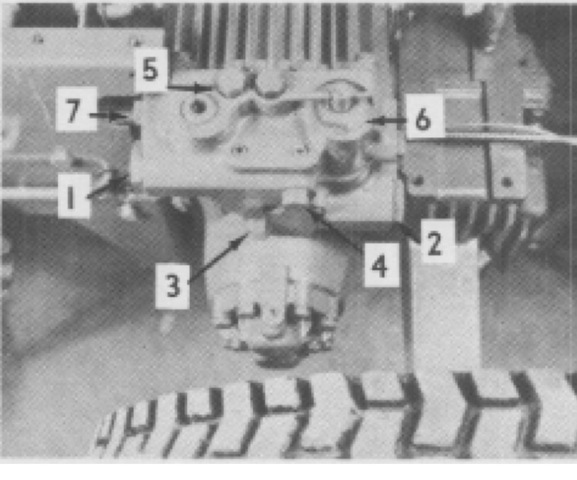

For Easley reference I cropped the pic from the manual:


  • Like 2

Share this post

Link to post
Share on other sites


swisstrac    49

swisstrac
Posted

On  the gt 14   I do 1/2 a turn??  perhaps 1/4 will do .. as you say it's not  easy to access

Share this post

Link to post
Share on other sites


Aldon    4,826

Aldon
Posted

180 degrees is the dictated amount to turn.



make sure when your done you return it to the original location. Otherwise you will end up like me thinking you did not connect something correctly. DOH !!!!





  • Like 1

Share this post

Link to post
Share on other sites


daveoman1966    3,745

daveoman1966
Posted

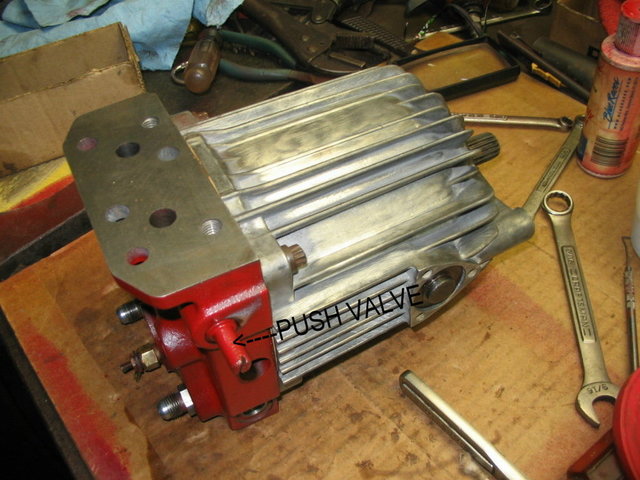

If a 16 Auto...no-name year (1973), the push / tow valve is on the left side.... It looks like a BIG SLOTTED screw.



16 AUTO x).JPG

TOW VALVE.JPG

1 (128).JPG

  • Like 5

Share this post

Link to post
Share on other sites


classicdmax    190

classicdmax
Posted

That last pic helps, thanks guys. I'll check it out tomorrow

Share this post

Link to post
Share on other sites


TDF5G    2,069

TDF5G
Posted

It's harder than %^&*#! to get to, I know that.  :-( Very poorly engineered IMO.  I was fortunate that mine wasn't' frozen up.

Share this post

Link to post
Share on other sites


Wheelhorsegt14    1

Wheelhorsegt14
Posted (edited)

What is the correct position for the push valve?

Edited by Wheelhorsegt14

Share this post

Link to post
Share on other sites


daveoman1966    3,745

daveoman1966
Posted

Turn the PUSH valve clockwise until it bottoms out.



Share this post

Link to post
Share on other sites


classicdmax    190

classicdmax
Posted

Is it possible to weld a tab to end of this valve to aid in operating push valve. I haven't yet had the need to push the tractor, but have tried to open valve and it seems to be frozen

Share this post

Link to post
Share on other sites


pfrederi    17,617

pfrederi
Posted

The heat from welding could damage the O-ring and the plastic backer ring then you will have more problems.  Soak it with your favorite rust breaker over a period of time..tap it and try again.

Tow valve.JPG

Share this post

Link to post
Share on other sites


classicdmax    190

classicdmax
Posted

Ah good thinking, wasn't considering any of the seals

its not a very practicle design for easy operation. You shouldn't need tools to release pressure for pushing or towing

Share this post

Link to post
Share on other sites
