Skeeters65 45 #1 Posted September 1, 2016 Hey guys still gathering parts for my Suburban 400 restoration. I need the the spring or springs that actuate the brake/clutch rod? Is there 1 or 2 and where can I get them? Thanks Share this post Link to post Share on other sites

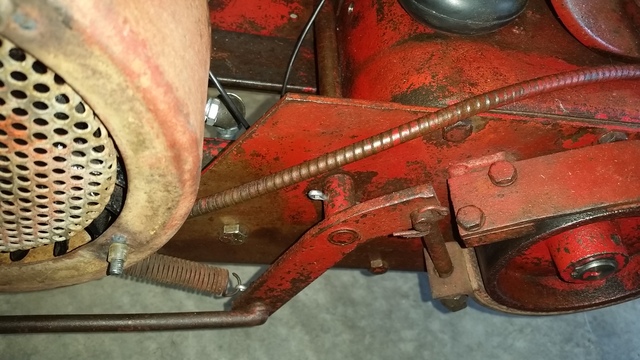

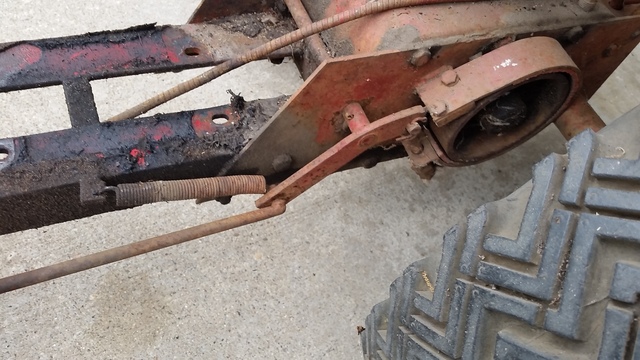

WHX?? 49,188 #2 Posted September 1, 2016 My 400 only has one... should be able to get them at any hardware store 1 Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,102 #3 Posted September 1, 2016 Wheel Horse # 1014 spring replaced by 83-2730 4.500" between hooks, .070" wire, .520" coil OD, .380 coil ID, 3.570" coil length, 52 + 2 half coils Garry 4 Share this post Link to post Share on other sites
Racinbob 11,238 #4 Posted September 1, 2016 I used a Gardner Spring #37083GS from McMaster-Carr. Their number is 9433K111. I actually ordered them for the PTO on my 500 Special and found that they are a close match for the clutch spring on my Suburban 400. Another plus for me is that they are stainless steel. 5 Share this post Link to post Share on other sites
