My Plow Pony

[prondzy 3,883]

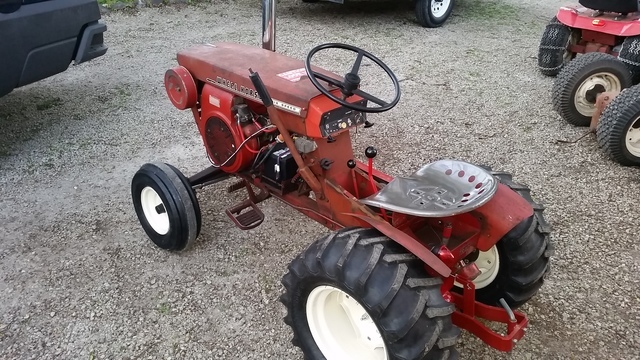

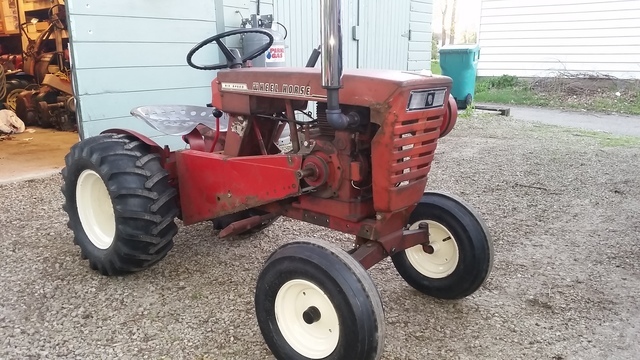

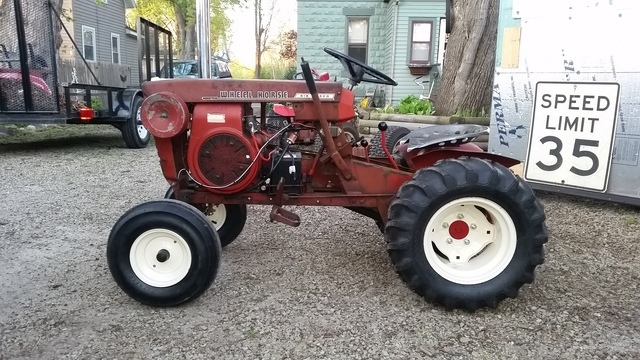

Well I thought i would share some pics of my tractor I built for plowing (moldboard not snow). I just got my first putt around the yard tonight. I still have some minor things to add especially my wheel weights. It started it's life as a 1056, I replaced the 3 speed with an 8 speed trans, tightened up the steering shafts, replaced the front axle pin and beefed up the tierods with a set of adjustables from @wheelhorseman1000 . I pulled the 10hp starter/Gen motor and put on a rebuilt k341 16hp. Modified the tower to meet up with the lawn ranger toolbox/fenders. And put on a hood I had laying out back. She's sporting firestone flotation 23x10.5-12 in the rear and firestone 16-6.5x8 tri ribs on the front.

[AMC RULES 37,143]

Awesome  custom...

here's hoping it makes it to the big show this year.

http://www.wheelhorsecc.com/

[953 nut 56,338]

                     That should have no problem pushing snow (or anything else).

[prondzy 3,883]

Thanks AMC, but unfortunately i cannot go to glthe big show this year, 2 little ones and a new job make it hard to make it. The only way this one would make it is if @Shynon drug it along.

No snow, just a 10" single bottom plow.

Edited May 5, 2016 by prondzy

[AMC RULES 37,143]

Here's hoping that happens.

[elcamino/wheelhorse 9,358]

That is a nice custom .

[Shynon 7,474]

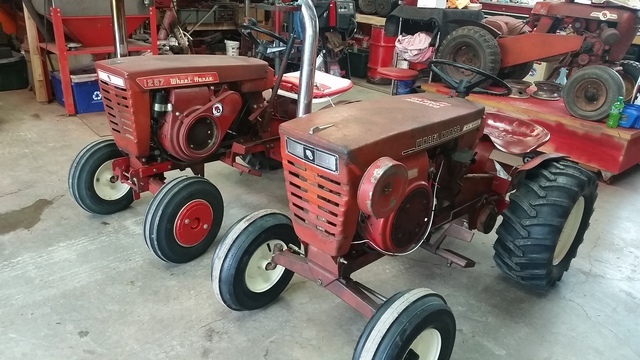

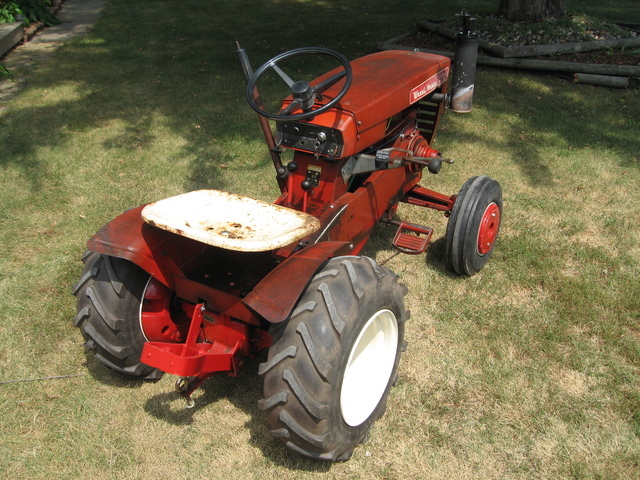

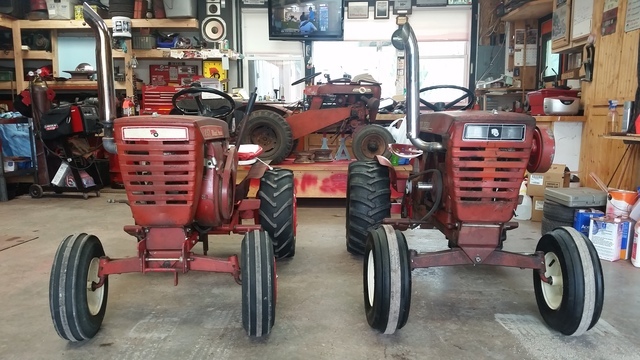

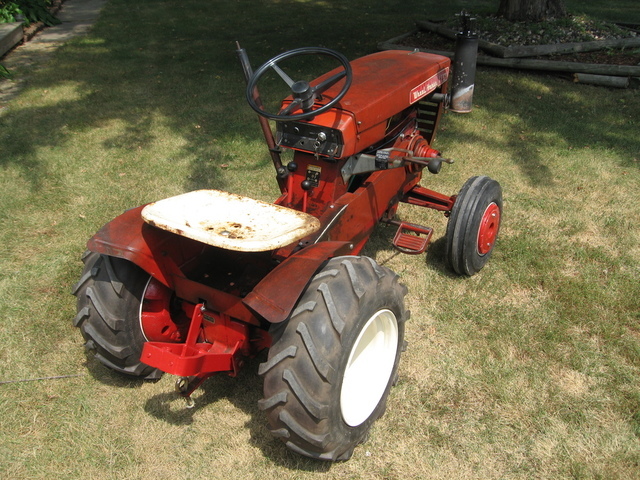

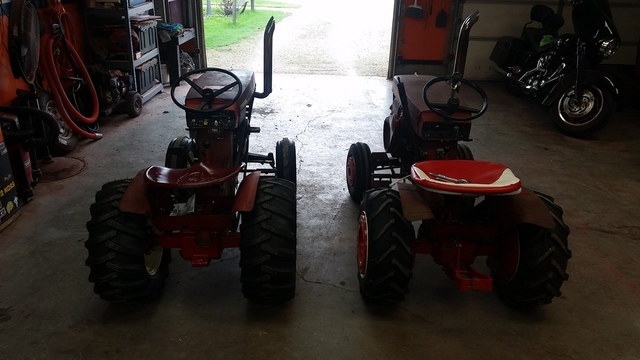

Hmmm quite a resemblance you have there.



[prondzy 3,883]



.... yeah I suppose yours looks like mine

[Shynon 7,474]

2 minutes ago, prondzy said:

yeah I suppose yours looks like mine

[Ken B 3,164]

Real tough looking Horse you got there. Nice job.

[Fun Engineer 859]

Very nice job prondzy.  I like the combination.

[Terry M-(Moderator) 2,177]

Like Father Like son....



Really though, Mike...looks like a Nice set-up you built there.

[JPWH 6,150]

I like your style.
