Clutch spring

[Marv 919]

The clutch spring broke on my 486. While researching I discovered the spring for B80, C120. C160 etc Pn 1014 has been discontinued and Toro does not offer a substitute number. The 486 Pn108035 is available. It is heavier than the 1014 Spring. I see no reason we can't use the 108035 to replace it when needed.

Marvin

[Racinbob 11,030]

You bet, works fine. I didn't know it was heavier. That's probably to compensate for the damper they put on some models. The damper that was on mine fell off

[doc724 925]

Marv, I ran into the same problem when I was restoring my C141.  Came up with the same P/N you did 108035.  Bought 2, installed one and keep one in my WH spare parts box.

[Dakota8338 115]

This is a couple of years old now, but looking for the same spring (number 1014), I encountered an updated number 83-2730, which is still in stock at some locations.  If we are allowed to site sources, I will in the future.  If not, PM me and I will provide my source.

[Lane Ranger 10,943]



Something worth Noting about Wheel Horse/Toro Clutch Springs

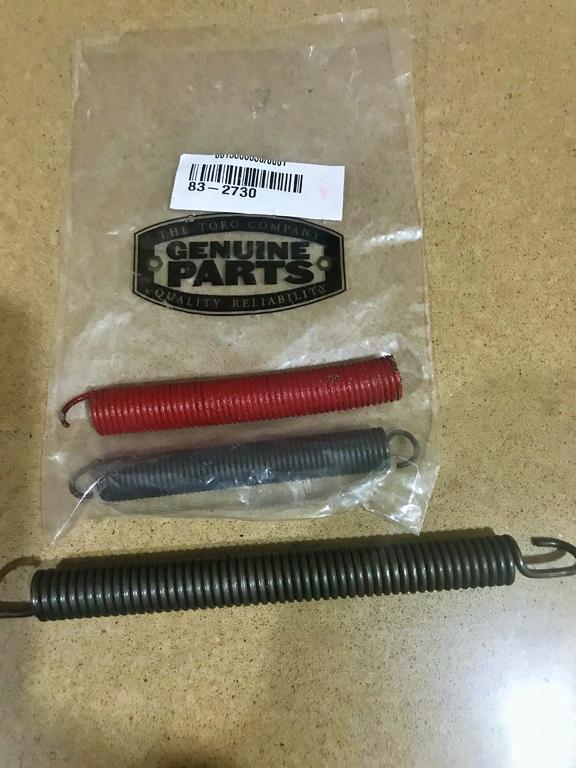

Interesting thing about these Wheel Horse clutch springs.   The original 1014 spring is shorter than the replacement 108035.    My clutch spring on my 603  (red one missing one end rusted off in photo)  was a little wider than the 83-2730  (a later replacement)   and the  current clutch spring version 108035  is really too long to properly clutch that transmission.

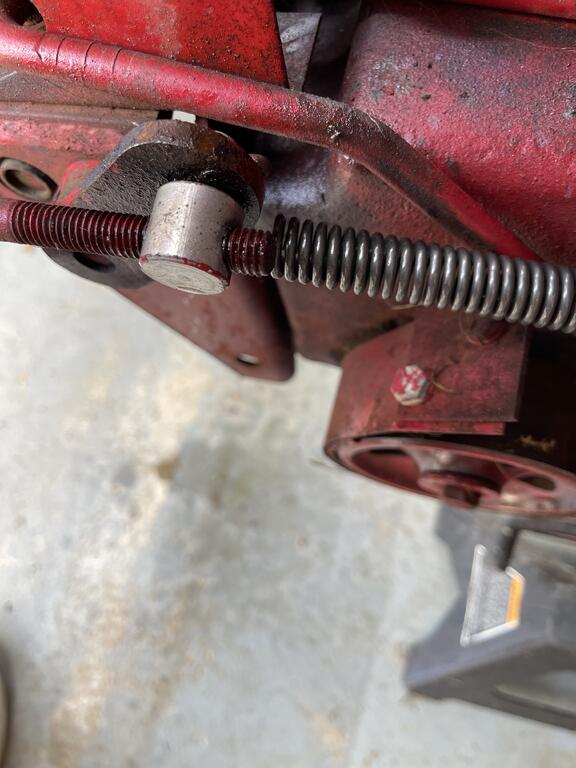

Yes, you can adjust the brake band but not enough on the 603 version.    I do have a couple of the 83-2730 versions that are New Old Stock but I also note then are a little narrower on the spring as seen in my photo this from this morning.





[Racinbob 11,030]

That's interesting Lane. I've never come across a 2 piece case transmission where a 108035 wouldn't work. I have a 5025 and it works fine Maybe the spring is connected differently? Pictures?

[Willie 14]

I’m replacing a worn out clutch spring on my 77 C120. My replacement part is about 1/3 the size of the worn out part. Anybody got any ideas on how I can install this thing? I don’t know if I’m strong enough to stretches thing out.

[Racinbob 11,030]

48 minutes ago, Willie said:

I’m replacing a worn out clutch spring on my 77 C120. My replacement part is about 1/3 the size of the worn out part. Anybody got any ideas on how I can install this thing? I don’t know if I’m strong enough to stretches thing out.

You've got the wrong spring. You want a 108035. I wouldn't try to make the one you have work. I always have a couple of them in my stash. Four of my five use them. Readily available on Ebay.



Edited August 29, 2022 by Racinbob

[Willie 14]

Ten4 good buddy.

[peter lena 8,577]

@Marv  while you are on that spring detail , get some penetrating oil into the connection ends of all related linkage , or grease fittings . like aerosol red grease with spray tube after the rust runs out , pinpoint lasting lubricant , takes the effort out of linkage . pete

[Racinbob 11,030]

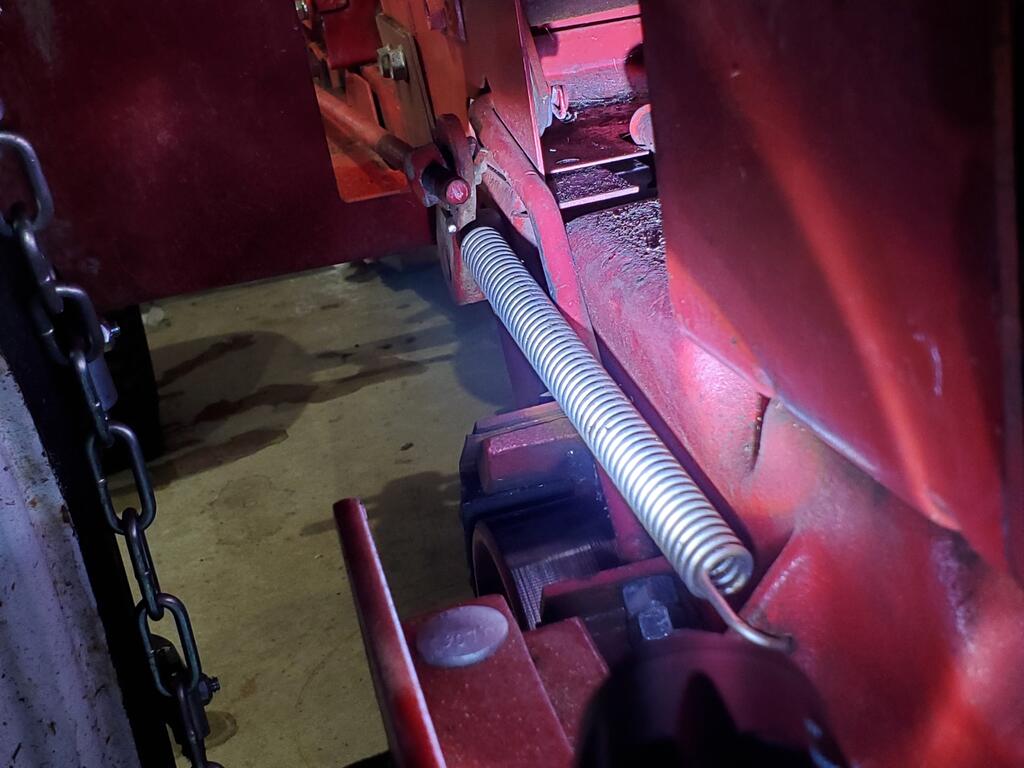

I suspect you know this but Here's the correct hook up points. This is a 76 C-series, identical to yours.



[Handy Don 12,116]

On 8/29/2022 at 8:58 PM, Racinbob said:

I suspect you know this but Here's the correct hook up points. This is a 76 C-series, identical to yours.



Nice photo!

[Willie 14]

Got my spring from jacks and installed it today. I left my clutch linkage adjustment where it was. How many threads are showing on your clutch linkage adjustable nut? I have 5.



This new spring is much better than the factory one I took off. Thanks.
