98layinframe 22 #1 Posted October 22, 2015 I'm new around here so hopefully this is the right area to post this kind of question.. since technically one of my 414-8's job is a "puller" work horse. I'm purchasing the 7443 hydro pulley to increase the speed a little bit for 2nd gear mowing and obviously a little more scoot in 3rd gear... but my main question is, I want to use this Tractor for pulling my project vehicles in and out of the garage and stuff around the property. Is there a limited slip posi type carrier that can go in the rear end of this 414 to gain a little more traction? Soon as I start turning around in the gravel driveway the inside wheel loses traction and that's it. Definitely do not want to weld the axle solid since I make a lot of tight turns for cutting grass. Thank in advance, and if this isn't the right area please feel free to move it. Share this post Link to post Share on other sites
98layinframe 22 #2 Posted October 23, 2015 Anyone? Someone's gotta know if this is possible or not... Share this post Link to post Share on other sites

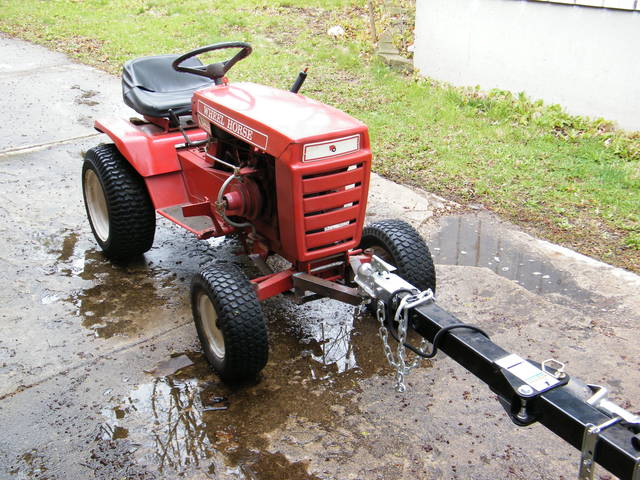

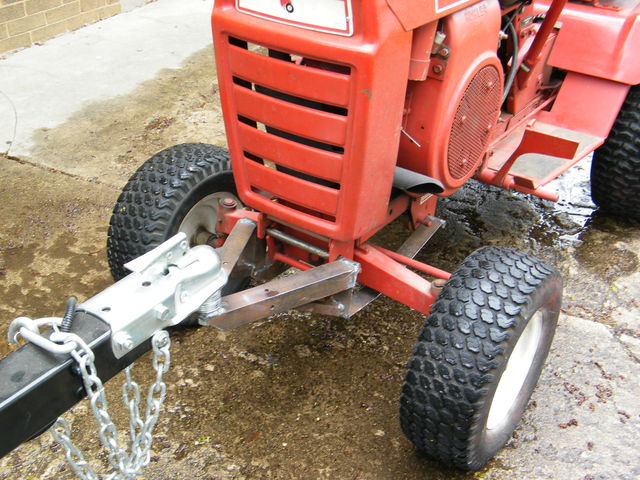

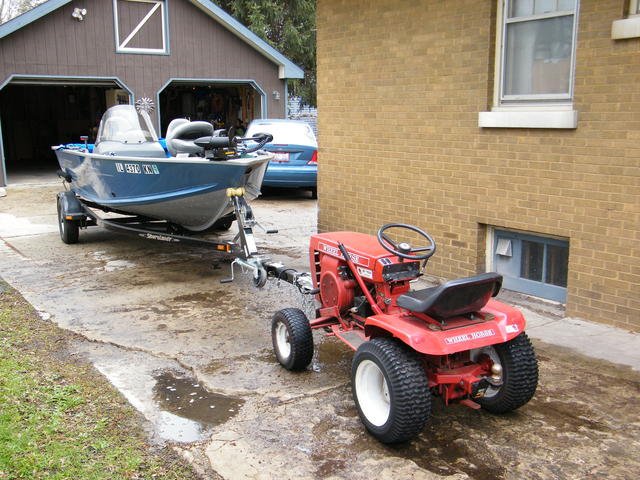

stevasaurus 22,717 #3 Posted October 23, 2015 Of course it is possible to put a 10 pinion, limited slip differential/ trany in that horse. The #5073 would be the best choice because the brake linkage would fit with no modifications...and it may not be hard to find. I don't know if you would solve your problem with one though. It is not really a posi-traction, like a Pontiac, but it will help with what you are trying to do. What may be better...put a good hitch on the front of that horse. It is easier to push and pull something like a vehicle around. Maybe the hitch and the #5073 is where you will end up. 4 Share this post Link to post Share on other sites
953 nut 55,190 #4 Posted October 24, 2015 Steve, that is a first class hitch you have made, two attachment points, very nice idea. Your new driveway hasn't held up very well. 4 Share this post Link to post Share on other sites
DennisThornton 4,769 #5 Posted October 24, 2015 Steve, that is a first class hitch you have made, two attachment points, very nice idea. Your new driveway hasn't held up very well. Richard, you're often good for a chuckle! It was that yellow gravel that failed prematurely!Is a nice hitch though! 3 Share this post Link to post Share on other sites
98layinframe 22 #6 Posted October 24, 2015 This 5073 thing.. is that an entire rear unidrive unit, or something I'd have to open up my rear for? I'm kinda thinking once I get my bigger ag tires and weights on the limited slip might not be to needed.That's a pretty cool hitch design, I could easily fab something like that up and or kinda incorporate a push bar all in one. 1 Share this post Link to post Share on other sites
JC 1965 1,530 #7 Posted October 24, 2015 The 5073 is an entire rear unidrive unit. Hope this helps. 1 Share this post Link to post Share on other sites
stevasaurus 22,717 #8 Posted October 24, 2015 A good friend of mine, Shorts, made that hitch for me. It works fantastic can come off the horse in seconds. Looks like I should shoot some pictures on the new drive way. 1 Share this post Link to post Share on other sites
98layinframe 22 #9 Posted October 24, 2015 The 5073 is an entire rear unidrive unit. Hope this helps. aahh ok thanks! Yeah doubt I'll get that far into modifying this thing.... yet anyways. A good friend of mine, Shorts, made that hitch for me. It works fantastic can come off the horse in seconds. Looks like I should shoot some pictures on the new drive way. Good friend! Haha. Is it from scratch or is the angle iron and mounts from.an old snow blade or anything? Share this post Link to post Share on other sites

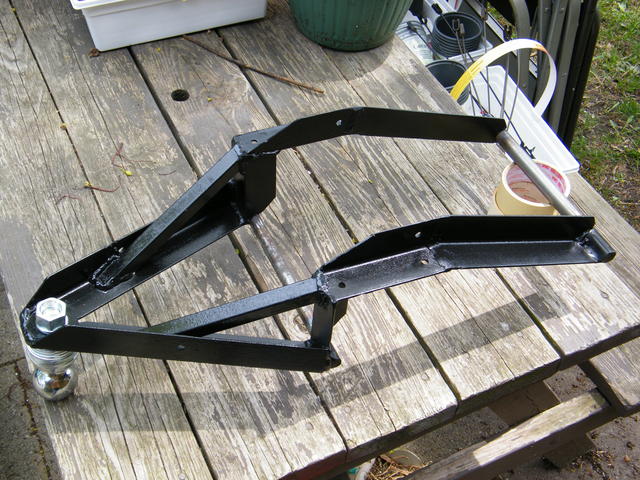

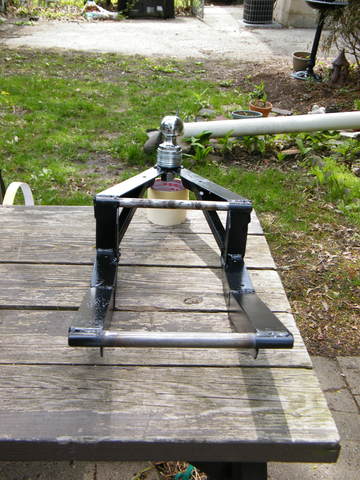

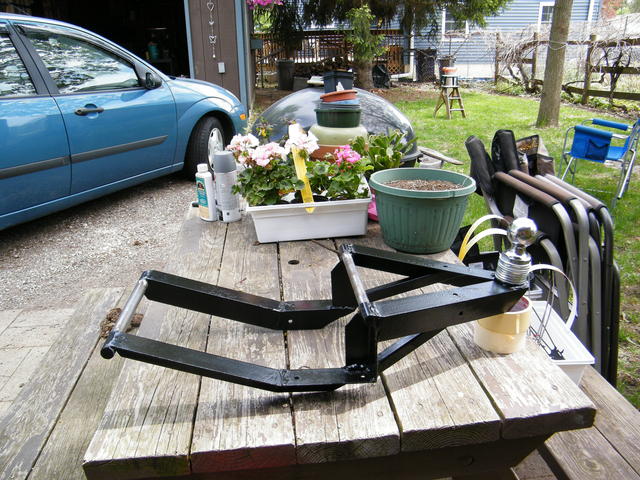

stevasaurus 22,717 #10 Posted October 24, 2015 He got the steel from an old bed frame...here is the link to the thread. http://www.wheelhorseforum.com/topic/47635-pushpull-b-100/#comment-438983I was going to tell you also. If you are serious about getting the #5073 trans...Mike (racinfool40) just may have one rebuilt and for sale...send him a PM. The #5073 transmissions were used on most models from 1970 to 1973...like Raider 10's and 12's. Share this post Link to post Share on other sites
bmsgaffer 2,043 #11 Posted October 24, 2015 You won't even need the limited slip if you invest in some weight for the horse. These are awesome tractors, but they are very underweight for what they can do.Fill the tires with rim guard or rv antifreeze and if that's not enough then put some weights on the wheels (cast or plastic), if that still doesn't do it then get some chains or ags if you aren't worried about pushing snow. Share this post Link to post Share on other sites
98layinframe 22 #12 Posted October 24, 2015 Very true, yeah I'm guessing my 30 year old turf tires are the biggest issue and weights the second. I'm on the hunt for some 12 x 10 wheels and new 24 x 12 x 12 ag tires. I already planned to cut some more 1" thick 10" diameter steel plates out on the cnc to make some weights for front and back side of the wheels. 1 Share this post Link to post Share on other sites
