DadsToyMomsHeadache 3 #1 Posted April 13, 2015 want to put 14 hp motor in it need help with mounting would it be the same specs as a c-141 thanks Share this post Link to post Share on other sites
Racinbob 11,036 #2 Posted April 13, 2015 (edited) Yes. The C-81 probably has the wobble mount motor but the correct big block Kohler will fit fine less the riser plate the 8hp has. Keep in mind that the oil pans are different in the wobble mount and the direct to frame motors. Edited April 13, 2015 by Racinbob Share this post Link to post Share on other sites
bmsgaffer 2,043 #3 Posted April 13, 2015 You will need the motor cradle, drive pulley and PTO from the C-141. (It will be easier that way anyways) Should drop right in. Yes. The C-81 probably has the wobble mount motor but the correct big block Kohler will fit fine less the riser plate the 8hp has. Keep in mind that the oil pans are different in the wobble mount and the direct to frame motors. I think the C-141 has the shaker plate too, doesnt it? So you might as well just take it all. Share this post Link to post Share on other sites
DadsToyMomsHeadache 3 #4 Posted April 13, 2015 I'm making it into a pulling tractor for my kids I was wondering if I could cut the mounts plate on the tractor and extend it Share this post Link to post Share on other sites
wallfish 16,980 #5 Posted April 13, 2015 Remove that craddle mount and just bolt the engine to the frame unless the 14 you have is from a craddle mount tractor. Doubt you would want a craddle mounted engine for a pulling tractor. What are you doing with the old 8hp Kohler? Send me a PM if you aren't using it for anything and want to sell it 1 Share this post Link to post Share on other sites
bmsgaffer 2,043 #6 Posted April 14, 2015 If you are getting the 14hp from a C-141, it will likely have a cradle. You can either get the bigger oil pan and mount it up to the frame like the earlier C-160's, or I have seen people turn down aluminum or steel mounts to replace the rubber pieces in the shaker plate to effectively make it a solid mount. I even asked someone about what size to make them, but for the life of me I cant find it. Hopefully someone will chime in here. Share this post Link to post Share on other sites
Racinbob 11,036 #7 Posted April 14, 2015 Do you already have the 14hp for it? If you're still looking it would be best to make sure you get one that is not designed for the wobble mount. I think that's what Brandon means. You can't just swap oil pans. I learned that the hard way. I bought a C-121 and wanted to eliminate the wobble mount and I already had the larger oil pan so without thinking I pulled the small oil pan and....whoops!!!.....it won't work. I ended up making solid spacers to replace the rubber. Another big plus (in my opinion) is the oil capacity. 2 quarts vs 1 1/2 with the wobble mount oil pan. 1 Share this post Link to post Share on other sites
bmsgaffer 2,043 #8 Posted April 14, 2015 Thanks Bob. I forgot that the blocks were different Share this post Link to post Share on other sites
DadsToyMomsHeadache 3 #9 Posted April 14, 2015 thank you everyone for your input I bought a motor off someone had the head shaved I'm gonna try to mount it to the frame using some angle iron I'll let you all know how I make out thanks Share this post Link to post Share on other sites
Butch 194 #10 Posted April 17, 2015 To each his own I guess. I would never put a larger engine on my C-85. I love the power and the fuel mileage. It's my work horse. My C175 just sucks down the fuel way too much for my liking. Share this post Link to post Share on other sites

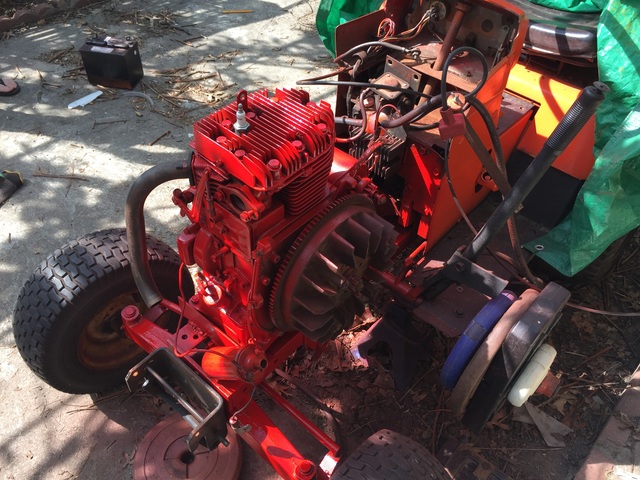

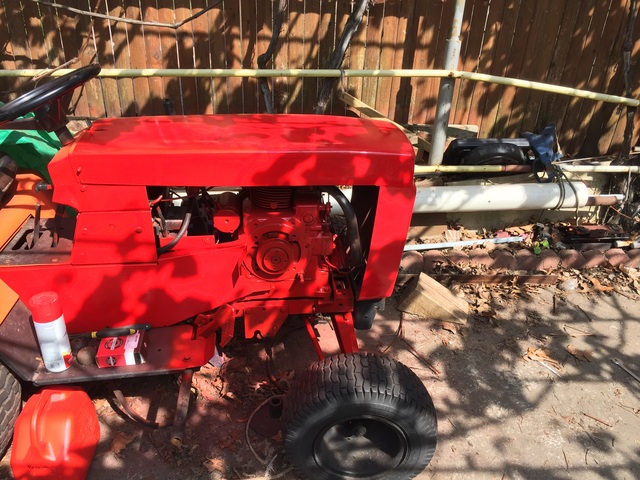

DadsToyMomsHeadache 3 #11 Posted May 18, 2015 got the motor all mounted had to make brackets out of angle iron will have pics soon Share this post Link to post Share on other sites
Racinbob 11,036 #13 Posted May 18, 2015 Maybe I'm not seeing this correctly. That looks like a 14hp with the oil pan for a non-wobble mount setup. If that's the case it should be bolted directly to the frame. Before the wobble mounts the 10-16 K's bolted directly to the frame and the 8hp had about a 1" riser plate. Share this post Link to post Share on other sites
DadsToyMomsHeadache 3 #14 Posted May 18, 2015 yes you are correct I mounted it right to the frame but the frame is 7 in across the holes are 71/2 so that's why I had to use angle iron Share this post Link to post Share on other sites
Racinbob 11,036 #15 Posted May 18, 2015 During that period Wheel Horse used the two left side flange holes bolted to the frame. The two right side holes hung over the frame but there were two threaded holes on the bottom of the oil pan and bolts came up through the frame into them. I'm kinda wondering about your shaft height. Share this post Link to post Share on other sites
DadsToyMomsHeadache 3 #16 Posted May 18, 2015 (edited) you are absolutely correct I used the 2 holes on the frame and its hanging off the frame on the other side about 1/2 inch I used the spacers that was on the old cradle mount so the oil cap would clear the frame, Also the height of the shaft is a little higher but does not rub up against any metal that would cause it to fray and break. I also welded the iron to the frame all the way across just because the motor will be under a lot of stress while pulling Edited May 18, 2015 by DadsToyMomsHeadache Share this post Link to post Share on other sites
