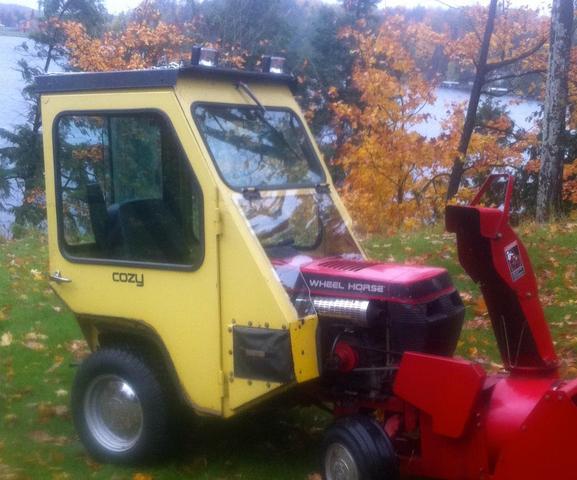

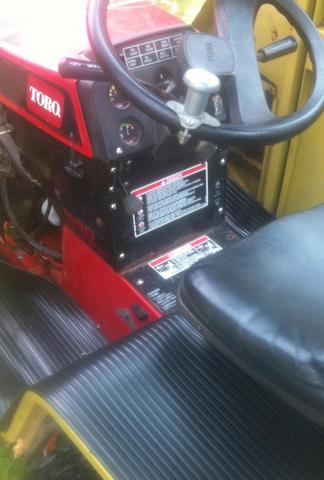

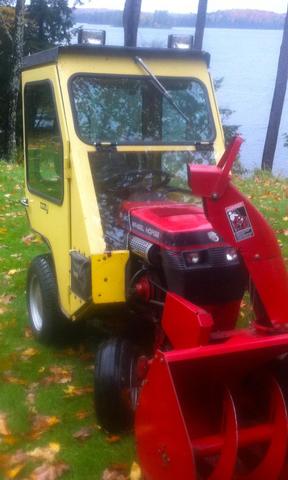

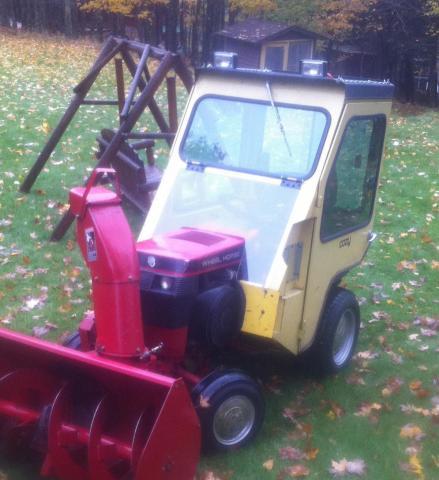

cheesegrader 433 #1 Posted October 7, 2014 (edited) I've spent the last weeks of summer getting this little darling ready to go. I got it off a JD from a scrapyard in Minnesota for $350. 400 pounds of solid steel, tempered glass windows, WIper, defroster fan. Mice ate the wiring, so I had to rewire, and added front floodlights. The original cowling around the hood didn't fit due to the muffler. I made a new one out of Lexan, and am waiting on molding from McMaster-Carr rated to 450 degrees. I don't think the exhaust will melt that, but we will see. Mounting was a PIA, but I was able to modify the front mounts by reinforcing the footrests. Mounted to the frame, there was too much sway. Moving the mounts farther apart solved that problem. The rear sits on the seatpan for sway control, but most of the weight is in the rear hitch. I am doing the best I can sealing out the weather, and the vinyl matting over the footrests will solve most of the problems when fully installed. Edited October 7, 2014 by cheesegrader 9 Share this post Link to post Share on other sites

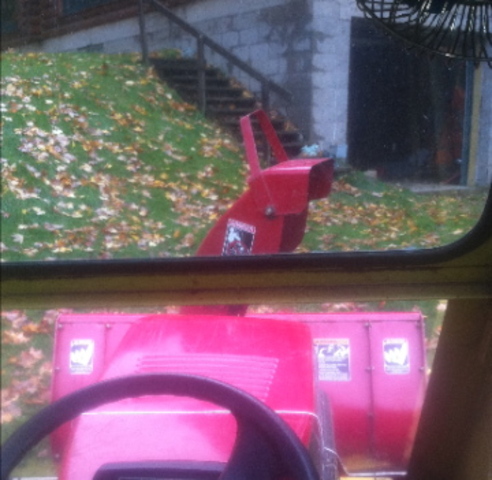

cheesegrader 433 #2 Posted October 7, 2014 A view out the front. 3 Share this post Link to post Share on other sites
AMC RULES 37,134 #3 Posted October 7, 2014 Very nicely converted. Share this post Link to post Share on other sites
stevebo-(Moderator) 8,351 #4 Posted October 7, 2014 Love it (other than it is from a Deere) lol. I would paint it up with rusto gloss black or IH red. Share this post Link to post Share on other sites
speedyleedy 205 #5 Posted October 7, 2014 Very nice.......... Share this post Link to post Share on other sites
c-series don 8,855 #6 Posted October 7, 2014 Well done love it . You will really like it when the you know what hits the fan and you are inside that baby! All your efforts will pay off! Share this post Link to post Share on other sites
JERSEYHAWG / Glenn 4,497 #7 Posted October 7, 2014 Cheese,,,, THANK YOU. How professionaly done,,,, how comfortable. Glenn Share this post Link to post Share on other sites

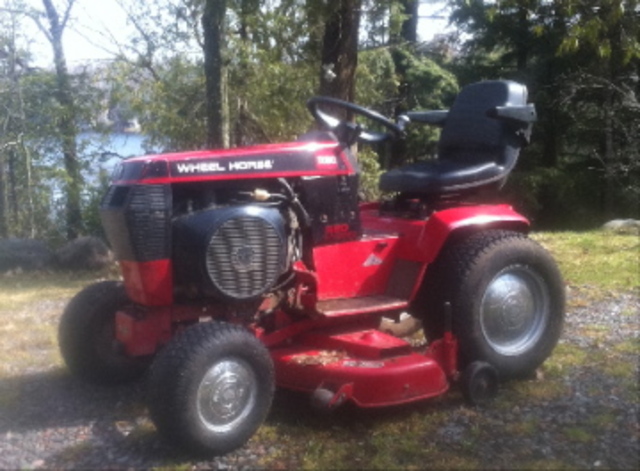

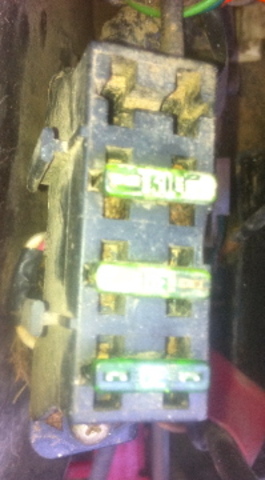

cheesegrader 433 #8 Posted October 7, 2014 The tractor is a '94 520H that Jachady tipped me off to. It was owned by the brother of a WH dealer in Madison. 430 hours with a nearly new 48 deck. I figured it had, at a minimum, regular filter and fluid changes. Unfortunately, as I tore into it, it became clear that there were issues, especially electrical. Here is the fuse box. I had to replace the fuse block with sealed holders. Burnt out switches, burnt wires, fried bulbs and sockets. I wondered if it was hit by lightning! Tires were shot, so new shoes all the way around, including the tri-ribs on the front for steering in the snow. Steering is going to be rebuilt next year, as I'm sure the bushings (at a minimum) are shot. I pulled a couple hundred feet of fishing line off the front hubs, a few pounds of cut grass out of the tins, and discovered about 20% of the bolts holding tin to frame were missing! The seat pan was supported by a 2x4, and the seat springs were broken (never seen that before!) Getting the fuel system cleaned, and just running it for a while made a huge difference. I think it sat for 2-3 years. It needs rust abatement, and paint, but I have everything in good working order. I'm confident it will perform comfortably this winter, and if it behaves, I will make it pretty next year. 1 Share this post Link to post Share on other sites
KC9KAS 4,741 #9 Posted October 7, 2014 Nice looking cab. You will be toasty warm in there this winter! Share this post Link to post Share on other sites
Tankman 3,518 #10 Posted October 7, 2014 Very nice! 'Bout the bestest I've seen. Definitely needs Rustoleum Regal Red final touch to finish the installation. Share this post Link to post Share on other sites
Fun Engineer 859 #11 Posted October 7, 2014 Good modification. Don't be worried about making it sealed up tight. You'll find that a little air flow is needed otherwise you'll think you're in a sauna. Share this post Link to post Share on other sites
Ethan and Randies horses 65 #12 Posted October 7, 2014 very cool! Share this post Link to post Share on other sites
Forest Road 594 #13 Posted October 9, 2014 Sweeeeet!!!! Share this post Link to post Share on other sites
Geno 1,929 #14 Posted October 10, 2014 Nice job getting it on the Horse. The heat and wiper should be nice. Share this post Link to post Share on other sites
