702 with a snow blower HELP!!!!!

[fourwheels0 191]

can anyone that has a 702 with a snow blower measure the lift rod?.

i need to make one and need the length.

[stevasaurus 22,902]

Are you talking about the flag and piece it slips into??

[fourwheels0 191]

yes that's what i need.

i have the one for a suburban and it's all one piece (looks like the lift flag triangle at both ends) but it's too short for the 702.

i measured and d be 29 inch's from bolt hole to bolt hole.

we are gonna get some gas pipe and try to make one this week end.

the factory one from the st-3072 manual looks like a piece of flat stock with a bend in it. part #1949.

[stevasaurus 22,902]

I have a STR-324...it is not the round barrel like you have.  The R means it is for a ranger, but I use it on my 857...which should be the same as my 702.  I am just leaving for Scott's M&G now, but I will be back Saturday late afternoon.  If you think it is the same, I can dig it out and measure it then.





[fourwheels0 191]

stevasaurus if you can measure yours when you get back that would be great.

i have a rough measurement of 29 inch's on mine.

that's from center hole to center hole.

thanks.

[stevasaurus 22,902]

Here you go...hope this helps.

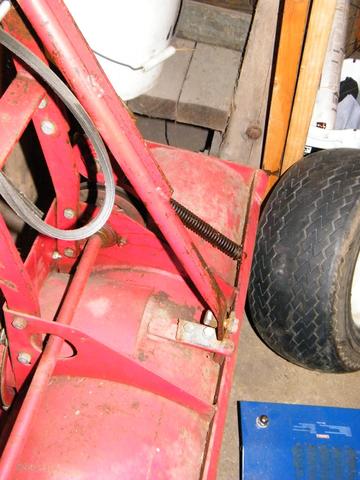

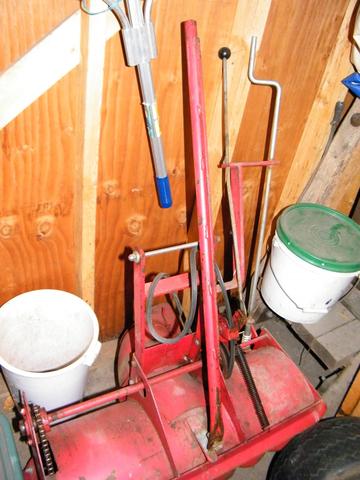

The rod from the blower...37" from the bottom bolt hole to the top end...1" pipe, flattened and bent at the bolt end.  It has a reinforcement rod welded along the shaft to keep it from bending.

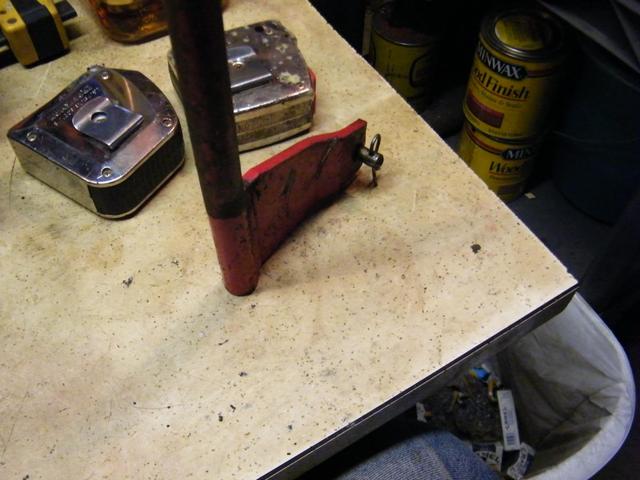

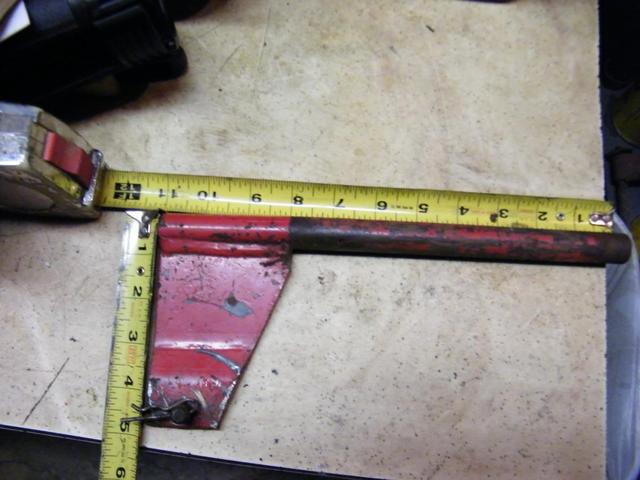

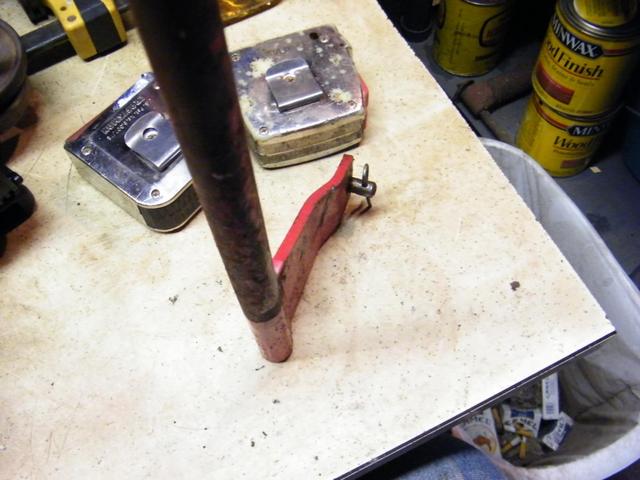

The flag piece is 3/4" solid rod...11" long.  I see the ruler appears to be off a little, but I went out and measured it again...it is 11" long.





The flag has a bend in it to center under the lift lever on the horse.

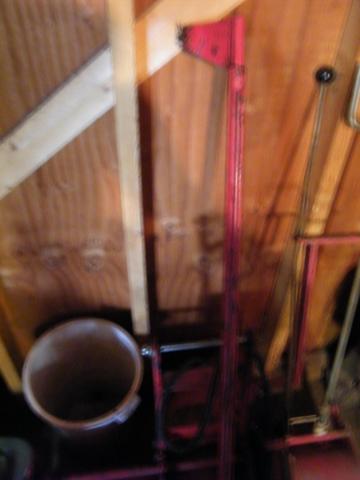

A picture with the flag in place.  make the bolt hole to lift lever about 39"



Edited October 5, 2014 by stevasaurus

[fourwheels0 191]

wow thanks stevasaurus.

i ended up making one last night out of angle iron.

it ended up being roughly 28 inch's from center hole to center hole.

mine has a different mount on the front then yours does.

i'll get a pic of it tomorrow.
