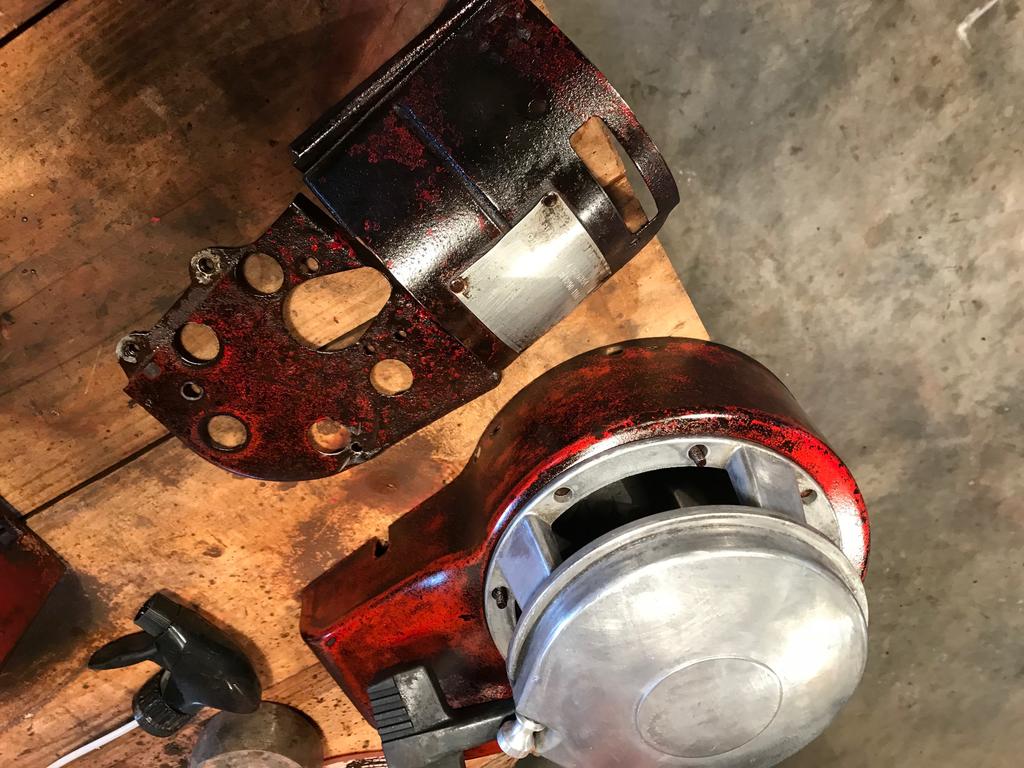

Wish I had a better picture of the motor it is going on but will post pics when installed. Thanks again Terry for all you do for our hobby! And no... these don't have oil on them they are clear coated

[wallfish 17,023]

Looks Oilie to me Mr. Wishbone!



That's a great idea for the engine tags!

Just a thought, but what about making them with just the "black paint" part and not the silver edge. With the silver edge, the plate needs to be removed to apply the decal. Think Clinton used screws which is no big deal but the Kohlers used rivets.

[Vinylguy 4,674]

55 minutes ago, wallfish said:

Looks Oilie to me Mr. Wishbone!



That's a great idea for the engine tags!

Just a thought, but what about making them with just the "black paint" part and not the silver edge. With the silver edge, the plate needs to be removed to apply the decal. Think Clinton used screws which is no big deal but the Kohlers used rivets.

I will be working on this next week. Will see how they cut. Good idea.



[stevebo-(Moderator) 8,332]

Good point John. Just the black without the outline would be best.

[crackerjack Rick 0]

I am restoring a C101 and am looking for a set of hood side decals.  Other decals specific to the C101 would be good too.



Richard the C101 driver

[953 nut 55,373]

37 minutes ago, crackerjack said:

I am restoring a C101 and am looking for a set of hood side decals.  Other decals specific to the C101 would be good too.



Richard the C101 driver

Contact Terry and he will fix you up.    https://www.redoyourhorse.com/c-101-8-speed-reproduction-decal-kit/



Post an introduction and let us know a bit about you.       http://www.wheelhorseforum.com/forum/47-introductions/

[Gmcgruther 4]

I need a vinal kit for 805

[Gmcgruther 4]

Can someone guide me to how i can tell the difference between a C-105 and 810-8. The one with a big gap is suppose to be a C-105. The other one is a 812-8. There is no other labels i can find on the suppose C-105.

[Charles123 12]

On 11/12/2010 at 12:36 PM, Vinylguy said:

Finally got these 2 kits for the 1982 SB & SK models listed









[dave647 27]

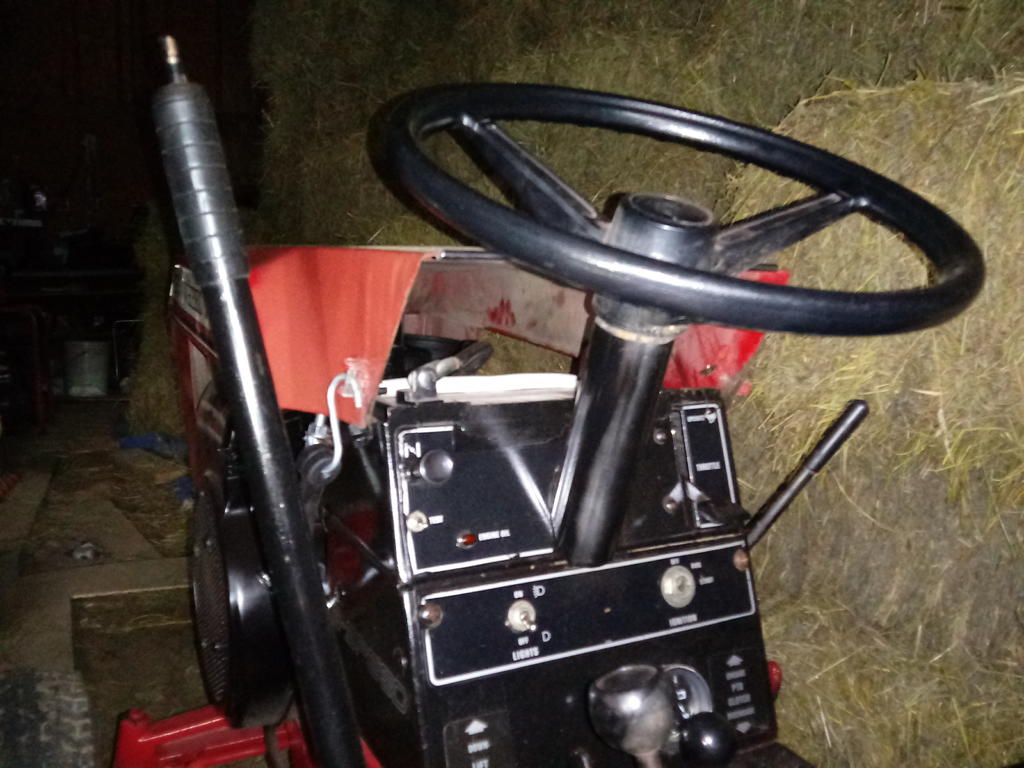

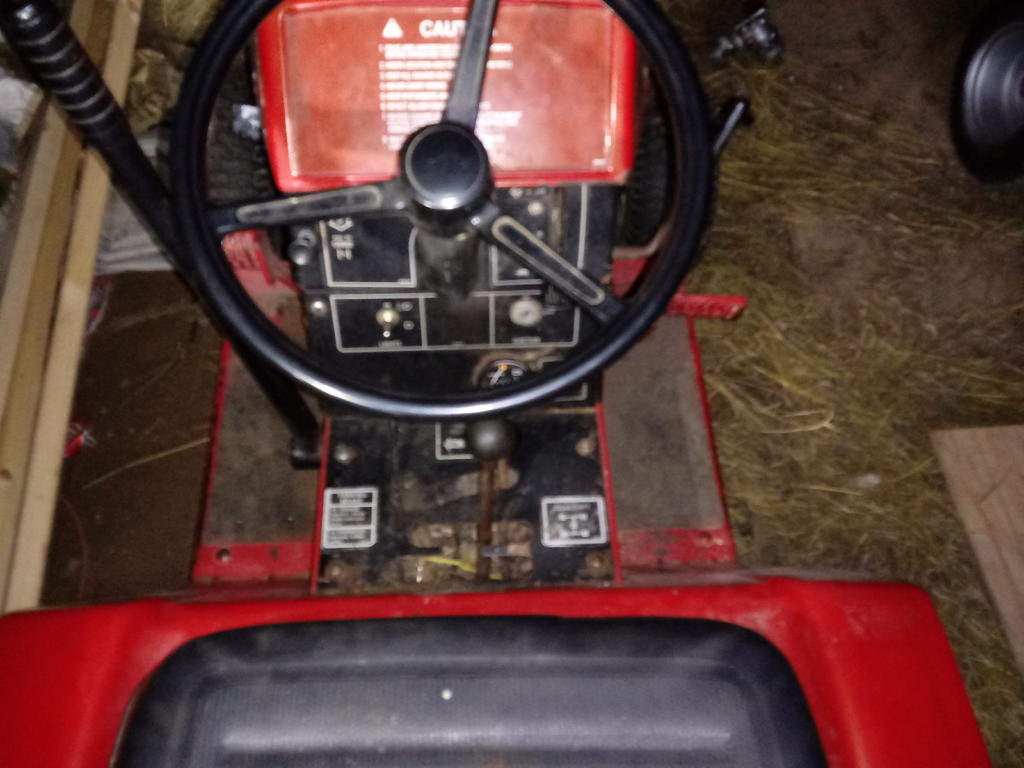

need full set 1985 310-8 . my hood has a 2x2(apprx) logo only,is this correct? and my choke is located mid way on left side of dash. my original decals appear to be maroon? i've looked at so many sets that i am  confused. thanks for any help

[BHunter 1,700]

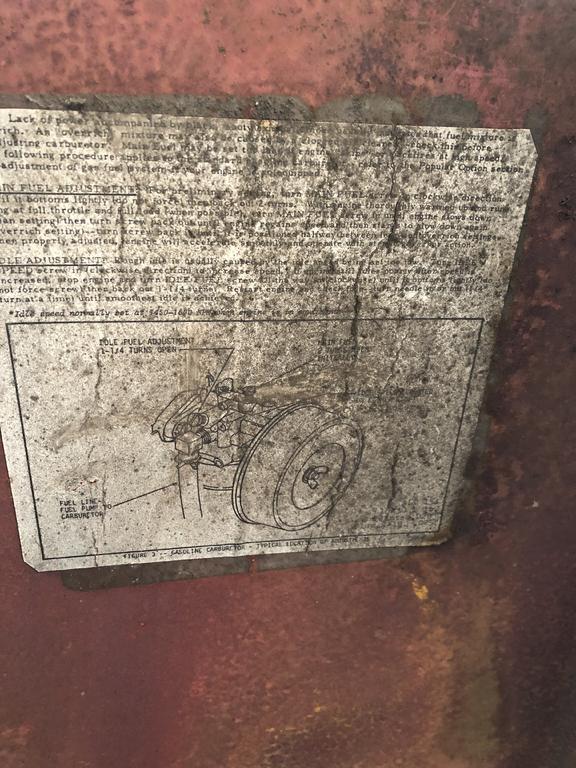

Hi. I’m looking for a new under hood decal for my C-141. It looks like this.

[Vinylguy 4,674]

On 11/6/2018 at 2:22 PM, dave647 said:

need full set 1985 310-8 . my hood has a 2x2(apprx) logo only,is this correct? and my choke is located mid way on left side of dash. my original decals appear to be maroon? i've looked at so many sets that i am  confused. thanks for any help

I just now saw your post. Sorry I missed it.

Will be home all day tomorrow  and later this evening if you want to call me to discuss your decal question.

309 three 35 5606

[Vinylguy 4,674]

53 minutes ago, BHunter said:

Hi. I’m looking for a new under hood decal for my C-141. It looks like this.

Can you clean this one up and take a straight on close up image of the illustration as well as the copy? Also h x w dimensions?

 It will take some time but I will  redraw it as close as I can to original





[BHunter 1,700]

Ok. Thanks

[BHunter 1,700]

22 hours ago, Vinylguy said:

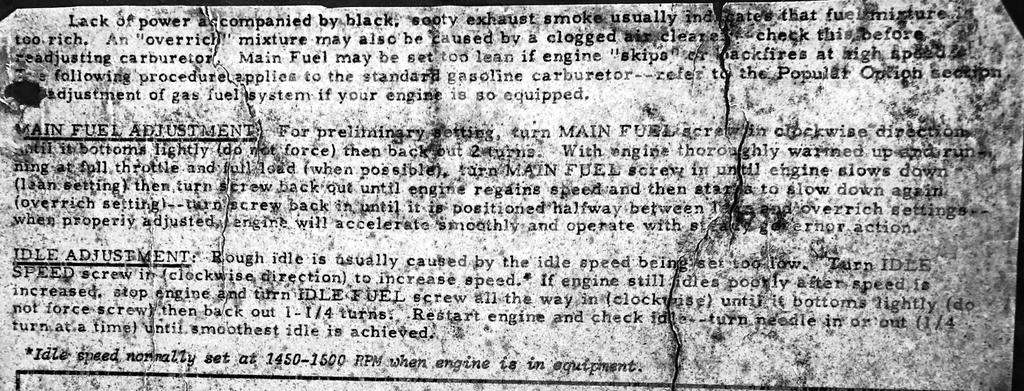

Can you clean this one up and take a straight on close up image of the illustration as well as the copy? Also h x w dimensions?

 It will take some time but I will  redraw it as close as I can to original

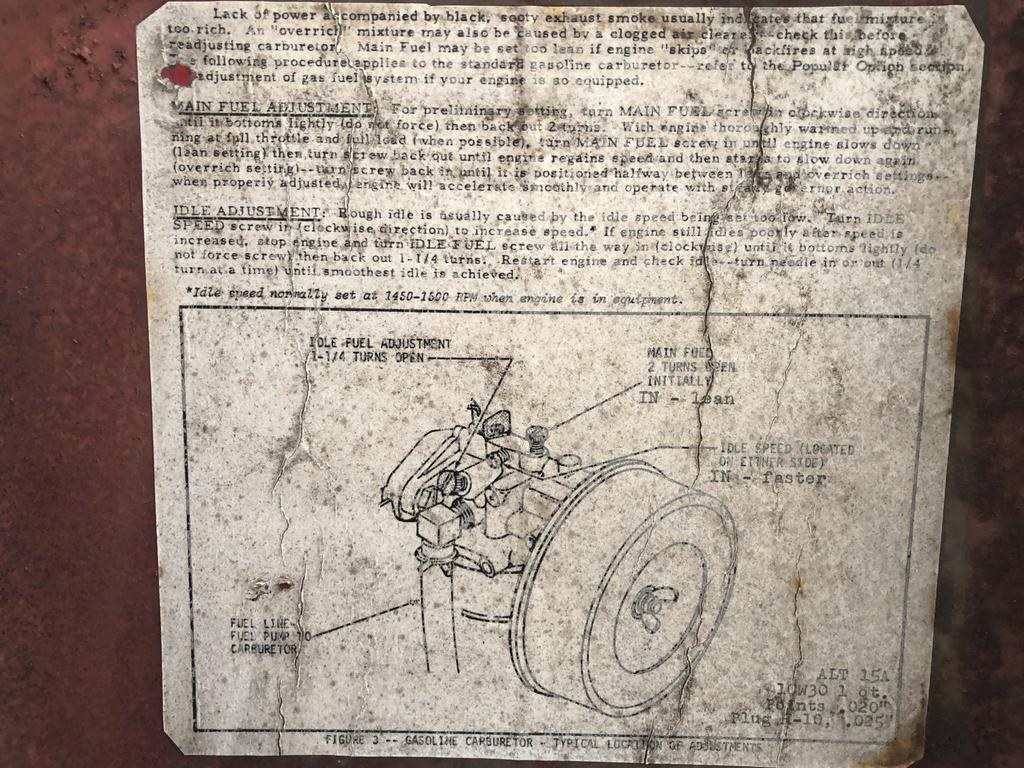

it is 7 1/2 across and 7 1/4 down.

[BHunter 1,700]

I wonder if this is a page from the owners manual? I’m going to try to download one.

[BHunter 1,700]

[Vinylguy 4,674]

Was hoping for a bit better detail but I will do the best I can to

recreate it as close to original as possible.

Going to take some time though so please be patient.



[BHunter 1,700]

3 hours ago, Vinylguy said:

Was hoping for a bit better detail but I will do the best I can to

recreate it as close to original as possible.

Going to take some time though so please be patient.

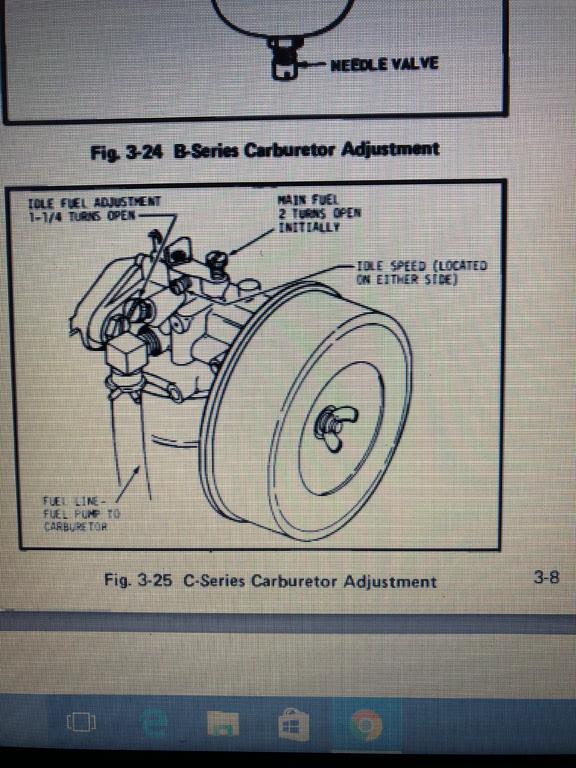

The carburetor picture is the same one from the service manual.

[Vinylguy 4,674]

That's much better

[Vinylguy 4,674]



This is as far as I have gotten on this illustration. Finally got the carburetor done last night. Now to try and get the wording done and make it fit.

Letter style and spacing is difficult to get as original but the main thing is to make it look and read cleanly. Again I will do my best but the fonts will not be exactly as original.

This is the first time I have seen this decal in the 12 years I have been working on Wheel horse graphics.

 Thanks for your patience

[Toasty 52]

I was wondering if you wanted pictures and dimensions of an Onan P218 from an 1988 518-H.  I do not need the decals and mine are in good shap which could make good examples for someone who does need them.

[Vinylguy 4,674]

Pictures and dimensions are always helpful to design or verify. Thank you



[Snoop@ICI 55]

I have a 1979 B-81 Vin: 92-08BP01 and I could really use the dimensions of the decals on that please.

[bottjernat1 2,190]

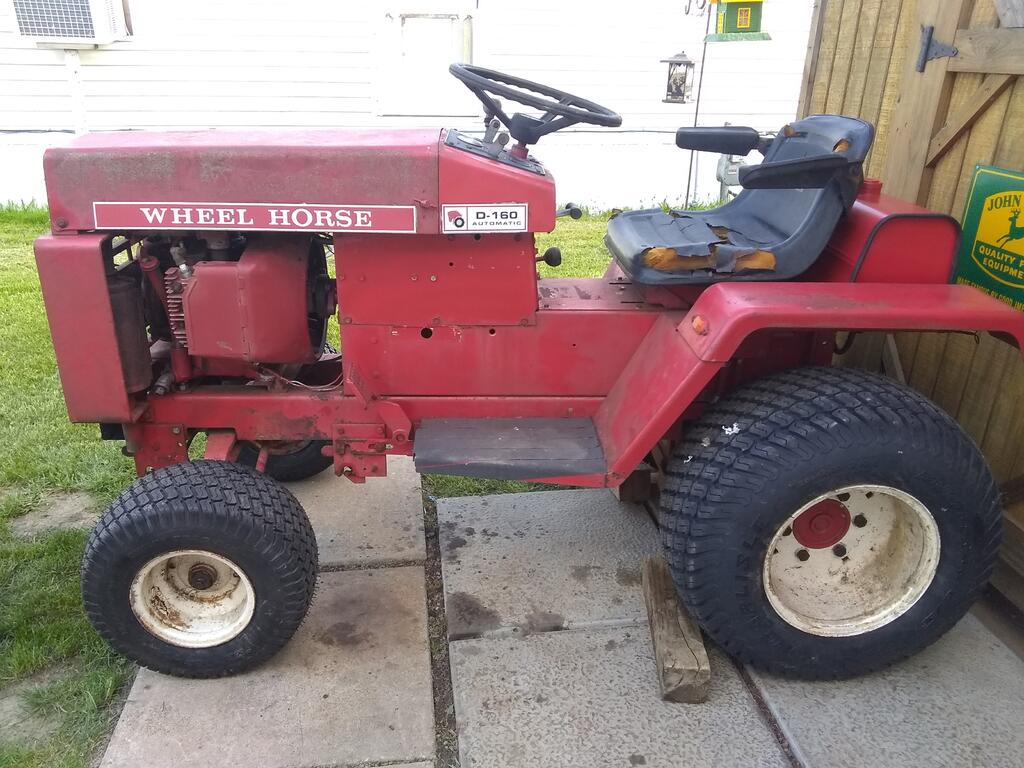

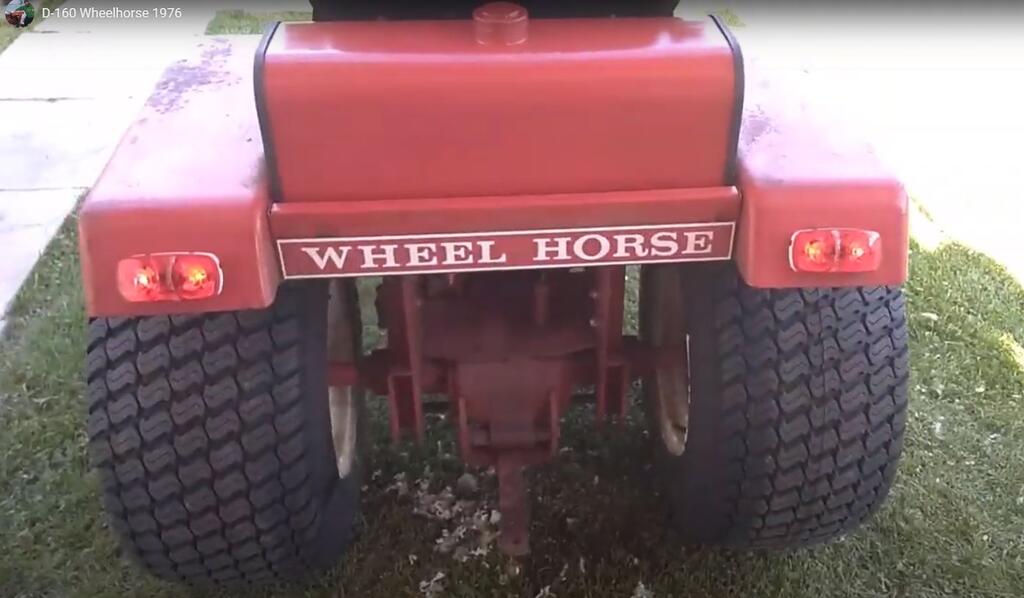

Here is some more work by redoyourhorse.com ! I love my decals!!
