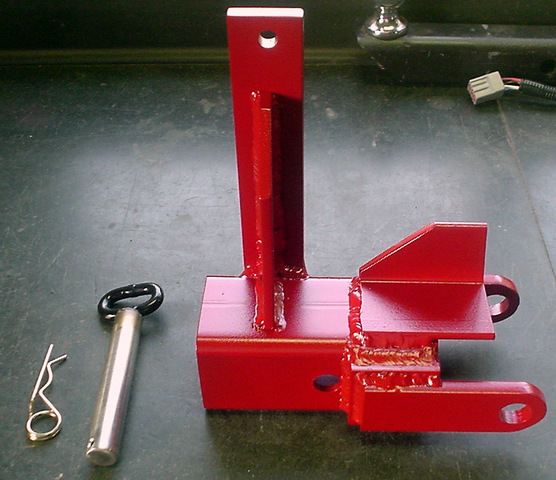

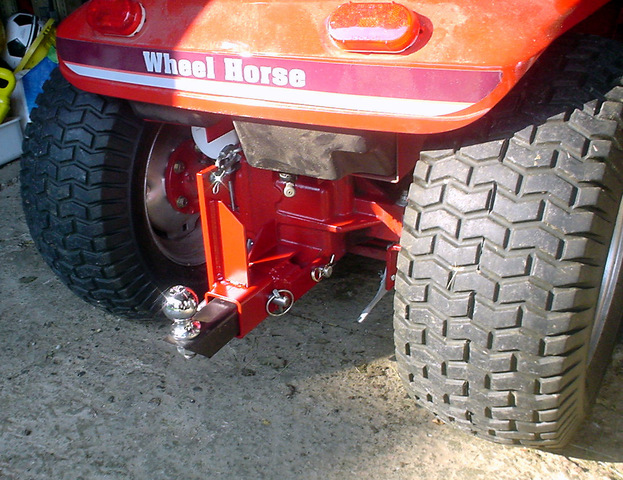

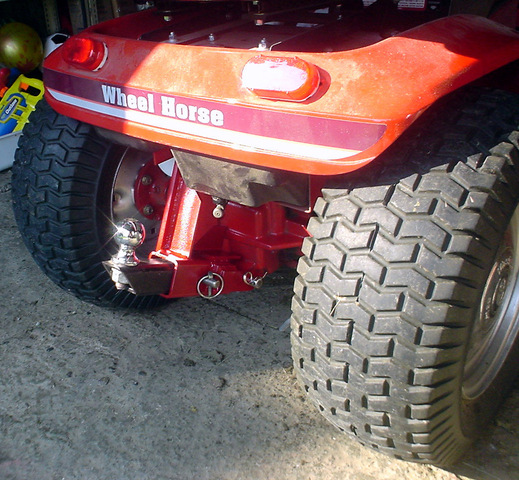

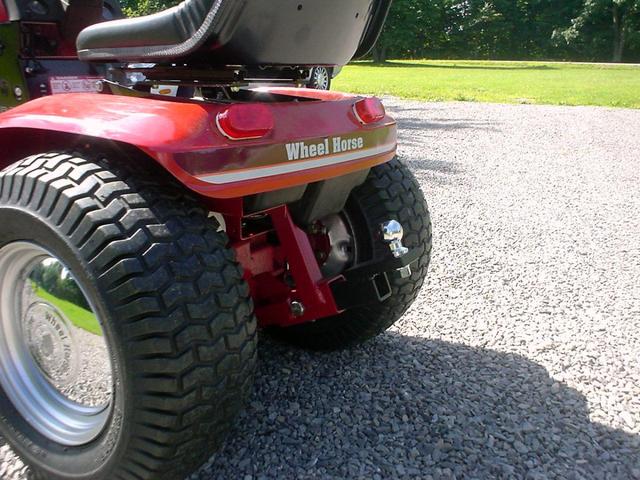

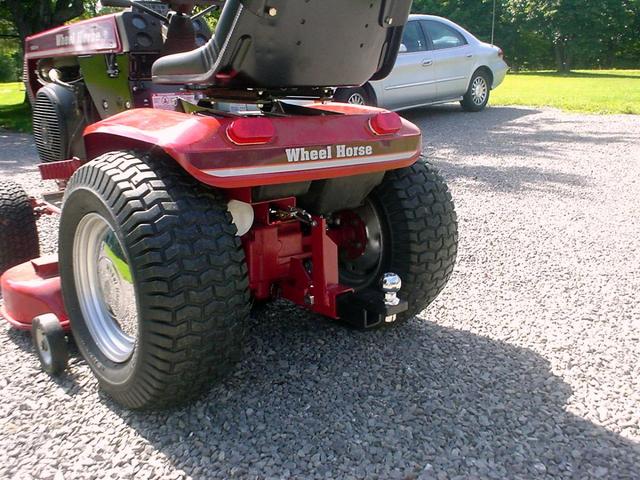

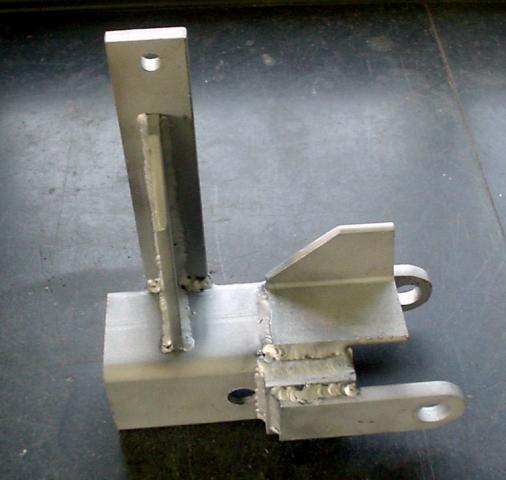

cleat 5,934 #1 Posted August 9, 2014 I put this hitch together to make use of the rear lift installed on this tractor for the rototiller. Since the tiller is only on for a short period of time I figured I might as well make use of it to move my utility trailer around the yard and be able to hook up by just backing under it and lifting until the ball engages. Wheel horse lift hitch plans.pdf Cleat 12 Share this post Link to post Share on other sites
Catmanii 36 #2 Posted August 9, 2014 Love the hitch and for sure need to do the same thing. Great job. 1 Share this post Link to post Share on other sites
squonk 41,096 #3 Posted August 9, 2014 Awesome!! Did you get to use that tiller yet? Share this post Link to post Share on other sites
cleat 5,934 #4 Posted August 9, 2014 Awesome!! Did you get to use that tiller yet? Not yet. I now have everything to make it work, just working right now to get another building together to store my Wheelhorses and attachments. Hopefully soon or at least by next spring when we hope to put in a garden. Cleat Share this post Link to post Share on other sites
Wishin4a416 2,191 #5 Posted August 9, 2014 Very nice job. Looks great! Share this post Link to post Share on other sites
oneroadkingman 53 #6 Posted August 10, 2014 very nice work my friend.. Share this post Link to post Share on other sites
Tankman 3,518 #7 Posted August 10, 2014 Very nice! A Horse switch tractor. Excellent! Share this post Link to post Share on other sites

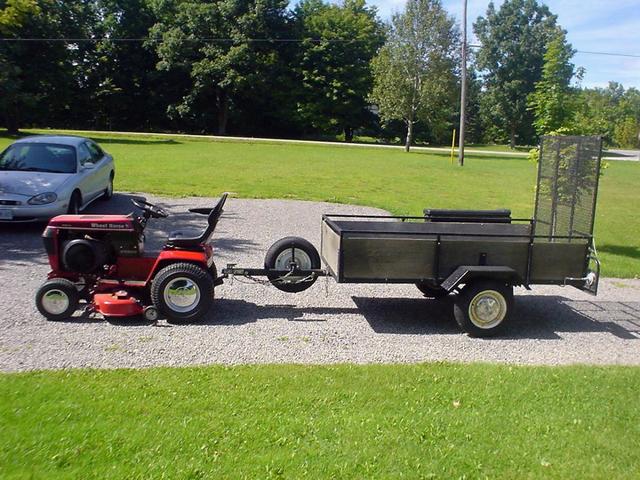

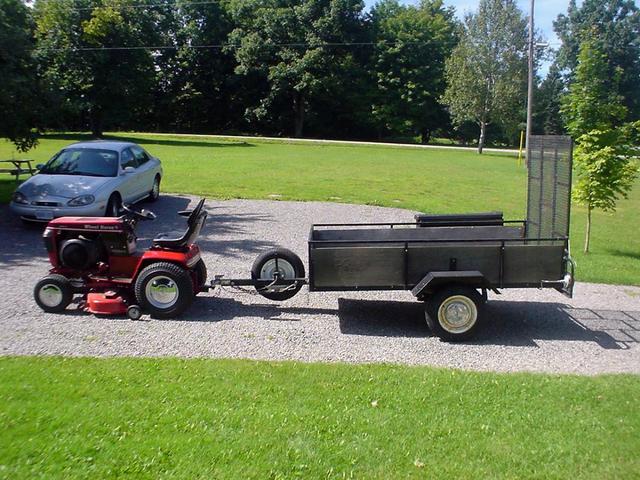

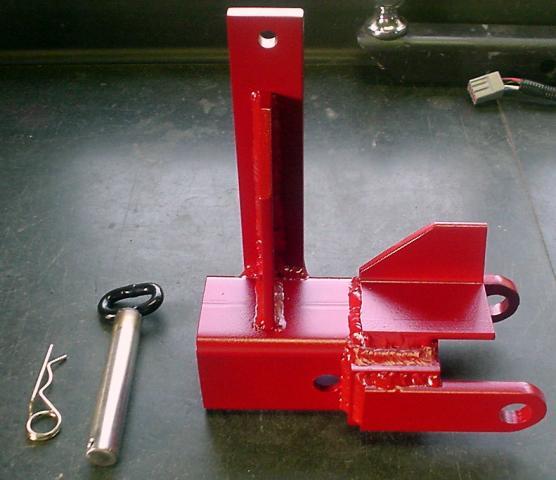

cleat 5,934 #8 Posted August 20, 2014 Made up new receiver and hooked up trailer to check my work. Trailer raises and lowers fine, not enough to automatically detach but good just the same. I have a heavier duty hitch on my other 520 if I need to move something heavier. Cleat 4 Share this post Link to post Share on other sites

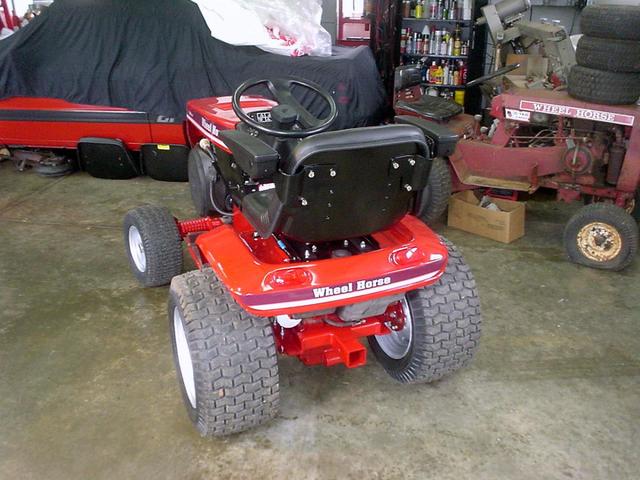

aaubrey96 0 #9 Posted August 21, 2014 That's what I need to build a hitch like that last picture has. Mine just has a hitch receiver welded onto the stock hitch. I just worry about putting to much behind mine because I don't want to put to much stress on my cast rear end. Sent from my iPhone using Tapatalk Share this post Link to post Share on other sites
SousaKerry 501 #10 Posted August 21, 2014 I Cheated to make my version. I have the Brinley Slot hitch on the back of my tractor. I had an old ball laying around that I cut the threaded end off of. Took it to work and put it in the lathe and drilled and tapped a 1/2-13 hole in the back side. One long 1/2" bolt through the adapter hitch and it works great. Share this post Link to post Share on other sites
cleat 5,934 #11 Posted August 21, 2014 I kind of copied a slot hitch to make mine up as well. Looked at some pictures and took some measurements and came up with what I have. Cleat Share this post Link to post Share on other sites
