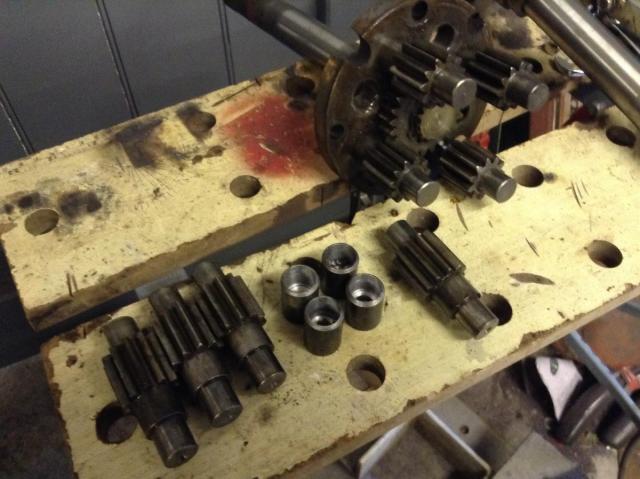

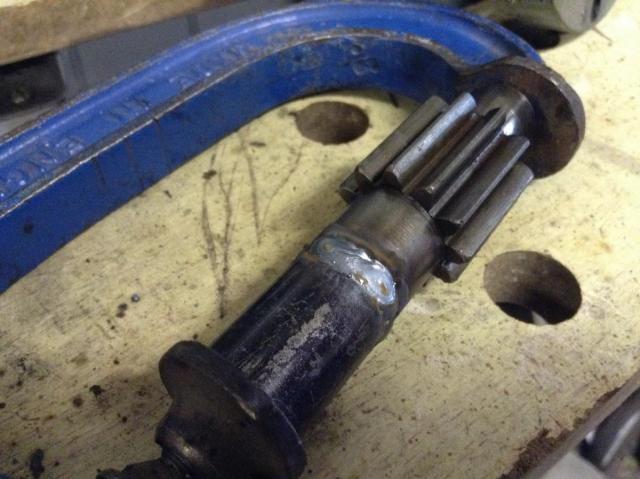

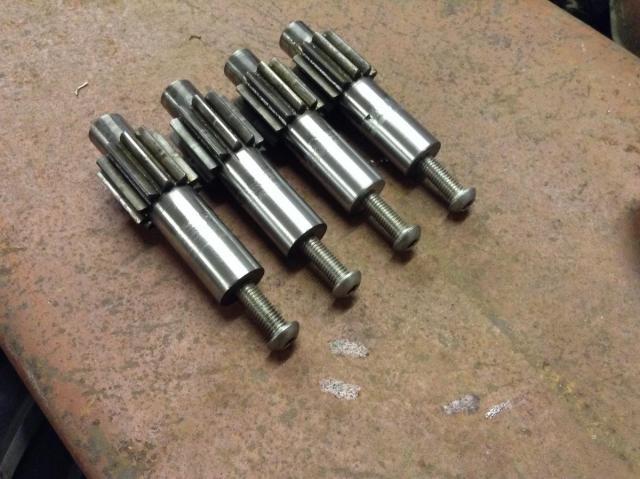

meadowfield 2,595 #1 Posted June 22, 2014 (edited) It's been on the drawing board with project bendy for more than year. Other projects have slowed it down - notably project C4. Anyhow some of you are following the build thread and I though this modification deserves it's own thread. I can't see that anyone has ever made one or managed to modify another part from a different make, so set about making my own Most rely on splined couplings or dog clutches, however a WH transmission has the benefit that you can reverse the pinions and lock them - or more importantly slide them.... So this is how the plan was formed.... More pics and a video to follow. Here's the first part of the mod, modifying 4 of the pinions to make them slide. Edited June 30, 2014 by meadowfield 4 Share this post Link to post Share on other sites
AMC RULES 37,134 #2 Posted June 22, 2014 Man...I can't wait for this one. I can tell, an awesome video is already in the works. 1 Share this post Link to post Share on other sites
Sparky-(Admin) 21,405 #3 Posted June 22, 2014 So the goal is to be unstoppable eh?? Looks like you'll achieve it!! Mike....... Share this post Link to post Share on other sites
meadowfield 2,595 #4 Posted June 23, 2014 Man...I can't wait for this one. I can tell, an awesome video is already in the works. I need to get some more footage, but yes So the goal is to be unstoppable eh?? Looks like you'll achieve it!! Mike....... that's the plan Mike.... I also want a 2/4WD lever and a diff lock lever - it's all about levers 2 Share this post Link to post Share on other sites
Anglo Traction 761 #5 Posted June 23, 2014 (edited) Looking Good Mark, are you doing both sides so all 8 engage both sides at the same time?. PS. check your Oil level on the front Lathe Spindle Bearing , I can't see any in it Edited June 23, 2014 by Anglo Traction Share this post Link to post Share on other sites

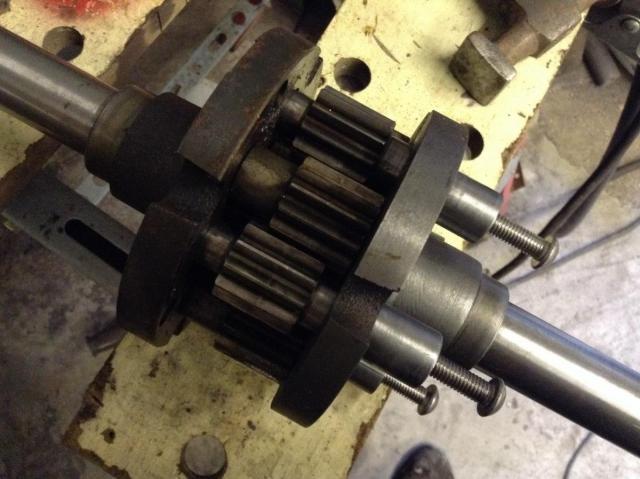

meadowfield 2,595 #6 Posted June 24, 2014 (edited) Looking Good Mark, are you doing both sides so all 8 engage both sides at the same time?. PS. check your Oil level on the front Lathe Spindle Bearing , I can't see any in it Richard, I can only do 4 on sliders and they only move halfway, any more and only one side gets locked. I relying on locking one side and the pinions holding the other side. Here's a better pic. P.s. The spindle bearing has a lot of oil in it, just the reservoir that leaks it out every few days. I need to refurb it as I'm fed up wasting oil running into the suds tray :) Edited June 24, 2014 by meadowfield 1 Share this post Link to post Share on other sites
alswagg 128 #7 Posted June 25, 2014 I would love to have a locking diff in one of the D 180's Our Duetz has a foot activated locker and I love it. Very easy to control in and out with my right heel. Perfect this and you will have a customer. Al Share this post Link to post Share on other sites
C-101plowerpower 1,605 #8 Posted June 25, 2014 looking good mark I would love to have a locking diff in one of the D 180's Our Duetz has a foot activated locker and I love it. Very easy to control in and out with my right heel. Perfect this and you will have a customer. Al got a pic of the deutz? Koen Share this post Link to post Share on other sites
stevasaurus 22,869 #9 Posted June 25, 2014 This is going to be good.. Share this post Link to post Share on other sites
alswagg 128 #10 Posted June 25, 2014 I have a few pics of the Duetz hooked to one of our Larger boats we move around. The Duetz is only used to move boats at our shop. Up to 18k lbs over that we use a truck. I will try to figure out how to post pics Share this post Link to post Share on other sites
alswagg 128 #11 Posted June 26, 2014 Here is a photo of our little Duetz 18HP Diesel We use this to move boats at our shop. This boat is 32' Share this post Link to post Share on other sites

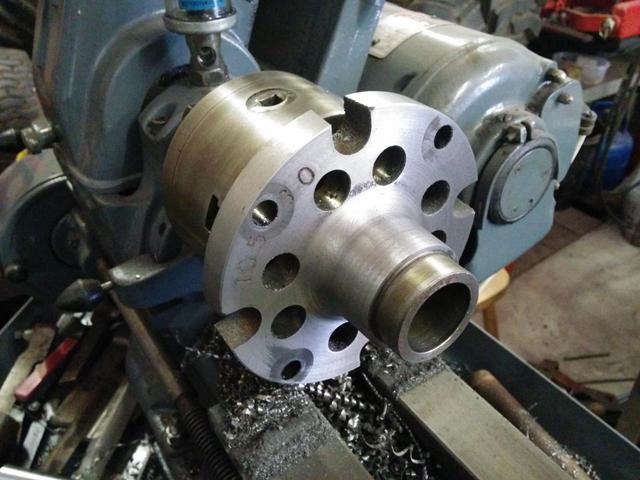

meadowfield 2,595 #12 Posted June 27, 2014 I've been busy today!!! My plan works, but boy is it tight in there, the diff has to go in one way and I have an inch to get the additional bits in. turning one side down to make room for the bolts the selector cage all together in the lock position I've started work on the selector fork and slider, now it's getting tighter. It's a good job I don't need all the gears 3 Share this post Link to post Share on other sites
coldone 35 #13 Posted June 28, 2014 Very nice work!!!!!!!!!!!!!!! Share this post Link to post Share on other sites
dbartlett1958 96 #14 Posted June 29, 2014 I just love you guy's across the Pond with your Heavy Metal! Share this post Link to post Share on other sites
meadowfield 2,595 #15 Posted June 29, 2014 Very nice work!!!!!!!!!!!!!!! Thanks I just love you guy's across the Pond with your Heavy Metal! :D Share this post Link to post Share on other sites
ol550 830 #16 Posted June 30, 2014 What are you using for bearings at the ends of the sliding pinions and selector cage? Share this post Link to post Share on other sites
meadowfield 2,595 #17 Posted June 30, 2014 The pinions sit in the flange as before immersed in oil, the cage sites on small turned bushes and floats. This can't be tight as otherwise there would be excessive wear. It just holds the pinions in place until the lock is activated 1 Share this post Link to post Share on other sites
meadowfield 2,595 #18 Posted July 1, 2014 Latest update: Here's the shift fork and lever, also a fresh shaft to slide on Here's the final assembly, it's been tight... I've even had to turn bolt heads down to make enough room. Remember this is the rear transmission for bendy and does not need any gears. It's driven from the brake drum input. One of my kids has cleaned up the very rough casing, so it might just end up back together this weekend :D 3 Share this post Link to post Share on other sites

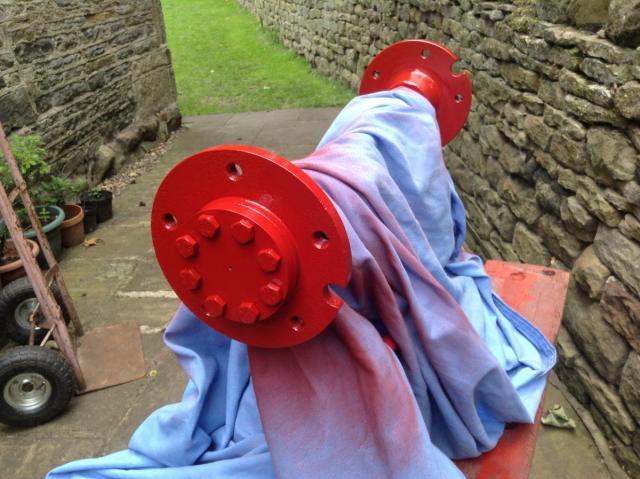

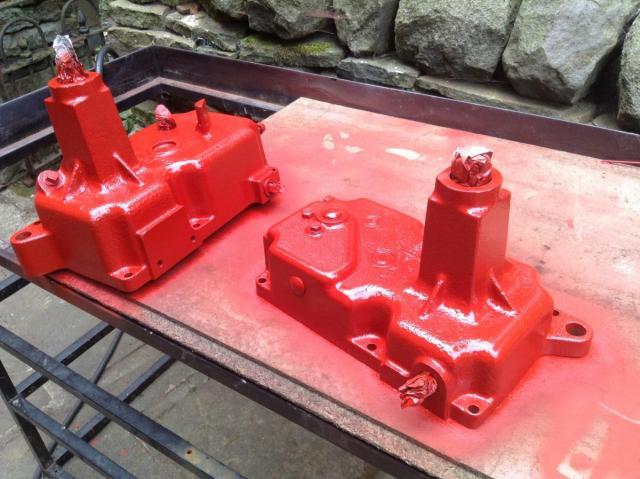

meadowfield 2,595 #19 Posted July 12, 2014 Didn't manage to get it together, but it is all painted and shiny now Hubs painted too Insides all clean and shiny, new seals here, just a gasket to make. 3 Share this post Link to post Share on other sites
C-101plowerpower 1,605 #20 Posted July 12, 2014 looking good mark, i'm liking the cover plates on the hubs Koen Share this post Link to post Share on other sites
meadowfield 2,595 #21 Posted July 13, 2014 looking good mark, i'm liking the cover plates on the hubs Koen stops the hubs sliding in, should they ever want to. Hides where the PO beat the crap out of them. Looks industrial and cool.... 3 Share this post Link to post Share on other sites
meadowfield 2,595 #22 Posted July 17, 2014 Final update on this thread, made a new gasket and reassembled the whole unit. I'm pretty pleased with the way it works and can't wait to build it into bendy and test it Here's a short video of the bits as they went together and the diff locker in action ...I also found time to fire up my synthesisers and do a cheesy soundtrack :) 3 Share this post Link to post Share on other sites
C-85 698 #23 Posted July 18, 2014 I have wished for locking rear end for a long time, so this development is very interesting, finally a true locker! I have a few questions - How will this work to engage it, will it have a lever or a foot control like most of the big tractors have, or have you gotten to this part yet? I'm wondering what transmission was used for this (mainly if it had hi-lo range)? I'm guessing that a hole was drilled in the top of the case for the shaft that operates this, or was an existing hole used? I like the heavy duty hubs in the picture. I'm guessing this was to keep the hubs from sliding in on the axle like mine always seem to do ? I cheated and bought a few 1 1/8" washers and put them on the axles to keep this from happening. What ever the case, your hubs look like they came off a heavy duty truck now and look great! I wonder if you would ever consider helping to upgrade some of our transmissions to this new technology, mine could sure use it! C-85 Share this post Link to post Share on other sites
meadowfield 2,595 #24 Posted July 19, 2014 I have wished for locking rear end for a long time, so this development is very interesting, finally a true locker! I have a few questions - How will this work to engage it, will it have a lever or a foot control like most of the big tractors have, or have you gotten to this part yet? I'm wondering what transmission was used for this (mainly if it had hi-lo range)? I'm guessing that a hole was drilled in the top of the case for the shaft that operates this, or was an existing hole used? I like the heavy duty hubs in the picture. I'm guessing this was to keep the hubs from sliding in on the axle like mine always seem to do ? I cheated and bought a few 1 1/8" washers and put them on the axles to keep this from happening. What ever the case, your hubs look like they came off a heavy duty truck now and look great! I wonder if you would ever consider helping to upgrade some of our transmissions to this new technology, mine could sure use it! C-85 Hey thanks! The actual selector is still to be designed, I like the idea of foot operated and spring loaded. But I like the idea of another lever to select diff lock. With the 4wd selector lever plus transfer and shift lever that's 4 levers Transmission is an 8 pinion C series 8 speed, with the bits I don't need removed - the main transmission on this project is on the front and chain drive to the rear. Other than the brake shaft everything has been removed... Diff lock selection is through a new bush that is fit into the original shift lever position, the set screw retains the bush and keeps it neat and tidy. I wanted to beef things up as well as make it look a bit more rugged, so the laser cut steel end caps were bolted onto the hubs after I'd cleaned and fixed them up. Both had broken set screws, huge angle grinder marks and hammer rash. After filling all the cuts with weld and turning them down to clean them it just seemed like a good idea. You are right that it will stop the hubs sliding, though personally I've never had a problem on my horses with that. Re: helping, sure I can give pointers, there's no drawings for this and it's extremely tight to fit the workings into the small gap between the diff and the transmission case. It's probably possible to modify an existing 8 speed and keep the workings, but would be extremely tight to get the selector mechanism in. Mark Share this post Link to post Share on other sites

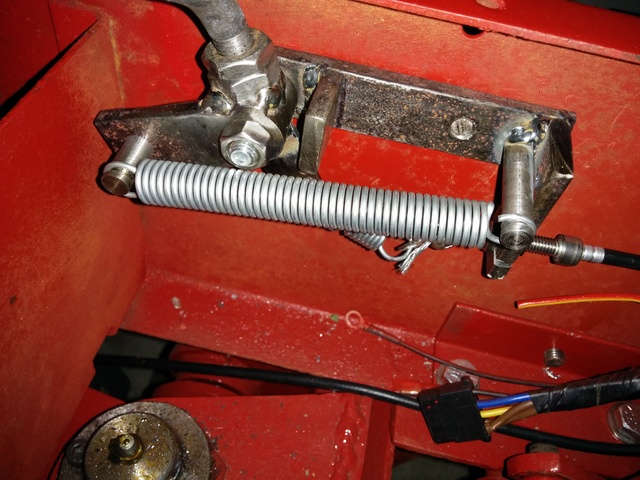

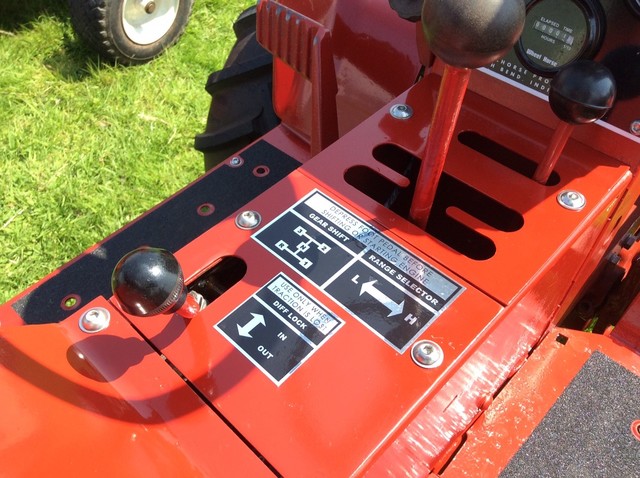

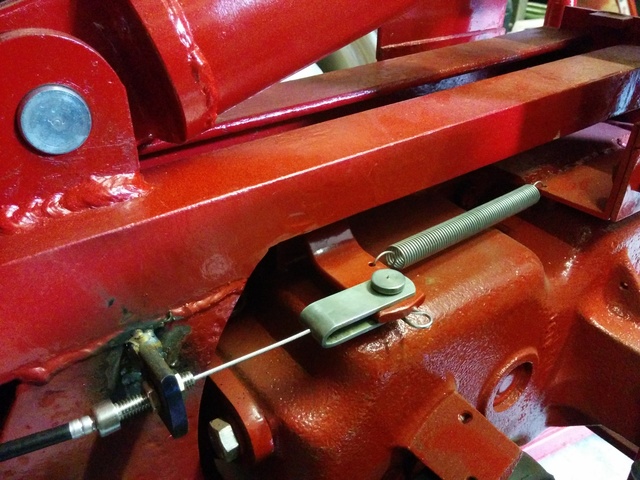

meadowfield 2,595 #25 Posted October 18, 2016 I never completed the thread - but did finish the lever 18 months ago! here is the cable actuation and the lever end with the obligitory lever and decal 4 Share this post Link to post Share on other sites
