A fix for the increasingly scarce 1533 differential bearing

[pacer 3,168]

If you're around the horses for very long you'll hear of the very scarce 1533 differential carriage bearing in the stick shift transmissions. The obvious reason for this is simple - they havent been made for many, many years and what few are around are dwindling at an alarming rate.



I had heard of guys "machining" a case to fit an oversize bearing but never knew any details, so being a fairly decent home shop machinist with a nice large Bridgeport type mill and lathe I thought I'd see what I could come up with. With member Groundhog44 having a couple sets of cases the 2 of us started looking.



The original 1533 bearing is/was 1-1/2 x 2-1/2 x 1/2" - the nearest thing to that (that I could find!) was a R24-2 rs or zz with its diminsions being 1-1/2 x 2-5/8 x 9/16". With only adding 1/8" diameter and 1/16" thickness the case appeared to have ample 'meat' to handle machining out this amount. This size bearing is very common and is relatively inexpensive, so I got 4 of them to see. The first puzzle was to get the case 'fixtured' on the mill to do the boring - this was stumping me til I called my "machinist by trade" buddy and with his years of experience quickly pointed me in the right direction. He was also able to furnish the 2 heavy steel bars needed to 'hang' the case off the mill table.



Let me pause here and state the rather obvious fact - this is not a repair that can be done in most of your shops, but I would think many of you know of, or have friends that have the necessary equipment - and its very possible in the not to far future that a visit to a machine shop may have to be done.



In order to get a grasp of what we did, I tried to get enough pics to see the set-up...

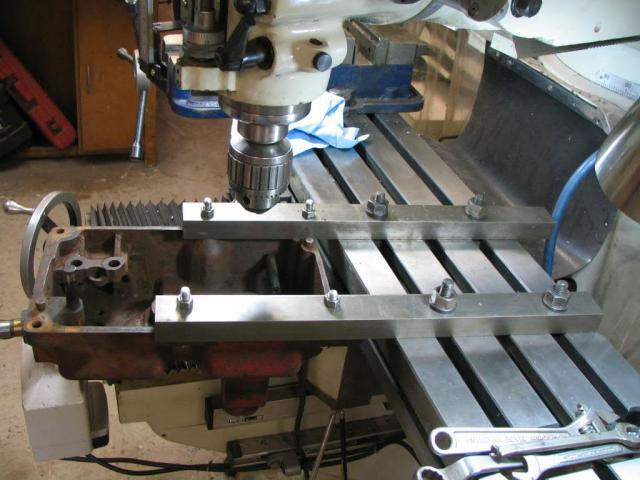

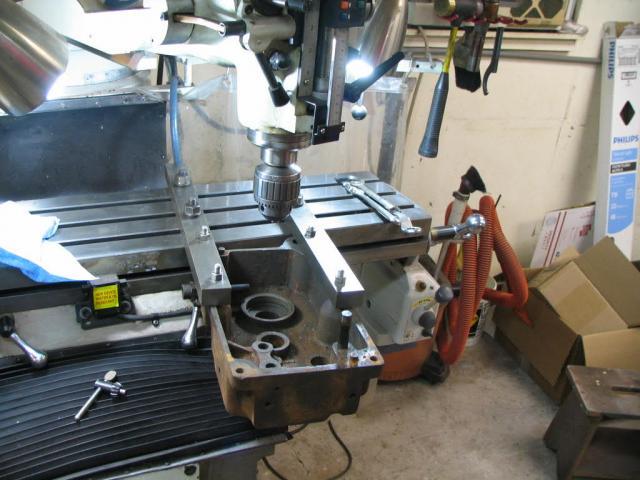

This is the 2 heavy bars mounted to the table with the mills head swiveled around in order to reach the case that will be mounted off the right front of the table to clear the mills knee.

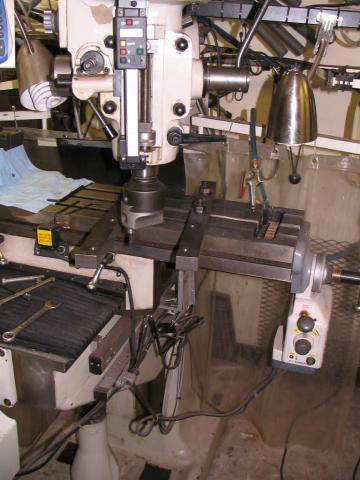

This is the case mounted in the fixture where I am about to locate center of the existing bearing bore in preparation for the boring

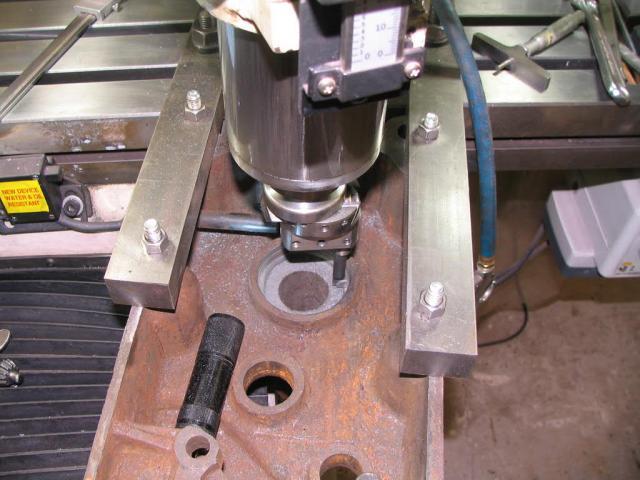

Here I am starting enlarging the hole. The depth of the hole needed to be increased from the original 1/2" to the 9/16" which is only .0625, but has to be done. I finished this step before enlarging the hole the extra 1/8" (this is only 1/16" off each side)

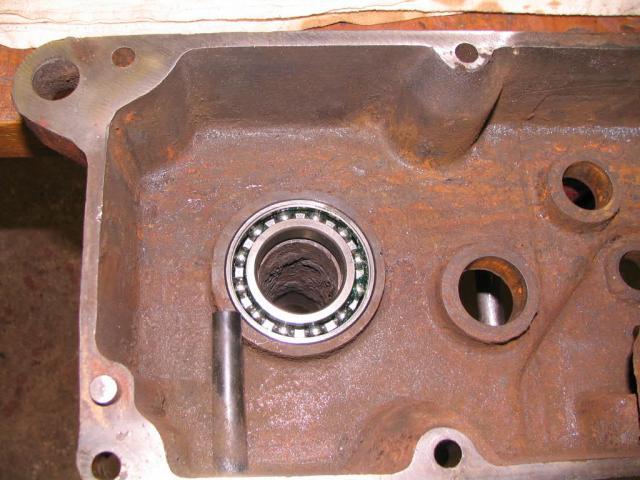

And this is the new bearing sitting in its new home -  this is a R24 rs bearing meaning it is a sealed unit, its only necessary to 'pop' out the rubber seal to allow oil to flow through, which I have done here (this same bearing in  zz designation is a shielded bearing and doesnt require anything)
