how to run throttle and choke cables

[zanepetty 117]

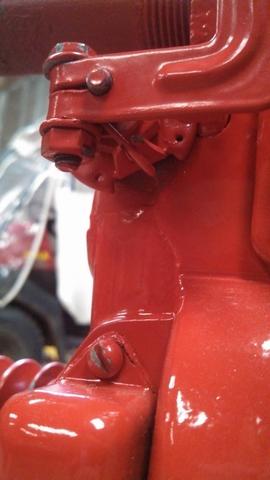

Does anyone have any good pictures of where the throttle and choke cable goes on my 753? I'm thinking one runs over the head and the other goes under the engine shround but I can't remember for sure. Any pics or help is appreciated. Also does the little hooked spring on the govenor arm go through the notch on this disc? Thanks in advance.

Edited January 21, 2014 by zanepetty

[AMC RULES 37,134]

Have you down loaded your engine manual Zane?

Lots of detailed info in there that will help you.

[zanepetty 117]

Yes I have that but the images are a little different and I don't remember the throttle cable booking up to the disc..maybe I just don't remember it but I think both cables went to the carb and I don't really remember where the cables were routed. And I don't have the the piece with the throttle bracket on it..is there an alternate way of booking up the cables?

Edited January 21, 2014 by zanepetty

[chazm 413]

From Buckrancher 854 rebuild thread



http://i394.photobucket.com/albums/pp30/buckrancher/100_3614.jpg



http://i394.photobucket.com/albums/pp30/buckrancher/100_3613.jpg

[zanepetty 117]

Thanks a bunch for that. So do I need the throttle bracket? It doesn't seem like it does anything?

[chazm 413]

Thanks a bunch for that. So do I need the throttle bracket? It doesn't seem like it does anything?



Not sure what you mean by "throttle bracket "



There is a bracket that secures the end of the throttle cable housing / the throttle cable "wire end" connects to the gov arm / there is a solid rod going from the top of the gov arm to the carb linkage

[zanepetty 117]

That's just what they called it in the manual it goes on the shaft behind the disc..

[zanepetty 117]

OK I've figured out I do need it. Anyone know where I could get one?

[chazm 413]

OK Zane, I look at my k181 manual and YES,  you will need that "throttle bracket"   /   On pg 17  figure 5-4 & 5-5 shows how it is connected & how to adj once connected

I do not see that bracket in your pic above.      I hope you didn't misplace it

[zanepetty 117]

OK I have the bracket. I would appreciate that so much that would b a great help

[TT-(Moderator) 1,145]

Try this:



[zanepetty 117]

That helps. I actually saw that b4 but I just wanted to k ow exactly where the cables go and what goes on the end of that tab.

[TT-(Moderator) 1,145]

Did you see these pics?:

[zanepetty 117]

That's what I needed. Thanks so much. This site and you guys are the best.
