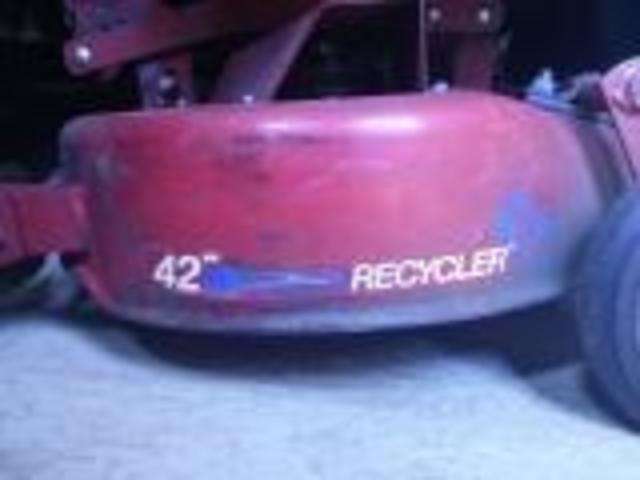

GlenPettit 1,716 #1 Posted October 6, 2013 (edited) Question 1: Does anyone have a better more-complete picture of this decal, or can take one? So it can be submitted to Terry Dennis to consider making some. It was placed in a bad position on the side of the deck where normal use might wear it off. Question 2: Where can I find the instruction & parts manuals for this RD Recycler Deck (Model #78355, serial #4900519, probably 1995), (dead-ends so far). Glen Edited October 6, 2013 by GlenPettit Share this post Link to post Share on other sites
nylyon-(Admin) 7,247 #2 Posted October 6, 2013 Glen. I can kind of help. I sent to Terry a while ago the decals on my 42"RD with the recycler kit. I do not know id there's any difference in the decals between the recycler deck and what comes in the kit, but I assume they're identical. I have the original owners manual for my kit, it's a 1994. When I have some time, I'll scan it and put it into the downloads section. 1 Share this post Link to post Share on other sites
cod 120 #3 Posted October 6, 2013 Glen, I've got a decal like yours but I don't see a way to attach it to this post. If you can explain how to attach it I'll post it later today. I can't help you with the manual as I found mine in the manual section and I suspect you've already looked there. Cod Share this post Link to post Share on other sites

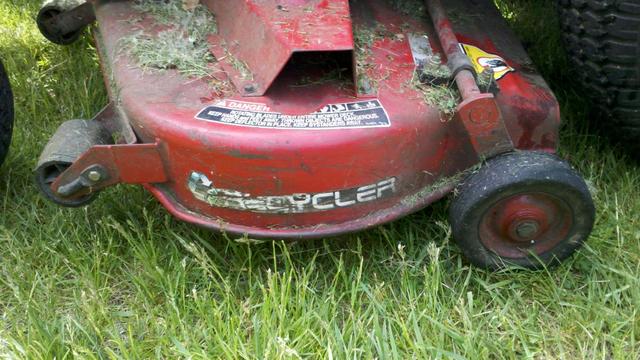

cod 120 #4 Posted October 6, 2013 Glen, Found out how to upload an image and compressed the file so it was less than 1MG ( it was over 2MG ). Sorry about the size and if it helps I can email the original to you. Good luck - Cod Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,029 #5 Posted October 6, 2013 IPL Operator manual Setup instructions http://www.wheelhorseforum.com/files/file/2228-mower-rotary-42in-rd-1993-1994-78355-recycler-setup-3315-697pdf/ The 1994 Recycler decals are item #23 part number 79-1301 and decal drawn on the end of the deck but no #23 on it. The decal in 1995 is part number 92-9523. Garry Cod, What year is your deck? The decals are different and that may explain why. Garry 1 Share this post Link to post Share on other sites
GlenPettit 1,716 #6 Posted October 6, 2013 Those manuals are exactly what I needed, and that decal is exactly the right one. You people are Great! And fast! Thanks, Glen Share this post Link to post Share on other sites
cod 120 #7 Posted October 7, 2013 IPL Operator manual Setup instructions http://www.wheelhorseforum.com/files/file/2228-mower-rotary-42in-rd-1993-1994-78355-recycler-setup-3315-697pdf/ The 1994 Recycler decals are item #23 part number 79-1301 and decal drawn on the end of the deck but no #23 on it. The decal in 1995 is part number 92-9523. Garry Cod, What year is your deck? The decals are different and that may explain why. Garry Garry, While my tractor is a 418-A from 1987, the PO told me he purchased the mower deck after he bought the tractor so I don't know what year it is. I can't find the serial number at the moment but the manuals the matched the serial numbers were: Mower Rotary 42in RD 1984 05-42MR02 OM #810345R1.pdf - owners manual Mower Rotary 42in RD 1986-88 05-42MR04 IPL #810407R1.pdf - parts list They may not be exactly correct but they are the closest ones I could find. When I purchased the tractor I removed the recycler baffle from the deck and added a second set of blades to the quills to help keep the "windrow effect" down. The baffle was rather rusty so I may clean it up at some point but it's not a priorty at the moment. Cod Share this post Link to post Share on other sites
Stepney 2,325 #8 Posted October 8, 2013 (edited) Mine's nearly mint, I can get a photo this week if you want. (Edit) The computer glitched, I had never fully loaded the page. Disregard that....) Edited October 8, 2013 by Stepney Share this post Link to post Share on other sites
