Super Bendy 4x4 wheel horse

[meadowfield 2,570]

This has been a pita, changing the design on something after 5 years and trying not to take too much apart is hard!

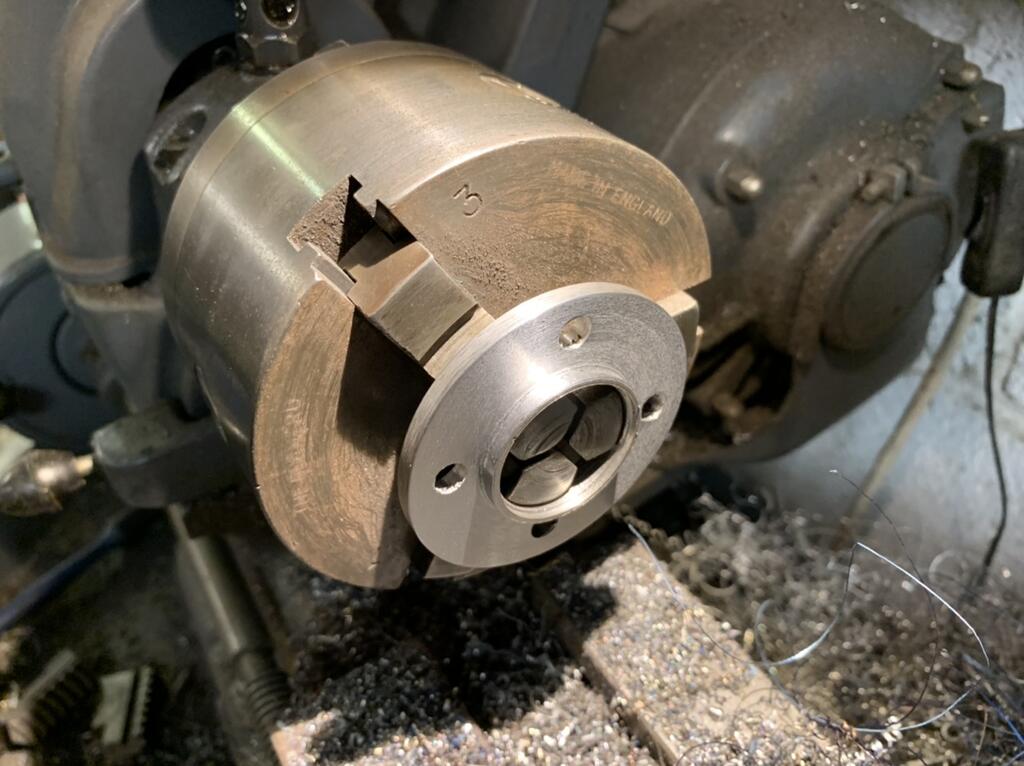

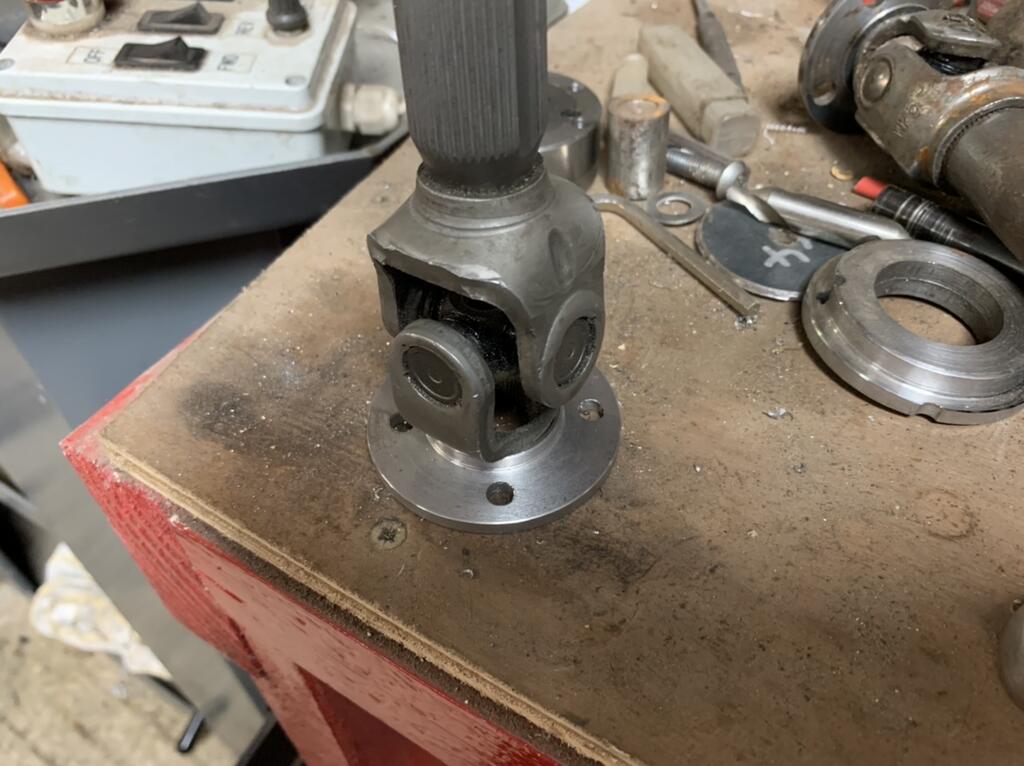

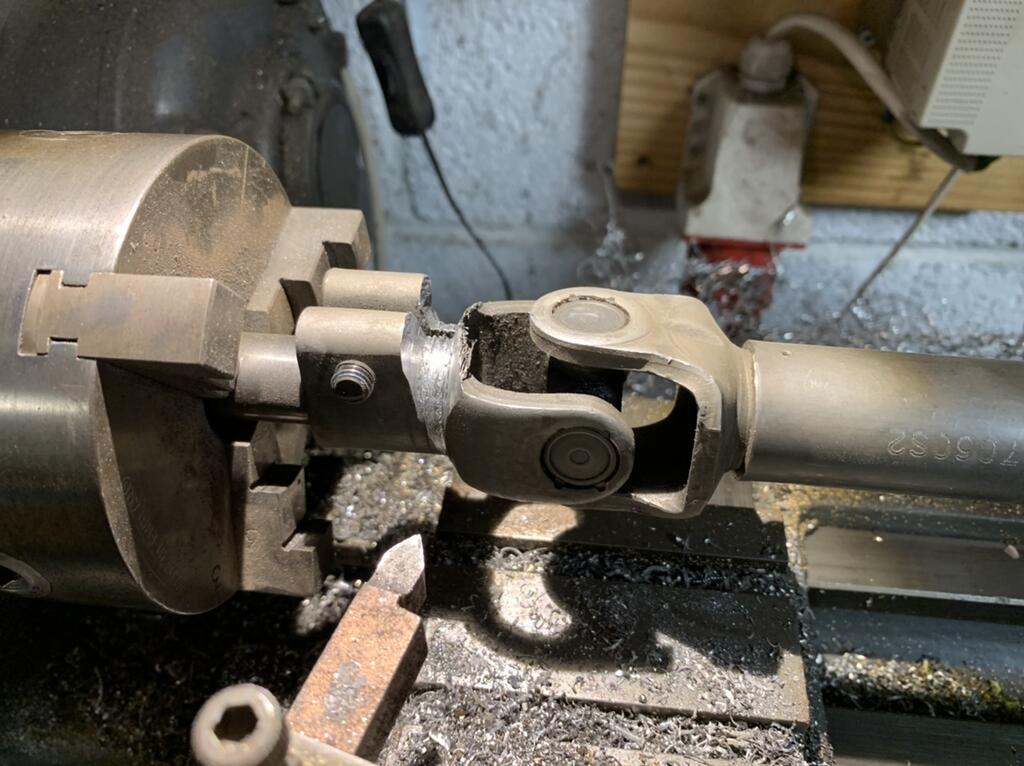

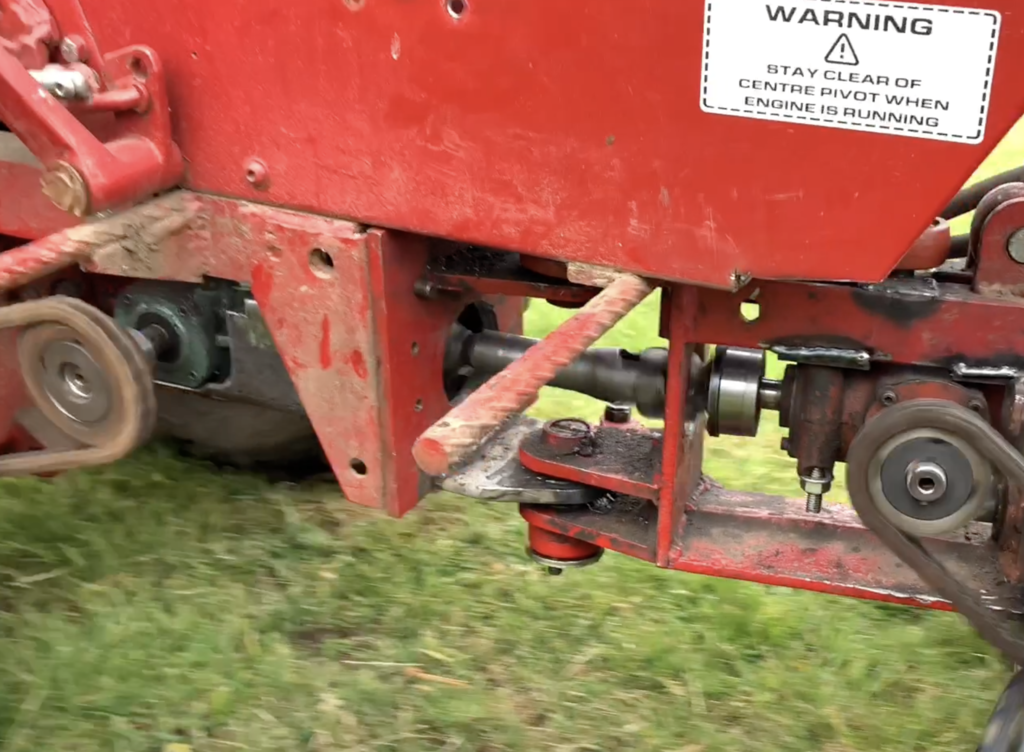

I’ve had to make a centre prop from a steering column, it’s small. Really tight on the splines and scales well. The downsize is the amount of effort machining...

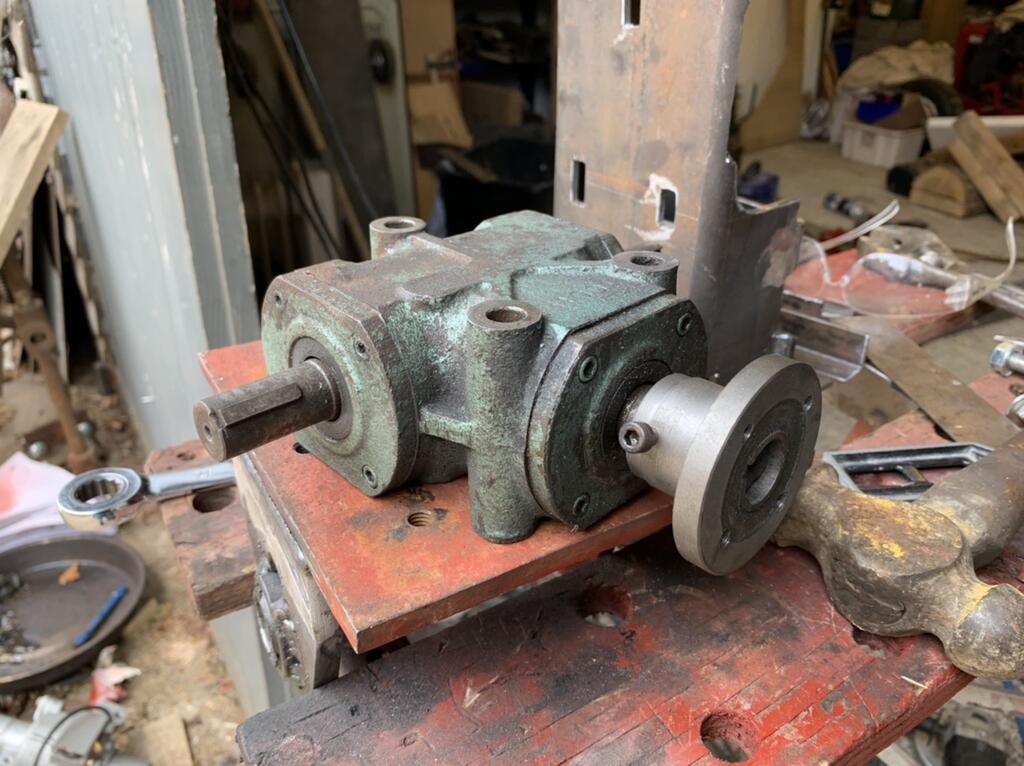

front 90 deg box with flange adapter fitted.

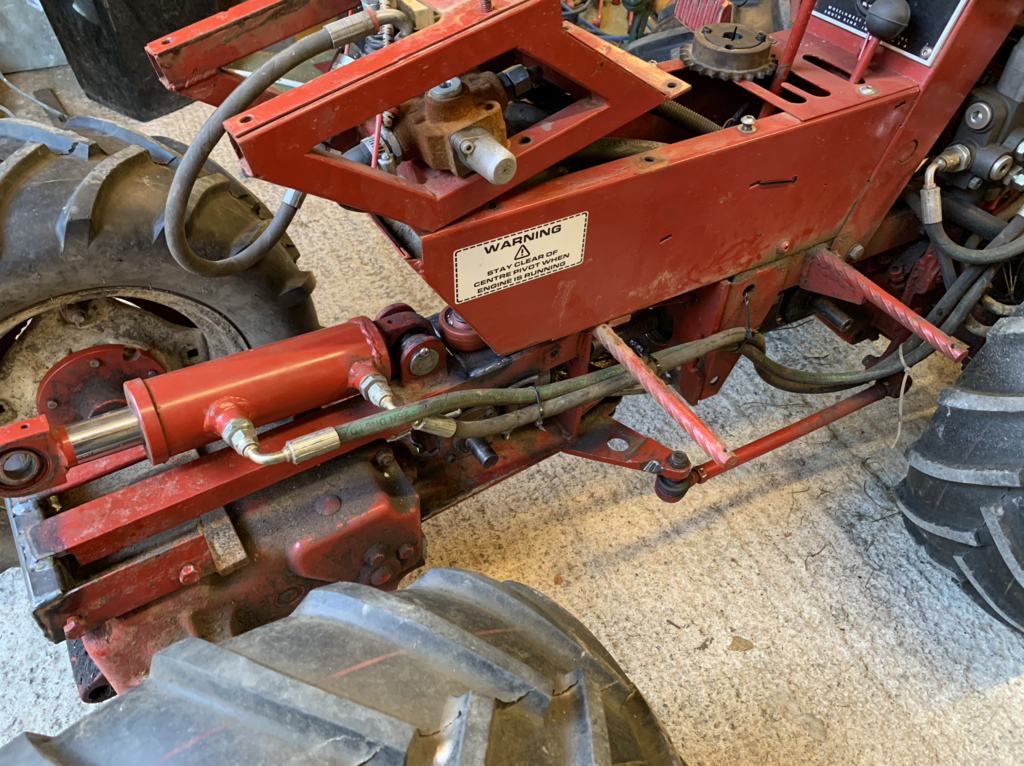

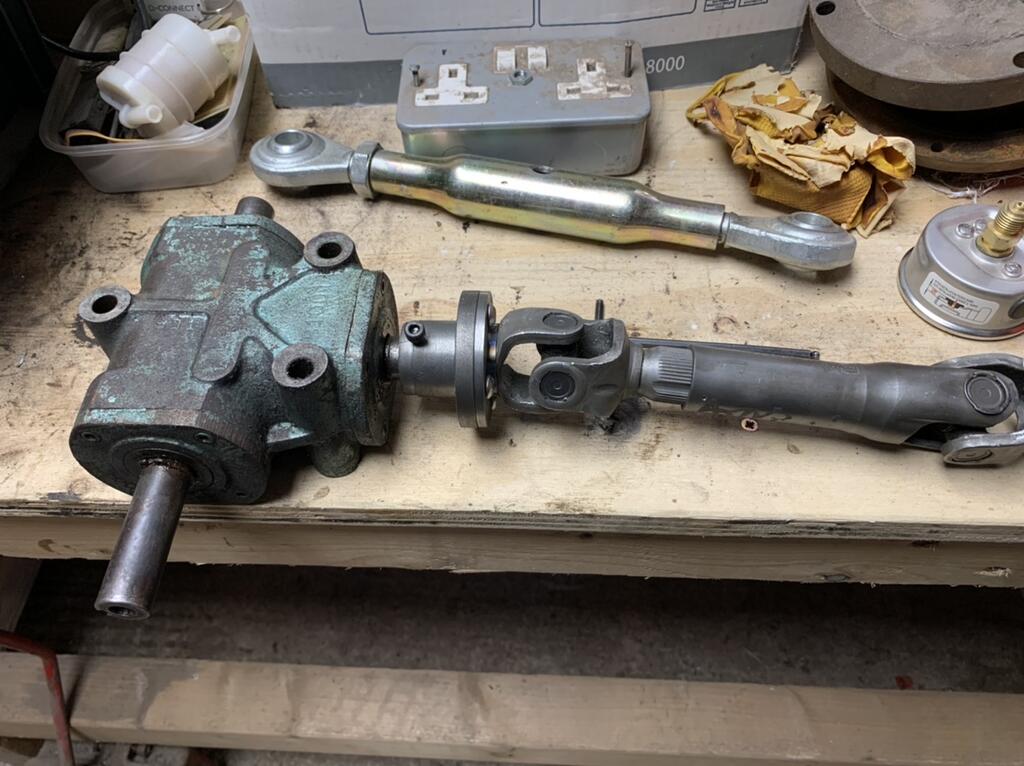

Assembly dry run, needs a mount now for the front frame.



[meadowfield 2,570]



took a while an a lot of hacking, but we are done.

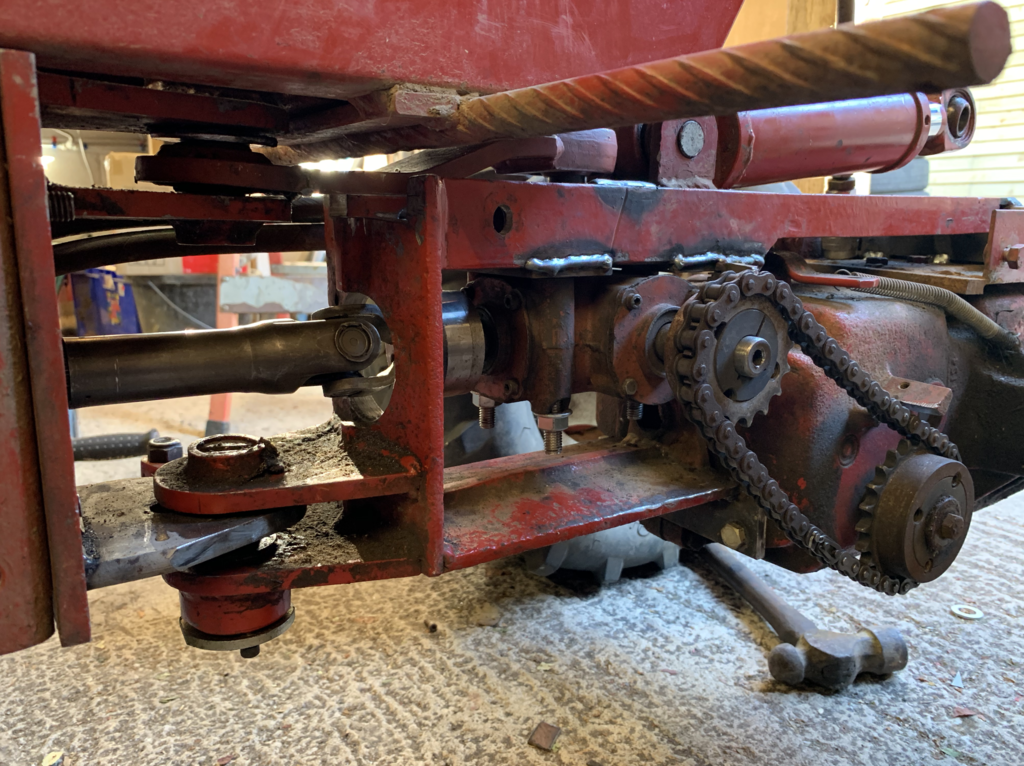

had to reroute rear lift lines.

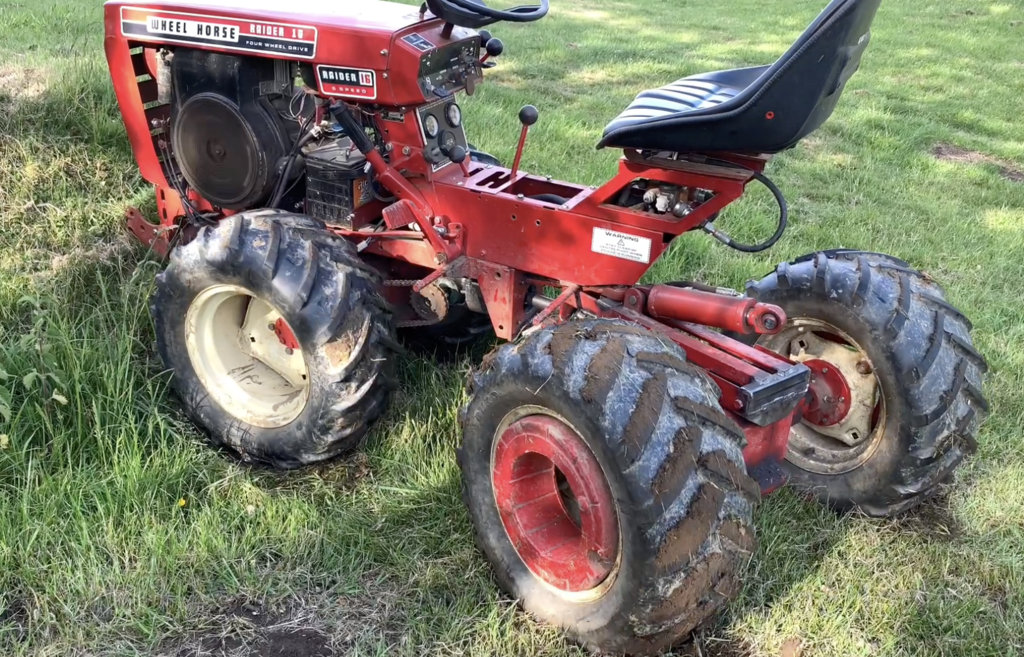

action shot





front hitch jammed into a banking to test









and a short video













[SylvanLakeWH 25,600]

WOW!



Beautiful job!!!

[AMC RULES 37,130]





Awesome job Mark, as usual !!!
