Retired Wrencher 5,535 #1 Posted January 12, 2013 :USA: I am putting back the 857 together to use and show show with no paint just a buff job I will down the road redo this fine little tractor later on when I am retired. And I am trying to remember the clutch pedal has a stop lever and a bracket or bar in the back was this for the mower deck??? the spring is what keeps the pedal in place if I remember right??? any info would be helpful my manual only show the pedal/lever/and spring set up. Thanks. Gary B... OOOHHH Can send a picture if needed. Share this post Link to post Share on other sites
TT-(Moderator) 1,145 #2 Posted January 12, 2013 When the PTO is disengaged, the lever on the outside of the pedal locks against a 1/4" X 1" roll pin that's inserted through the footrest rod. The link on the back of the pedal connects to the idler arm / belt tensioner pulley that mounts on the pin of the mid hitch side plate. Share this post Link to post Share on other sites
Retired Wrencher 5,535 #3 Posted January 12, 2013 Hi Terry do u have a picture of this set up. I do not have a hole that i can see on the idler??? thanks. Share this post Link to post Share on other sites

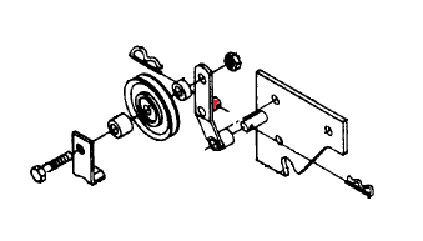

TT-(Moderator) 1,145 #4 Posted January 13, 2013 This is a cap of the belt tensioner arm / idler pulley assembly from the mower deck IPL: The link from the foot pedal attaches to the pin I have colored red. As far as pictures, this is the best I can do: Share this post Link to post Share on other sites
Retired Wrencher 5,535 #5 Posted January 13, 2013 :USA: Hi Terry does this look right to u this looks like it is only for the mower deck. here are some pick`s. it has been about 4 years since this 857 was together so my memory is a little rusty And being it is a 857 it is different set up than 10 and the 1257. Take Care Gary B................. also there is a rod the same length as a brake rod the ends look like this. I am not sure where that goes?????if it even goes on the 857..... Share this post Link to post Share on other sites
Retired Wrencher 5,535 #6 Posted January 13, 2013 oops I posted before I saw your info thanks Terry this put it all together now . still do not know where that rod goes though may be on the 1057??????? Also nice tractors you have there looks like they are workers and riders. take care......Gary B................... Share this post Link to post Share on other sites
TT-(Moderator) 1,145 #7 Posted January 13, 2013 The 856 is long gone, and the 867 lives a few houses down the street from my parent's house. The brake rod in your last two pictures is for an older automatic tractor. Share this post Link to post Share on other sites
