need some help with c195 3 point fabrication.

[Martin 2,133]

guys, i need some help.....

pics, drawings, measurements whatever you got to give me enough info to fabricate a complete 3 point assembly as used on the c195. i want to do a factory copy, it might not be done exact, but i need as much info as possible to make it. ideally having one complete assembly to copy would be the best, but i dont have that luxury so any help you guys can give me would be great.....

i will be going to scotts meet and greet as well so if anybody has a setup on a tractor and will be there, i would appreciate having some time to measure up and take a few pics......

heres what i need.....

measurements (inc. pics whatever) of the brackets that bolt to the axles........

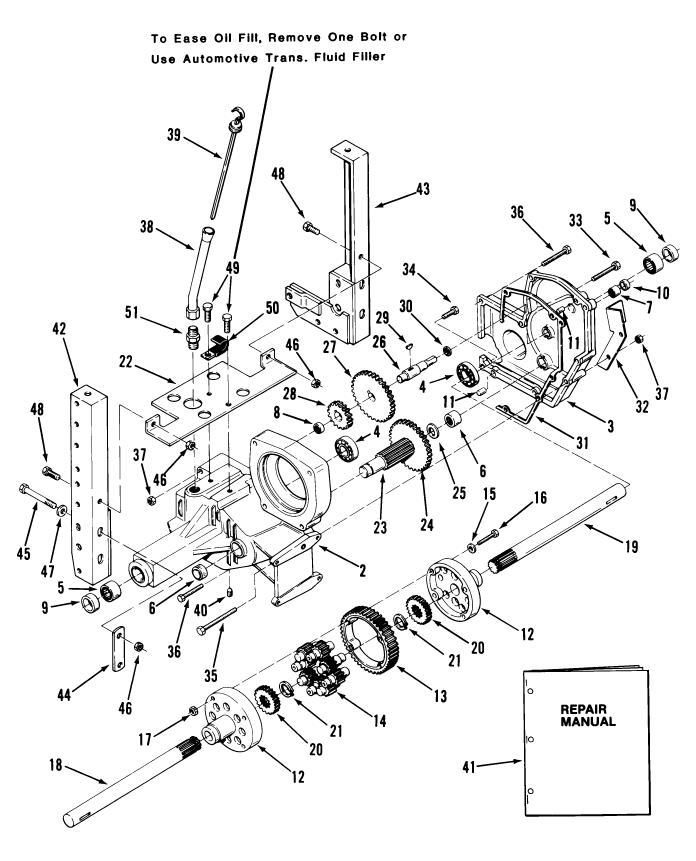

#42 and #43 (hitch support brackets l & r)

and #22 (rear plate)

and enough info for the fabrication of all this stuff.

i might be able to substitute some parts, such as the hydraulic parts, but i wont really know until i get into it. i plan on fabricating it up off the tractor by building it off a separate transmission and fender support bracket. (mums the word on what its going to be put on)

once again thanks in advance to any help you guys can give me.......

rest assured if i can get enough info to do it, i will document the whole thing on here.....

worn out or broken parts that can be used for patterns would be good too, ( if they are cheap).

[stevebo-(Moderator) 8,363]

Buckrancher posted all the measurements in a pevious thread.

[Martin 2,133]

maybe its just my choice of search words, but i dont come up with anything using the rs search function.

now google does refer to a thread on the old redsquare, from sept 11 2011.

http://www.google.com/url?sa=t&rct=j&q=c195%203%20point%20hitch%20measurements&source=web&cd=1&ved=0CCIQFjAA&url=http%3A%2F%2Fwhtractor.15.forumer.com%2Fa%2Fanyone-with-a-c195-that-has-a-3-point-hitch_post31248.html&ei=ub5EUNikMqa6yQGXq4Ag&usg=AFQjCNGUfj3Cgzt_SI4bBeF2i5ZXUvHKFA&sig2=2slchLOvh_Qk2gzd1j8eUQ

but thats no help at all.......

[Kelly 1,030]

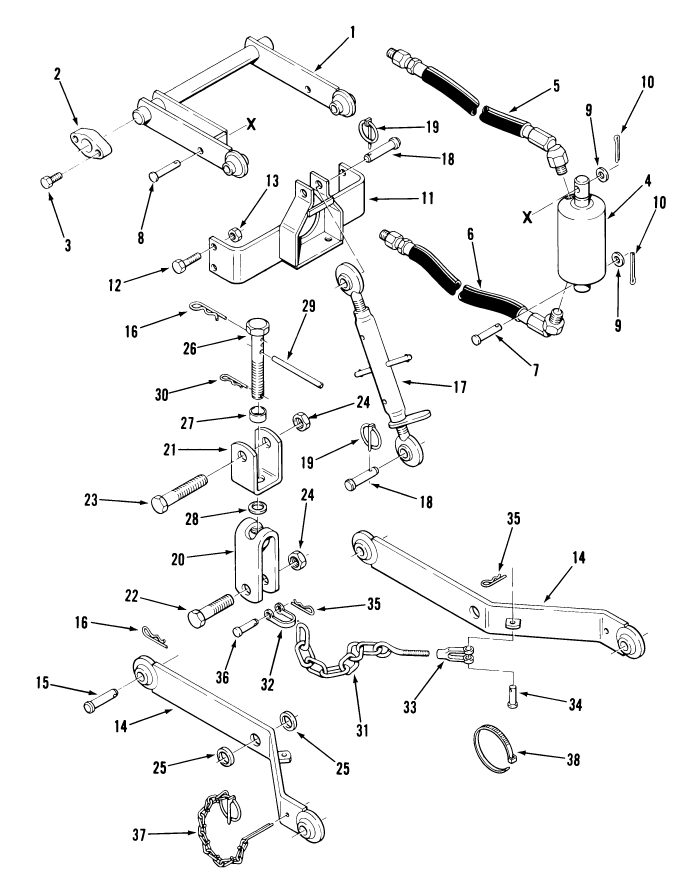

If you pay shipping both ways and don't keep it to long I have a complete 3 point in a box for my 195 you can use as a pattern, but I can tell you 90% of it is D parts, about all that is not D is the upper rockshaft, and those mounts that go on the rear axle those are standard 195 those I don't have off.

[Martin 2,133]

pm sent.

[buckrancher 2,694]

[Martin 2,133]

thanks brian, this will be a great help for the upper parts......
