4 SPEED #5085 Trans rebuild Videos & Pics

[stevasaurus 22,841]

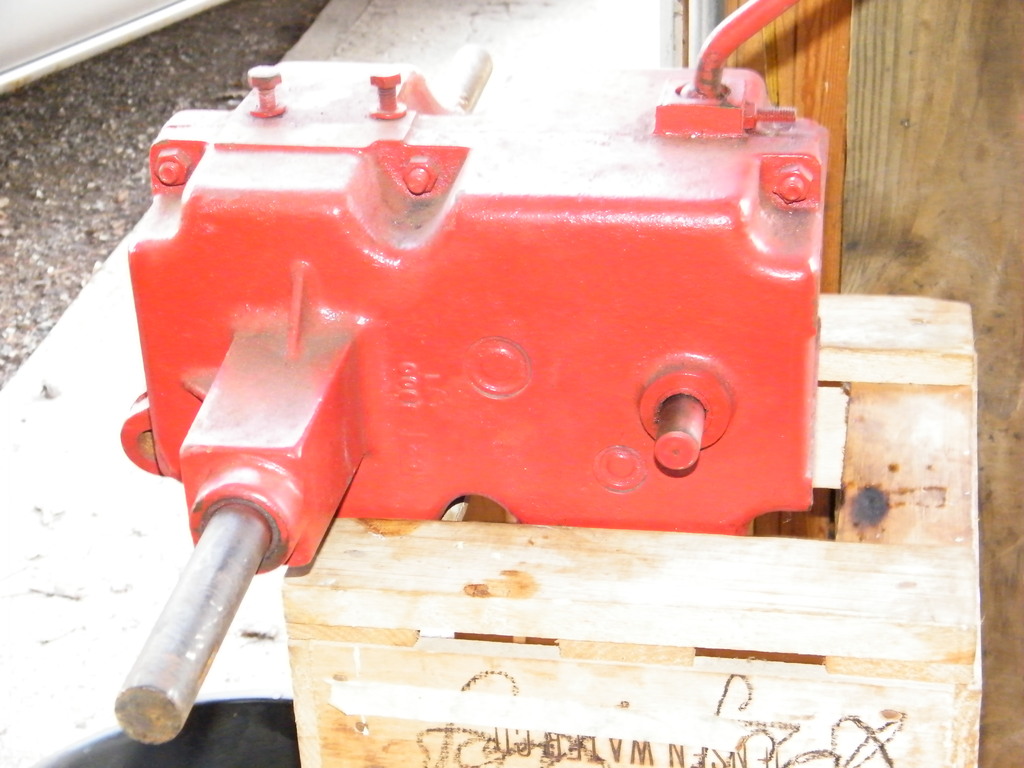

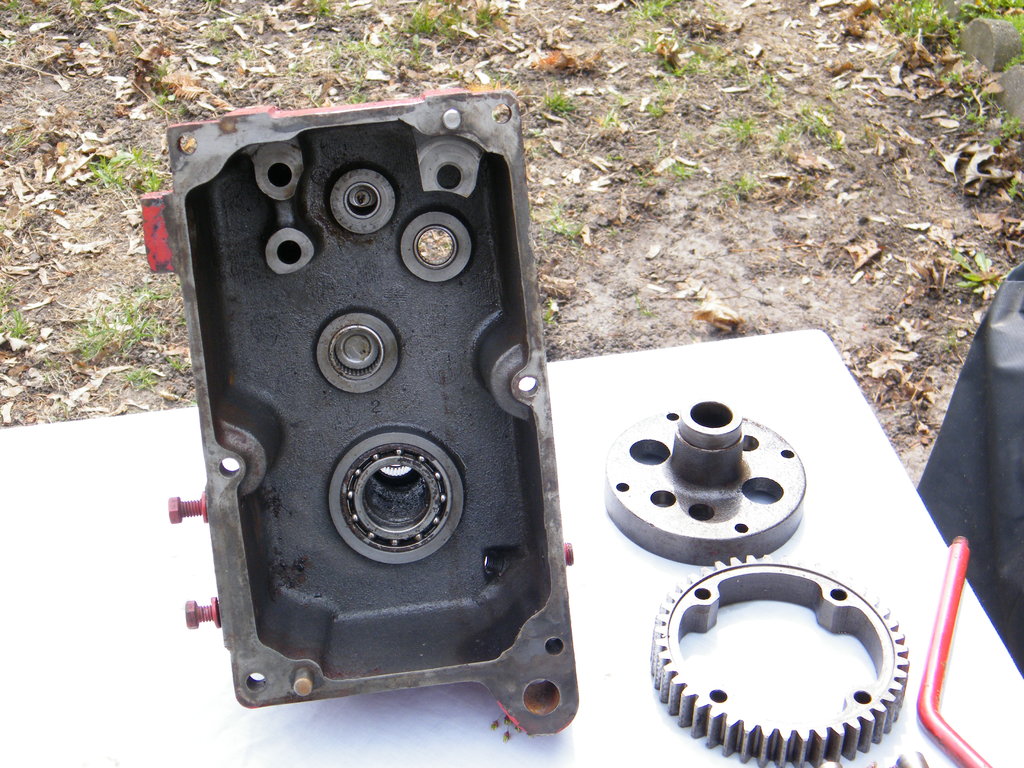

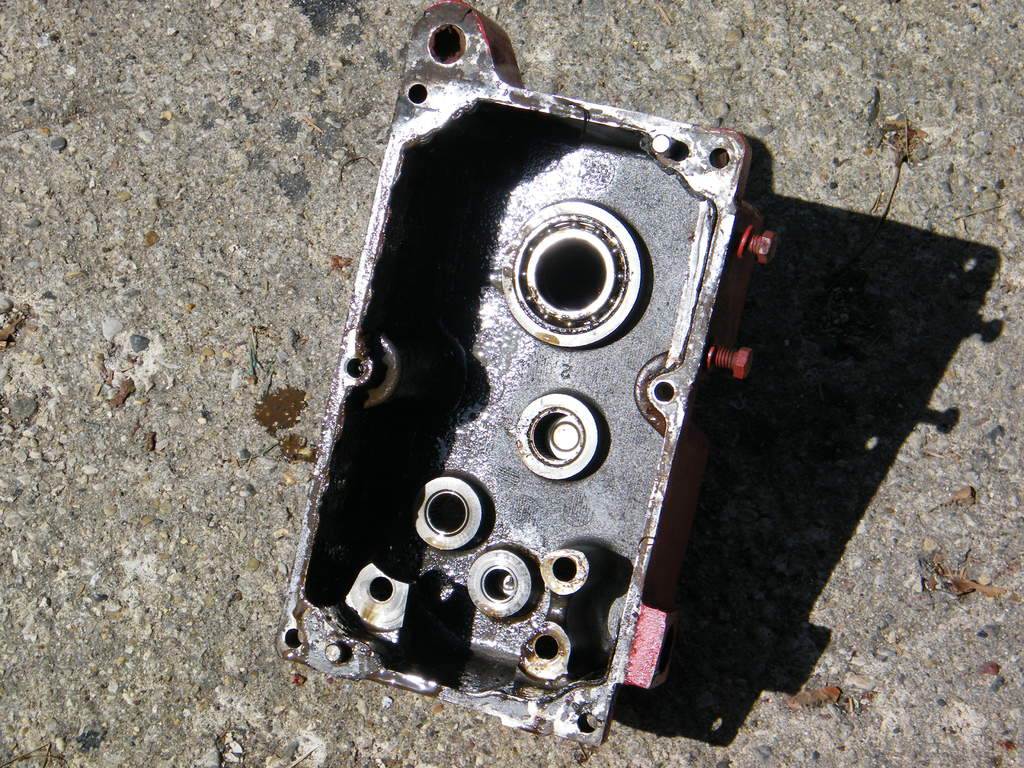

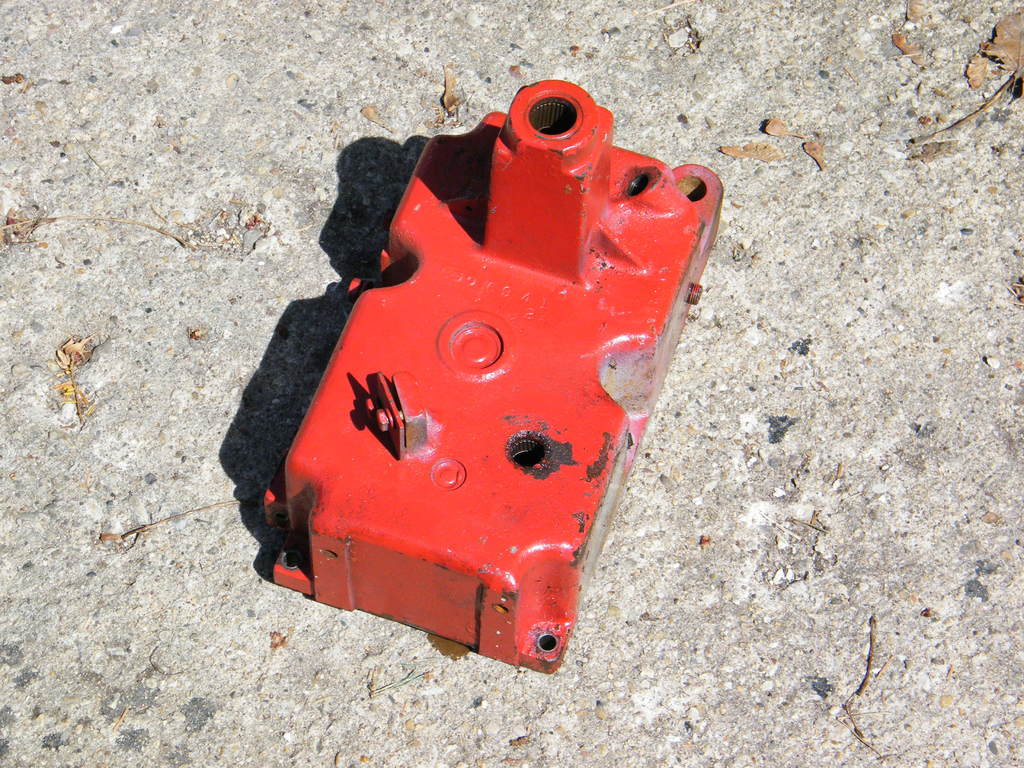

There has been a lot of transmissions going bad lately, and a lot of new guys with them, so I decided to help with a video of putting one together. I think the only difference between the 3 speed and the 4 speed uni-drives, is that the brake shaft comes out of a different hole in the trans case. The bearings are the same, it is just that one of the cap and one of the through bears have switched places.

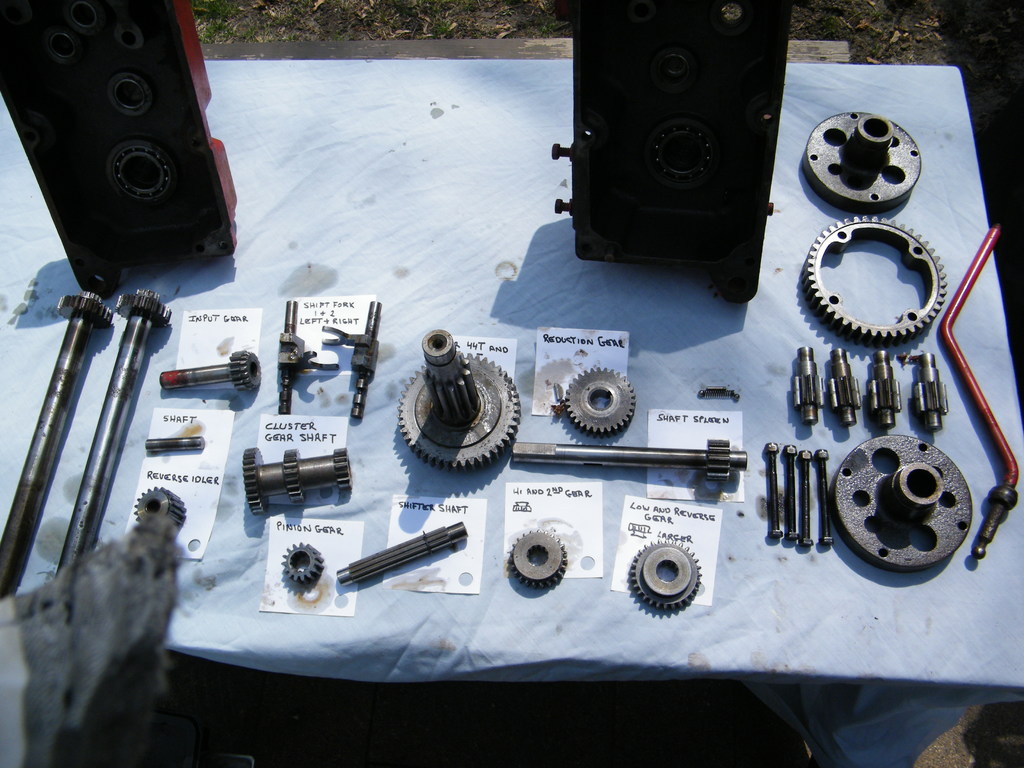

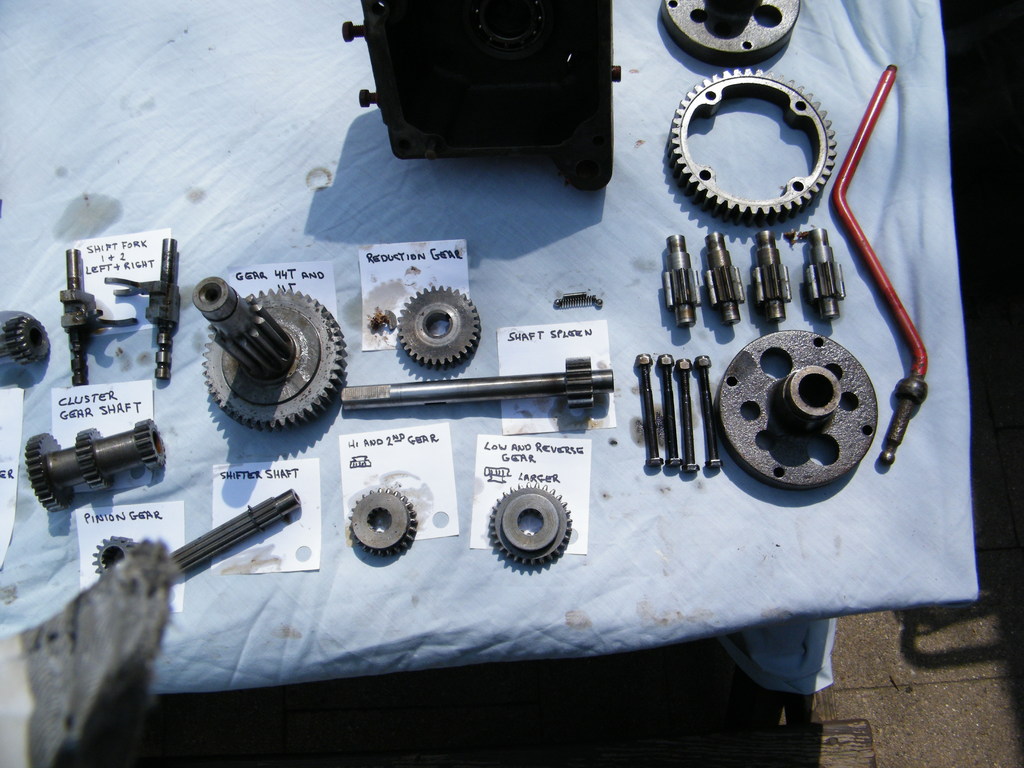

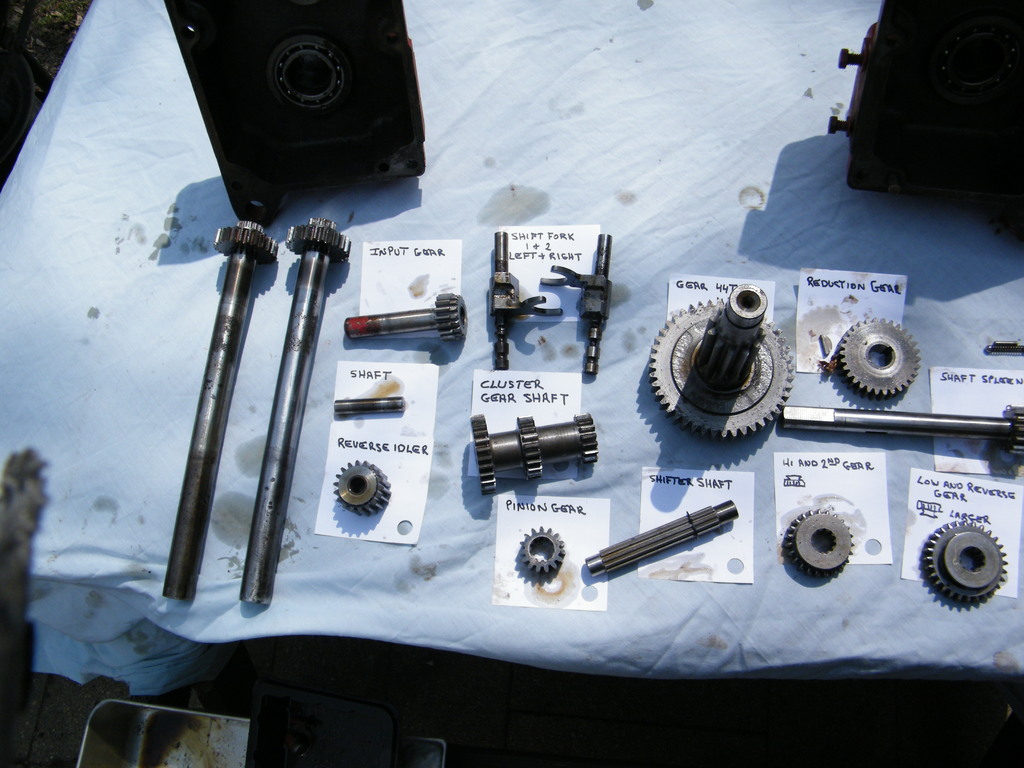

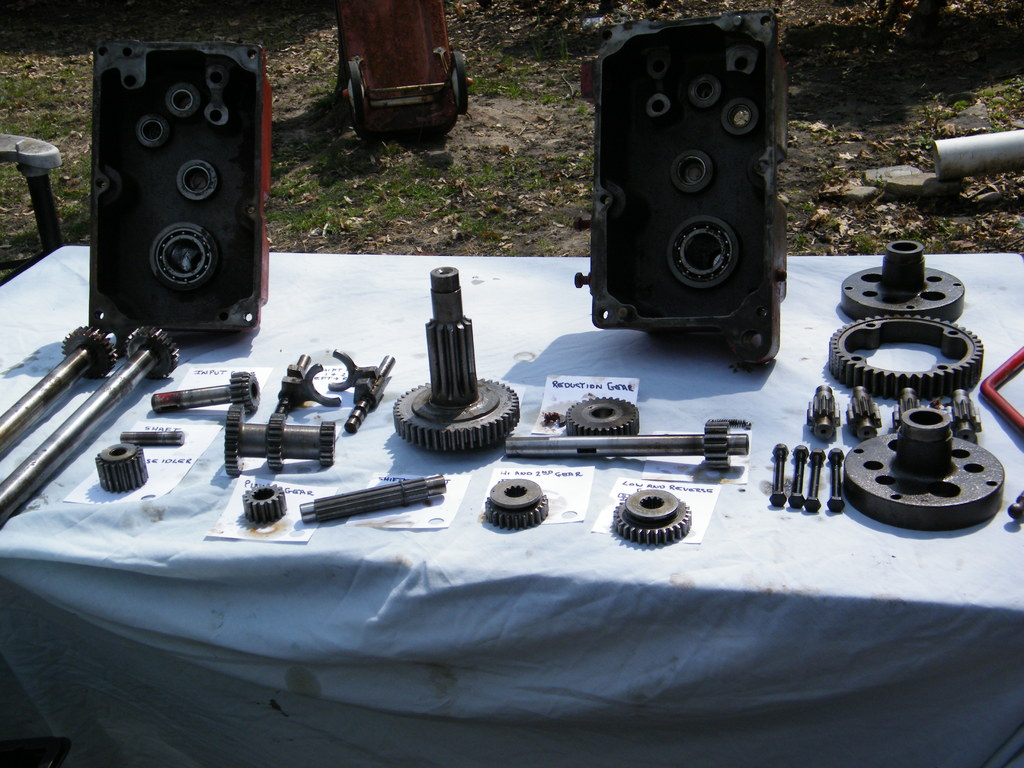

I have laid out and labeled all of the parts.

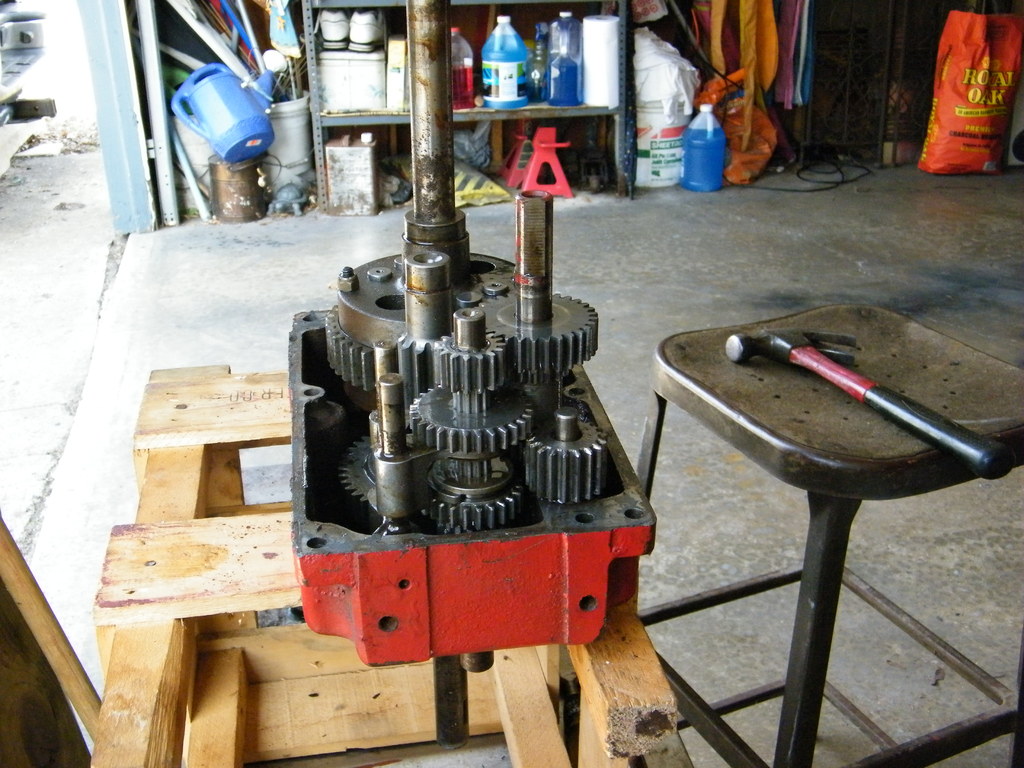

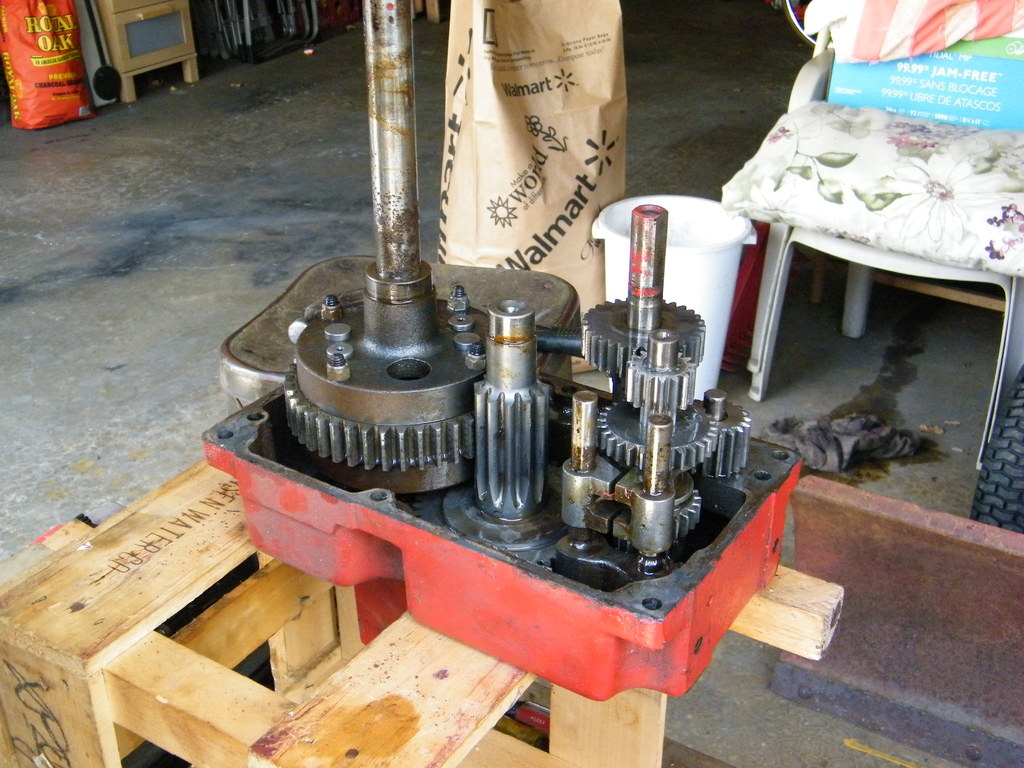

The first video builds the differential. And because my batteries died, the 2nd video builds the trans. In the video, I wrongly said the bolts go up when placing the differential at the end...the nuts must be up in order for the differential not to interfere with the 11T-44T gear. There is more to this video stuff then I thought, but I hope it shows how really easy it is to put one of these transmissions together. Hope you enjoy, and I hope it helps our fellow horse lovers. Click on these last 2 pictures for the videos.





[racinfool40 202]

:wh: Looks Good Steve!! Must be nice to be retired!!!! Another re-unbroke Tranny!!! :thumbs:

[Coadster32 793]

Thanks for taking the time to demo this. :thumbs:

[puddlejumper 67]

Couldnt beat that tutorial with a stick! Awesome just Awesome.

[dennist 139]

That was one of the most educational videos that I have seen in along time. It will help many who feel unsure about tearing into one much better about doing it. Thanks :thumbs:

[btrrg1969 11]

you made it look easy , good show :thumbs:

[JimD 3,345]

Excellent work in this thread Steve. This is another thread to put in the Redsqaure best of all time category. Well done my friend! :thumbs:

[WH854 44]

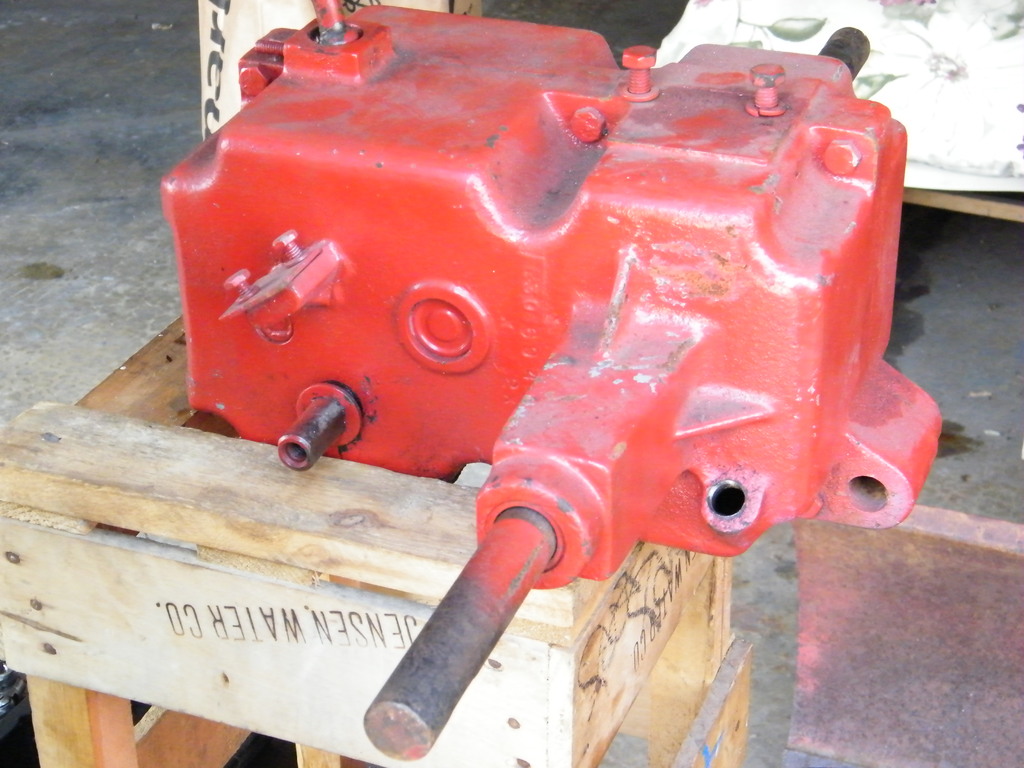

Atta Boy Steve I finished my 8 speed up yesterday or was it the day before Only I didn't have a wine case to sit mine on

Chas

[dmoore 883]

Am I missing something here? All I can see are pics no video link :thumbs:

[racinfool40 202]

For the vid's click on the last 2 pic's!! :thumbs:

[Horse'n Around 22]

Steve, thank you for taking the time to do this. Im going to make sure to save the whole thing because I know its going to come in handy. I am curious, does a 6 or 8 sp trans go together the same way for the most part? I have a damaged 6 speed that came out of my '70 Raider 10 that Im collecting parts for thats going to need my attention in a big way.

Thanks Steve!

John

[gwgdog66 23]

:wh: Steve this is a very good "How To" it will help a lot of folks. :thumbs:

[Forest Road 594]

Steve

Thanks for going the extra mile on this! I really appreciate it. Just received the parts and hope to get to it this weekend.

[stevasaurus 22,841]

I am curious, does a 6 or 8 sp trans go together the same way for the most part?

John

John...yes the 6 and 8 speeds go together exactly the same way...in fact...they use the same gears. The only difference is the shallow side of the case has been milled out under where the shift forks go to make room for the Hi/Low shifter assembly. There are some great pictures of that in the Useful Post section. After putting in the Hi/Low stuff, the transmissions are the same.

Hey guys...thanks for all the great comments...I really appreciate them. :wh:

[gattonde 1]

Great Video's Steve, this should be a great help for working on trannys.

Dan

[tunahead72 2,424]

Steve,

Well done!

Photos are very useful, and there's lots of good ones on this site, but there's nothing like a good video to really experience and understand the process. I'll be watching yours again when it comes time to rebuild my own 8-speed.

:wh:

[massey 118]

Thanks for taking the time to do this, very helpful.

[dgjks6 6]

Its becasue of members like you that this site helps so many people.

This needs to be moved to most useful posts section.

[Suburban 550 28]

You're the man, Steve. I learned alot from ya. :thumbs:

[jpmcleod 4]

Steve. Thanks so much for the phone call and the fine information you provided. Watched the video and I am in the mood to give it a shot.

I hope my response will be a positive one as some have had good luck. I am planning on pullimg it off the tractor tomorrow afternoon and break it apart Monday morning.

I will be in touch with the results.

[HorseFixer 2,012]

Great Video Steve Will help keep me from Bucking up my Tranny!

Cheers ~Duke

:D

[AMC RULES 37,134]

Thanks once again Steve, for the great how to tutorial.

Can we get this moved to the technical section of the FAQ and Mechanical Tips, or at least pinned at the top of the trans thread so it's easier to find in the future? :thanks:

[bowtiebutler956 650]

This is an awesome post! I had never seen this before, but it sure would have been nice back when I had my 4speed apart. Can someone make a sticky out of this, so that it is easy to find? Great job Steve. :text-thankyoublue:

[Wyattrrp 59]

Best All Times Forum Post area would be a great place for this link! This is a VERY helpful posting. :text-bravo:

[Fun Engineer 859]

Great and helpful video Steve. Perfect timing as my bearings and seals should be in next week.
