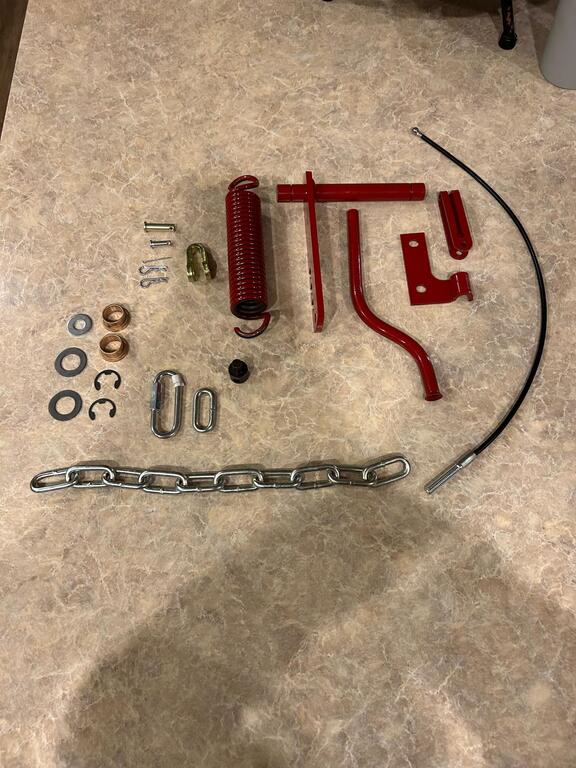

matthewg84 3 #1 Posted February 12 Hey, does anyone have pictures of their tiller hooked up and how all this hardware is supposed to go? Thanks Share this post Link to post Share on other sites
ri702bill 8,823 #2 Posted February 12 Refer to the manual for your tiller - I do not see the belt nor idler shown. Is that the kit from Lowell?? If so, give him a call..... Share this post Link to post Share on other sites
Racinbob 11,587 #3 Posted February 12 (edited) That kit doesn't come with the tiller. Yes, it's Lowells and the tube is for a hydro tractor. Here's the install for it. It refers to a clevis hitch but it's the same for the rock shaft. Form No. 810834 Rev B Edited February 12 by Racinbob Share this post Link to post Share on other sites
matthewg84 3 #4 Posted February 12 4 hours ago, ri702bill said: Refer to the manual for your tiller - I do not see the belt nor idler shown. Is that the kit from Lowell?? If so, give him a call..... The tiller we bought didn't come with a manual. We have the belt and idler. Last year we hooked it up and it works fine. But it didn't have any of the hydraulic lift setup so I bought this package. Share this post Link to post Share on other sites
matthewg84 3 #5 Posted February 12 2 hours ago, Racinbob said: That kit doesn't come with the tiller. Yes, it's Lowells and the tube is for a hydro tractor. Here's the install for it. It refers to a clevis hitch but it's the same for the rock shaft. Form No. 810834 Rev B Thank you. Yes this one is a 520H model. The rock shaft on mine is the new one with two arms instead of one. Share this post Link to post Share on other sites
