Wheel Horse C-160 / kohler K301S in France

Recommended Posts

pascal Plancke

Hello,



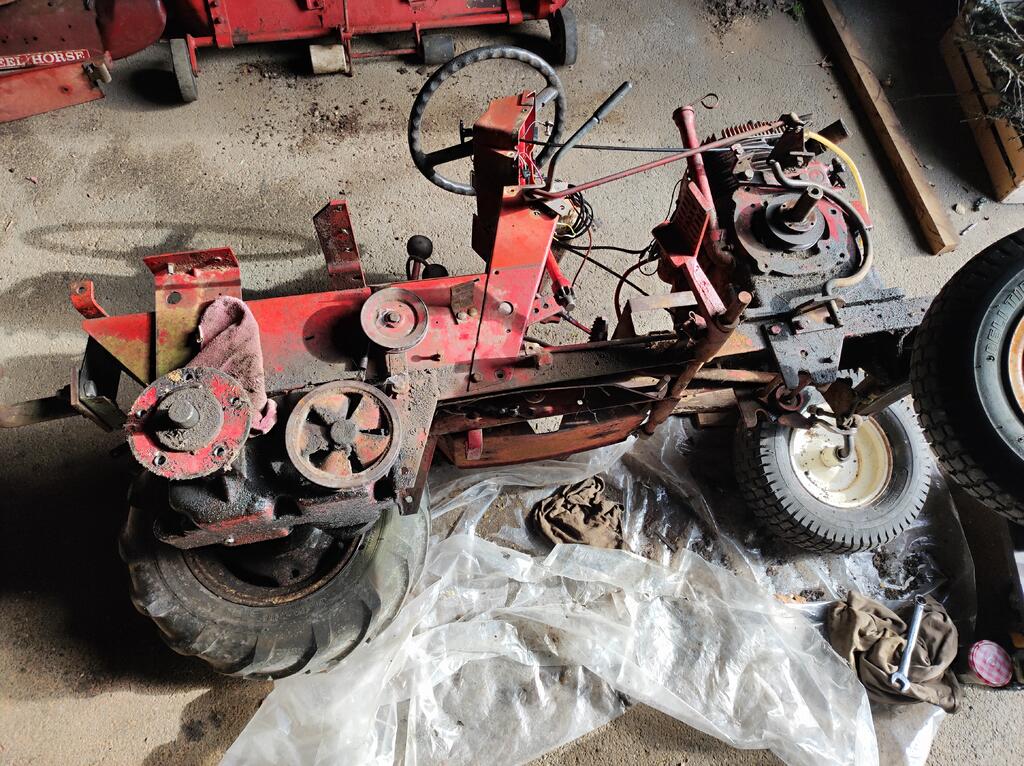

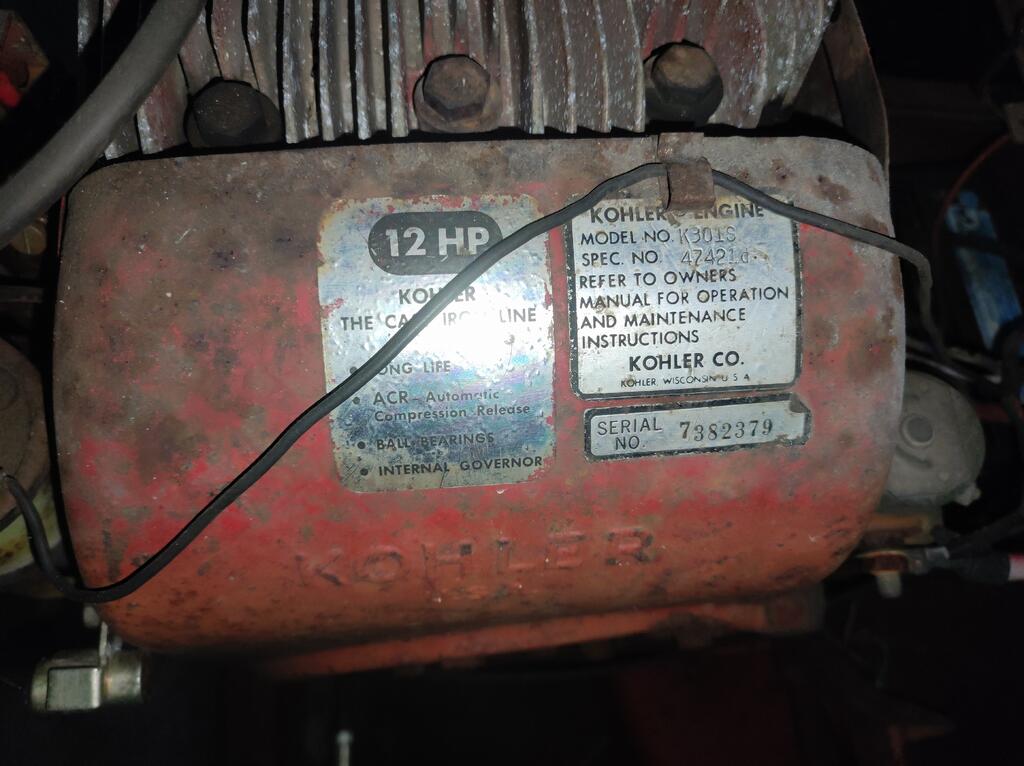

I have recovered a 1977 Wheel Horse C-160/ Kohler K301S, 12hp, nb 47421d serial nb 7382379

equiped with a 3 blades landmower.

There is no need to send here a picture as it is such bad condition.

Nevertheless, i wish to put is it back on its wheel.

I have started to check what is needed as spare parts:

- a clean air box and filter is missing. And idea of what parts number/ references are needed ?

- the carburator bottom tank is leaking. Where to find a new one in France?

- the friction cluch disc is worn. What size ( Diam.) and thickness shall i put in?

- the oil filter? No idea where this is located nor what part number to use. Any advise?



And is it still possible to find a sketch of the landmower ?



Thank you very much in advance to whom may help me



Regarrds



  • Like 5

Share this post


Link to post
Share on other sites

stevasaurus

Welcome to Red Square.  These links are from our picture gallery.  I am assumiong your horse is a automatic.  :occasion-xmas:







  • Excellent 1

Share this post


Link to post
Share on other sites

stevasaurus

Here is a manual...there is more in our manual library.



  • Excellent 1
  • Thanks 1

Share this post


Link to post
Share on other sites

Ed Kennell

So it is a C-160 and the 16 HP K-341 engine has been replaced with a 12HP K301.   There should not be an oil filter on the engine or transmission.





  • Like 1

Share this post


Link to post
Share on other sites

daveoman1966

If you want to see a full range of schematics, with part numbers, go here: https://lookup3.toro.com/partdex/index.cfm?xCaller=Toro&lang=us_en

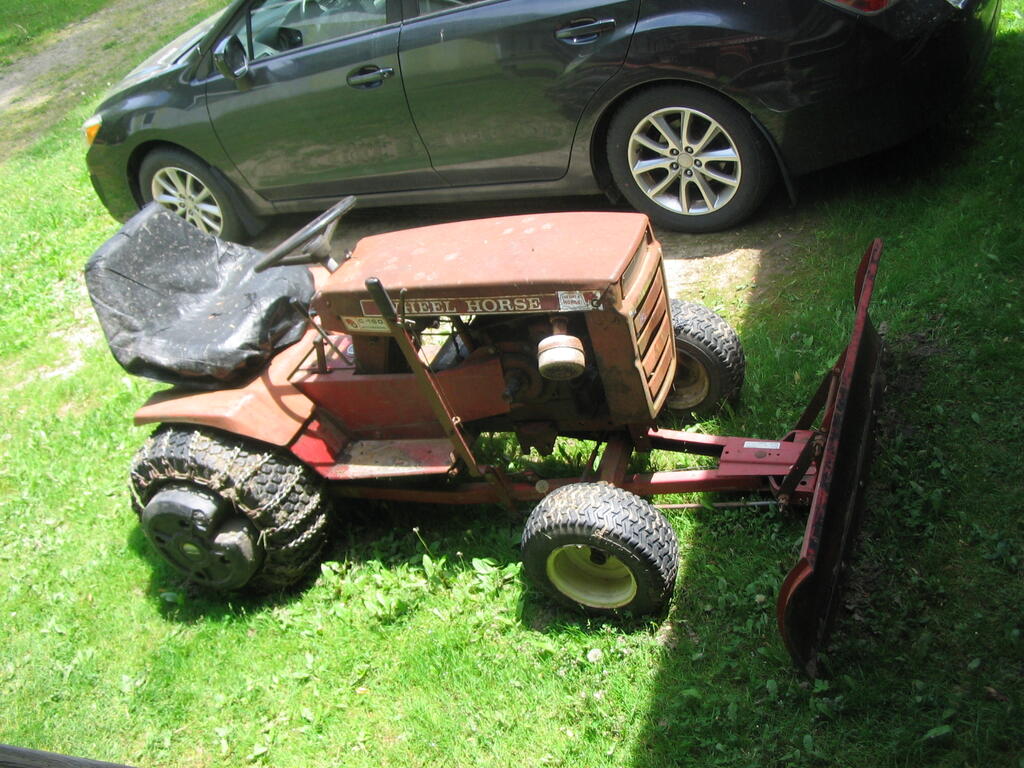

Enter your model number EXACTLY as:  71-16KS01 .  Clik SEARCH.  You see schematics, implement attachments, and a range of other info to help restore the C-160 Auto.  ps... I have the exact same tractor....love it. 1597599867_C-160BEAST(3).JPG.d5c35e515cb22a394c50af7d7f88e704.JPG
