Bar Nuthin

One of these blades is not like the other

Recommended Posts

Bar Nuthin

One of these blades is not like the other.

Sometimes you see a deal and you just have to accept destiny. This unused blade popped up on my FB marketplace.

Bit of a drive, but the weather was nice, and I was burning company gas! :D





Edited by Bar Nuthin
  • Like 4
  • Excellent 1

Share this post


Link to post
Share on other sites

ebinmaine

Niiiiice

  • Like 1

Share this post


Link to post
Share on other sites

SylvanLakeWH

:clap:

  • Like 2

Share this post


Link to post
Share on other sites

Brockport Bill
5 hours ago, Bar Nuthin said:

One of these blades is not like the other.

Sometimes you see a deal and you just have to accept destiny. This unused blade popped up on my FB marketplace.

Bit of a drive, but the weather was nice, and I was burning company gas! :D





your blade with the worn bottom edge can be saved and reused -- i obtained a couple of those - one i took to a fabricator welder shop and he welded an extension plate on the bottom and cut new carriage bolt holes in it to in effect create a viable new bottom to function like a new factory bottom -- then i bought new "wear edge blade" to then attach to the plow -- then i cleaned the rust from the entire blade front and rear surface then primed and painted -- the blade looked like new when i was done -- yes, the fabrication and weld job plus the new wear edge blade cost some $ but it rescued what would have been scrap metal and it resulted in a factory like new plow blade that will last many years

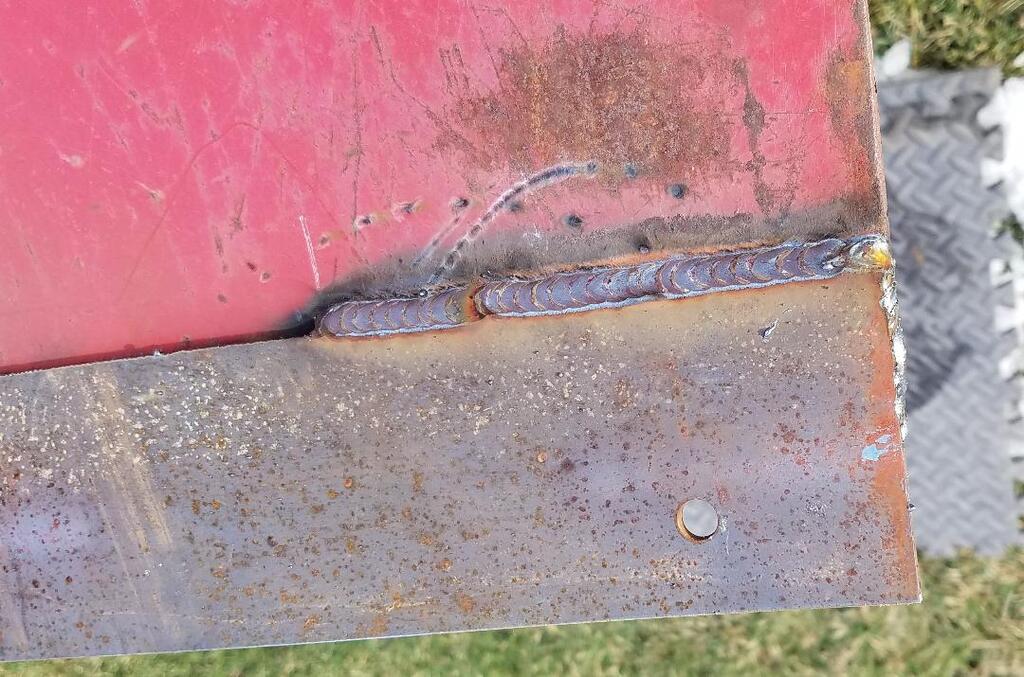

wh plow 4 weld.jpg

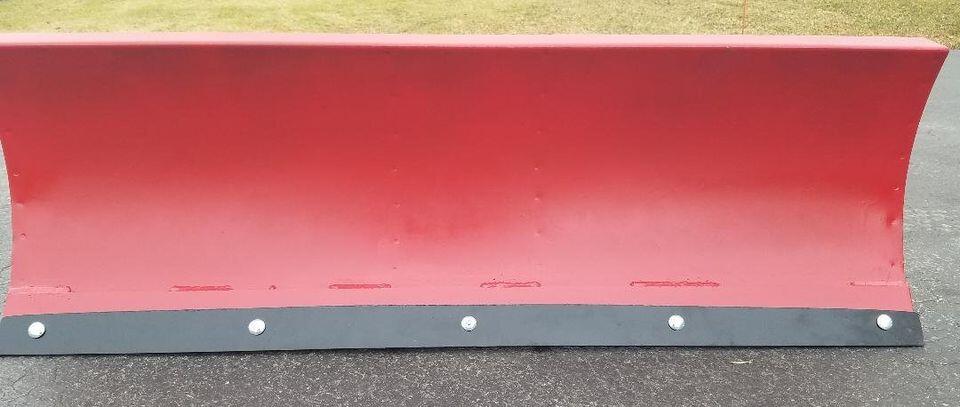

wh plow welded extension.jpg

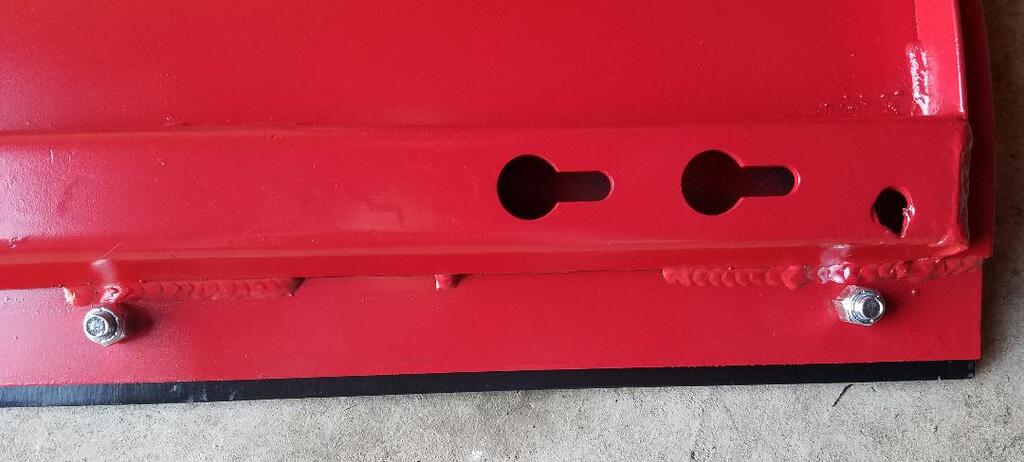

wh plow 4 paint rear weld.jpg

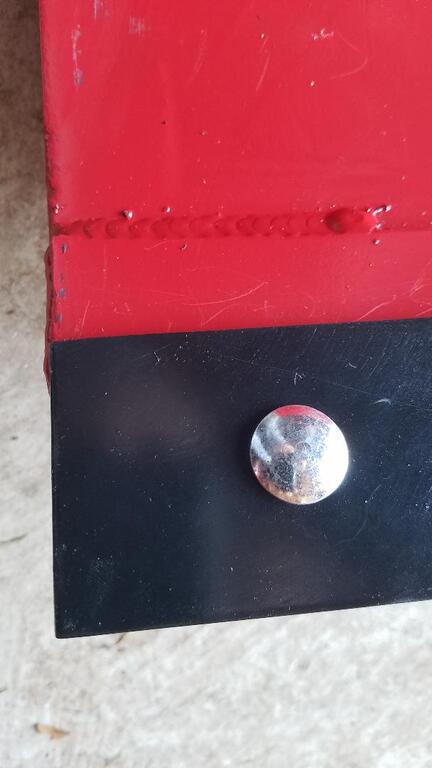

wh plow 4 paint weld front.jpg

  • Like 1
  • Excellent 4

Share this post


Link to post
Share on other sites

ebinmaine

@Maz91

@Brockport Bill gives a great example of what can be done to a plow blade.





We got my BIG 60 inch plow from @wallfish several years ago. John had made it from a 42" originally with both sides added.

He was using it on a predominantly asphalt surface and it did well.

Here our yard is gravel/stone/aggregate and not level.

After some use the lower section was bending.



I got a blade from the jungle site for a skid steer. 1/2" x 4" x 60"



I had to have a fabricator friend use special tools for the bolt holes because as it turned out the steel was the hardest they'd ever seen.



I added some weld beads to various other places front and back and the whole assembly has been serving us quite well for a few seasons now.














  • Excellent 4

Share this post


Link to post
Share on other sites

Bar Nuthin
9 hours ago, Brockport Bill said:

your blade with the worn bottom edge can be saved and reused -- i obtained a couple of those - one i took to a fabricator welder shop and he welded an extension plate on the bottom and cut new carriage bolt holes in it to in effect create a viable new bottom to function like a new factory bottom -- then i bought new "wear edge blade" to then attach to the plow -- then i cleaned the rust from the entire blade front and rear surface then primed and painted -- the blade looked like new when i was done -- yes, the fabrication and weld job plus the new wear edge blade cost some $ but it rescued what would have been scrap metal and it resulted in a factory like new plow blade that will last many years





I considered welding the old blade. Not sure if you can see from the photo, but it also has a significant twist in it that keeps it from running flat on the ground. Fixable problem, but when this fresh blade popped up - it made a lot more sense for me.

I'll most likely offer up the old blade for free to someone who thinks they can use it.


Edited by Bar Nuthin
  • Like 3

Share this post


Link to post
Share on other sites
