Need help identifying an attachment

[Jrodgers04 43]

Hello!

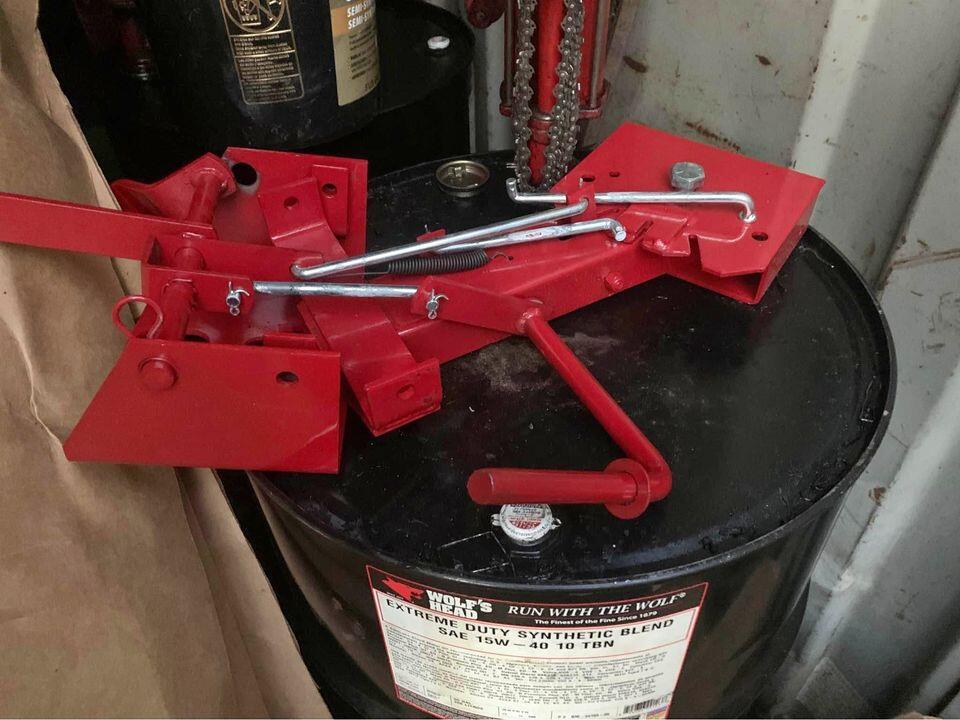

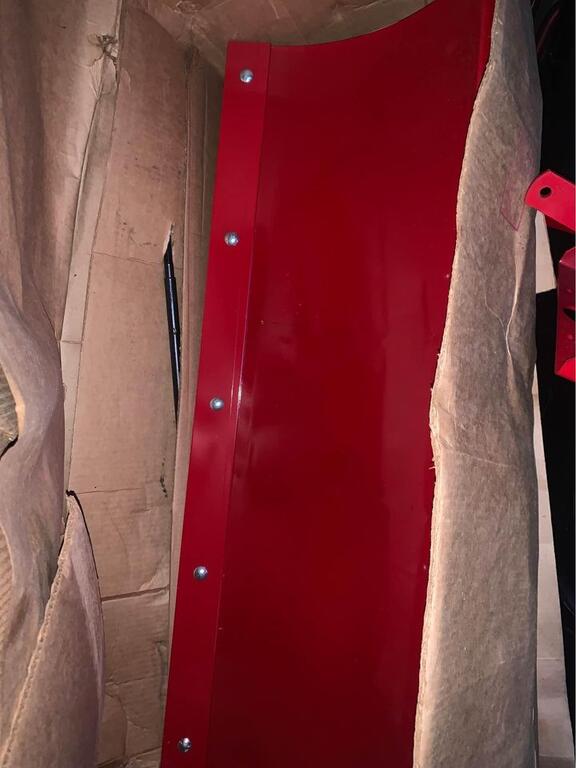

Trying to identify a "blade" attachment. See pics. No instructions part labels on the attachment itself. Only info I have are the pics and the label on the box. I've tried to cross reference the part on Toro's site and tried searching on various combinations of the box label.



Based on Toro's other model numbers, I thought it might be 06-42BK01 with the 42 indicating a 42" blade. Then I thought the 45323 has the look of a wheel horse part number. But I couldn't turn up info on either, or the number in its entirety.



Thanks in advance!



[Chaz54 67]

Could it possibly be for a Toro Zero-Turn?

[WHX?? 49,850]

For a vertical perhaps??

[gwest_ca-(File Mod) 11,172]

Yes for a vertical engine shaft model

45323 most likely serial number.

Considered a snow blade for a lawn tractor.

Considered a dozer blade if for a garden tractor that can handle ground engaging attachments.



[Ed Kennell 39,710]

5 minutes ago, WHX?? said:

For a vertical perhaps??

2nd that

[WHX?? 49,850]

It is indeed... a 252H Search on 42bk01 in the files and... never mind Gwest is faster...

[Jrodgers04 43]

Awesome, thank you all.



I was hoping it was one that could fit my 520 LXI...the search continues.

[gwest_ca-(File Mod) 11,172]

49 minutes ago, Jrodgers04 said:

I was hoping it was one that could fit my 520 LXI...the search continues.

You need model 79355 plus the 100-3390 rear hitch.

Keep an eye out for New Holland models as they are the same. Do not know the numbers.



[Pullstart 63,495]

@Jrodgers04 Xi series is what I’m talking about!  They are amazing!  Keep any eye on that front axle pivot.



https://www.wheelhorseforum.com/topic/92609-xi-series-front-axle-pivot-repair/
