Phan 3 #1 Posted Friday at 08:42 PM Dear Friends, Someone is selling his WH 8hp with no spark of 300 CAD. Could anyone please give me advise on whether I should take the risk - how serious the issues could be. I am not a mechanic guy, knowing a little about engines but am a fan of WH. Thanks. Phan Share this post Link to post Share on other sites
ri702bill 8,142 #2 Posted Friday at 10:06 PM Well, for starters Phan, a K321 is NOT 8 HP - that would be a K181.The K321 is a large block engine, the K181 is a small series. Share this post Link to post Share on other sites
953 nut 54,512 #3 Posted Friday at 11:10 PM Not having any spark on most Kohler engines is an easy inexpensive fix. Doesn't matter what horse power it is, ignition wise most Kohler engines from 1965 had the same ignition system. Buy it, post some pictures of the engine and we will help you trouble shoot it. Share this post Link to post Share on other sites
kpinnc 11,615 #4 Posted Friday at 11:33 PM With old Kohler engines, I have a simple rule: If it has compression when turned over by hand, it will run. The rest is fixable. 3 Share this post Link to post Share on other sites
squonk 40,815 #5 Posted yesterday at 12:38 AM If it's a big block, it could easily have the breaker less ignition that would have to be converted to points. Share this post Link to post Share on other sites
WHX?? 48,237 #6 Posted yesterday at 12:38 AM That ain't the worst price but yes we would need to see pics. We could tell you exactly what you are getting into then. If a Kohler, spins & has compression we can make it run. A '65 might make it a SG motor if original. What is a 71046?? Pesonally 140 CAN is my top dollar I can't hear it run but that goes with a grain of salt. Big block in a short frame?!?!?!? Share this post Link to post Share on other sites
gwest_ca-(File Mod) 10,936 #7 Posted yesterday at 01:21 AM 71046 should be the spec number for a 16hp K341 Share this post Link to post Share on other sites
953 nut 54,512 #8 Posted yesterday at 11:43 AM OH BOY, a bib block thumper in a '65 short frame, bring it on! 1 Share this post Link to post Share on other sites
Phan 3 #9 Posted 21 hours ago Dear Friends, I appreciate all of your advice ! I spoke with the guy - he said he is not sure whether if the motor is 8hp or 16hp. He said it has a lot of compression, no knocking engine. He's owned since 2009, but it quited on 2015. I attached the link (Links to classifieds hosted elsewhere are not permitted) It includes mower deck 42". What do you think? If things are good, I want to get it on Monday. Another person is selling his, which is simlillar However, I ahve a hard time to reach him. Thanks!!! Share this post Link to post Share on other sites
Phan 3 #10 Posted 21 hours ago 16 hours ago, gwest_ca said: 71046 should be the spec number for a 16hp K341 You seem correct as the seller said he is not sure if 16hp or 8hp. Share this post Link to post Share on other sites

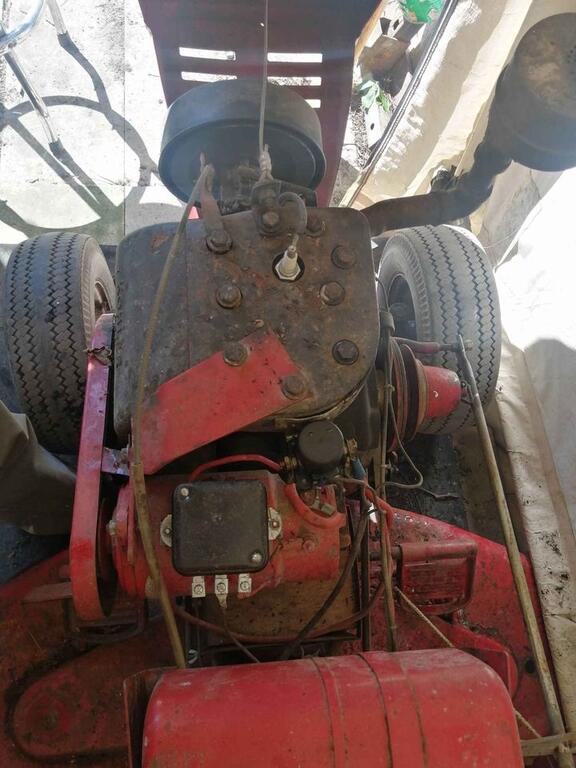

squonk 40,815 #11 Posted 20 hours ago By the number of head bolts it's not a 16 and it ain't an 8 either. Looks like a replacement engine. I'm thinking a 10 or 12 2 Share this post Link to post Share on other sites
Phan 3 #12 Posted 20 hours ago 21 minutes ago, squonk said: By the number of head bolts it's not a 16 and it ain't an 8 either. Looks like a replacement engine. I'm thinking a 10 or 12 I just looked online and K312 list as 14hp https://resources.kohler.com/power/kohler/enginesUS/pdf/tp_1346_c_all.pdf Share this post Link to post Share on other sites
Phan 3 #13 Posted 20 hours ago 18 hours ago, WHX?? said: That ain't the worst price but yes we would need to see pics. We could tell you exactly what you are getting into then. If a Kohler, spins & has compression we can make it run. A '65 might make it a SG motor if original. What is a 71046?? Pesonally 140 CAN is my top dollar I can't hear it run but that goes with a grain of salt. Big block in a short frame?!?!?!? Hi WHX - What did you mean - a positive or negative :)??? Big block in a short frame?!?!?!? Share this post Link to post Share on other sites
Phan 3 #14 Posted 20 hours ago 7 hours ago, 953 nut said: OH BOY, a bib block thumper in a '65 short frame, bring it on! Ok - I will run on all of you !!! Share this post Link to post Share on other sites
Phan 3 #15 Posted 20 hours ago 19 hours ago, kpinnc said: With old Kohler engines, I have a simple rule: If it has compression when turned over by hand, it will run. The rest is fixable. According to the seller - she has lots of compression ! 1 Share this post Link to post Share on other sites
953 nut 54,512 #16 Posted 19 hours ago (edited) Well, it isn't a 1965 and it isn't an eight HP nor is it a 16 HP engine. It is a fourteen horsepower K-321 replacement engine. The only thing I see that is missing is the belt guard, you will want to get that if the seller has it. The gears will grind while shifting without it. Edited 19 hours ago by 953 nut Share this post Link to post Share on other sites

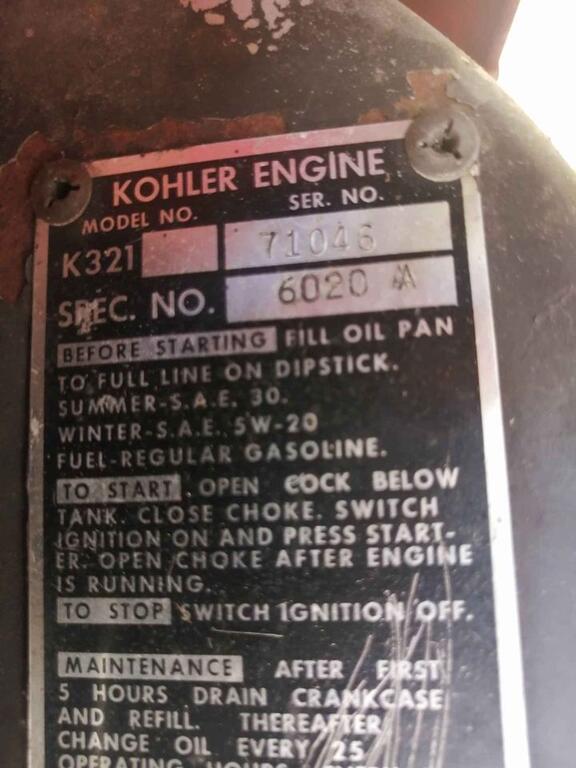

gwest_ca-(File Mod) 10,936 #17 Posted 19 hours ago 18 hours ago, gwest_ca said: 71046 should be the spec number for a 16hp K341 71046 is the Kohler serial number. The data decal is K-321 with a 6020 spec number making it a replacement engine. Share this post Link to post Share on other sites
D_Mac 8,523 #18 Posted 12 hours ago Big block is 10hp or larger. Short frame refers to the shorter framed tractors of the 60s. We like those. Most common no spark issues are bad points, bad coil, bad plug wire or other wires. Like ground wire or wire from points to coil. Also could be a bad switch. No spark on these engines usually isn't hard to fix as it dosnt require taking the engine apart because every thing is external and easily accessible. The asking price I think is a little much. They all say ran good when it was parked X number of years ago. How's the tranny? Hows the tires? Steering tight? All things to consider. That being said..... Big Block on Short Frame ( making gorilla noise and grunts) 2 Share this post Link to post Share on other sites

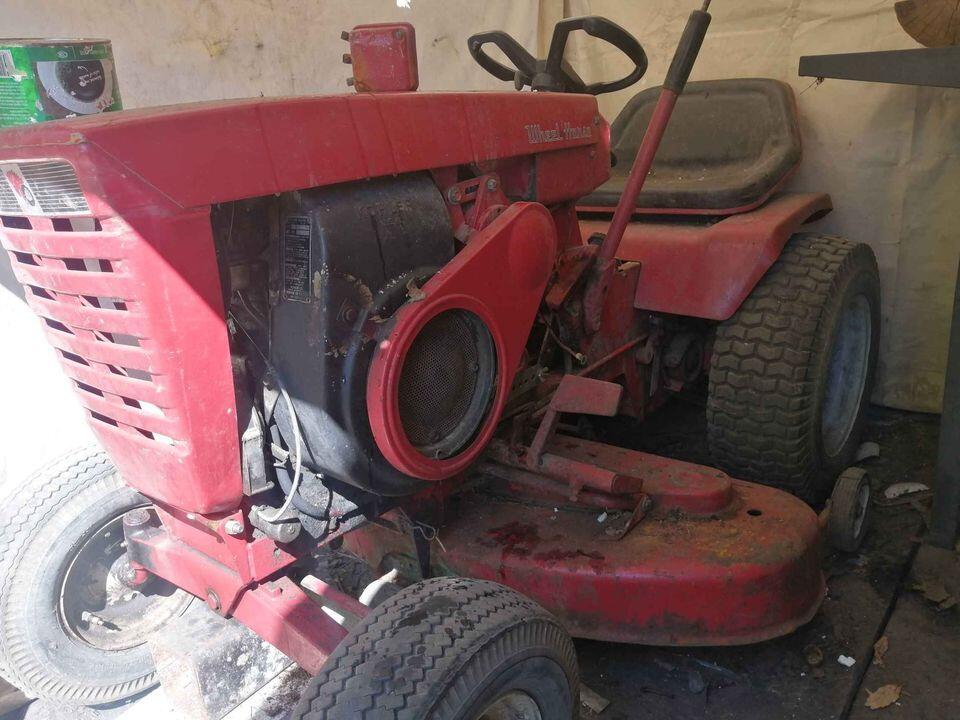

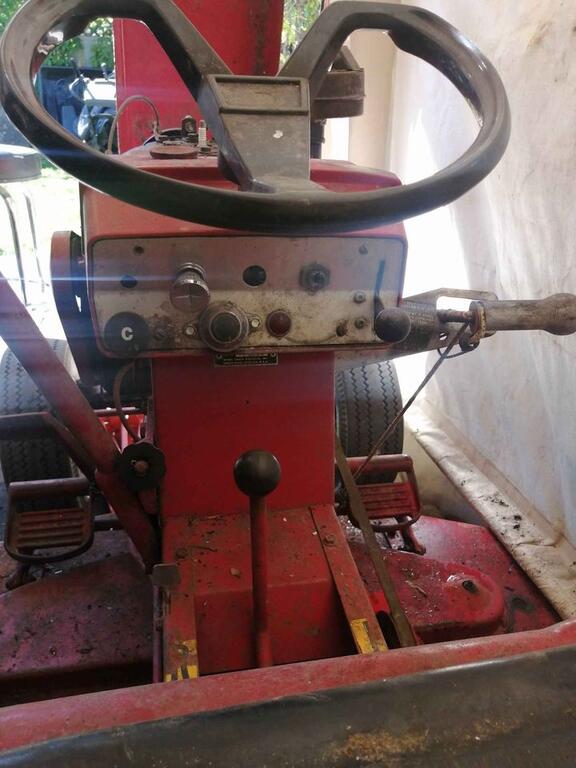

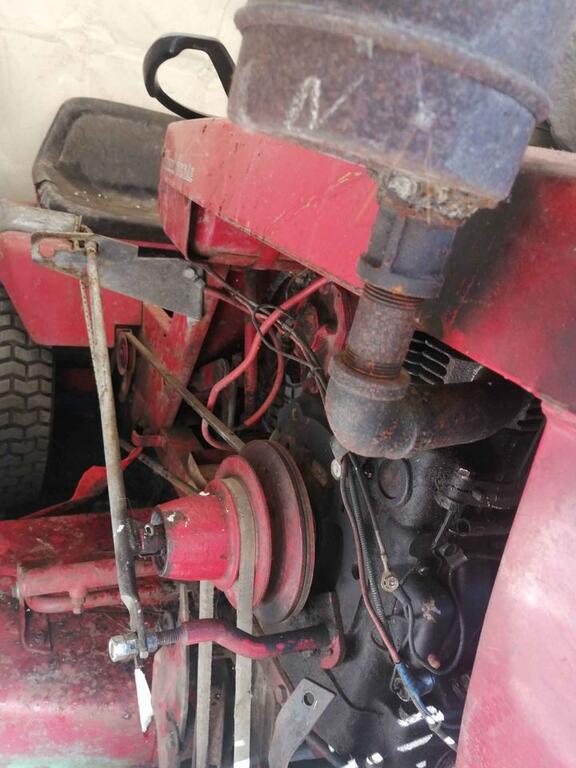

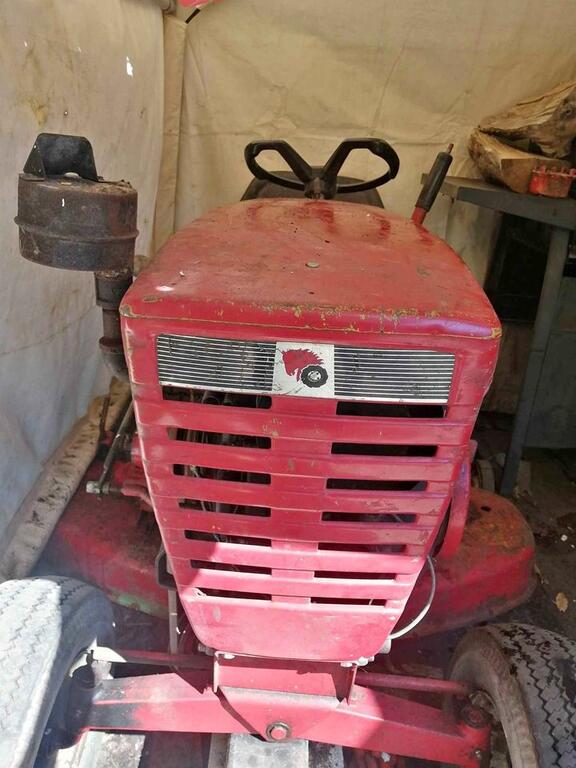

WHX?? 48,237 #19 Posted 1 hour ago (edited) Be careful Phan ... links to off site sales are not allowed. The moderators and myself do not want to turn RS into a free for all selling site is the reason. Since your post will most likely get edited. I cut and pasted the pics here which is allowed. 18 hours ago, Phan said: Hi WHX - What did you mean - a positive or negative :)??? Big block in a short frame?!?!?!? The short framed early sixties tractors D Mac mentioned. Some were fitted with a 10 hp big block when traditionally they had small block 6,7 or 8 hp. The 1045 and 1055 come to mind. In late '66 - 67 longer framed models with bigger motors became the norm as people wanted the more powerful motors with larger decks. A positive and desirable model with us collectors. If you decide to buy get us a pic of the tag visible just under the dash. I'm guessing a 67 or mid 68 model. Three speed and hood decal say repoed 10 or 1257 Edited 1 hour ago by WHX?? 2 Share this post Link to post Share on other sites
WHX?? 48,237 #20 Posted 1 hour ago 18 hours ago, Phan said: According to the seller - she has lots of compression ! BTW it may be impossible to tell if it has good compression or not. Some of these starter/generator motors were fitted with ACR or Automatic Compression Release. It let the motor roll over easier for starting. 1 Share this post Link to post Share on other sites
