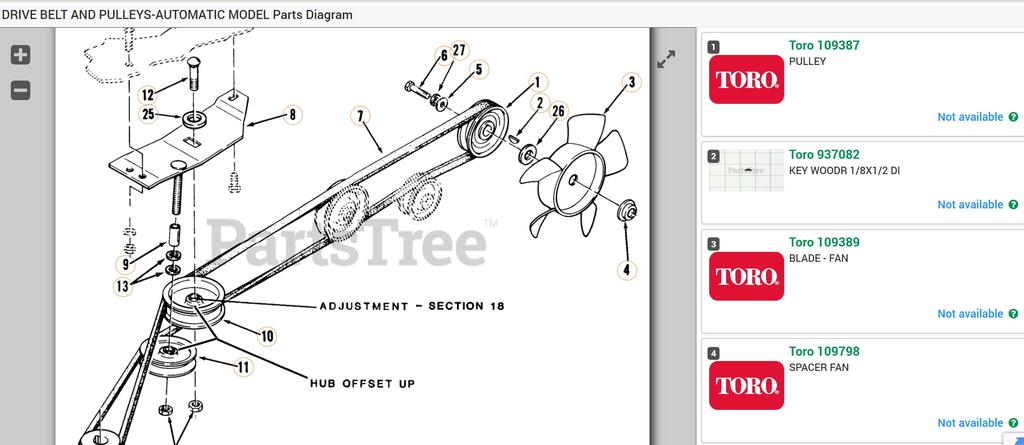

cJ_3D 9 #1 Posted August 14 Hey all! Looking at the parts diagram for the 22-13KE02 (252-H), my transmission fan one of the blades got bent up. The fan though (number 3 in the diagram), PN 109389 is no longer available and I can't find a used one. Does anyone know of a replacement that might work? Also is the center V pulley that is greyed out the same pulley as number 11, PN 8205? I'm just wondering if the stationary pulleys are the same as I am apparently unable to click on the one that's in the center of the diagram which is the one I need. Thanks for the help! Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,018 #2 Posted August 14 One is a V-pulley and the other is flat https://www.partstree.com/models/22-13ke02-252-h-toro-yard-tractor-1989/clutch-brake-and-speed-control-linkage-6/ Share this post Link to post Share on other sites
cJ_3D 9 #3 Posted August 14 39 minutes ago, gwest_ca said: One is a V-pulley and the other is flat https://www.partstree.com/models/22-13ke02-252-h-toro-yard-tractor-1989/clutch-brake-and-speed-control-linkage-6/ Oh I was looking at the wrong diagram! My thanks for pointing that out Gwest! Any thoughts on the fan? I'm wondering if one from a different mower could possibly be modified to fit but unsure the best one. Thanks again for the help! Share this post Link to post Share on other sites
TractorEd 633 #4 Posted August 14 A to Z Tractor has a couple used in stock. https://www.a-ztractor.com/advanced_search_result.php?keywords=109389 Share this post Link to post Share on other sites
cJ_3D 9 #5 Posted August 14 9 minutes ago, TractorEd said: A to Z Tractor has a couple used in stock. https://www.a-ztractor.com/advanced_search_result.php?keywords=109389 You're my hero man! I ordered one right away. I wonder why they weren't coming up in my searches? I'm keeping a bookmark for those guys. Thanks again Ed! 1 Share this post Link to post Share on other sites
TractorEd 633 #6 Posted August 14 Just now, cJ_3D said: Thanks again Ed! You’re welcome! A-Z Tractor has come through for me many times now. 1 Share this post Link to post Share on other sites
