Carburetor not available, help!

[cJ_3D 9]

Man I'll tell ya finding parts for a 252H is hard! I got the Kawasaki FB460V-BS26 engine (definitely some BS happening) and I'm trying to find a pn 15001-2815 Carburetor Assy. I would just clean this one up but the main jet in the center is seized and the slotted head is all stripped out so I can't remove it. The overflow hose nipple thing is missing, and someone put some rtv gasket in for the pan gasket instead of using an actual o-ring. Anyway this thing is a mess so I was just gonna get a new one. Can't find em discontinued. Anyone have any other part numbers that will work?



Thanks!

[peter lena 8,960]

@cJ_3D  https://www.google.com/search?q=i+save+tractors&rlz=1C1CHBF_enUS866US866&oq=I+SAVE+&gs_lcrp=EgZjaHJvbWUqBwgBEAAYgAQyBggAEEUYOTIHCAEQABiABDIHCAIQABiABDIHCAMQABiABDIHCAQQABiABDIHCAUQABiABDIHCAYQABiABDIGCAcQRRg80gEIOTQzMGowajSoAgCwAgE&sourceid=chrome&ie=UTF-8  very good source for  carbs / info  , have one of their carbs on mine , never touched it ! pete

[cJ_3D 9]

30 minutes ago, peter lena said:

@cJ_3D  https://www.google.com/search?q=i+save+tractors&rlz=1C1CHBF_enUS866US866&oq=I+SAVE+&gs_lcrp=EgZjaHJvbWUqBwgBEAAYgAQyBggAEEUYOTIHCAEQABiABDIHCAIQABiABDIHCAMQABiABDIHCAQQABiABDIHCAUQABiABDIHCAYQABiABDIGCAcQRRg80gEIOTQzMGowajSoAgCwAgE&sourceid=chrome&ie=UTF-8  very good source for  carbs / info  , have one of their carbs on mine , never touched it ! pete

Hi Peter, I didn't see anything usable on his site but I reached out to Norm to see if he has any info. Has anyone else found a specific carb that works on this engine? Thanks for the help!

[peter lena 8,960]

@cJ_3D, just a guess, others will surely chime in .   @ebinmaine  does a lot  of carbs , might have some insight into your issue or rebuild yours , give him a shout , pete

[cJ_3D 9]

11 minutes ago, peter lena said:

@cJ_3D, just a guess, others will surely chime in .   @ebinmaine  does a lot  of carbs , might have some insight into your issue or rebuild yours , give him a shout , pete

@ebinmaine if you have any tips for getting out a stripped jet and possibly re-slotting it I would appreciate that info! Or I can mail it to ya if you wanna take a stab at it!



Thanks community ya'll are the best!

[ebinmaine 69,583]

4 hours ago, cJ_3D said:

@ebinmaine if you have any tips for getting out a stripped jet and possibly re-slotting it I would appreciate that info! Or I can mail it to ya if you wanna take a stab at it!



Thanks community ya'll are the best!





I haven't personally done any work on the more modern 300/400 or any of the 200 series carbs.



My thoughts:



Contact @76c12091520h  Brian Badman to see what K & B might have.



CALL Lincoln at A to Z Tractor in PA.



Put a wanted ad here on Redsquare.



@PWL216. Paul you got any other sources? I know youve had some 200 series rigs?





[PWL216 893]

3 hours ago, ebinmaine said:



@PWL216. Paul you got any other sources? I know youve had some 200 series rigs?

@ebinmaine Unfortunately no. I have two 257-H’s but haven’t had to do any carb work yet.

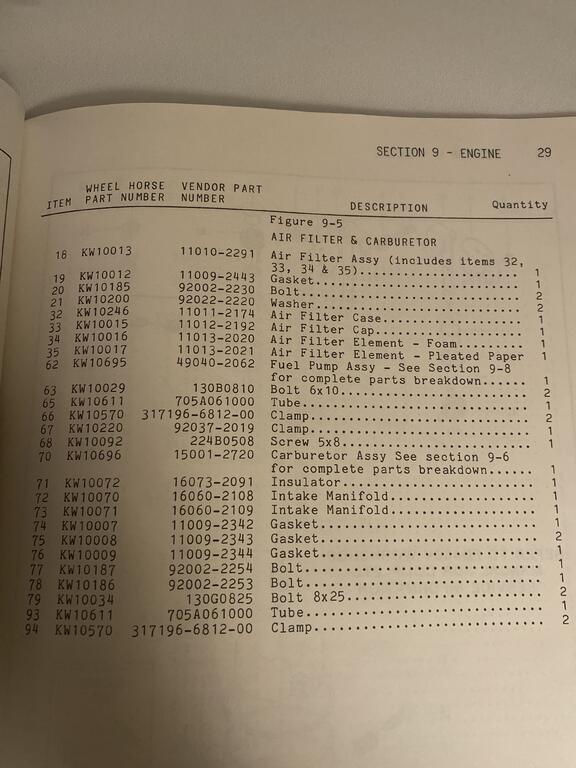

@cJ_3D I have the Parts & Service Manual for the 257/252-H and it shows the 252-H using carb 5001-2720. The 5001-2720 is readily available. I did a quick search to see what the differences are and couldn’t find anything. See #70 below…

[cJ_3D 9]

29 minutes ago, PWL216 said:

@ebinmaine Unfortunately no. I have two 257-H’s but haven’t had to do any carb work yet.


@cJ_3D I have the Parts & Service Manual for the 257/252-H and it shows the 252-H using carb 5001-2720. The 5001-2720 is readily available. I did a quick search to see what the differences are and couldn’t find anything. See #70 below…

@PWL216 Paul you're my hero buddy! Thank you so much! I'm ordering one right away! I need to get me a copy of that. Handy little book!
