oliver2-44 9,909 #26 Posted December 26, 2024 @meadowfield Finally, here's the 551 Hood Sand Parts Drawing and some notes. The 1/4 x 1-3/4 x 8-5/8 Flat Bar welds to the left side of the frame. it sits 1/2' inward and mounts directly against the round foot rest bar. The 1/4 x 1-1/4 x 1-3/4 (2 required) They mount with an edge directly inline with the outer edge of the right side of the frame. One welds directly against the right round foot rest bar. The other one welds to the frame 8-3/4 from the right foot rest bar. This should result in the 2 tab having a 9" wide outside to outside dimension. The hoods stand mounts to the outside of these 2 tabs. The battery holder bar installs with 2 long 1/4" bolts that extend back to the 1/4" holes in the left side hood stand frame mount bar. WH 1961 551 Suburban Hood Stand Drawing.pdf Share this post Link to post Share on other sites
meadowfield 2,616 #27 Posted December 29, 2024 On 12/26/2024 at 6:04 PM, oliver2-44 said: @meadowfield Finally, here's the 551 Hood Sand Parts Drawing and some notes. The 1/4 x 1-3/4 x 8-5/8 Flat Bar welds to the left side of the frame. it sits 1/2' inward and mounts directly against the round foot rest bar. The 1/4 x 1-1/4 x 1-3/4 (2 required) They mount with an edge directly inline with the outer edge of the right side of the frame. One welds directly against the right round foot rest bar. The other one welds to the frame 8-3/4 from the right foot rest bar. This should result in the 2 tab having a 9" wide outside to outside dimension. The hoods stand mounts to the outside of these 2 tabs. The battery holder bar installs with 2 long 1/4" bolts that extend back to the 1/4" holes in the left side hood stand frame mount bar. WH 1961 551 Suburban Hood Stand Drawing.pdf 216.45 kB · 0 downloads awesome thanks - when I shake this cold and fever, I will crack on Share this post Link to post Share on other sites
meadowfield 2,616 #28 Posted December 31, 2024 been on with making the brake and clutch linkage - do you have measurements? also looking for the pulley size and belt length. Share this post Link to post Share on other sites
oliver2-44 9,909 #29 Posted January 1 Yes I can get you the clutch and pulley info. Share this post Link to post Share on other sites

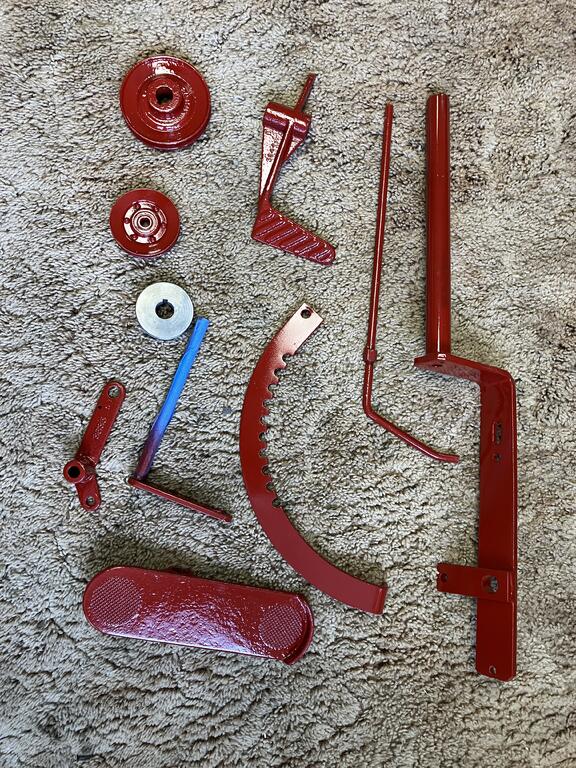

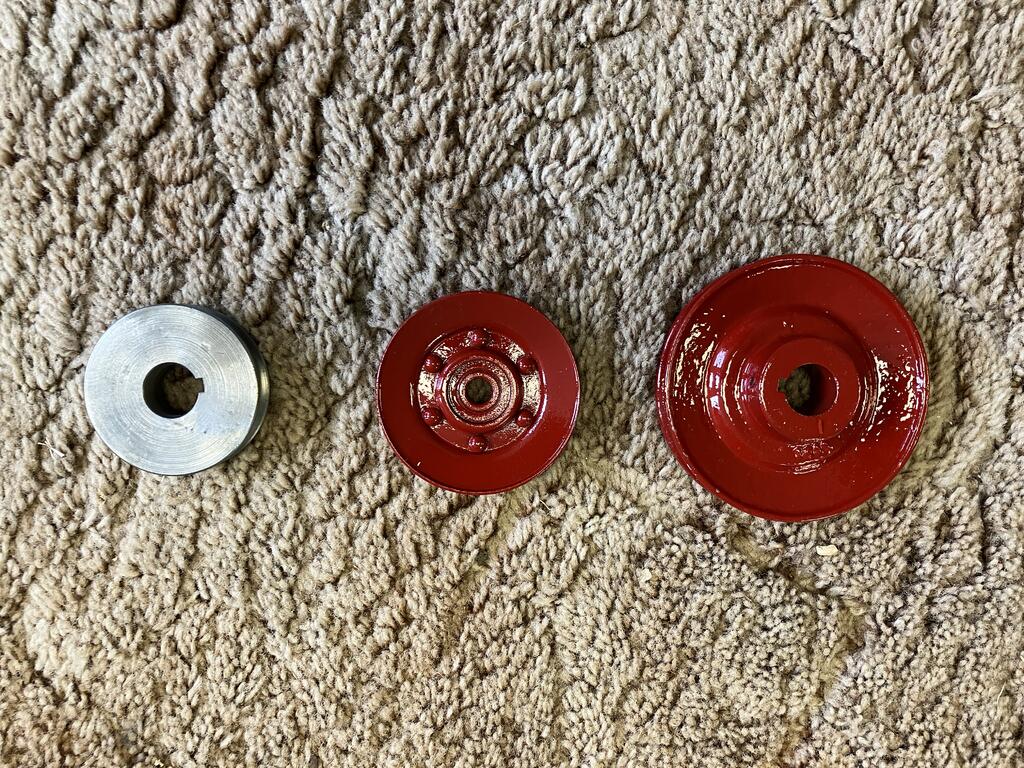

oliver2-44 9,909 #30 Posted Thursday at 04:37 PM Going right to left. Engine Pulley 2-1/2” OD x .750 ID Idler Pulley. 3” OD x .389 ID. It has a ball bearing inside it Transmission Pulley 4” Od x 3/4” I D Ill get a drawing made of the clutch parts Will you need a drawing of any of the parts in the picture below. Share this post Link to post Share on other sites
meadowfield 2,616 #31 Posted Thursday at 04:58 PM (edited) 22 minutes ago, oliver2-44 said: Going right to left. Engine Pulley 2-1/2” OD x .750 ID Idler Pulley. 3” OD x .389 ID. It has a ball bearing inside it Transmission Pulley 4” Od x 3/4” I D Ill get a drawing made of the clutch parts Will you need a drawing of any of the parts in the picture below. wow - you are a star!!! I think I'm good for now - maybe just the dimension of the clutch pedal.... thanks Edited Thursday at 05:00 PM by meadowfield Share this post Link to post Share on other sites
