7 minutes ago, Joe leonardo said:

Ignition

I dunno what that'd be for.

[953 nut 55,194]

5 hours ago, Joe leonardo said:

I need help fast before shop ends the gen light is grounded is that correct, the wiring diagram says one should go to start and the other to ignition

Sorry I couldn't answer sooner but that light will just tell you the key switch is in the ON position. The generator light is Cole-Hersee  PL 20 RC and you can buy one on

[Joe leonardo 164]

Got the wiring done and the tank patched up tomorrow I get to see if it runs 🤞

[J854D 137]

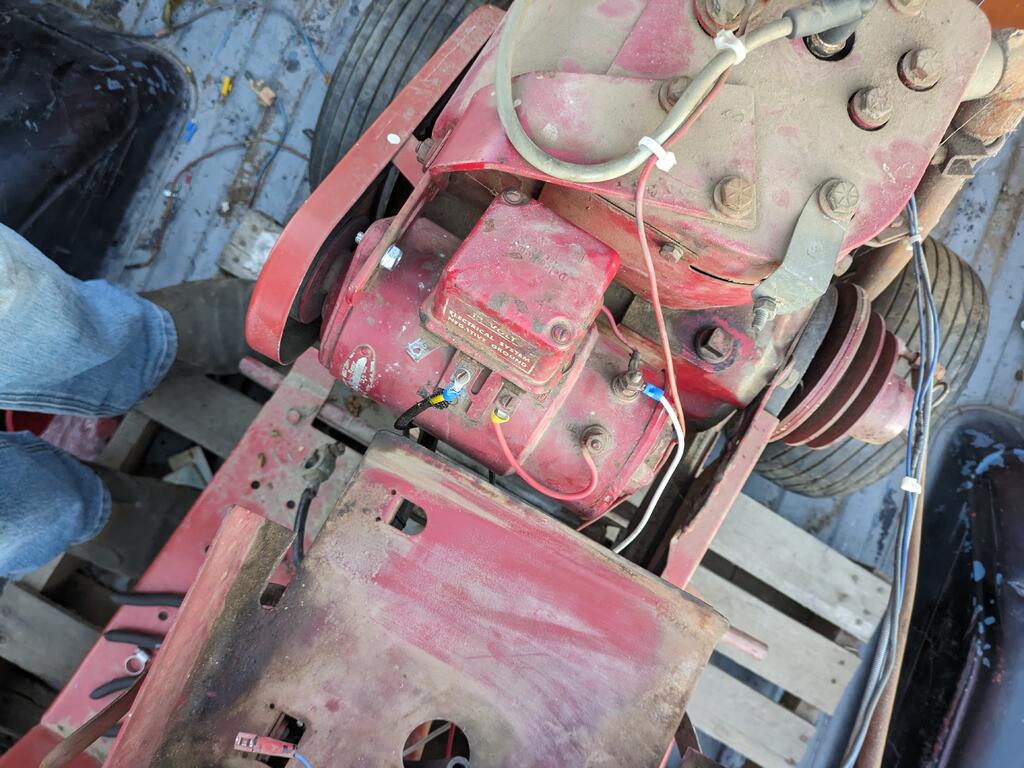

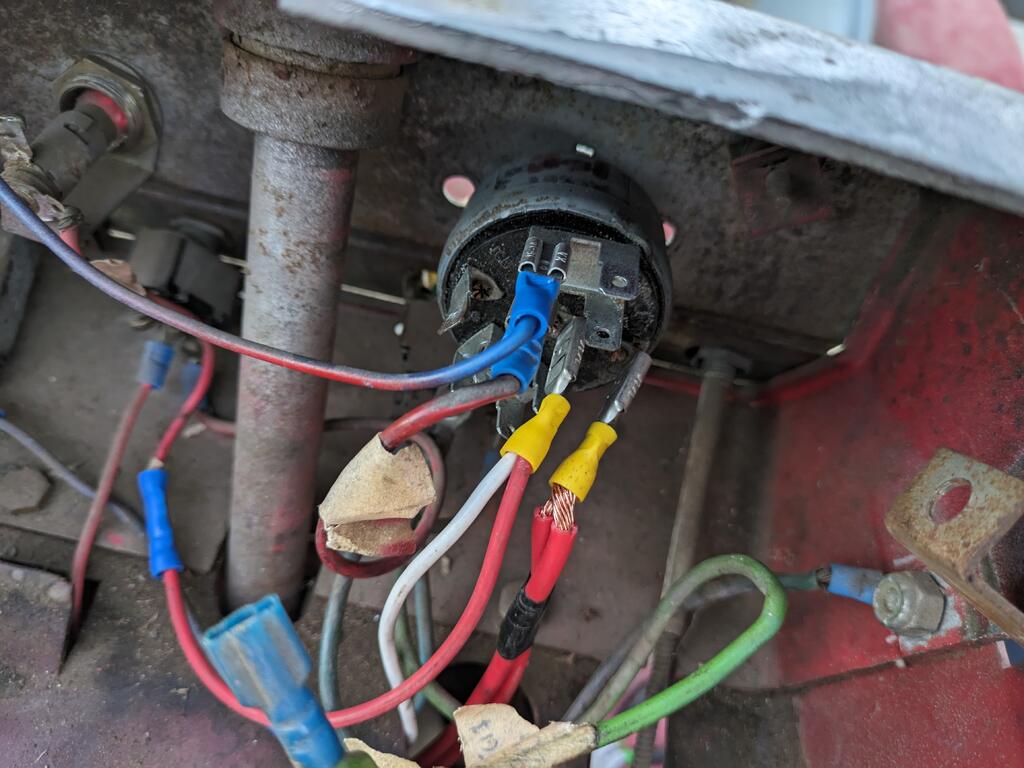

@Joe leonardo, a word of caution; the white wire that is on the A terminal of the generator is not heavy/big enough to carry the electrical load of starting the engine. Typically a 6ga. or 4ga. battery type cable is used. I am also concerned about the ignition switch that you are using not having a high enough amp rating to carry the starting load. The Wheel Horse ignition switch #7263 that @953 nut had posted on page two of this thread is what is commonly used on these starter/generator systems. I just don’t want you to have problems when you go to start it up. -JD-

[Joe leonardo 164]

40 minutes ago, J854D said:

@Joe leonardo, a word of caution; the white wire that is on the A terminal of the generator is not heavy/big enough to carry the electrical load of starting the engine. Typically a 6ga. or 4ga. battery type cable is used. I am also concerned about the ignition switch that you are using not having a high enough amp rating to carry the starting load. The Wheel Horse ignition switch #7263 that @953 nut had posted on page two of this thread is what is commonly used on these starter/generator systems. I just don’t want you to have problems when you go to start it up. -JD-

Alright in the morning I'll rewire that white wire and pray the switch works 🙏

[Joe leonardo 164]

44 minutes ago, J854D said:

@Joe leonardo, a word of caution; the white wire that is on the A terminal of the generator is not heavy/big enough to carry the electrical load of starting the engine. Typically a 6ga. or 4ga. battery type cable is used. I am also concerned about the ignition switch that you are using not having a high enough amp rating to carry the starting load. The Wheel Horse ignition switch #7263 that @953 nut had posted on page two of this thread is what is commonly used on these starter/generator systems. I just don’t want you to have problems when you go to start it up. -JD-

I've got 10ga I might have to go to the store in the morning

[Joe leonardo 164]

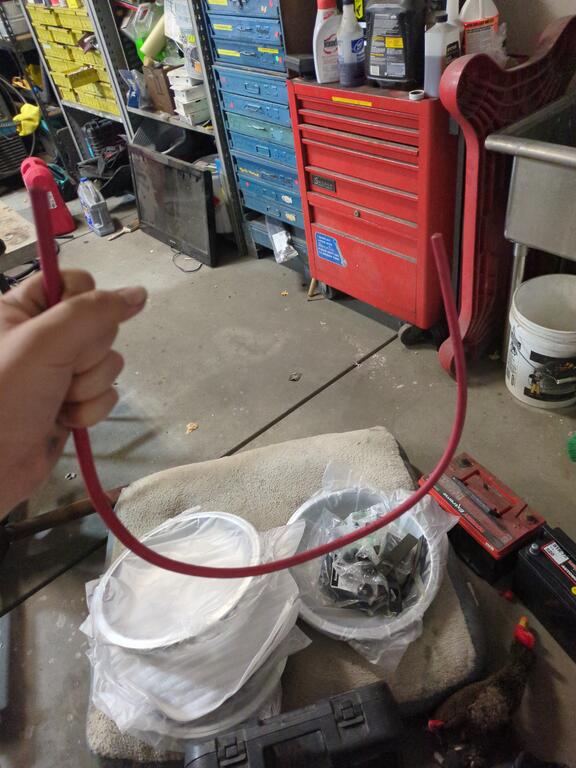

This is all the 4 gauge I got

[Ed Kennell 38,146]

2 hours ago, J854D said:

I am also concerned about the ignition switch

You could just add a  starter solenoid  like the newer wheel Horses.    I never did like all that current flowing behind the fuel tank.

[Joe leonardo 164]

9 minutes ago, Ed Kennell said:

You could just add a  starter solenoid  like the newer wheel Horses.    I never did like all that current flowing behind the fuel tank.

Right now it needs to get off my truck I'm gonna try it with the tank off first and if it doesn't fry itself I'll put the tank on but maybe later I'll try it

[Joe leonardo 164]

15 hours ago, Ed Kennell said:

Got it cranking and it doesn't have spark

[Joe leonardo 164]

Got it cranking and it doesn't have spark

[Joe leonardo 164]

She runs!!!!!! At full throttle non stop I have to manually pull the gov back and ideas? Is it supposed to run full when cold?



[953 nut 55,194]

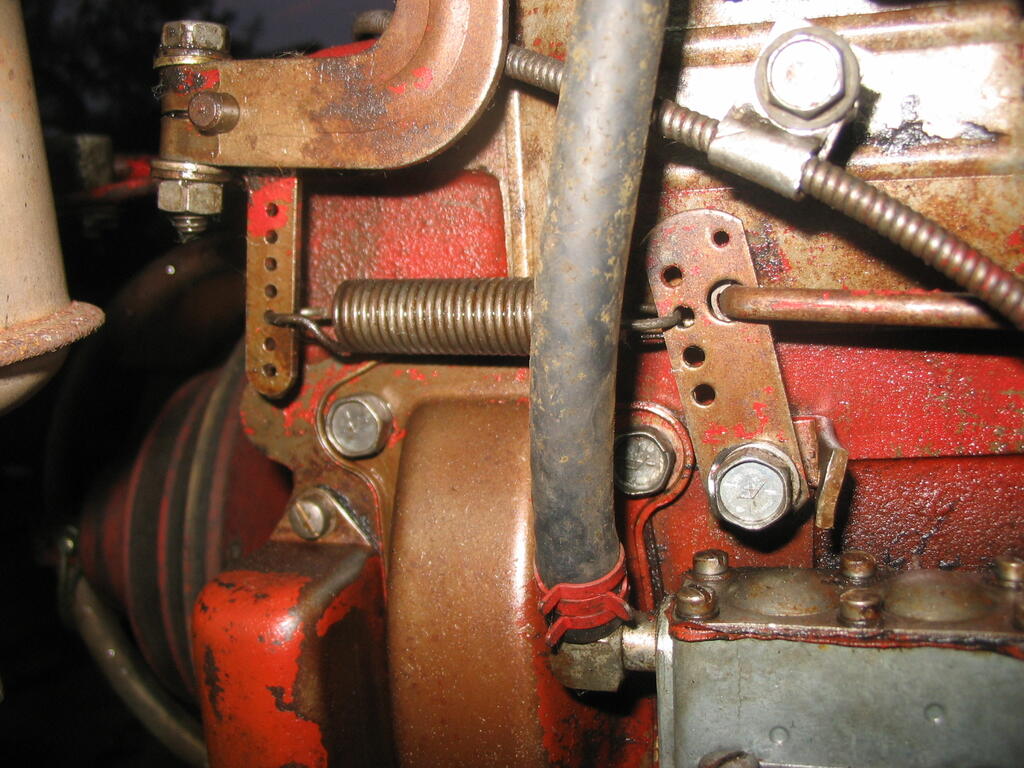

Glad you got it running                             Is your throttle cable stuck wide open or will it move? Could be a spring on the throttle/governor linkage isn't in the correct position. Does you linkage look anything like this?

[Joe leonardo 164]

54 minutes ago, 953 nut said:

Glad you got it running                             Is your throttle cable stuck wide open or will it move? Could be a spring on the throttle/governor linkage isn't in the correct position. Does you linkage look anything like this?

The throttle is home made but the gov spring is loose and it won't return fully

[Rick3478 428]

31 minutes ago, Joe leonardo said:

The throttle is home made but the gov spring is loose and it won't return fully

It's possible the governor just needs adjustment.  Also possible the governor has lost one of the flyweights (or other internal engine problem).  So try the governor baseline adjustment procedure first, it's pretty painless.

[Joe leonardo 164]

monday ill be back at school and ill take some photos



[Joe leonardo 164]

On 11/30/2023 at 6:25 PM, Rick3478 said:

It's possible the governor just needs adjustment.  Also possible the governor has lost one of the flyweights (or other internal engine problem).  So try the governor baseline adjustment procedure first, it's pretty painless.

I watched a video and figured it out now it works perfectly

[Pullstart 62,837]

Nice work!

[Joe leonardo 164]

So a few things happened in shop class first I found out why the throttle was not working I readjusted the gov arm and it was definitely better but not great I then noticed the coil had slipped down and was jamming the linkage 🥲

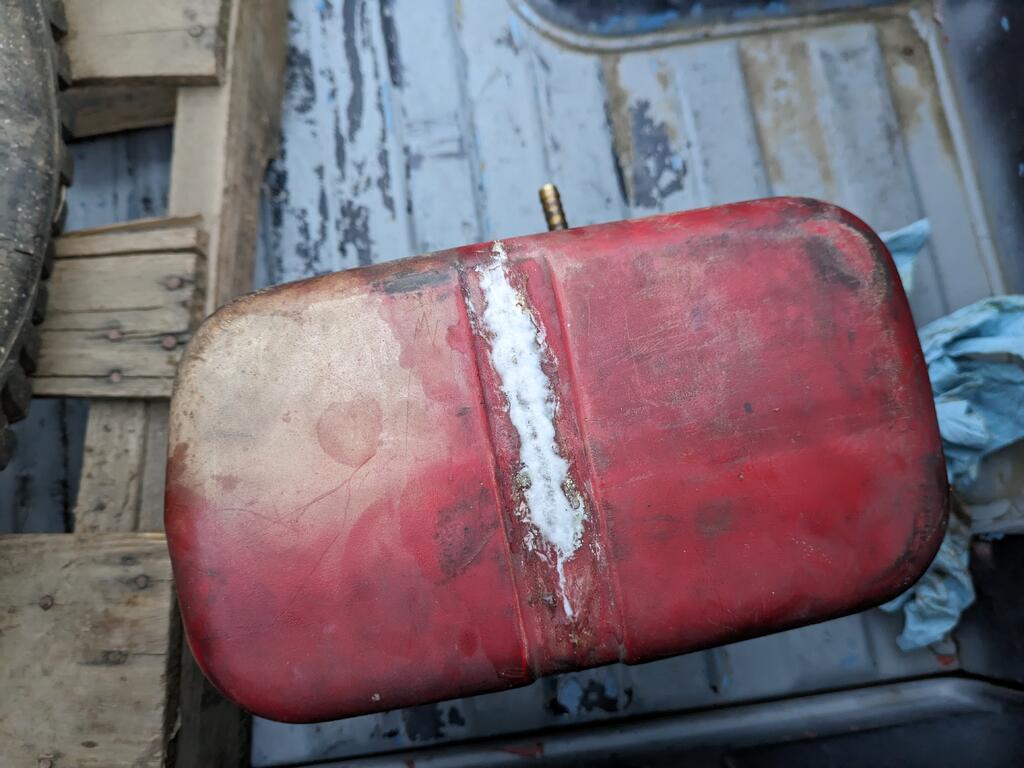

I also found out that my gas tank repair was futile and it still leaks gas, I plan on using a soldering gun to fix the hair line crack down the side and it's empty so I shouldn't die 👍

Edited December 5, 2023 by Joe leonardo

[ebinmaine 67,435]

11 minutes ago, Joe leonardo said:

it's empty so I shouldn't die 👍



Not dying is a good goal.



Always remember that the fumes from gasoline are FAR MORE DANGEROUS than the liquid itself.



You may want to just get another tank.



[Joe leonardo 164]

3 minutes ago, ebinmaine said:



Not dying is a good goal.



Always remember that the fumes from gasoline are FAR MORE DANGEROUS than the liquid itself.



You may want to just get another tank.



I can't find one anywhere

[ebinmaine 67,435]

3 minutes ago, Joe leonardo said:

I can't find one anywhere



Try one of our Redsquare methods.



K & B Horse Parts.

Brian Badman. @76c12091520h







Or place an add in our own classified section.



Or CALL A to Z Tractor in PA.





They're out there....



Maybe not super common. But they're out there.





[Handy Don 12,214]

1 hour ago, Joe leonardo said:

I also found out that my gas tank repair was futile and it still leaks gas, I plan on using a soldering gun to fix the hair line crack down the side and it's empty so I shouldn't die 👍

Your shop teacher will be able to guide you on how to do this safely. Please ask for help!

[Joe leonardo 164]

1 hour ago, Handy Don said:

Your shop teacher will be able to guide you on how to do this safely. Please ask for help!

I know about 15x more than my shop teacher 😂

[rjg854 11,360]

There's a saying

Those who can't do, teach.
