dlashb40 43 #1 Posted November 14, 2023 Does anyone have a diagram of the PTO (right side) for the mower attachment? I know I'm missing some parts. Share this post Link to post Share on other sites

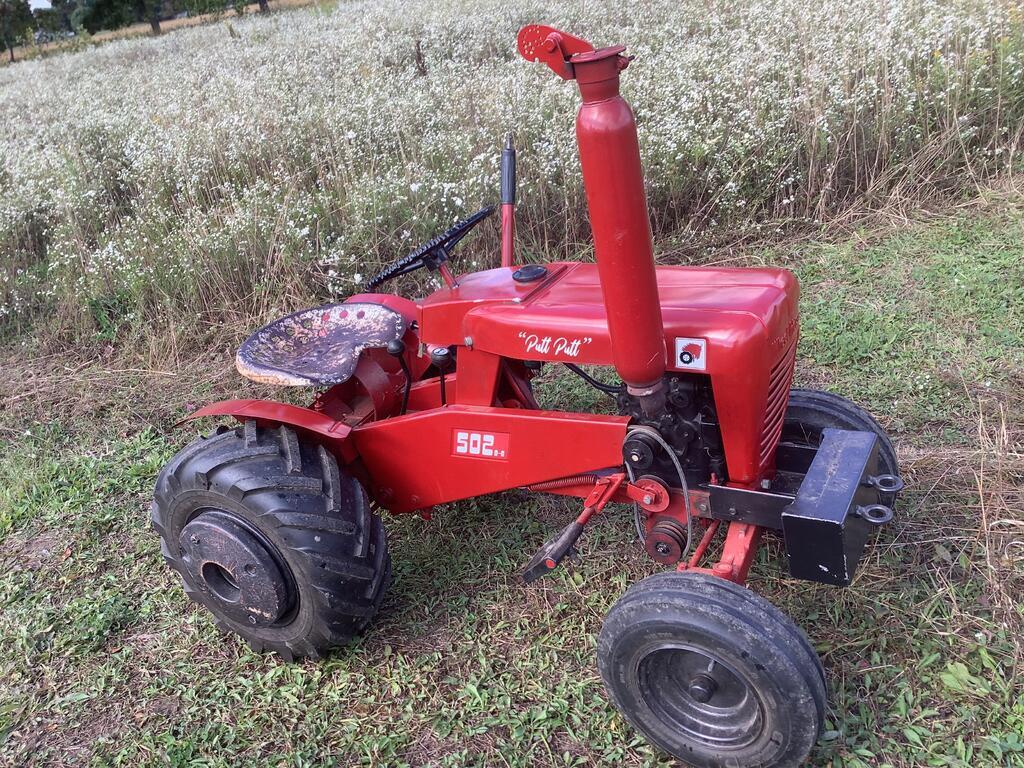

Pullstart 64,495 #2 Posted November 14, 2023 Is this close enough to figure out? Share this post Link to post Share on other sites
ri702bill 8,963 #3 Posted November 14, 2023 The PTO is part of the Mower package, not the tractor. Download the manual for your mower model.... good illustrations and part numbers there... Bill 1 Share this post Link to post Share on other sites
Handy Don 13,340 #4 Posted November 14, 2023 (edited) The white pulley is on the engine. The middle (PTO clutch pulley) is on a pivot arm that is part of the attaching mount and actuated by the double arm pedal. These stay on the tractor. The lower pulley is on the deck (one sheave for input, two sheaves to drive the deck cross shaft). Post a pic of what you have. It’ll be easier to diagnose. Edited November 14, 2023 by Handy Don 1 Share this post Link to post Share on other sites
sscotsman 186 #5 Posted November 14, 2023 (edited) I have several videos that show the setup: https://youtube.com/playlist?list=PL7S9K86xlodCM3ywPJtV6SKQ6wvSpcETO&si=9VIdHIs1xuLxNs2Q (And thanks again to Redsquare for helping me fix it! ) Scot Edited November 14, 2023 by sscotsman 1 Share this post Link to post Share on other sites
dlashb40 43 #6 Posted November 15, 2023 Thx Scot, that was an awesome video of the deck. I'll look mine over as it's look like we have the same setup. I believe my deck has all the parts. My issue is the pedal to engage the mower. The pedal doesn't lock because a part or two is missing. I'll look a bit closer at mine and if it's ok, I'll send you a picture or two to see if we can diagnose what's missing. It's not a huge priority because we're into the winter months (minus your snow) and the grass is dormant. But I also like the originality of having everything working, although I mow my yard with a 52" Husqvarna zero-turn! 1 Share this post Link to post Share on other sites
Pullstart 64,495 #7 Posted November 15, 2023 20 minutes ago, dlashb40 said: The pedal doesn't lock because a part or two is missing. should be a roll pin in the foot rest bar that the pedal locks on 2 Share this post Link to post Share on other sites
Handy Don 13,340 #8 Posted November 15, 2023 (edited) 3 hours ago, Pullstart said: should be a roll pin in the foot rest bar that the pedal locks on Yes indeed. An extremely clever innovation. Trip lever on the pedal against the pin locks the pedal in the disengaged position. Tapping the lever unlocks it from the roll pin and the spring tensions the pedal & pulley to engage the PTO. Edited November 15, 2023 by Handy Don 1 Share this post Link to post Share on other sites
