Is my mower deck set up wrong?

By BrianKoch, in Implements and Attachments

Recommended Posts

BrianKoch    307

BrianKoch
Posted

Gentlemen,



I’m having trouble with getting my deck to raise up and lock and I think it might have to do with the deck being incorrectly set up.

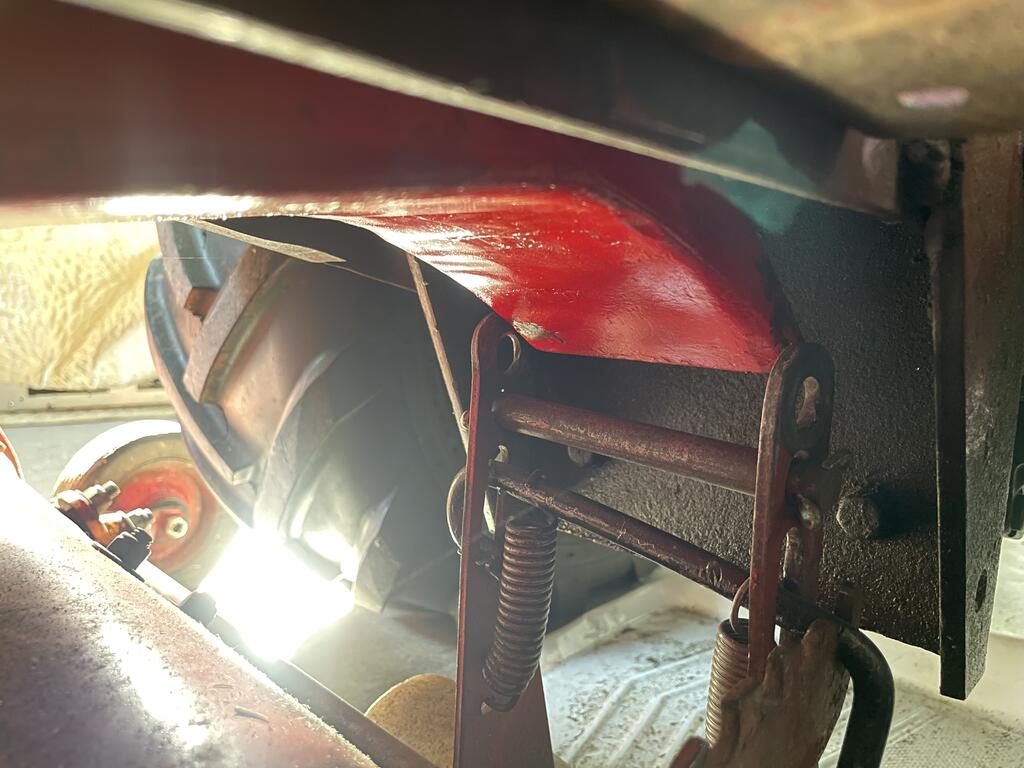

Based on the picture, does my mower deck look incorrectly positioned? That is, should the pivoting support bar be positioned above or below the wheel support pin?


Brian


Share this post

Link to post
Share on other sites


Ed Kennell    38,687

Ed Kennell
Posted (edited)

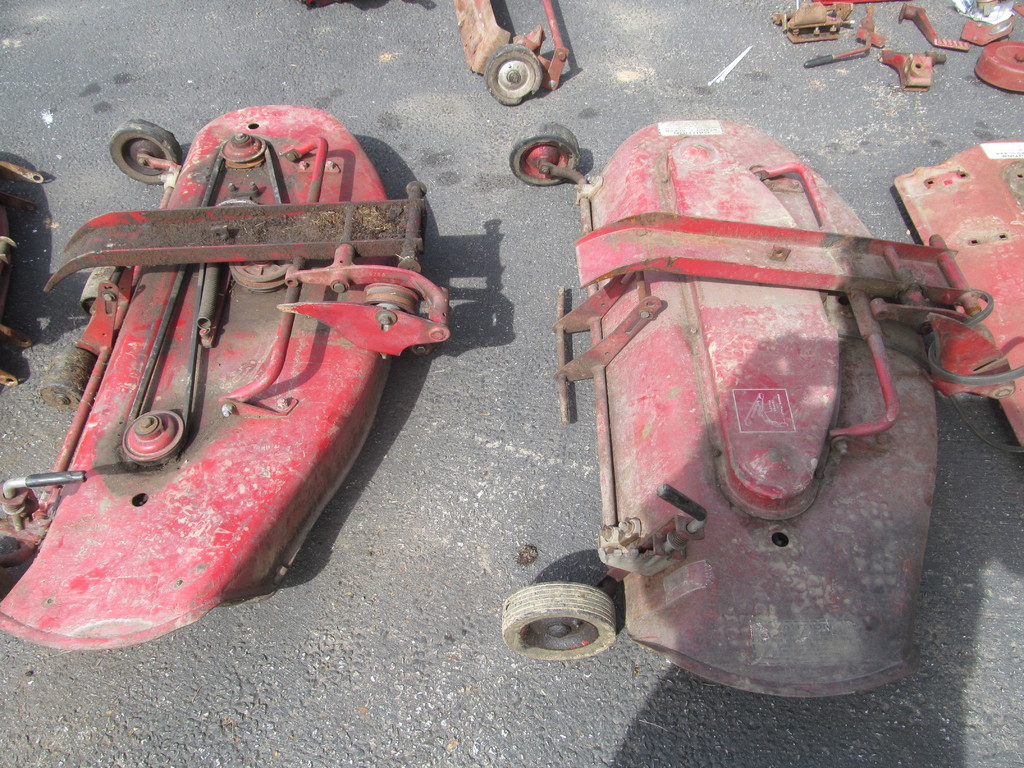

Your set up looks OK.     Is the deck lifting OK but just not locking in the up position?   May be squirt some oil in the top of the lift arm.IMG_7610.JPG.1bdc80720a5150f3caf71d954270d248.JPG
