hello and help with my 520h

[2drxploder 103]

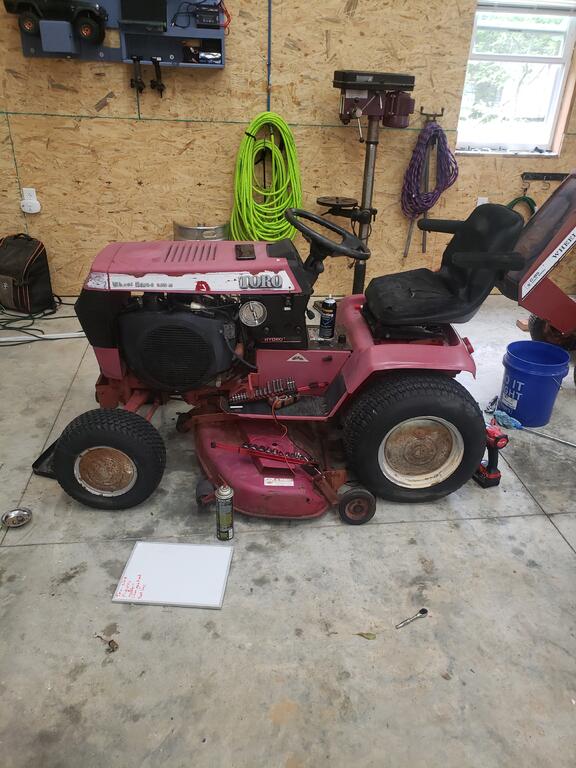

hello i just picked up a 520h. would like help the identification of it to start with.

also im not getting spark, but its a mess there.

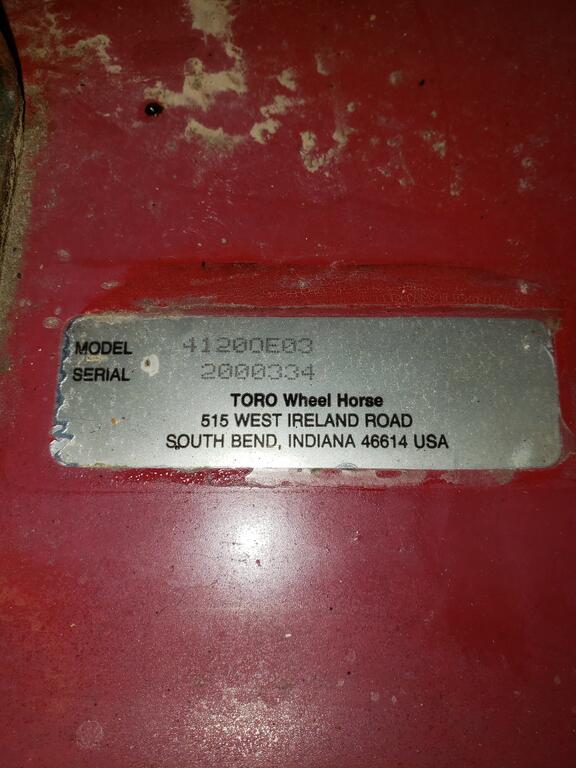

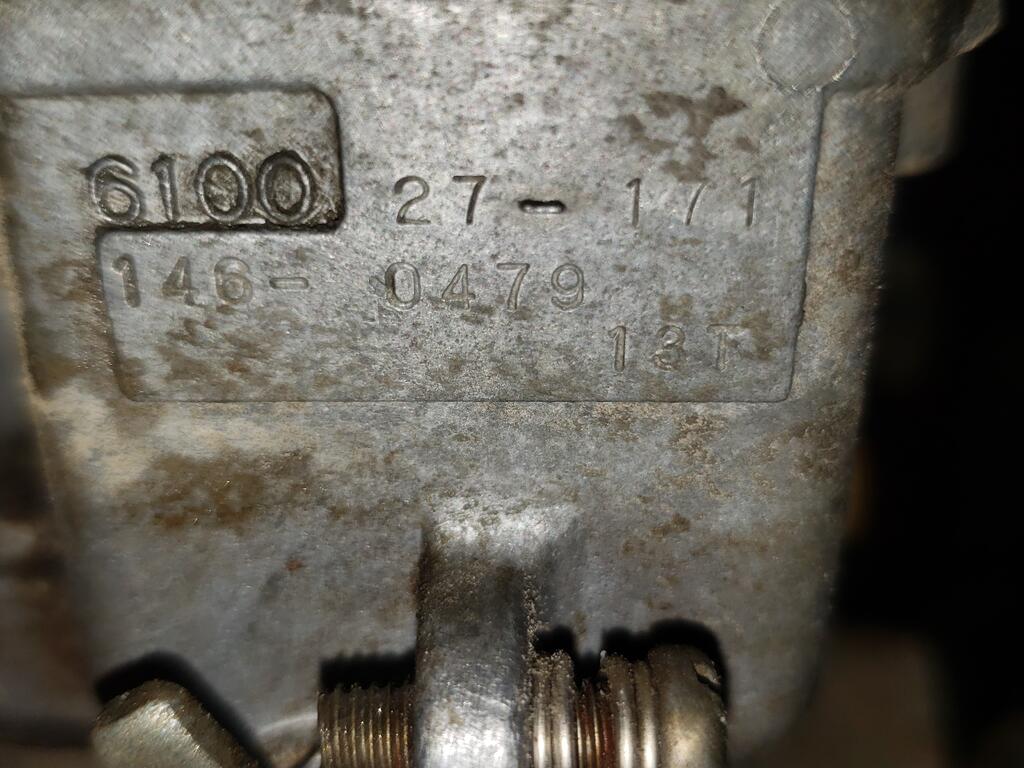

pic of model and serial included as well as carb id i think.

could not find serial on engine?????



[Sparky-(Admin) 21,314]



 Here’s what you have: 41-20OE03 1992 520-H Garden Tractor Automatic OnanP220G-I/10955C

[2drxploder 103]

thats awesome, thank you! so, how does a guy go about translating those numbers for a non-tractor guy?

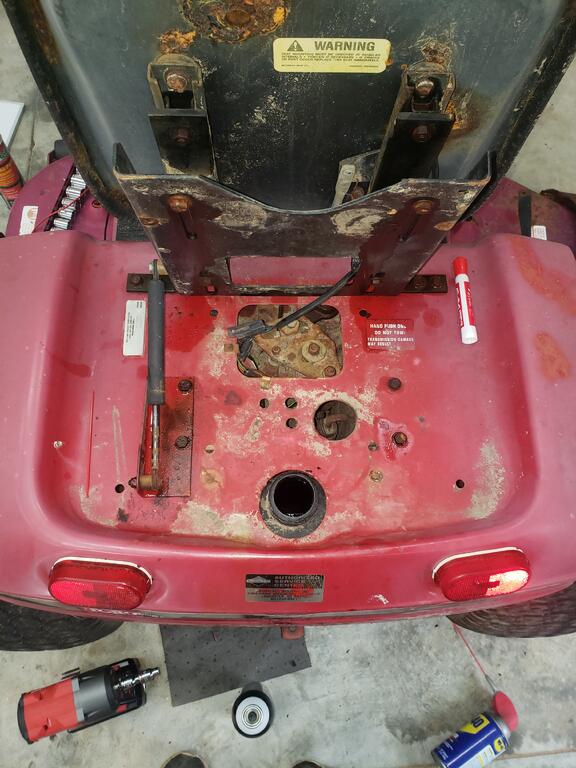

also as seen in picture i need a muffler, it came that way unfortunately

Edited May 21, 2023 by 2drxploder
forgot

[lynnmor 7,303]



Since you will have a project, start by spraying penetrating oil on any fasteners.  Do it several times a day till the project is complete.  Often these tractors are left outside in the weather and disassembly can be difficult.



Ordinary 7mm spark plug wires will work, check with NAPA and other auto parts stores for a kit.  Get familiar with the vendors found on this site, they may have much of what you need.



Mufflers come up from time to time on the popular auction site, also check with A-Z.  When you get a muffler, bead blast it to remove all rust and loose paint, then repaint with Rustoleum High Heat paint.  These things are getting expensive and finding one in good condition is getting harder, so protect it as best you can.

[squonk 41,051]

I can make your spark plug wires.Send me the lengths and what boots are  on each end . About $25 plus shipping.

[gwest_ca-(File Mod) 11,040]

This type of 8-digit model number explained



[2drxploder 103]

So many ads, it took like 10 min to finally be able to click the sign in button on my phone, jeez. Thanks for the help, all good info, plus lots more on here. Still searching for a decent muffler, waiting on ignition parts and fuel to be delivered.  What tires yall recommend? I really like the Carlisle 23x10.5x12 ags for the rear, not sure on front yet.

Edited May 23, 2023 by 2drxploder
Missed the g in ags

[2drxploder 103]

Tank out and cleaned, this horse is dirty. The varnish in the tank was terrible. Some oil-eater and 20x 1/4-20 nuts, some shaking and more shaking, and lots of rinsing. Looks good inside now.  Oil-eater is good stuff! 3 dust pans of general debris hiding in  there too.

[2drxploder 103]

new coil, wires, plugs and other misc stuff came in. installed still no spark. did some research on here, it was wired wrong. both ignition module wires to coil+. condensor was only thing on coil-. my understanding is red from module on coil+, black from ignition module on coil-, condensor on coil+ as well as yellow from voltage rectifier/regulator. if said wiring job was incorrect and my changes are correct, what damage could this do? coil got hot, fast, after a short attempt or 3 at cranking. had a freind over today, his family owned/operated a smell engine repair shop years ago. he spotted the incorrect wiring job, but was unsure of the fix. we found wiring diagram on here, wiring is not either of our favorites.  he suggested a new module, and coil. at $300 for the tractor, and already about $250 deep in small parts, before i purchase the module, which i can only find at $170+/-, im getting deeper than i wanted to be for a non-runner.

[oliver2-44 9,726]

Before you throw an more  parts $$ at it let the Onan guys here help you diagnosis the real problem.

[Cee245 818]

If you're certain your wiring is correct and cleaned up /making a good connection,  you may want to try this link and follow along.



I think this is the thread I followed to be certain my issue was the pickup coil under the flywheel. Those are about 175 or so. And not being good at electrical myself, I've been able to make lots of quality repairs to my machines by following this sites Excellent advice!





Cory

[2drxploder 103]

wow, thats alot of information in those few pictures. but i like it! i will have to get busy on it, but unfortunately it will probably be next weekend before i have some time. i also discovered a broken spring on tensioner pulley near fan. thanks

[2drxploder 103]

so here is some background info for my wheel horse liking:

my grandfather had a small farm in northern WV and used a 312-8 heavily, tiller, plow, for dirt and snow, thats all i remember he had. my father who recently had a lengthy hospital stay still has the tractor only, slightly restored. he picked up a few tractors over the years to use 4 parts, most recently the c-85 you see in the background of pictures. my brother and i use to abuse the the old 312 pulling wheelies and surprisingly pretty hard trail riding through the woods as children. i brought the c to house in hope of reviving it, buts its more work than i wanted and i think the 500 series is better and i found 1 that i hope works out, think i would of preferred the 8 speed tho. its primary use will be pulling: garden trailer, tarps of leaves, non-running vehicles around the yard. i have an exmark commercial walk behind for the grass cutting. it does not doing very well for pulling. ideally i would like a tiller and a front loader the 520, but i feel like that is far-fetched. long story short i have some history and nostalgia associated with the these working horses. my dads 312 is rear discharge and stripes the lawn just as nice my exmark w/ the stripe kit!

[2drxploder 103]

got it fired off on a few drips of gas in the carb. thanks to @Cee245 for the link. just what the doctor ordered. by the way she is named Ruth/Ruthless, in honor of my grandparents, g-ma's name was Ruth and my grandfather worshiped her, his family and farm. his wheel horse was a big part of his small farm, and he loved it!

[Cee245 818]

@2drxploder

great that you got it going!



That link is "pinned" to the top of the "Wheel Horse Electrical"  part of the forum.

There are several really good ones with lots of info on how to diagnose and repair various things.



Maybe want to Check out the Manuals section as well to view your favorite models factory manual. I think there is a lot of overlooked great info in them.





[2drxploder 103]

thx i've already printed a few pages for easy reference along the way! got fuel tank, new lines, filter, and pump on today, as well as exhaust. it runs, idles, changed oil, flushed with about 2qts b4 ading new. new cheap carb. tomorrow ill change hydro oil n filter, maybe tube in right rear.  some minor re-assembly and hopefully go for a cruise through the neighbor hood.

[2drxploder 103]

i was wondering if someone could help with vacuum gauge too, might seems to work somewhat, but fluctuates alot. like alot, alot. not sure if it is due to the nature still running a little rough. like whats the normal "status of this gauge" maybe a video?

[lynnmor 7,303]

10 hours ago, 2drxploder said:

i was wondering if someone could help with vacuum gauge too, might seems to work somewhat, but fluctuates alot. like alot, alot. not sure if it is due to the nature still running a little rough. like whats the normal "status of this gauge" maybe a video?

It is a simple vacuum gauge and will read towards the minimum horsepower at idle and towards the maximum horsepower as demand increases.  Replace the hose from engine to gauge and try again, if the flutter is still there you can try a vacuum used for testing engines.  Since the engine is still running rough, you have a problem so do a compression test and report back.



Oh, and good luck with that cheap carb.





[2drxploder 103]

I was able to put Ruth to work this weekend. Had Friday off. she runs a lil rough with the cheap carb, who would have thought? But i know it runs, and works! hooked the garden trailer to it, and cleaned out the shed, hauled some trash/bulk recyclables, and curb giveaways, to the curb for the local scrap guy, and trash pick-up. also moved a large pile of cinder blocks. she transported tools to and from the shop, nice to just pull a trailer full in, leave for night, and pull it back out in the morning. the shed got tore down, it was really rotten, did not put a fight. the charging system still not working, but i didn't even try yet. the carb likes to idle and run, nothing in-between. overall i am very satisfied. all totaled so far i'm less than a thousand into a workhorse i will have for a long time hopefully. more work to come, but that is part of the fun. also the better half got to drive it today, and she approves!

[2drxploder 103]

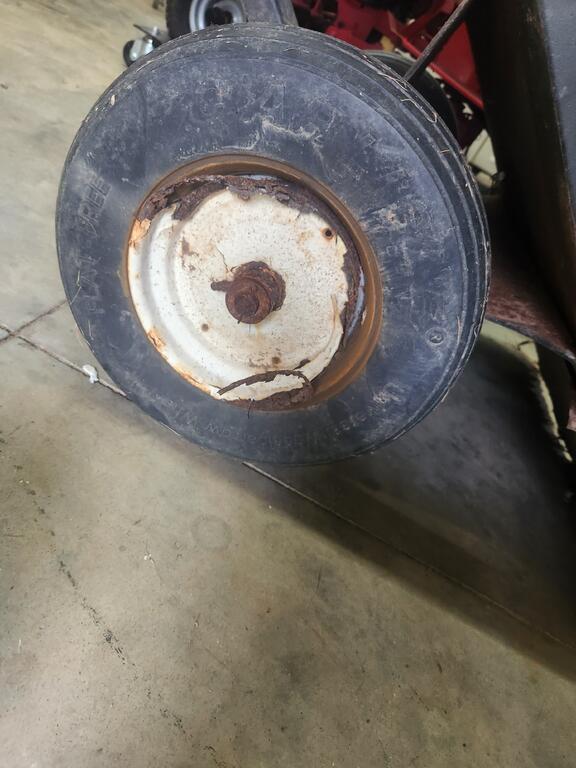

really getting back into the 520h. had to do front wheel bearings Sunday. going to look into the pen oil rubdown.

i have been wondering about foot pedal conversion, have read matt is no longer reachable.

i do not cut grass with the 520, i have been considering a hydraulic dump trailer utilizing the factory hydraulic to lift deck. anyone done this? thoughts?

i need weight on my tires too rears are 26x12x12, considering washer fluid/rv antifreeze? pros cons?

i would like some cast iron wheel weights?

i am in the market for a tiller too, can anyone help with that?

i would like hitches front and rear, i saw one that attaches under the tractor for front too at one time, but can not relocate it.

i would also like thoughts on adding a bigger battery, i plan on installing an atv winch wouldn't mind some input/pics on different winch setups either...

Edited September 23 by 2drxploder
adding stuff

[953 nut 55,163]

11 hours ago, 2drxploder said:

i would like some cast iron wheel weights?

i am in the market for a tiller too, can anyone help with that?

i would like hitches front and rear, i saw one that attaches under the tractor for front too at one time, but can not relocate it.

https://www.wheelhorseforum.com/classifieds/wanted/

12 hours ago, 2drxploder said:

need weight on my tires too rears are 26x12x12, considering washer fluid/rv antifreeze? pros cons?

You should put tubes in the tires prior to fluid filling.

[2drxploder 103]

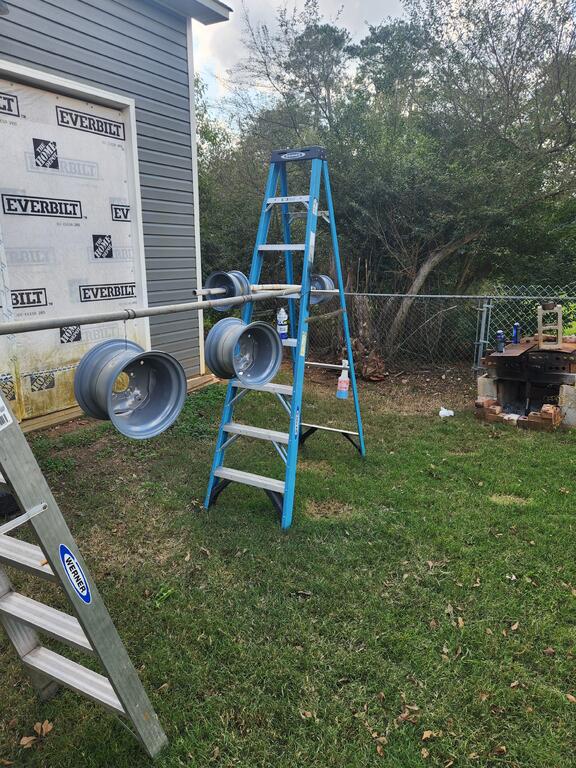

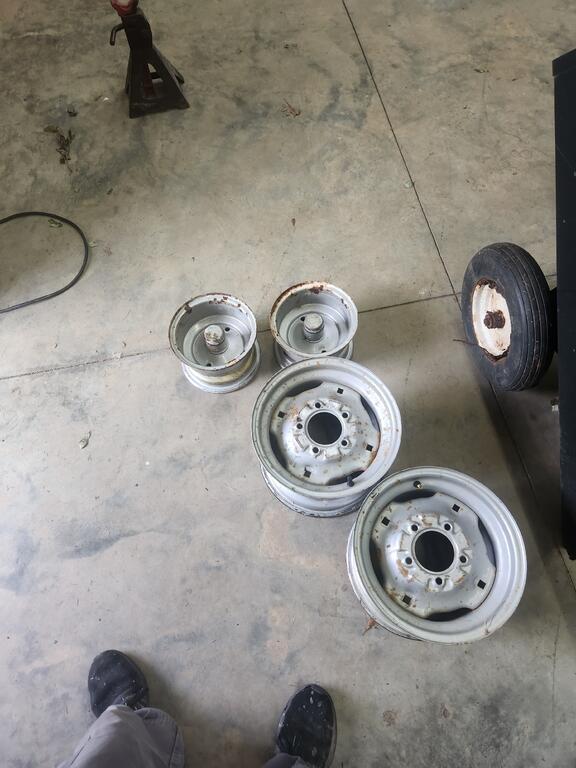

Got the rims n tires broke down. Will clean paint new bearing etc. Then tubes, tires, and filling with washer fluid. Post more updates as they come...

[2drxploder 103]

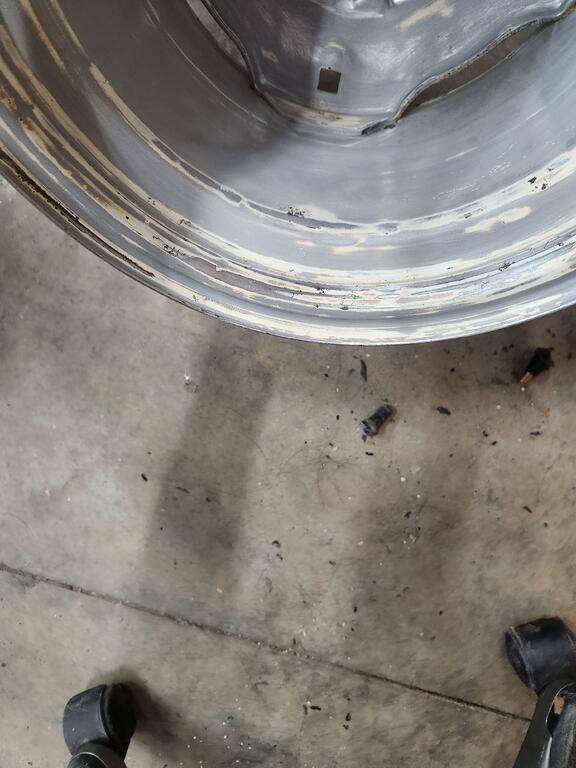

As much of rub down as my fingers will allow. Etch primer coming soon

[2drxploder 103]

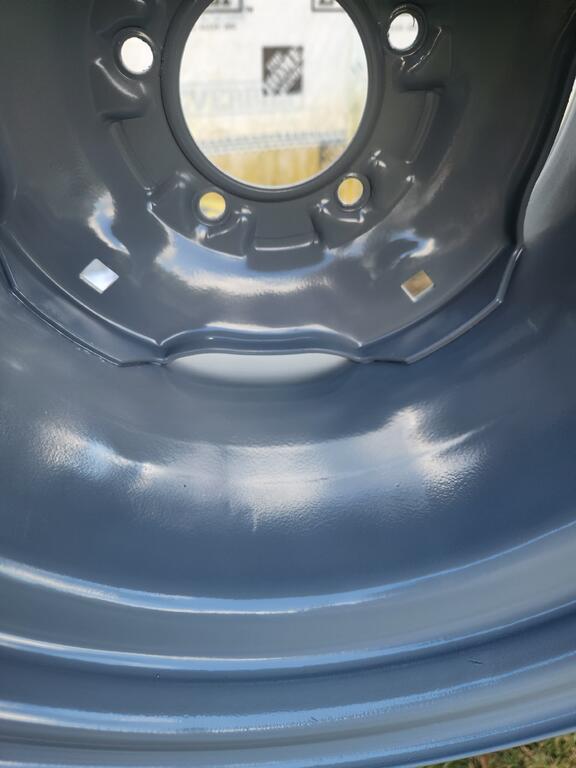

Etch primer than 3 coats each smoke grey and semi-gloss clear. I'm happy with them. Let them cure in the shop for a few days before I mount tubes n tires.

[2drxploder 103]

I like it! Now fill w/ washer fluid
