414-8 snow thrower

[DBrashear 0]

I have 414-8. I found a 6 0100 6 30" snow thrower. Will this fit my tractor. I cannot find the manual for the snow thrower. Any help would be appreciated.



Thanks,

Dave

[Ed Kennell 38,056]

It should fit.   Just be aware there are different tractor mounting kits for these older snow blowers.    It may attach via the front attach-o-matic or bolt to the frame with a long 3/8" bolt and two bushings.





[DBrashear 0]

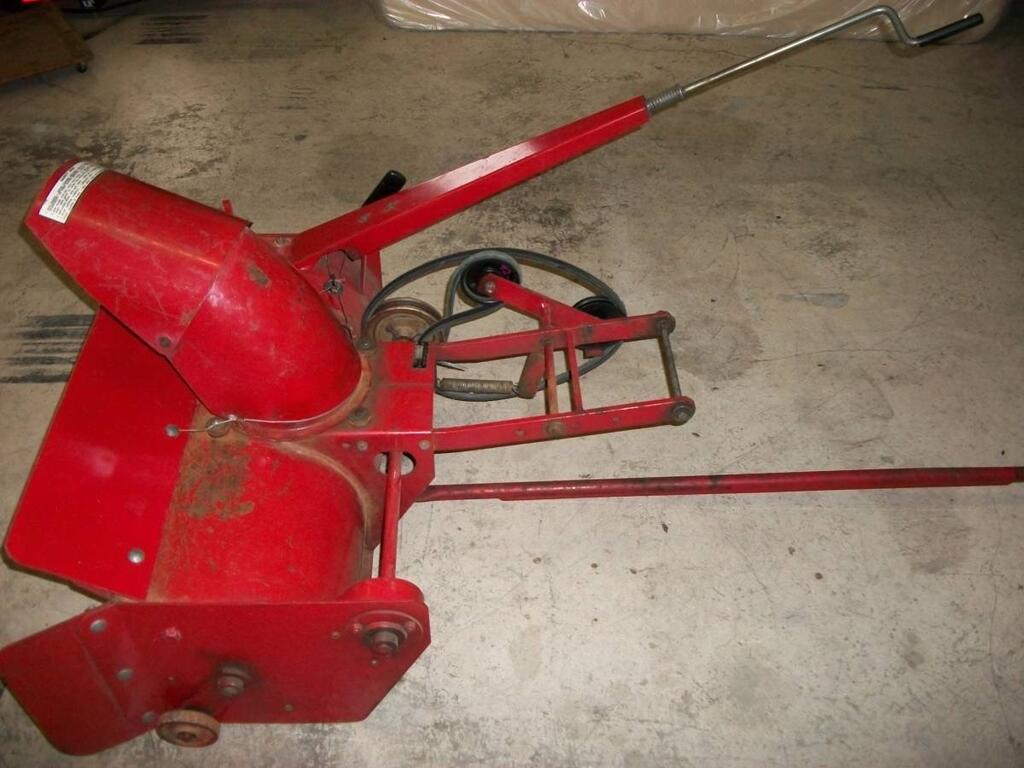

Here’s a picture. I thought it was attach-o-matic but after looking closer at the picture it looks like it would bolt on. Thank you

[Ed Kennell 38,056]

Yep, that would bolt to the two existing holes on the 414s frame.



[gwest_ca-(File Mod) 11,037]

1971 model 6-0100 - Fits 800 Automatic, 800 Special, Bronco 14, Charger 12, Raider 10, Raider 12, WorkHorse 800

(No record of 6-0100 at Toro. Suspect it was same as 6-0200 plus 6-9112 in one package)

(Uses # 40 chain Pitch 1/2" and roller width 5/16") (Uses #101460 lift tube and #9750 5/8" x 69" belt)

Click on the pictures for more info



[Ed Kennell 38,056]

 to the Dave.





    If you get the blower, don't forget the flag.

[peter lena 8,592]

@DBrashear , done a couple of those , in recovery ,drag / resistance / function , is the main problem .excellent picture reference , note the idler pulley frame , dry rusty movement areas ? how about those , wobbly , noisy belt Idlers? would also add a stronger pull tension spring , lucas red or green grease in / on every movement point .that #40 drive chain and sprocket , needs a specific chain lubricant , lube before and after every use , also adjust that chain , gat some silicone grease under that chute base , put a round knob on the end of shaft handle , 3/8 x 16 die nut , knob at h/w store ,  blowers spun up by hand when I  sold them , pete
