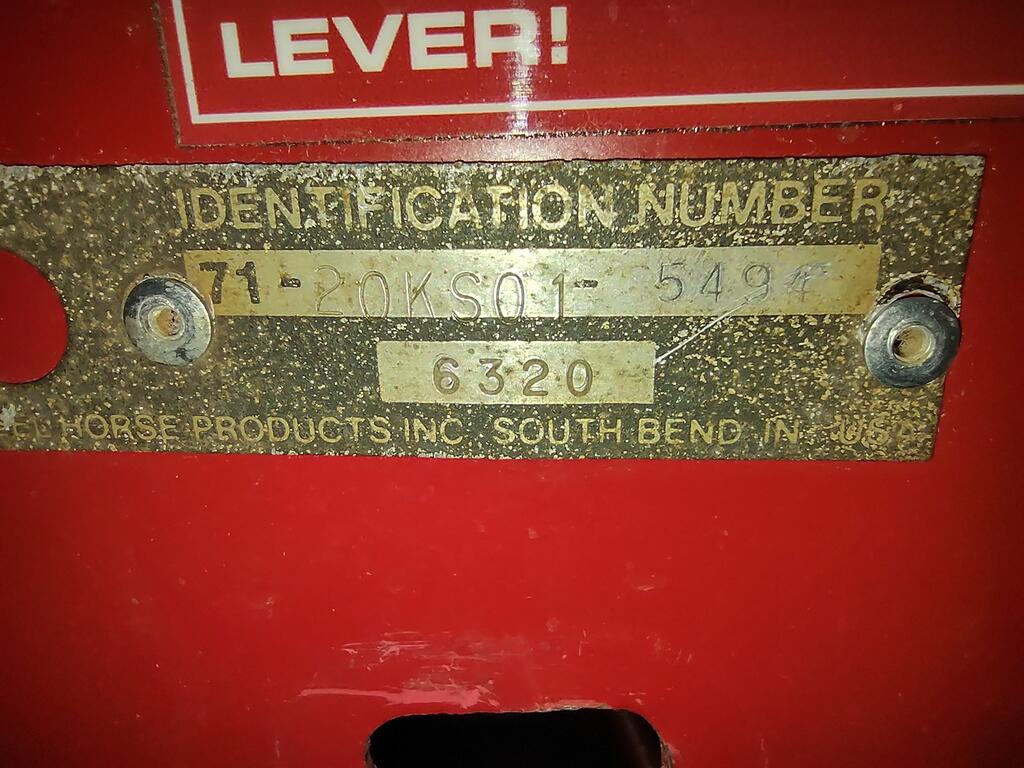

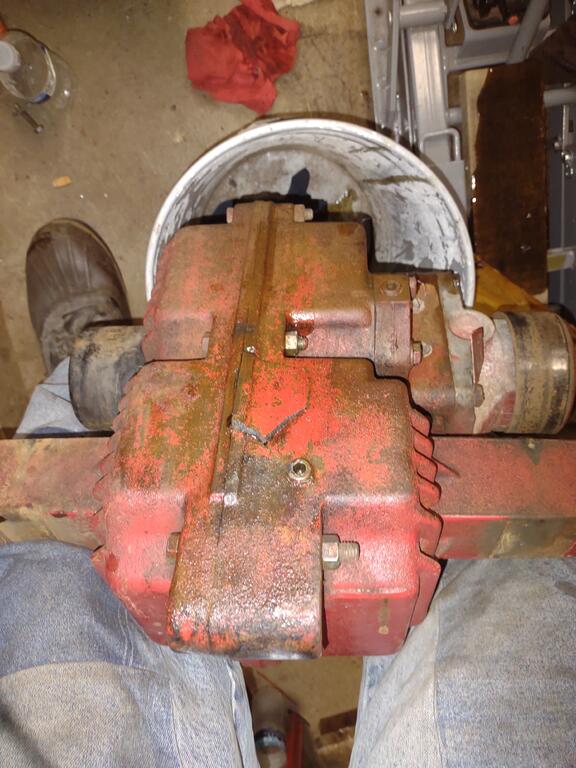

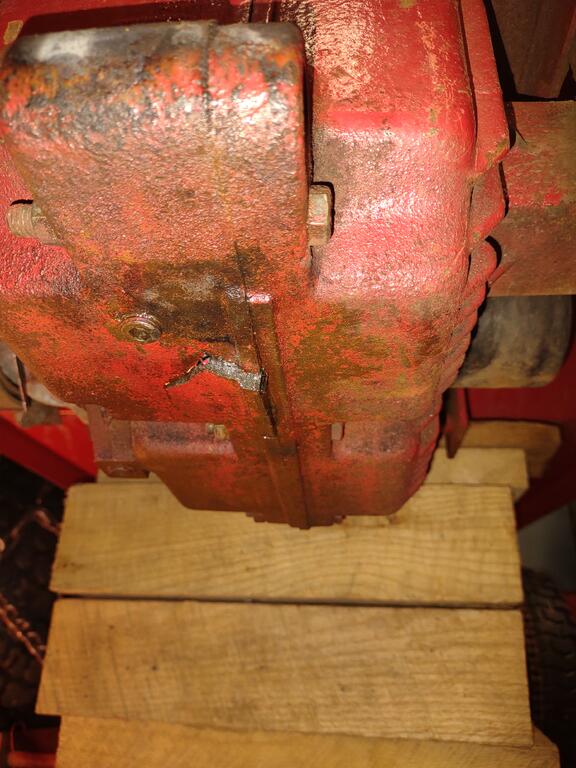

tmix61 81 #1 Posted January 3, 2023 (edited) Okay guys a little help this is the VIN on my tractor what does it all mean? And what kind of rear end is in it I have a problem with it where would I find manual to take it apart. From a couple of people that looked at the crack something got wedged between the gear and the case and pushed it out might be a bolt that broke off and got caught between the rain gear and I pushed it open. Edited January 3, 2023 by tmix61 Added another picture 2 2 Share this post Link to post Share on other sites
The Freightliner Guy 1,332 #2 Posted January 3, 2023 @stevasaurus what do you think youre the vin guru lol 1 Share this post Link to post Share on other sites
tmix61 81 #3 Posted January 3, 2023 Not sure what you mean it's been years since I've been on this site not sure how to get around to find the right year for the tractor with this vin 1 Share this post Link to post Share on other sites
Blasterdad 2,734 #4 Posted January 3, 2023 1977 D-200 Kohler K532S-53105-A 20 hp Sundstrand 90-1137 transmission 1 1 Share this post Link to post Share on other sites
Blasterdad 2,734 #5 Posted January 3, 2023 Handy to Bookmark. 1 Share this post Link to post Share on other sites
oliver2-44 9,929 #6 Posted January 3, 2023 @tmix61 This should be the manual for your transmission Transmission Hydro Sundstrand SM #492-4206.pdf Also if you search for 90-1137 you will find 50 threads referencing that transmission. Sort through them and there are some good rebuild ones 1 1 Share this post Link to post Share on other sites
gwest_ca-(File Mod) 11,137 #7 Posted January 3, 2023 2 pages of info on this model https://www.wheelhorseforum.com/search/?q=71-20ks01&quick=1&type=downloads_file 2 Share this post Link to post Share on other sites
Horse Newbie 7,159 #8 Posted January 3, 2023 (edited) 1 hour ago, The Freightliner Guy said: @stevasaurus what do you think youre the vin guru lol 1 hour ago, tmix61 said: Not sure what you mean it's been years since I've been on this site not sure how to get around to find the right year for the tractor with this vin @tmix61 , I think what @The Freightliner Guy was trying to say was “What do you think @stevasaurus ? You’re the vin number guru . Edited January 3, 2023 by Horse Newbie 2 Share this post Link to post Share on other sites
tmix61 81 #9 Posted January 3, 2023 8 minutes ago, Horse Newbie said: @tmix61 , I think what @The Freightliner Guy was trying to say was “What do you think @stevasaurus , You’re the vin number guru ?” Oh I wasn't quite sure what he meant thanks for clearing that up 1 Share this post Link to post Share on other sites

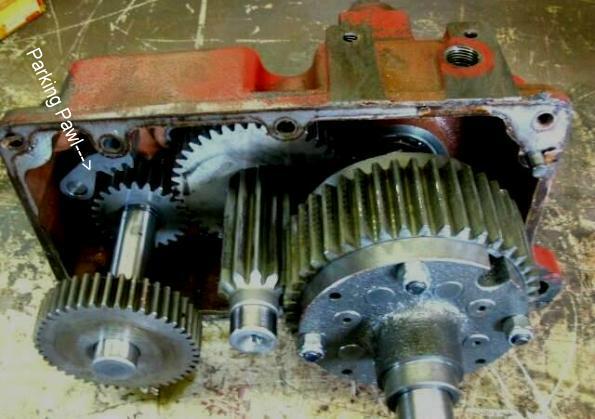

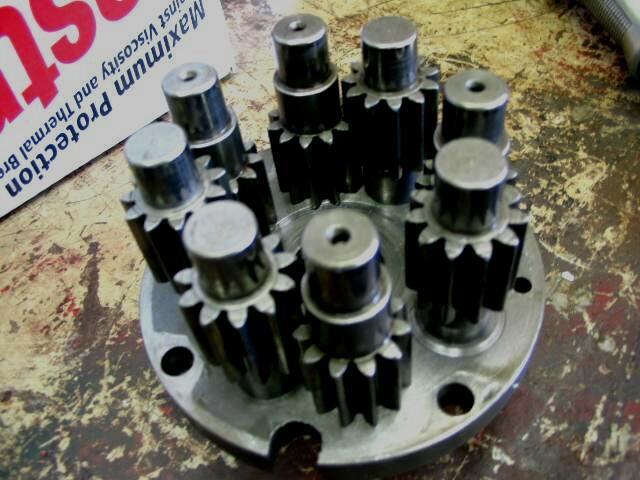

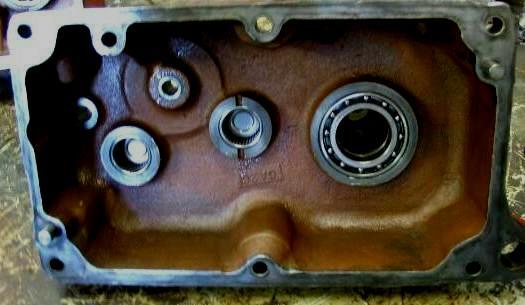

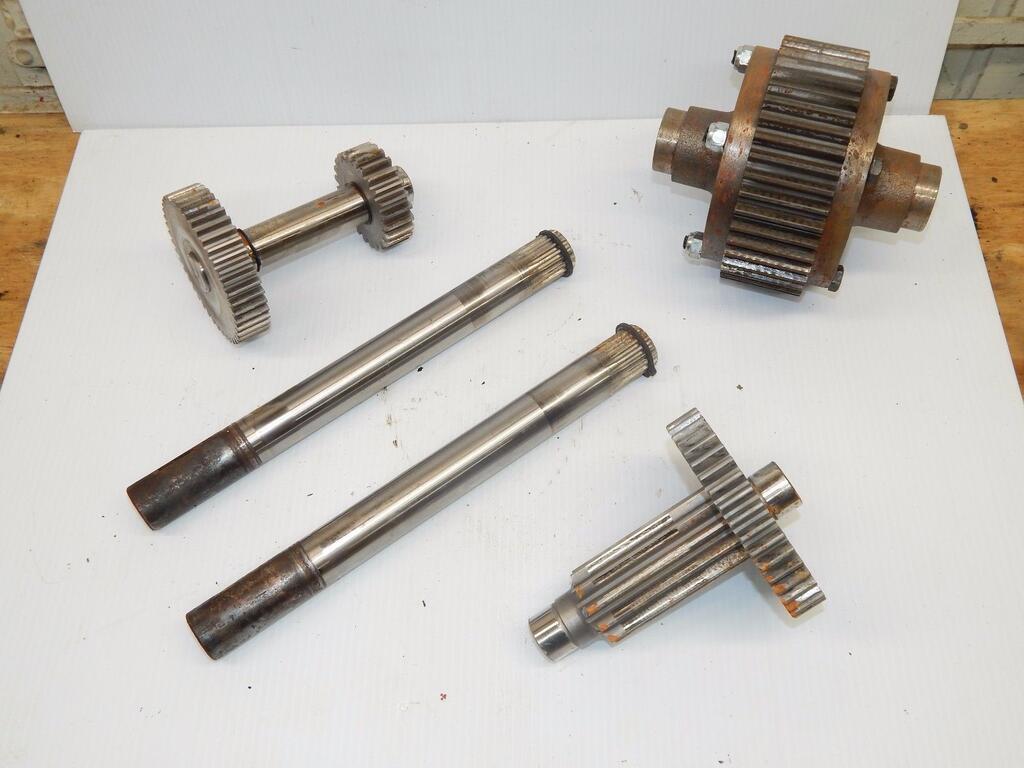

daveoman1966 3,762 #10 Posted January 3, 2023 I have prepared a REBUILD .pdf file for overhaul of the 90-1137 Sundstrand hydro unit in the D-200. The .pdf file is SUNDSTRAND Piston-Piston PUMP & MOTOR Refurb.pdfattached here. I can also replace the BROKEN trans housing....$60 + shipping from my zip 16433 to you... There really isn't very much inside of the Auto trans gearbox... faily easy to swap out. Here is a pic of the Auto trans gears: 1 1 Share this post Link to post Share on other sites
tmix61 81 #11 Posted January 3, 2023 5 hours ago, daveoman1966 said: I have prepared a REBUILD .pdf file for overhaul of the 90-1137 Sundstrand hydro unit in the D-200. The .pdf file is SUNDSTRAND Piston-Piston PUMP & MOTOR Refurb.pdfattached here. I can also replace the BROKEN trans housing....$60 + shipping from my zip 16433 to you... There really isn't very much inside of the Auto trans gearbox... faily easy to swap out. Here is a pic of the Auto trans gears: I'm only taking the rear end apart where the crack is would you happen to have more pictures of the inside of the rear end and a list of seals and gaskets thank you very much for the photos and your time I sure do appreciate it thank you TMIX 1 Share this post Link to post Share on other sites

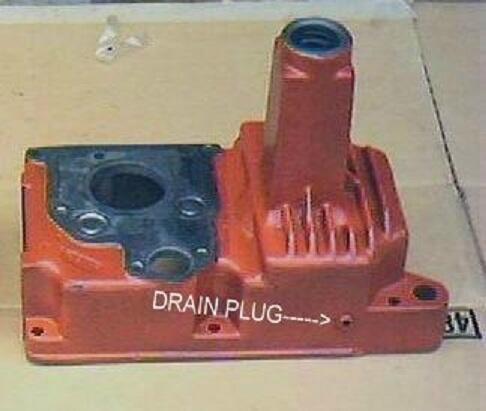

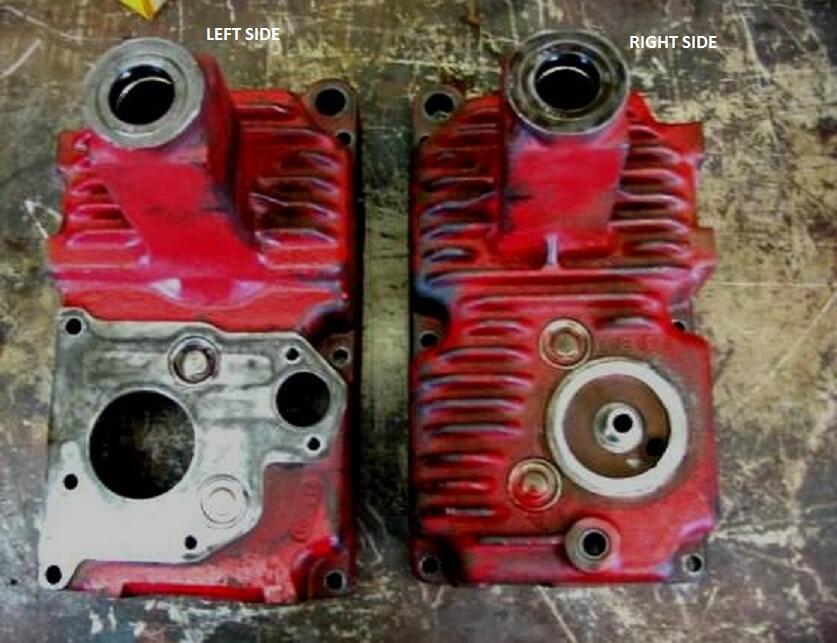

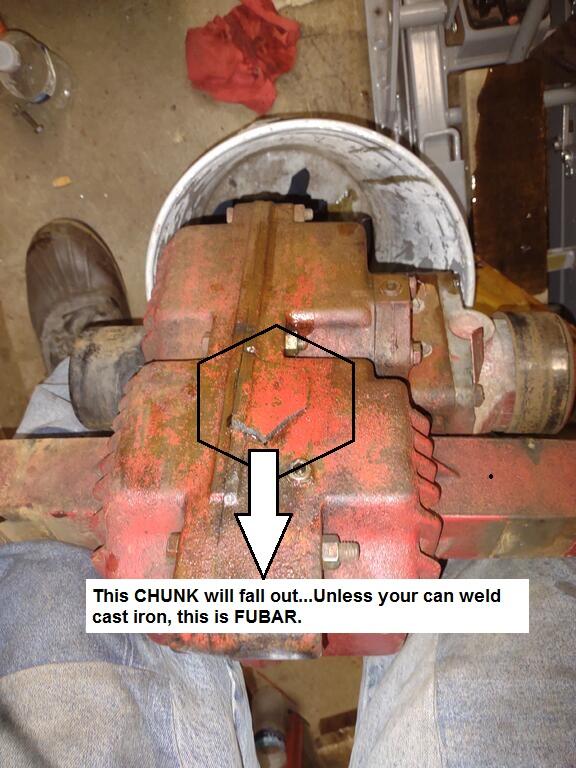

daveoman1966 3,762 #12 Posted January 3, 2023 This 'CRACK' is beyond repair...unless you can weld cast iron. (WYSIWYG)What you see above is the extent of the internal gears. I can send you a replacement trans case side...$60 + ship. The differential comes apart, of course. The LEFT two gears just slide off/on the shaft. The center gear is a welded/pressed assembly and doesn't come apart. This all makes it very easy to swap over gears.. 1 1 Share this post Link to post Share on other sites
tmix61 81 #13 Posted January 3, 2023 22 minutes ago, daveoman1966 said: This 'CRACK' is beyond repair...unless you can weld cast iron. (WYSIWYG)What you see above is the extent of the internal gears. I can send you a replacement trans case side...$60 + ship. The differential comes apart, of course. The LEFT two gears just slide off/on the shaft. The center gear is a welded/pressed assembly and doesn't come apart. This all makes it very easy to swap over gears.. Would you happen to know the grease seals number for the axles and the gasket to put the transmission back together or where would I pick them up thank you very much for the help I will let you know if I need that side of the case 2 Share this post Link to post Share on other sites
daveoman1966 3,762 #14 Posted January 3, 2023 Here is my Excel SS on the 'D' series Sundstrand Pump, Motor, and Manifold parts schematic and part #s. Looking for the SS on the gearbox... D SERIES ALL LIST.xlsx Share this post Link to post Share on other sites

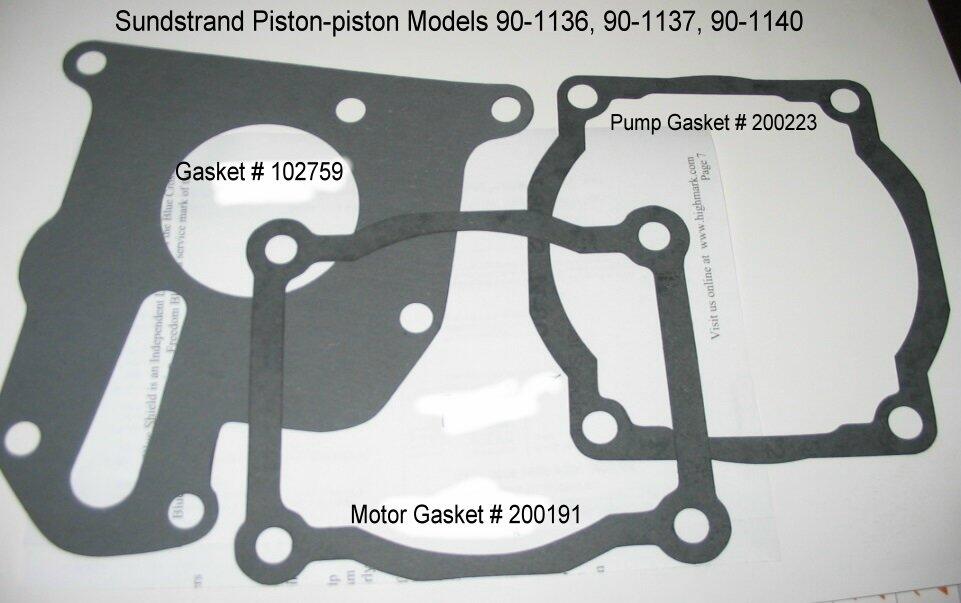

daveoman1966 3,762 #15 Posted January 3, 2023 Gasket kit from L J Fluid power. Google it and order for Sundstrand model 90-1173. It'll look something like this: Share this post Link to post Share on other sites
tmix61 81 #16 Posted January 3, 2023 2 minutes ago, daveoman1966 said: Gasket kit from L J Fluid power. Google it and order for Sundstrand model 90-1173. It'll look something like this: Sorry for being so dumb but don't I just need the transmission gasket where I split the cases? 1 Share this post Link to post Share on other sites
tmix61 81 #17 Posted January 3, 2023 Just now, tmix61 said: Sorry for being so dumb but don't I just need the transmission gasket where I split the cases? Oh I think I understand the axle seals will be in that kit and so will the old rings for the hydraulic where it mounts to the top of the rear end am I right? Thank you for your time 1 Share this post Link to post Share on other sites
pacer 3,174 #18 Posted January 3, 2023 (edited) A reminder --- those 4 nuts exposed on the big gear in the pic are the ones that caused your problem, yours were probably 5/16 on about a 3-3 1/2" bolt and one of the nuts broke off. The ones in the pic appear to have the 3/8" pinch nuts/bolts. You'll want to either bore yours out to the 3/8 or get a gear that has them. The big gasket is probably still NLA (no longer available) That $60 case @daveoman1966 is offering is a good price, and he dont sell anything that isnt in excellent condition. Edited January 3, 2023 by pacer 1 Share this post Link to post Share on other sites
stevasaurus 22,914 #19 Posted January 3, 2023 @daveoman1966 is the guru on the hydros. I would listen to him on this case. BTW, I know nothing about "D's". 1 1 Share this post Link to post Share on other sites
tmix61 81 #20 Posted January 3, 2023 (edited) 2 hours ago, tmix61 said: Sorry for being so dumb but don't I just need the transmission gasket where I split the cases? Does that kit give me all the o-rings for the hydraulic tubes on top of the transmission and the wheel seals? Edited January 3, 2023 by tmix61 1 Share this post Link to post Share on other sites
daveoman1966 3,762 #21 Posted January 3, 2023 (edited) I don't think the kit includes the 2 axle seals. Seals are OEM #6449...find them on Ebay. The OEM Trans Gasket is # 5999. Ebay again...MAYBE. You may find this gasket on-line, but not sure...may be outdated. If so, one can be made using either case side as a template. Get the GASKET 5999 and SEALS 6449 Here: https://wheelhorsepartsandmore.com/product/wheel-horse-5999-transmission-gasket/ Edited January 3, 2023 by daveoman1966 Share this post Link to post Share on other sites
953 nut 56,177 #22 Posted January 3, 2023 Lowell @wheelhorseman has the case gasket and others as well as the axle seals you need. Give them a call. https://wheelhorsepartsandmore.com/product/wheel-horse-5999-transmission-gasket/ 1 Share this post Link to post Share on other sites
