Missing inspection panel b-100

[Evguy 556]

I noticed a panel is missing from my b100, I can make a new one if needed but I haven’t found a good picture of it.
question is, is it supposed to have ammeter in the panel?

 Side note, if anyone has one, I would be interested in purchase.

[Sparky-(Admin) 21,315]

Not an amp meter…I think the voltage regulator goes in that space.



[Sparky-(Admin) 21,315]

I might be wrong….amp meter and the voltage regulator goes there..





[Tonytoro416 1,034]

Sparky you are correct.  I will look tomorrow to see if the one I have in the barn is worth anything

[Evguy 556]

8 minutes ago, Sparky said:

I might be wrong….amp meter and the voltage regulator goes there..





Dash Looks different, mine is 1977,

[Tonytoro416 1,034]

Dash could be a tad different but I believe the regulator and gauge definitely goes below.  I think the b100 I have is 76. I’ll look tomorrow for you see if it’s any good or not

[Evguy 556]

Ok, thanks

[ebinmaine 67,469]

6 hours ago, Evguy said:

Ok, thanks

Where is your VR now?

[Racinbob 11,076]

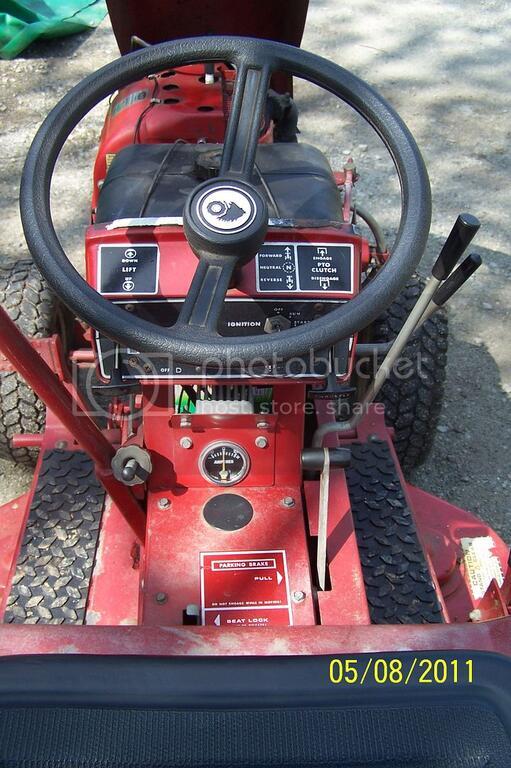

Originally it was the regulator and ammeter. The ammeter often gets swapped out for a voltmeter. My 76 here.



[ebinmaine 67,469]

1 minute ago, Racinbob said:

Originally it was the regulator and ammeter. The ammeter often gets swapped out for a voltmeter. My 76 here.





Similar to the setup I'm doing on the Automatic restoration.







[Evguy 556]

5 hours ago, ebinmaine said:

Where is your VR now?

I haven’t spent much time on this project, engine was swapped, either different regulator or maybe no regulator

[gwest_ca-(File Mod) 11,041]

Item 8-47

https://www.partstree.com/models/61-10k803-b-100-toro-lawn-tractor-1976/8-000-sheet-metal-and-covers-fig-8-8/

[Racinbob 11,076]

1 hour ago, Evguy said:

I haven’t spent much time on this project, engine was swapped, either different regulator or maybe no regulator



A lot of replacement engines have the regulator mounted here. 40 engine hours ago I put a rebuilt K-341 on it and went back to the original style regulator.

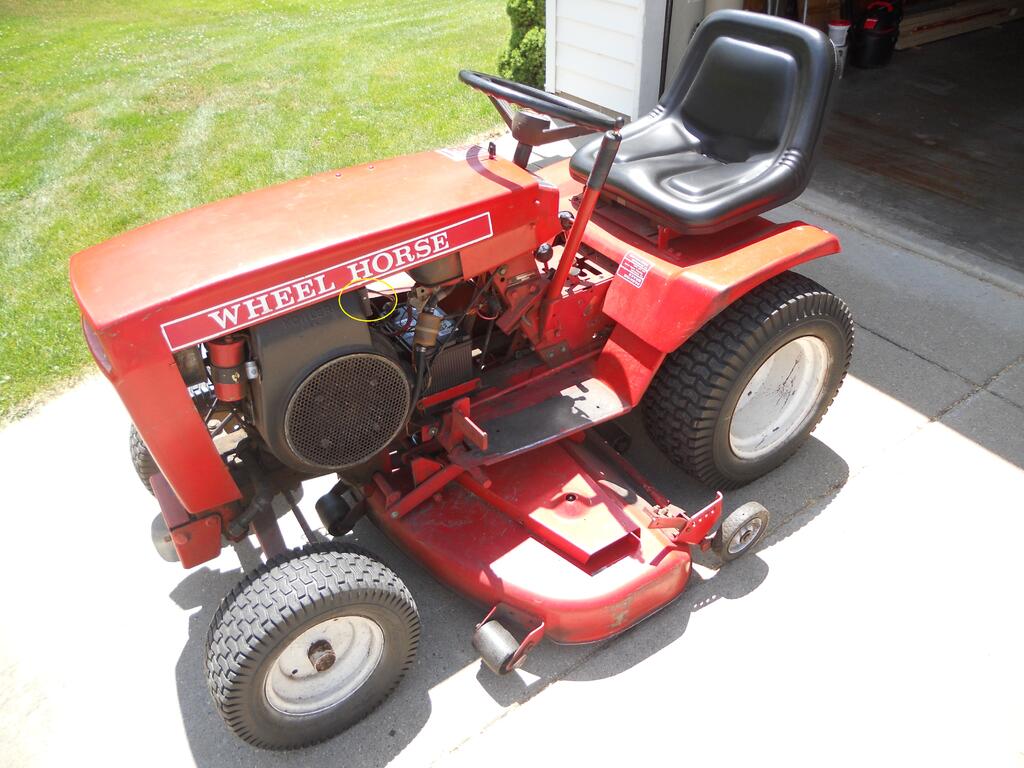

The engine in this picture is the K-341 I installed in the 70's.

[Evguy 556]

3 minutes ago, Racinbob said:



A lot of replacement engines have the regulator mounted here. 40 engine hours ago I put a rebuilt K-341 on it and went back to the original style regulator.





The engine in this picture is the K-341 I installed in the 70's.

I went to barn and had a look, regulator is mounted on the engine.

[Tonytoro416 1,034]

I looked in the barn at my B-100 and it’s missing that plate as well   Sorry I couldn’t remember

[Evguy 556]

5 minutes ago, Tonytoro416 said:

I looked in the barn at my B-100 and it’s missing that plate as well   Sorry I couldn’t remember

I’ll probably just fabricate one, thanks

[WHX?? 48,815]

I might have one you can have for shipping EV dude. Havta look if the magic parts shed she don't get snowed in!

Fab would be  easy if you have a template.

@Achto just made a similar one for a 953 tunnel.

Edited December 22, 2022 by WHX??

[WHX?? 48,815]

12 hours ago, ebinmaine said:



Similar to the setup I'm doing on the Automatic restoration.







I can see you misplaced your rose colored glasses again...

[ebinmaine 67,469]

1 hour ago, WHX?? said:

I can see you misplaced your rose colored glasses again...

Apparently got white paint on 'em.

[WHX?? 48,815]

You ever find one @Evguy I did spy one in the parts shed if interested.

[Evguy 556]

41 minutes ago, WHX?? said:

You ever find one @Evguy I did spy one in the parts shed if interested.

I resigned myself to making one, but if you have a spare I’m interested.
