1975 C160 Automatic Restoration

[ebinmaine 67,553]

Finished with transmission disassembly this evening.



Got the axles out and differential set aside.



Most bearings are in good shape.







I did find the cause of the metal pieces/chunks being in the bottom of the case.

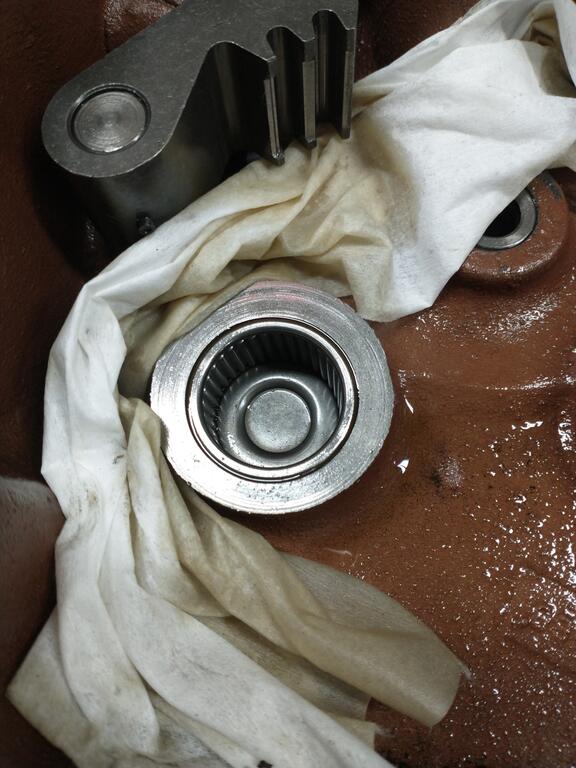

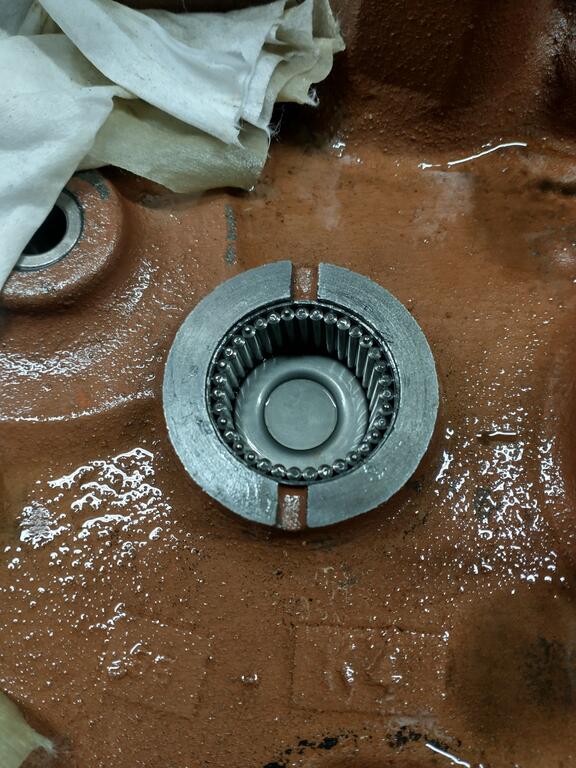

Bad bearing... Note the missing cage side.

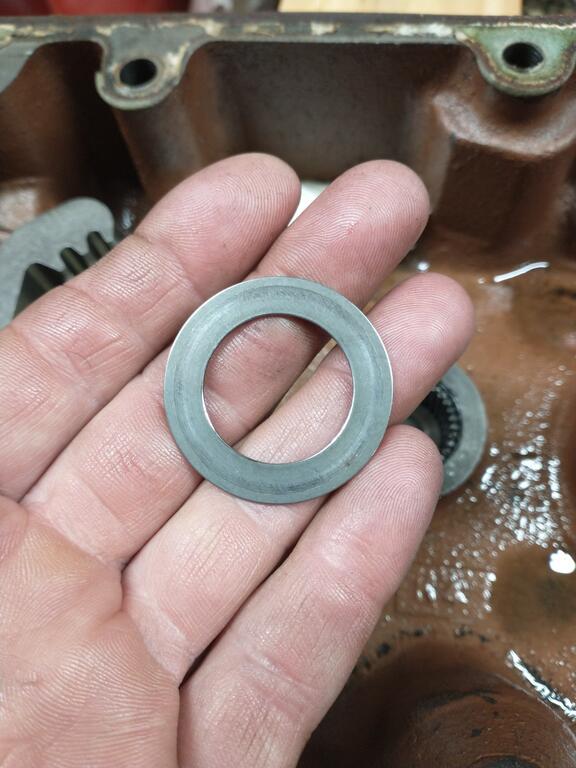

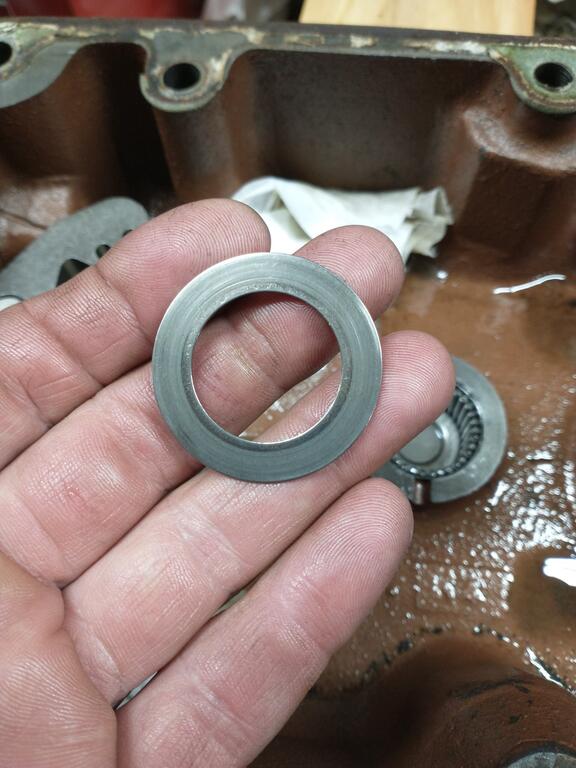

The (thrust?) washer that rides on it has a bit of scuffing but appears usable.









On the plus side I have 2 good used bearings setting in the case that came out of the 1970 Charger Hydro project that was parted out.

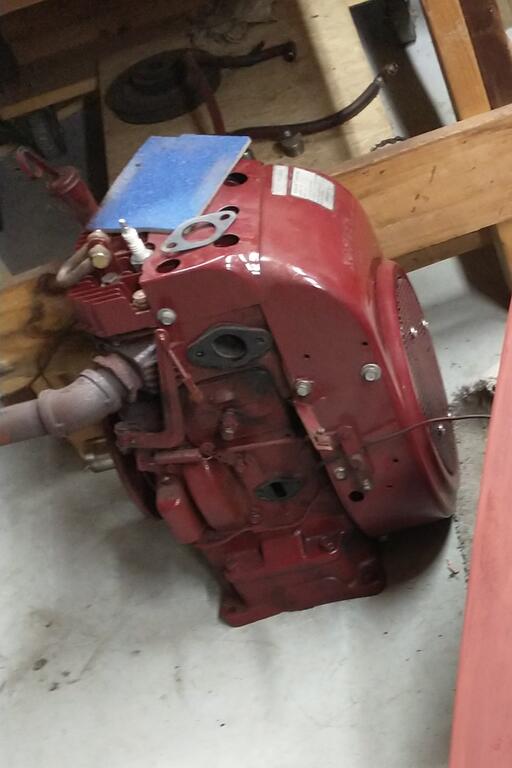

In between fiddlin' around with the transuhmasshion I popped the carb and fuel pump off. Set them aside.

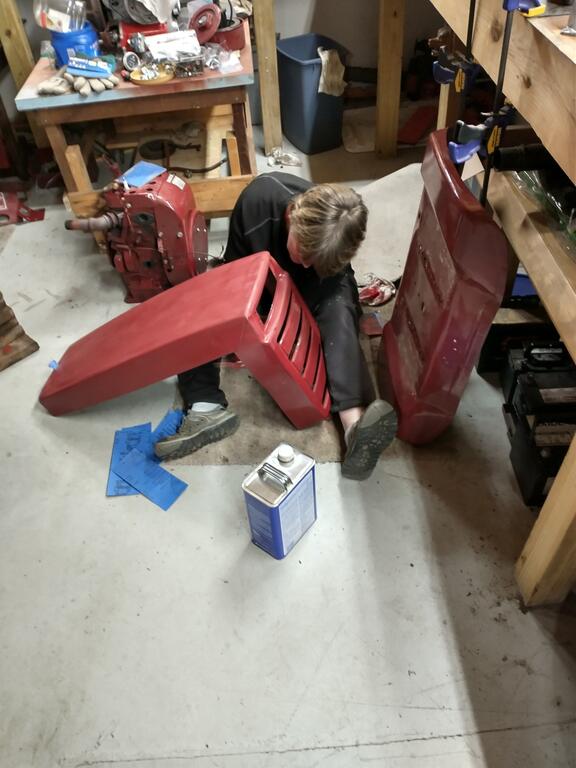

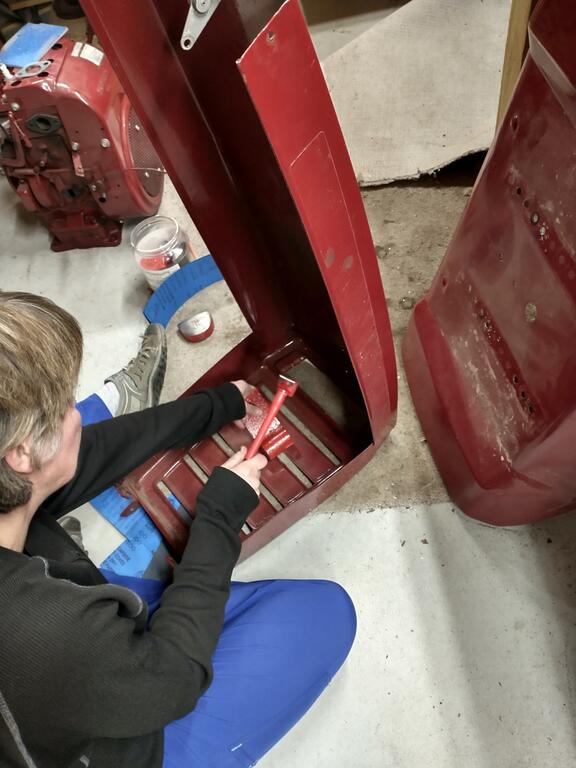

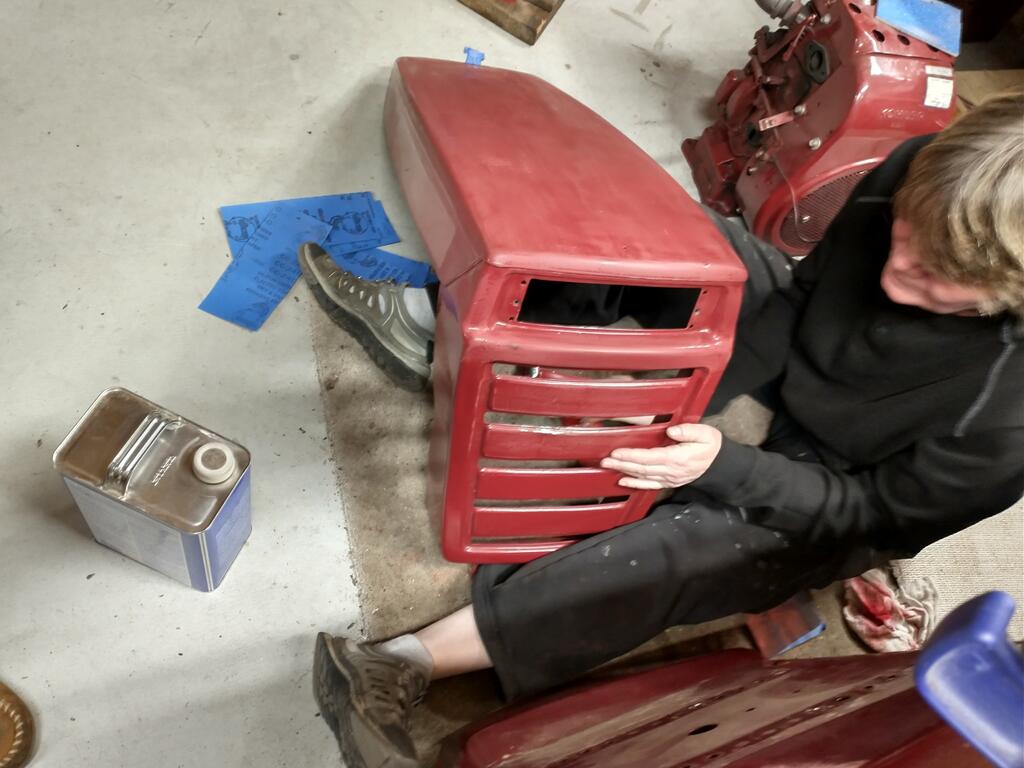

Trina's fun for the couple hours was experimenting with a hammer and dolly set.

The hood has a good selection of dings n dents.  She's been smashing crashing and bashing to flattenize them.

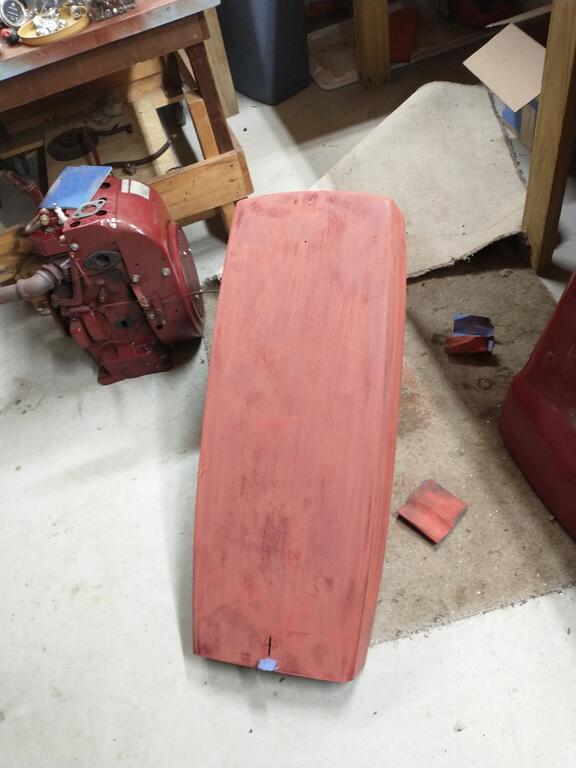

After that she used a semi flexible sanding block with 240 grit sandpaper to scuff off the top of the paint. Kind of get a feel for where things are.  It was quite well orange peeled in some places. Also let's her see the highs and lows.









[ebinmaine 67,553]

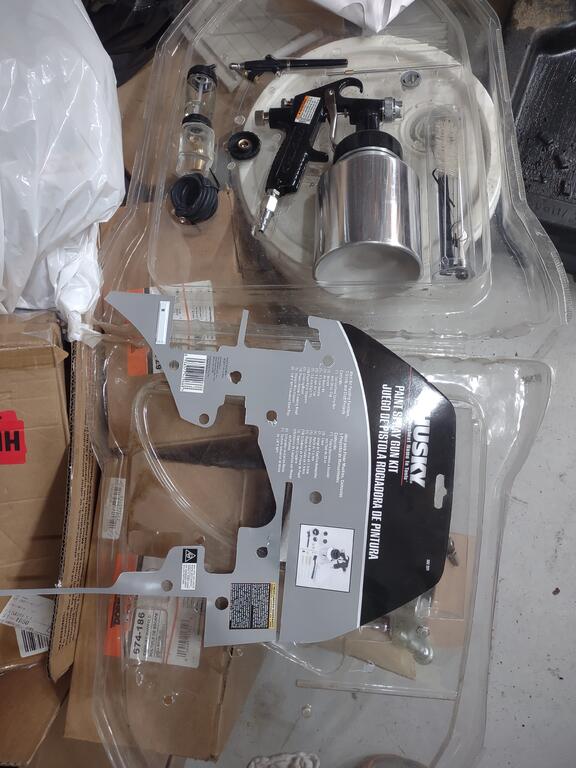

We have a Husky brand spray paint gun that was given to us a year or three ago. Never been used.

The Paint Department is gonna give it a shot sometime so I picked up a regulator and water separator.

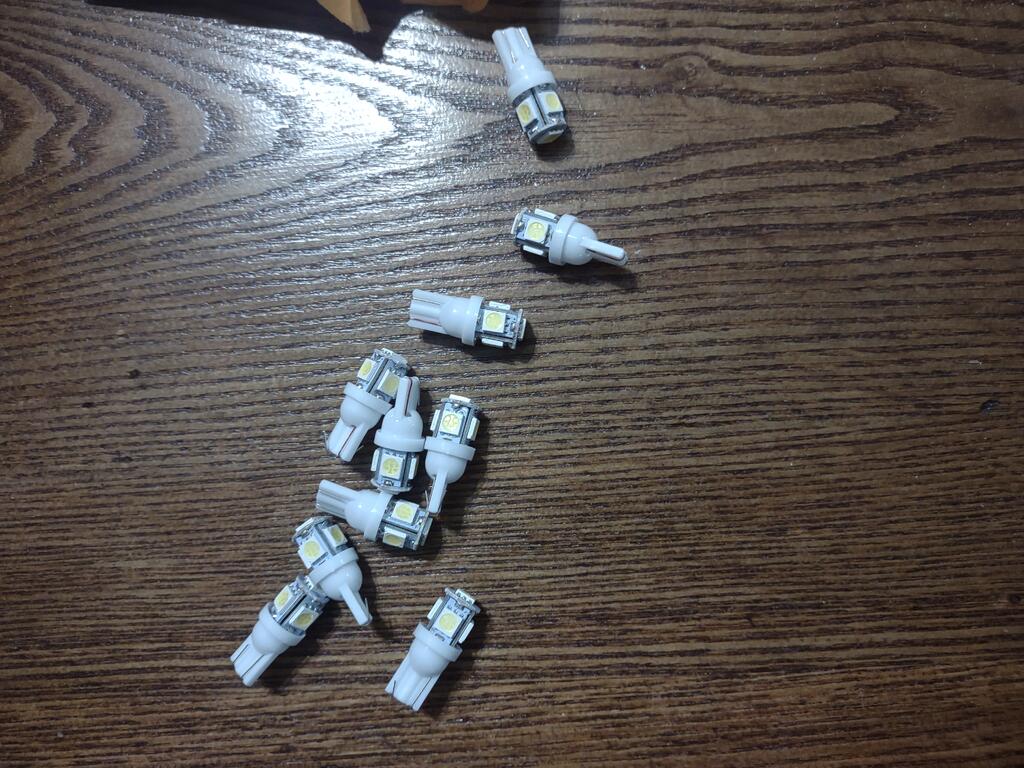

Got these LED replacement 194/168 bulbs. Taillight for sure. Maybe other auxiliary lights.







Trina spent more time clanging on the hood.

The top was made better the other day.

This evening the front cross bars are much straighter.

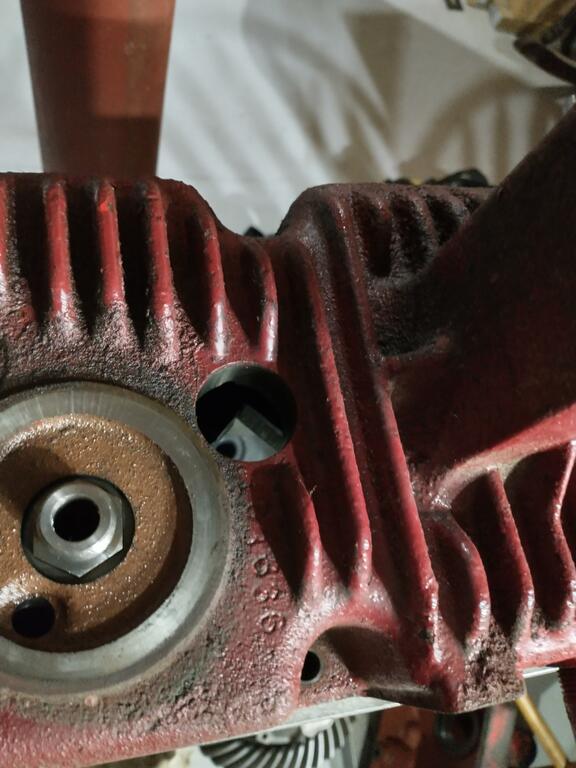

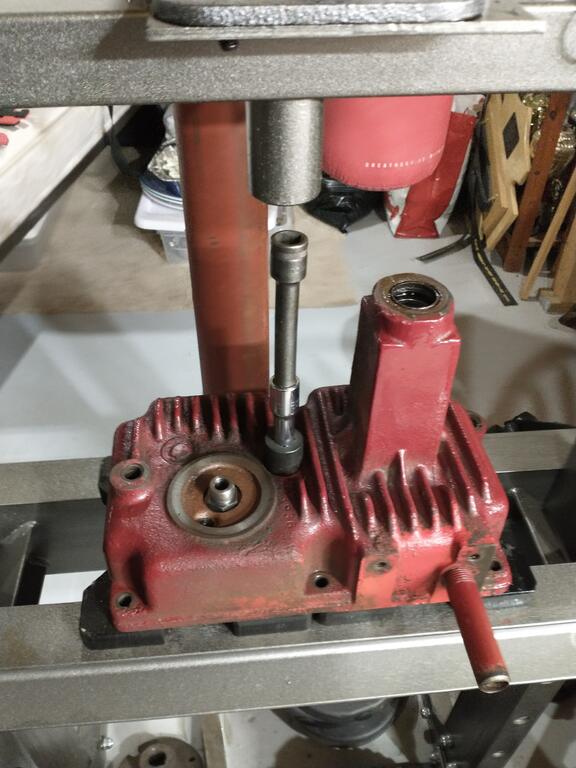

I found a socket and the right length of extensions for use as an arbor in the HF 20 ton press to push out the bad roller bearing. We both carefully and slowly checked the bearings in the old case I had from the Charger. 2 of 2 bearings felt good.

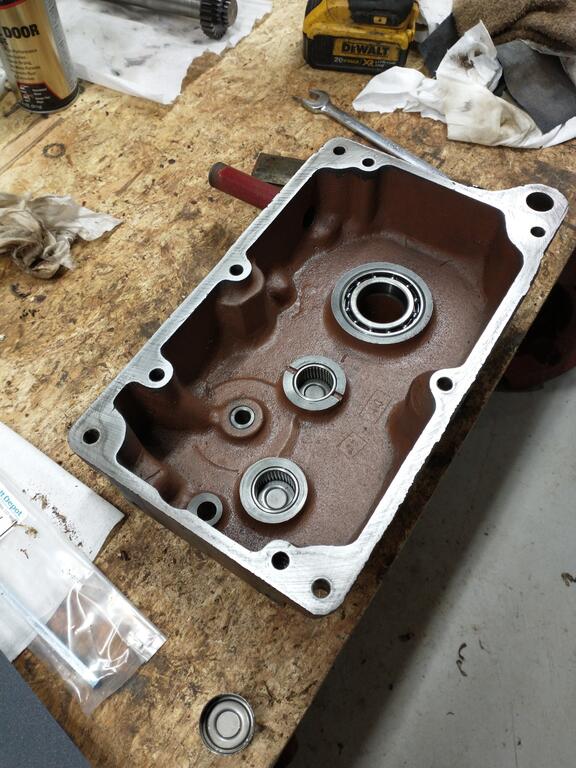

I used one of them in this C160 case. Pressed right in beautifully.

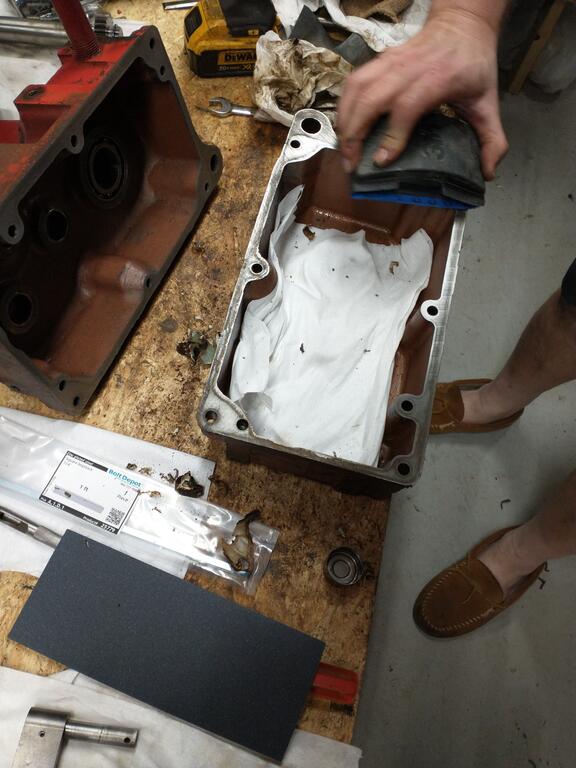

After that I spent some time cleaning and scraping the old gasket off the case halves.

Used a piece of 120 grit sandpaper to smooth out the surface.

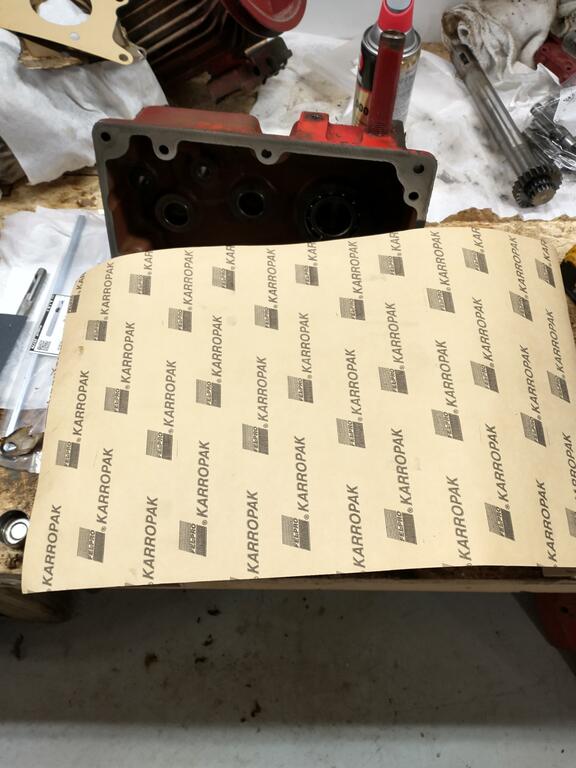

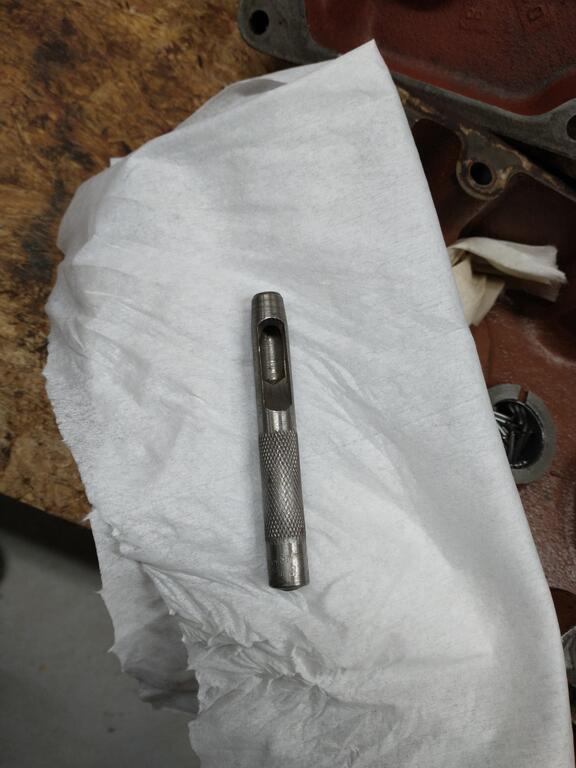

Laid out the gasket material so it'll set flat til I get to making the new one.

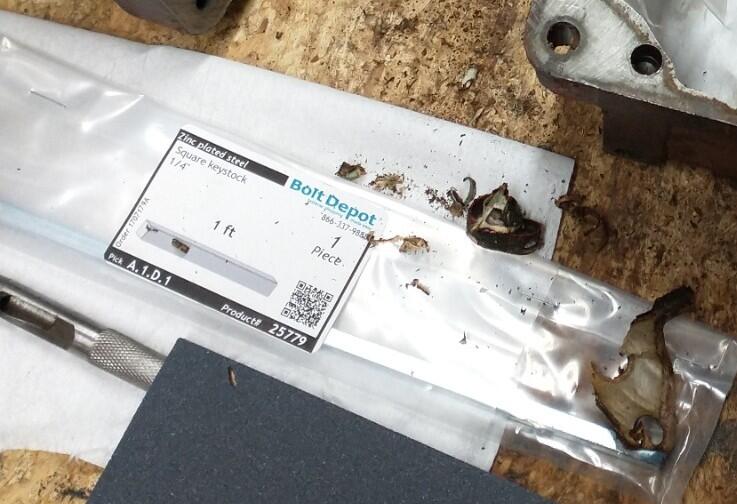

Here's the ¼" square stock for the full length key....





Inventory at work the next two days. Hopefully I'll have time to get something done. Either way, Trina will.

🙂





[WHX?? 48,824]

Make her a sand bag for dolly pardon dents out.

Be interesting to see how dem keyways turn out.

[ebinmaine 67,553]

Garden cart

+

Newspapers

____________

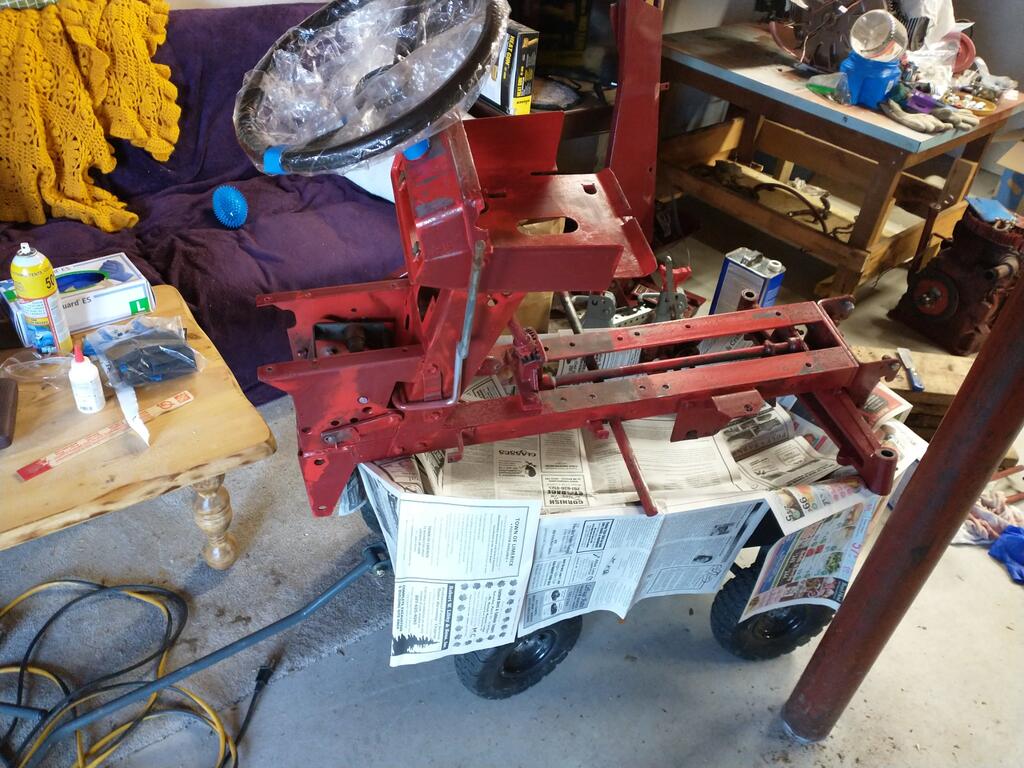

Frame paint system.









[ebinmaine 67,553]

First coat of white primer.









[oliver2-44 9,756]

13 hours ago, ebinmaine said:

We have a Husky brand spray paint gun that was given to us a year or three ago. Never been used.

The Paint Department is gonna give it a shot sometime so I picked up a regulator and water separator.



If this is her first time spraying with a gun may I suggest some practice.  You have picked a complex part for a first spray, it has flat, vertices and upside down surfaces. Get some large cardboard and practice painting it.  Also some scrap angle iron or 2x4 to simulate the parts your painting. Since your boy paint large sheet metal Adjust your spray fan width

To a medium narrower width then adjust your trigger pull so your not putting out so much paint at the narrower width.


I like to do 3 coats. 1 a light tack coat, 2 a almost full coverage coat in a cross wide direction and 3 a final full coverage coat going the long direction of the part. Let each coat dry to a tacky / not wet state before the next coat.  When spraying I half lap each pass.  With your practice painting if your getting orange peel after the 2nd or 3rd coat add a little more thinner to the paint so the spray droplets will lay down /flow together.

I’ll encourage you to use some enamel hardener in your paint.

Also have a small 2/2” or 2” paint brush ready if you get a run.  I dip the brush in thinner, wipe it half dry the lightly brush out run. Brush is also good to hand paint those backside of small surfaces the spray can’t get to because you spray is straight line,it doesn’t go around corners.

Who am I kidding, I’m no expert- go watch some YouTube videos



13 hours ago, ebinmaine said:

[ebinmaine 67,553]

Fair amount of fun today.



We moved the stand up drill press out of the basement and to the barn.

Moved my biggest bench vise from a high mount on one bench to a low mount across the room where the drill press was.



I used the HF 20 ton press to remove the hub from the other  axle.

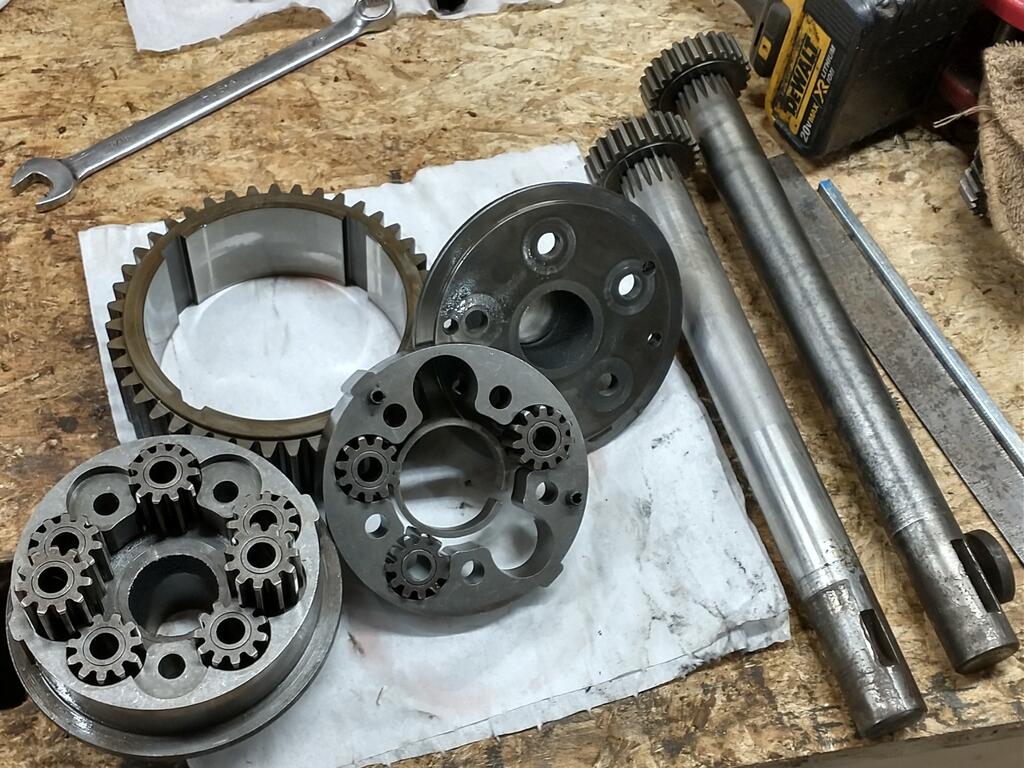

Got the 10 pinion Limited Slip Differential apart so I could inspect it.





I'll use the longer axles that were with the LSD for a slightly wider rear stance.





Trina was slinging paint out of a rattle can off n on all day.

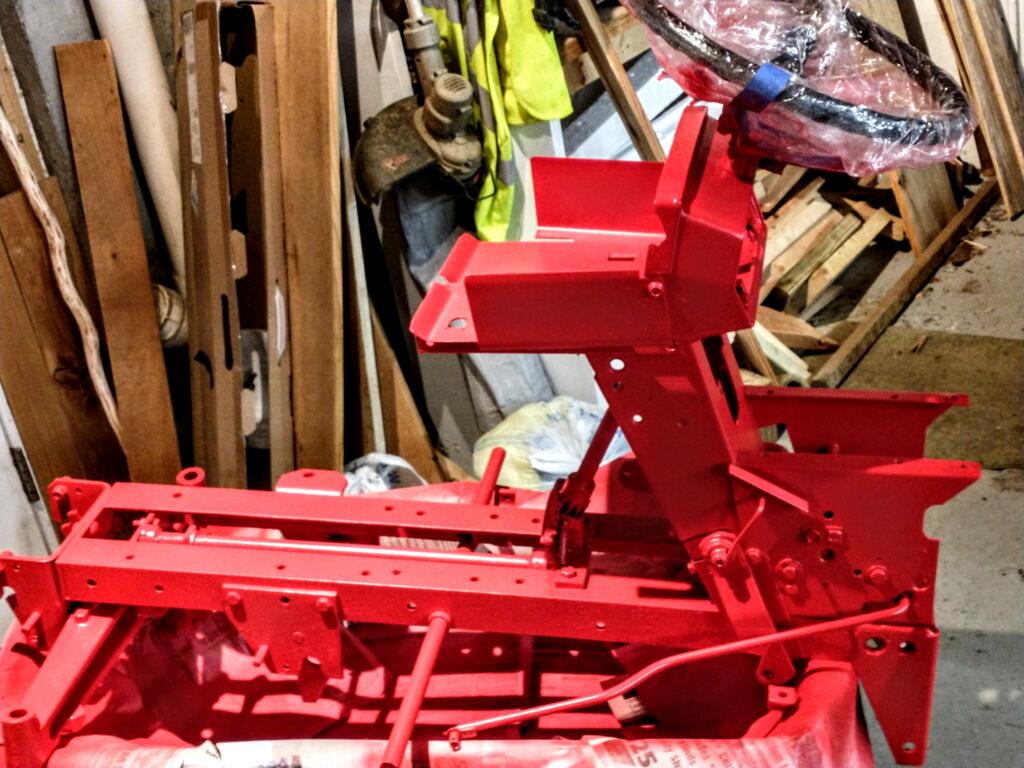

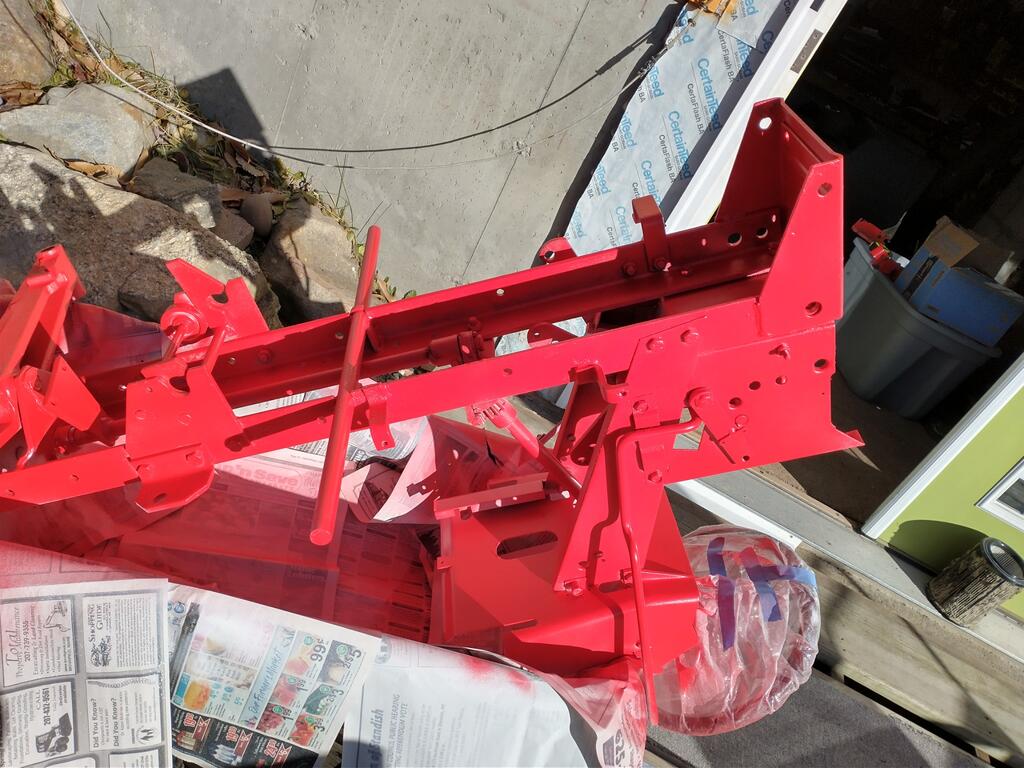

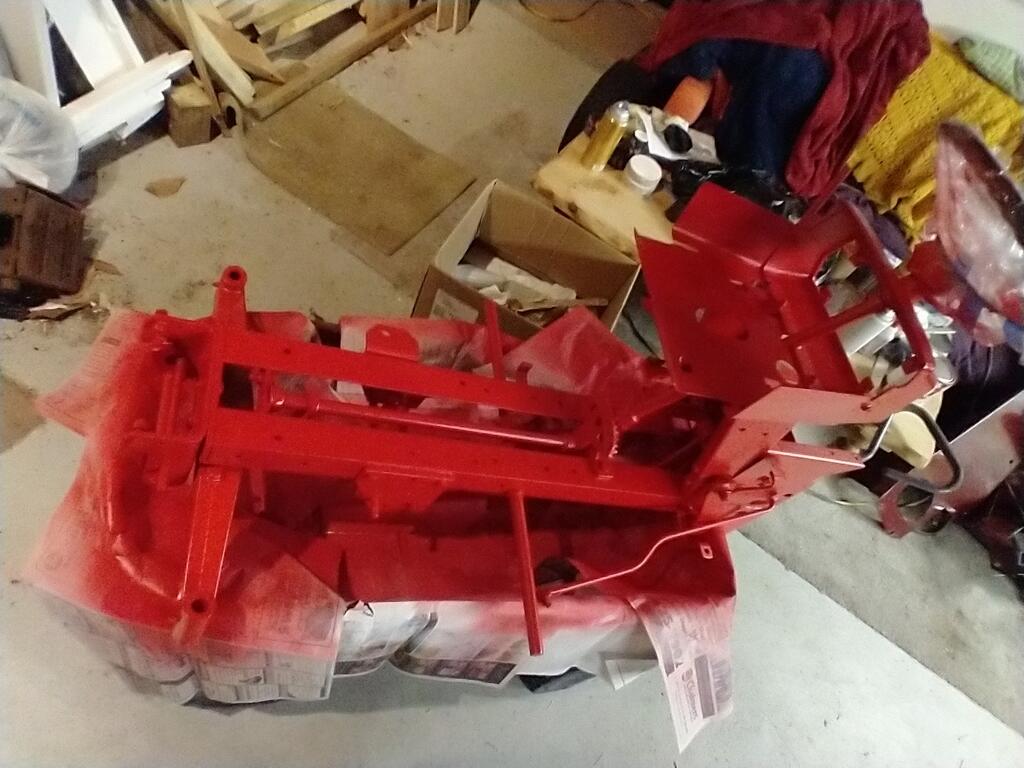

The frame and steering tower is done.

@WHX?? Lookitt this RED!!











Hoping tomorrow I'll get a minute to try to cut grooves in the axles.





[Handy Don 12,233]

Are those differential end plates heavily scored by the pinions or is that just "brushed" surface?



[WHX?? 48,824]

2 hours ago, ebinmaine said:



@WHX?? Lookitt this

' Bout freaking time you took off those rose colored glasses!!!

'Course yer better half whoop yer nuggets she don't get a blue horse... can you say candy 🍎 red?!?



So you didn't use the gun?

Edited December 11, 2022 by WHX??

[ebinmaine 67,553]

2 hours ago, Handy Don said:

Are those differential end plates heavily scored by the pinions or is that just "brushed" surface?



Oh I'm sure they're scored some. They only ride in one place.



1 hour ago, WHX?? said:

' Bout freaking time you took off those rose colored glasses!!!

'Course yer better half whoop yer nuggets she don't get a blue horse... can you say candy 🍎 red?!?



So you didn't use the gun?



No gun in the chassis.  Waaaaaay too many angles.



Best to learn a gun on more even metal.





[RandyLittrell 3,884]

3 hours ago, ebinmaine said:

Trina was slinging paint out of a rattle can off n on all day.



What color are you using? I can't find anymore regal red for the life of me, even online. I guess they got rid of it!!





Randy

[ebinmaine 67,553]

5 minutes ago, RandyLittrell said:

What color are you using?



Ain't Regal Red Sir.



That's Rust-O-leum 2X Apple Red Gloss.





[RandyLittrell 3,884]

3 hours ago, ebinmaine said:



I'll use the longer axles that were with the LSD for a slightly wider rear stance.



I'm guessing that can help with moving the bearing and seal contact area to fresh metal, or are the cases all the same and the axles just come out of the case more?





Randy

[Horse Newbie 7,071]

39 minutes ago, ebinmaine said:

Ain't Regal Red Sir.



That's Rust-O-leum 2X Apple Red Gloss.

Oh the humanity !

[Lee1977 6,663]

1 hour ago, RandyLittrell said:



What color are you using? I can't find anymore regal red for the life of me, even online. I guess they got rid of it!!





Randy

Tactor supply has IH red tractor paint in Rustoleum.

[oliver2-44 9,756]

2 hours ago, RandyLittrell said:



What color are you using? I can't find anymore regal red for the life of me, even online. I guess they got rid of it!!





Randy

The Jungle has it and my Home Depot and Ace also has Regal Red.

[RandyLittrell 3,884]

2 minutes ago, oliver2-44 said:

The Jungle has it and my Home Depot and Ace also has Regal Red.



I did find a place in the city that had regal red in a gal can, which is what I should buy. But I have a few parts I have been painting with rattle cans and those are what I am really having trouble finding.







Randy

[kpinnc 12,072]

On 12/9/2022 at 9:51 AM, ebinmaine said:

Frame paint system.



That works!



2 hours ago, Lee1977 said:

Tactor supply has IH red tractor paint in Rustoleum.



The farm and implement always seemed to have higher gloss than the regular stuff.

[ebinmaine 67,553]

7 hours ago, RandyLittrell said:



I did find a place in the city that had regal red in a gal can, which is what I should buy. But I have a few parts I have been painting with rattle cans and those are what I am really having trouble finding.







Randy

Randy you may be able to order qts online for home delivery from some places.

Combine the order with other items and likely get free shipping too.

[ebinmaine 67,553]

9 hours ago, RandyLittrell said:



I'm guessing that can help with moving the bearing and seal contact area to fresh metal, or are the cases all the same and the axles just come out of the case more?





Randy



It does give a fresh clean straight metal surface, yes.



The axles are identical but for length.

The ones in the OE transmission are 11-3/4".

I'll have to check to see what axles I have available.

I think I'll use a 12-1/2" and a 13"+



Another added benefit is that the hub has no chance to contact the trans case with the longer axles.  This eliminates possibility of the seal being destroyed by the hub.



[Horse Newbie 7,071]

He’s building a Show Tractor, so he wanted “Candy Apple”.

[ebinmaine 67,553]

7 minutes ago, Horse Newbie said:

He’s building a Show Tractor, so he wanted “Candy Apple”.

No sir. That ain't it.

No show. No candy.



........



Not this time...... . ..



🤔🤔🤔🤔🤔





This one's worker only. Likely it'll never leave the yard unless @JCM puts in a request for attendance to his Meet N Greet.









[Horse Newbie 7,071]

My apologies @ebinmaine…

I miss read an earlier post…

You said “Apple Red”, not “Candy Apple Red”.

Please don’t send someone down to break my legs…

[ebinmaine 67,553]

24 minutes ago, Horse Newbie said:

My apologies @ebinmaine…

I miss read an earlier post…

You said “Apple Red”, not “Candy Apple Red”.

Please don’t send someone down to break my legs…

Fine.

I guess.

Ok..





Hahahahahahaha.





[ebinmaine 67,553]

Quite a bit of cleaning and scraping and cleaning and painting done today.



Lots of wire brushing and sanding.

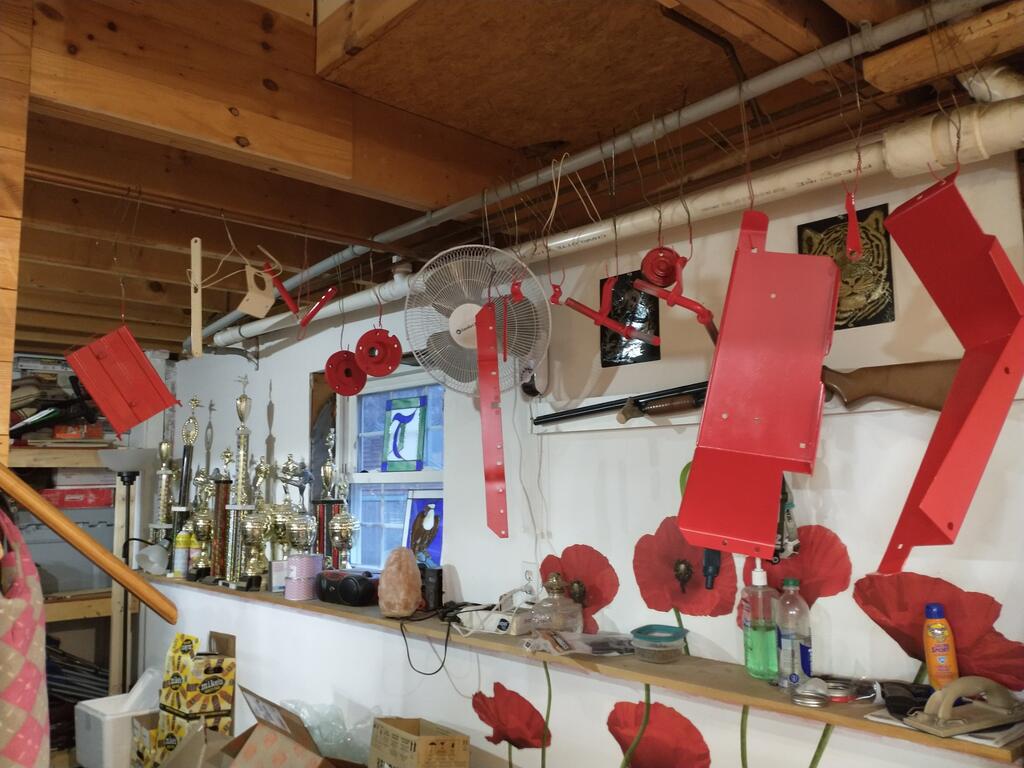

Again we have a Wheelhorse hanging mobile.





Transmission case is painted.

Before.





After.

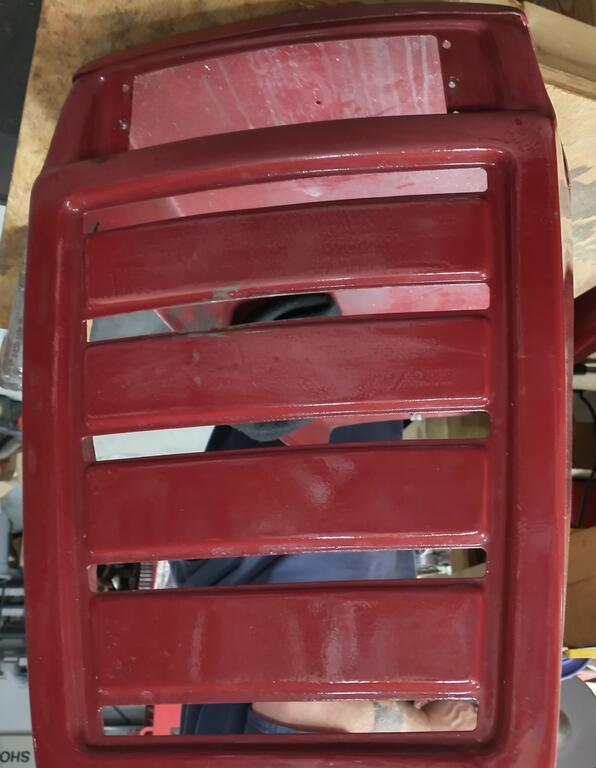

Here's a good pair of pics that shows the work Trina did on the hood.

Note the spacing between the cross bars.

Dents and warpage.





Here she's most done.

Spacing is even.







I ordered hoses and more from Lowell...





 ...and an engine gasket set from isavetractors.
