About This File

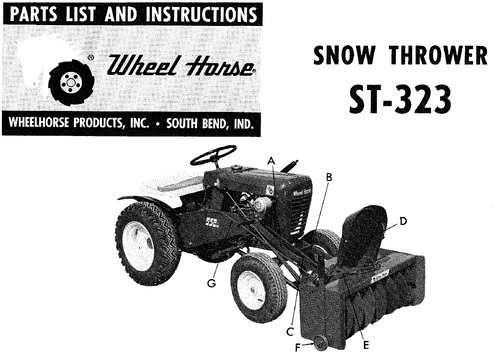

Operator manual #A-7138
IPL
2 page supplement #112-A dated 10/8/62
4 pages 433.49KB
ST-323 fits short frame tractors
1961 model 701
1962 models 502, 552 and 702
1963 models 603, 653 and 753
1964 model 604
Chute belt 1590 (3L x 43" or 3/8" x 43")
Drive belt 1589 (4L x 56.5" or 1/2" x 56.5")
Snowthrower 1963 32in model ST-323
1963 serial numbers that have shown up for the ST-323
A-27183
A-27341
A-29674
32" Snowthrower DNA - For tractors with horizontal shaft engines
1963 model ST-323 - Fits 701, 502, 552, 702, 603, 653, 753, 604
(Drive belt 1589 1/2" x 56.5") (Chute turned by belt 1590 3/8" x 43")
1964 model ST-324 - Fits 701, 502, 552, 702, 603, 633, 653, 753, 604, 654, 704, 854, 605, 655, 855
(Uses # 41 chain Pitch 1/2" and roller width 1/4") (Drive belt 1589 1/2" x 56.5") (First model to use cable on the chute)
1965 model ST-325 - Fits 701, 502, 552, 702, 603, 633, 653, 753, 604, 654, 704, 854, 605, 655, 855, 1045, 1055
(Uses # 41 chain Pitch 1/2" and roller width 1/4") (Drive belt 1589 1/2" x 56.5")
1966-1967 model ST-326 - Fits 701, 502, 552, 702, 603, 633, 653, 753, 604, 654, 704, 854, 605, 655, 855, 1045, 1055, 606, 656, 856, 876, 607, 657, 857, 867, 877
(Uses # 41 chain Pitch 1/2" and roller width 1/4") (Drive belt 1589 1/2" x 56.5")
1968-1969 model 6-2211 - Fits 500 Special, Commando 6, Commando 8, WorkHorse 700
(Formerly ST-326) (Uses # 41 chain Pitch 1/2" and roller width 1/4") (Drive belt 1589 1/2" x 56.5")
1971 model 6-0100 - Fits 800 Automatic, 800 Special, Bronco 14, Charger 12, Raider 10, Raider 12, WorkHorse 800
(No record of 6-0100 at Toro. Suspect it was same as 6-0200 plus 6-9112 in one package)
(Uses # 40 chain Pitch 1/2" and roller width 5/16") (Uses #101460 lift tube and #9750 5/8" x 69" belt)
1972 model 6-0200 plus 6-9112 - Fits Commando 800
(Uses # 40 chain Pitch 1/2" and roller width 5/16") (Uses #102729 lift tube and #102743 5/8" x 65.95" belt)
1972 model 6-0200 plus 6-9112 - Fits 800 Automatic, Bronco 14, Charger 10, Charger 12, Raider 8, Raider 10, Raider 12, Raider 14
(Uses # 40 chain Pitch 1/2" and roller width 5/16") (Uses #101460 lift tube and #9750 5/8" x 69" belt)
1973 model 6-0200 plus 6-9131 - Fits 8hp 4-Speed
(Uses # 40 chain Pitch 1/2" and roller width 5/16") (Use #102729 lift tube and #102743 5/8" x 65.95" belt)
1973 model 6-0200 plus 6-9113 - Fits 8hp 8-Speed, 10hp 8-Speed, 10hp Automatic, 12hp 8-Speed, 12hp Automatic, 14hp 8-Speed, 14hp Automatic, 16hp Automatic
(Uses # 40 chain Pitch 1/2" and roller width 5/16") (Use #101460 lift tube and #9750 5/8" x 69" belt)
1974 model 6-0201 is a 37" model
1975 model 6-0202 is a 37" model
