Tractor 1985 416-8 Wiring Detailed Rev.pdf

Sign in to follow this

admin

2 Screenshots

About This File

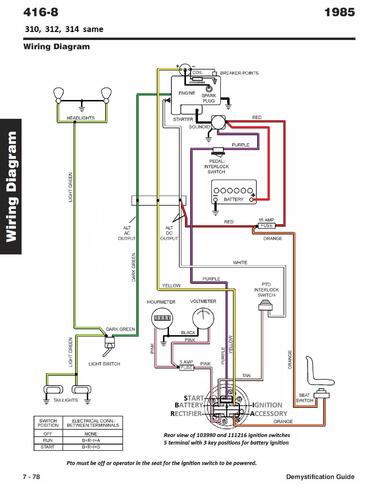

Detailed wiring from the Demystification Guide #492-4509 Color Revised pdf

4 pages 1.2MB

p7-77 to p7-80



Kohler K341S-71371 with battery ignition and 3 amp unregulated charging system

Lights work off AC current from a second flywheel stator only when the engine is running



1985 416-8 model 31-16K801




×
×
