About This File
Operator manual #A5337
IPL
6 pages 1.04MB
Dated 8/72
CCW spindle rotation
Fits vertical shaft CG-7 and CG-8 tractors (1955-2000 Attachment interchange is wrong for 1972
Drive belt 8412 (1/2" x 86")
Spindle belt 8411 (1/2" x 76.94")

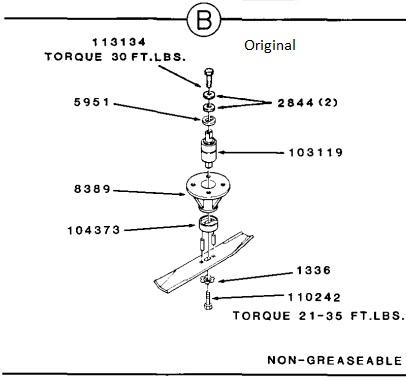

8393 center blade and 8394 left and right blades replaced by 9819 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
Mower Rotary 1972 36in RD model 5-0611
Mower Rotary 1973 36in RD model 5-0611
1973 serial numbers that have shown up for the 5-0611
0922659 - Model 5-0611-8
Was still available in 1974 according to the price list
