About This File
Wiring Detailed 492-4207
Single-Cylinder Detailed Color Revised pdf
4 pages 1.4MB

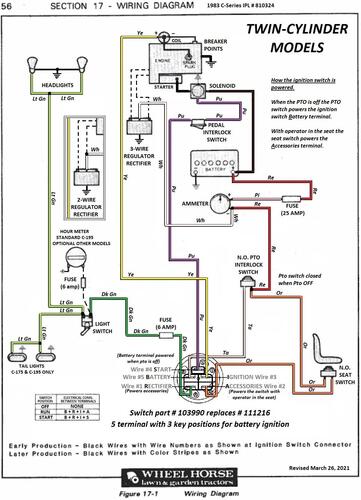

Twin-Cylinder Detailed Color Revised pdf
4 pages 1.4MB
1982 C-85 8-Speed model 01-08K803
1982 C-105 8-Speed model 01-10K803
1982 C-125 8-Speed model 01-12K803
1982 C-145 Auto model 01-14KE03
1982 C-175 Twin 8-speed model 01-17K803
1982 C-175 Twin Auto model 01-17KE02
1982 C-195 Twin Auto model 01-19KE01
How the ignition switch works.
When the pto is OFF the pto switch powers the Battery terminal of the ignition switch.
With operator in the seat the seat switch powers the Accessory terminal of the ignition switch.
There is no direct connection to the battery.
