Tractor 1973 4-spd 8hp 4-speed HS D&A OM Wiring Rev SN.pdf

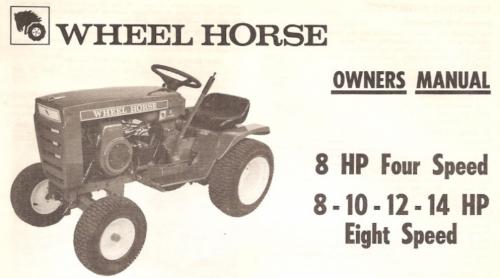

Operator manual #A-5324
Wiring
6 pages 1.98MB

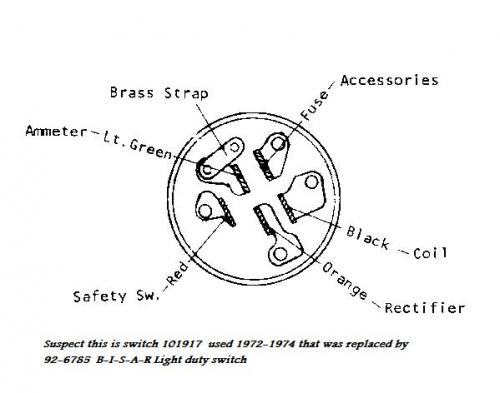

Terminals on 101917 ignition switch may not be identified. This switch has been replaced by 92-6785.
3 pages 269KB

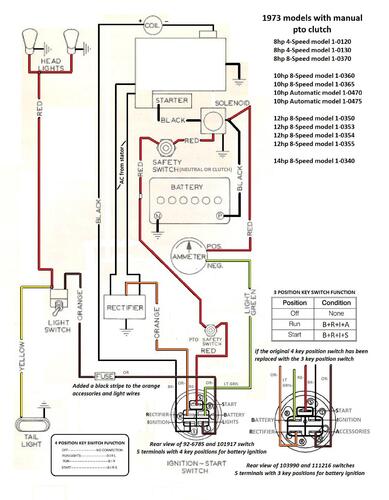

Manual pto clutch wiring Color

1 page 500KB

Horizontal shaft
Medium frame 43-1/2" wheelbase with 28-1/2" hood

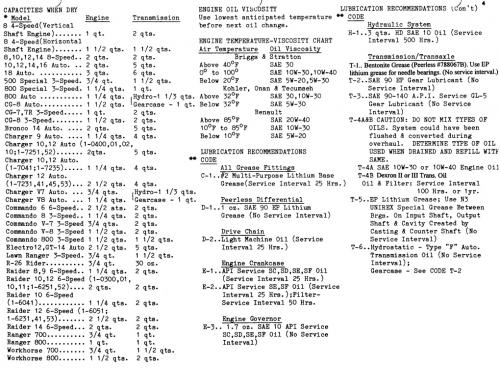

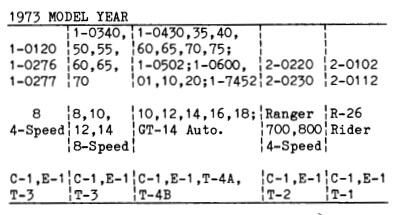

Lube chart SS

Details & Attachments
3 pages 114.52KB
1973 8hp 4-speed model 1-0120

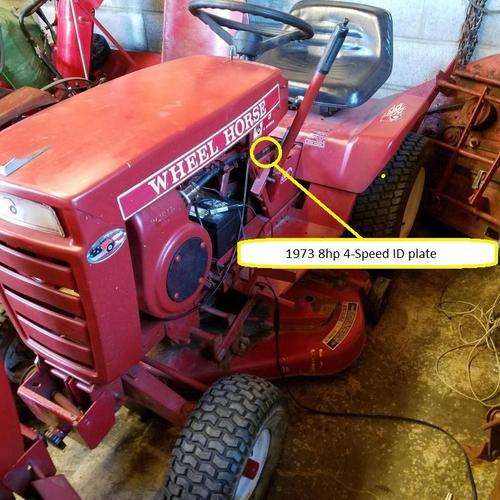

1973 serial numbers that have shown up for the 1-0120
0906750 - Model 1-0120-8
0906781
0906889 - Model 1-0120-8
0906927 - Model 1-0120-8
0907833
0911182
0911272
0911526
0911570

0911579 - Model 1-0120-8

0919918 - Model 1-0120-8
0920037
0920138

0920139 - Model 1-0120-8
0920145 - Model 1-0120-8
0920196 - Model 1-0120-8
0930918 - Model 1-0120-8

0930983

0938301 - Model 1-0120-8
0938573 - Model 1-0120-8
0938689
0941441 - Model 1-0120-8
0941671 - Model 1-0120-8
0941675

0941679 - Model 1-0120-8

0956714 - Model 1-0120-8
0961842 - Model 1-0120-8
0961927
0961952
0961966
0962116
0962272

0962285 - Model 1-0120-8

0963078 - Model 1-0120-8
0963135 - Model 1-0120-8

0963320 - Model 1-0120-8
0963609
0963612

0963630 - Model 1-0120-8

0963684 - Model 1-0120-8
0969025 - Model 1-0120-8
0969068 - Model 1-0120-8
0974158
0974208

0974332 - Model 1-0120-8
0974443
0978013 - Model 1-0120-8
0978073

0978353 - Model 1-0120-8

Details & Attachments
3 pages 113.83KB
1973 8hp 4-speed model 1-0130 - Suspect this was made in Belgium as a Commando 800 and may be a 1974 model

Link to the illustrated parts list
