About This File
Operator manual #317A-318A
IPL

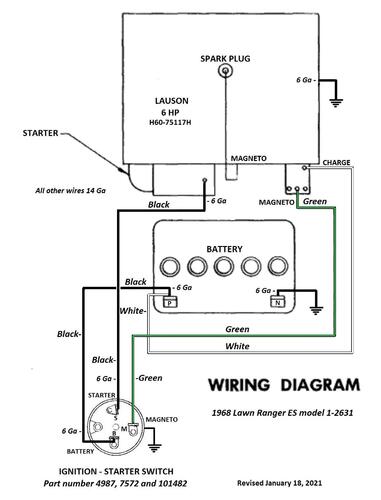

Wiring
15 pages 2.21MB - Color
14 pages 4.01MB - B&W
Wiring Color pdf
1 page 256KB
Tractor drive belt for 1-1631 and 1-2631 #9691 - 1/2" x 70"
Includes 5-3321 32" mower deck IPL
Includes 5-3322 32" mower deck IPL #317S-318S Dated 10/3/67
Dated 5/22/67
Mower belt 1555 replaced by 113912 (1/2" x 44")
8777 2-blade set replaces 3719, 7760 and 7909 left blades and 3718, 7761 and 7908 right blades

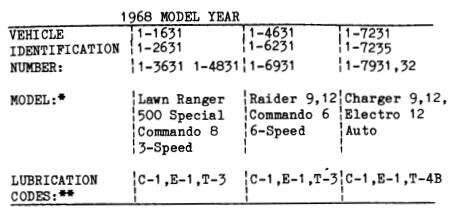

Lube chart SS

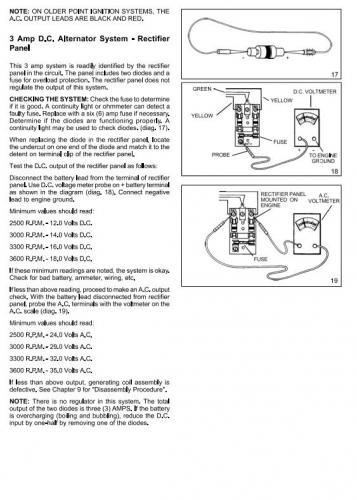

Diode and 6 amp fuse panel from Tecumseh service manual
1 page 464KB
6 amp fuse part number 29561
Diode part number 30842 replaced by 36909 - 2 required
Details & Attachments
2 pages 108.68KB

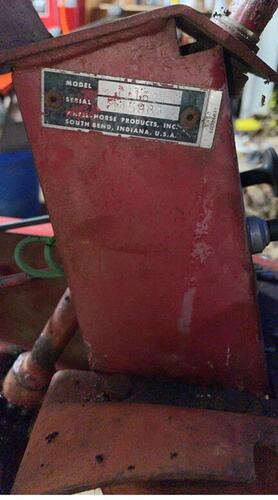

1968 Lawn Ranger model 1-1631 - Details page has the correct engine but should be recoil start
1968 serial numbers that have shown up for the 1-1631
111594 - Made in Belgium
385098
38509x
385169
387308
387394
411203
426625
446430 - May be a 1-2631
469015
469021
469553 - Made in USA Located in UK
469652 - Made in USA Located in UK
469720 - Located in Europe
Details & Attachments
2 pages 109.07KB

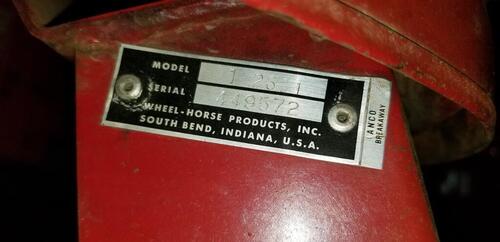

1968 Lawn Ranger model 1-2631 - Electric start
