About This File

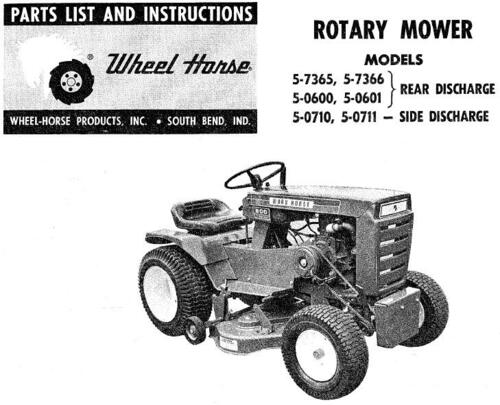

Operator manual #A-5122
IPL
4 pages 1.13MB
Fits long frame tractors
Clockwise spindle rotation
Drive belt 9360 (1/2" x 95.63") [1/2" x 97" in ipl looks wrong]
Spindle belt 8411 (1/2" x 76.94")

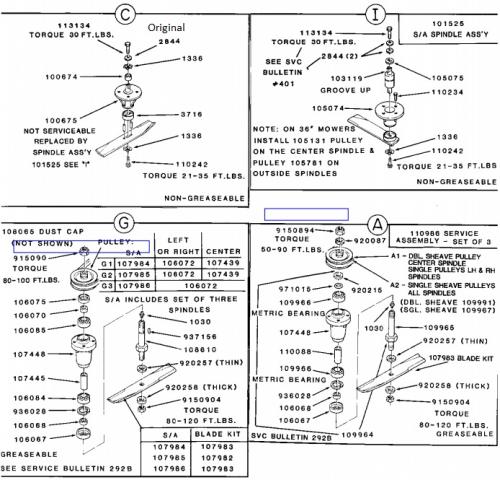

Mower spindle assemblies could be C, A1, G2 or Z
For A1 see service bulletin 292B
For G2 see service bulletin 292B
9187 center blade and 9188 left and right blades replaced by 8969 3-blade kit and no longer available (Hole 5/8in.x3/4in. Double-D)
8969 blade set available again from Toro June 4, 2019
Mower Rotary 1971 36in RD model 5-0601
1971 serial numbers that have shown up for the 5-0601
775508 - Model 5-0601-6 (Most locations listed as 1972 model only)
Mower Rotary 1972 36in RD model 5-0601
