About This File
IPL #810121R1 or 810121 R1
7 pages 1.34MB
Dated 10/78
Fits C-Series tractors
Drive belt 102741 (1/2" x 96.6") for B-Series & C-Series tractors with 45-1/2" wheelbase (Gates replacement BladeRunner 6638BR 17/32" x 96.75")
Spindle belt 8411 (1/2" x 76.94")

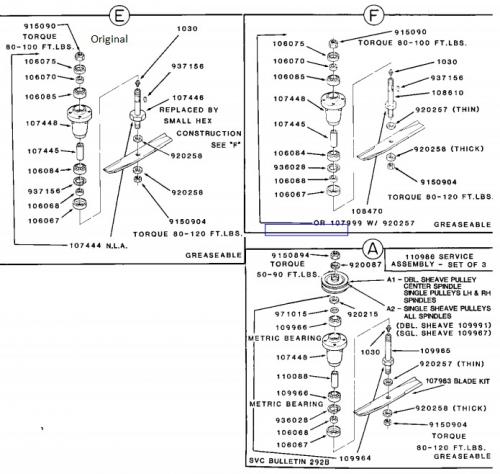

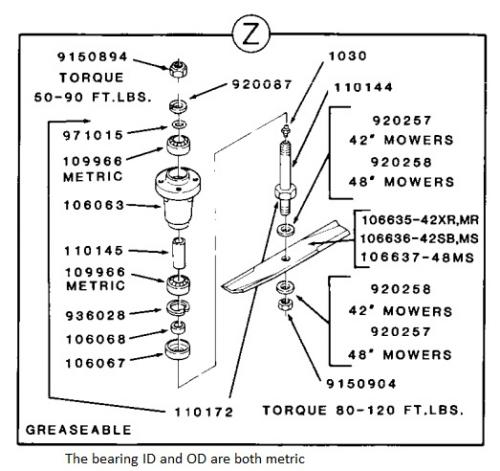

Mower spindle assemblies could be E, A1, F or Z
For A1 see service bulletin 292B
107983 3-blade set replaces 107437 left and right blades (12-1/8") and 107438 center blade (14-1/8") (Hole 3/4" round)
Mower Rotary 1979 36in SD model 95-36MS01
1979 serial numbers that have shown up for the 95-36MS01
029405 - Build date 1979 9114 April 24 Tuesday
029451 - Build date 1979 917x June
