About This File
Operator manual #A-7139
IPL
2 pages 252.51KB
Self powered by vertical shaft engine 6hp - Lauson V60-70094d
Drive belt 1579 replaced by 1554 (4L/A x 24 or 1/2" x 24")
Tiller 1964 24in model WT-244
1964 serial numbers from Yahoo database range from A-50086 to A-75181 and 003301 to 049725 (There are some very early 1965 models in this group preparing for the 1965 model year so serial numbers overlap with 1965)
1964 serial numbers that have shown up for the WT-244
021078
021145 - May be 021175
021452
Tiller 1965 24in model WT-244
1965 serial numbers from Yahoo database range from 030922 to 147399 (There are some very early 1965 models in this group preparing for the 1965 model year so serial numbers overlap with 1964)
040025

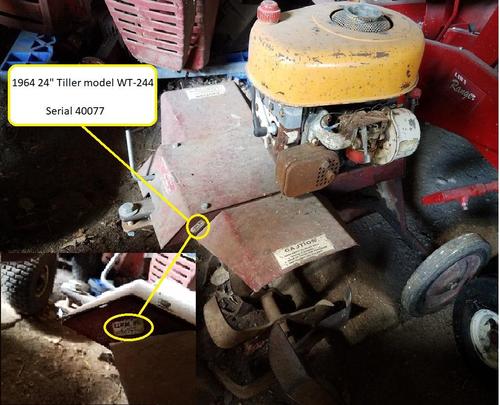

040077

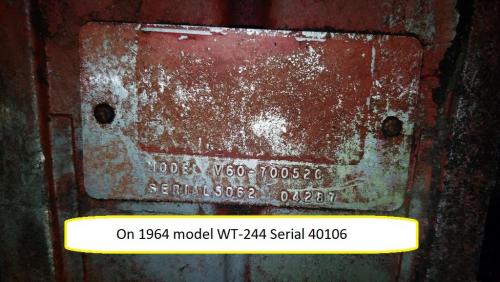

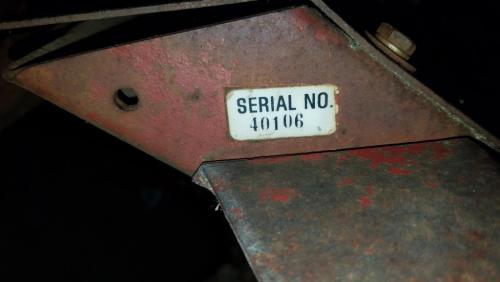

040106 - Engine V60-70052C Serial 5062 04287
040122 - Engine V60-70052C Serial 5062 04934
Tiller 1966 24in model WT-244
1966 serial numbers from Yahoo database range from 154770 to 293111
