About This File

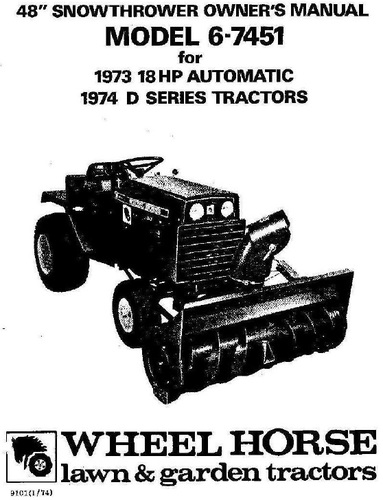

Operator manual #803865
IPL
18 pages 2.76MB
Fits 18hp Auto and D-Series Auto models
Supplied by Haban. Basic unit also used by International Harvester and Bolens
42in snowthrower listed in the 1973 18hp Auto operator manual model number 6-7351
Drive belt is # 200170 but not in the Wheel Horse belt charts so don't know the dimensions.
Gates replace 200170 with their 6853 and Napa with their 4L530W - 5/8" x 53"
Stens replaces 200170 with their 248-053 - 5/8" x 53"
We have to assume the 5/8" x 53" belt is correct.
Owners have reported that a 5/8" x 49" belt works well in this application.
Another reported a 1/2" x 49" belt fits.
Snowthrower 1973 42in model 6-7351 - No record @ Toro
1973 serial numbers that have shown up for the 6-7351
Snowthrower 1973 48in model 6-7451
1973 serial numbers that have shown up for the 6-7451
0983056 - This is a 1974 serial number - At the Toro MPV using model 66-48ST01 the 6-7452 model shown with 983056 and up serial number. May be 1st serial number for 6-7451 as listed in OM
Snowthrower 1974 48in model 6-7451
1974 serial numbers that have shown up for the 6-7451
0983056 - This is a 1974 serial number - At the Toro MPV using model 66-48ST01 the 6-7452 model shown with 983056 and up serial number. May be 1st serial number for 6-7451 as listed in OM
0983379 - Model 6-7451-9
0983564 - Model 6-7451-9
48" Snowthrower DNA
1973-1974 model 6-7451 replaced by
1975 model 6-7452
1976 model 66-48ST01
1977 model 76-48ST01
1978 model 86-48ST01
1979 model 96-48ST01
1980-1982 model 06-48ST01
